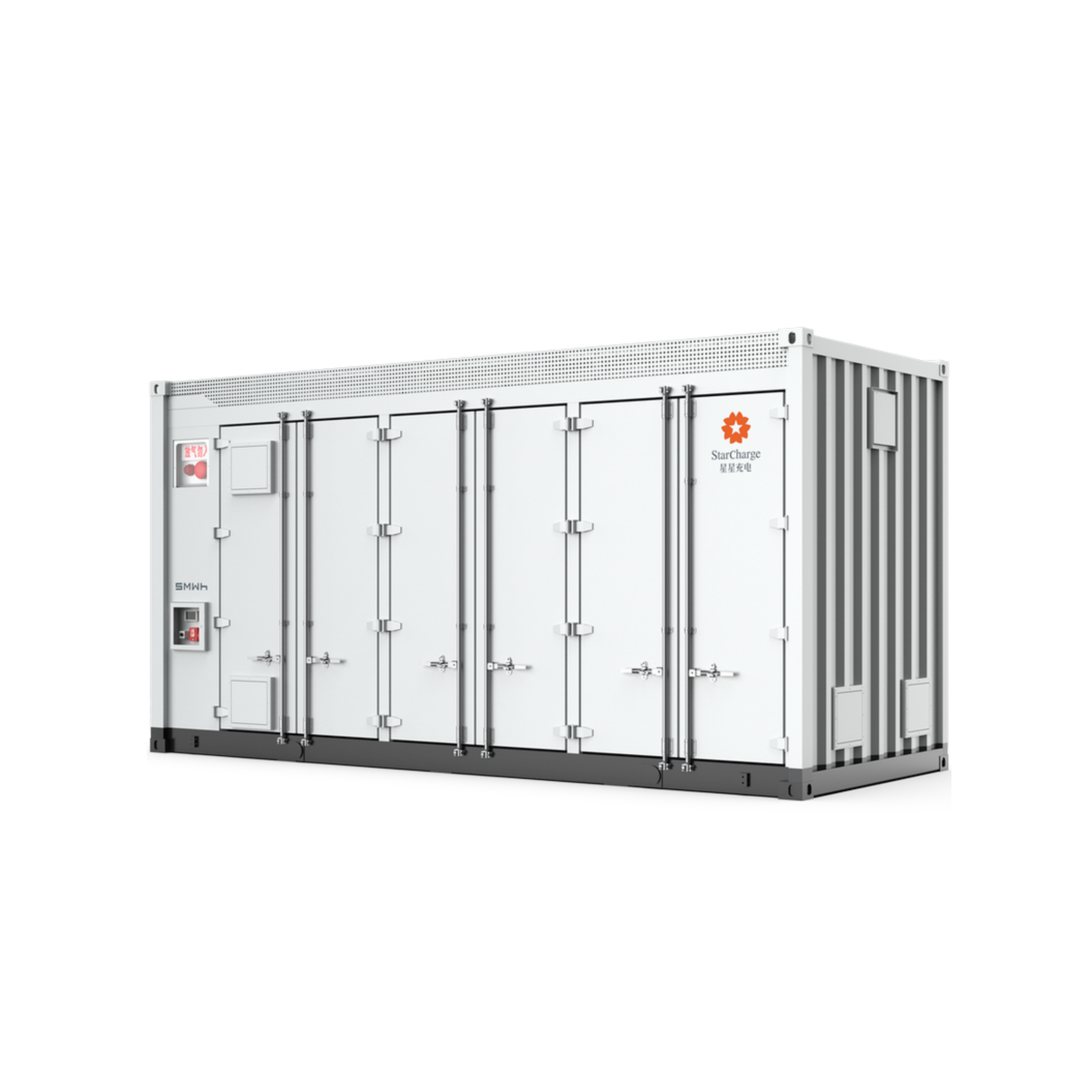

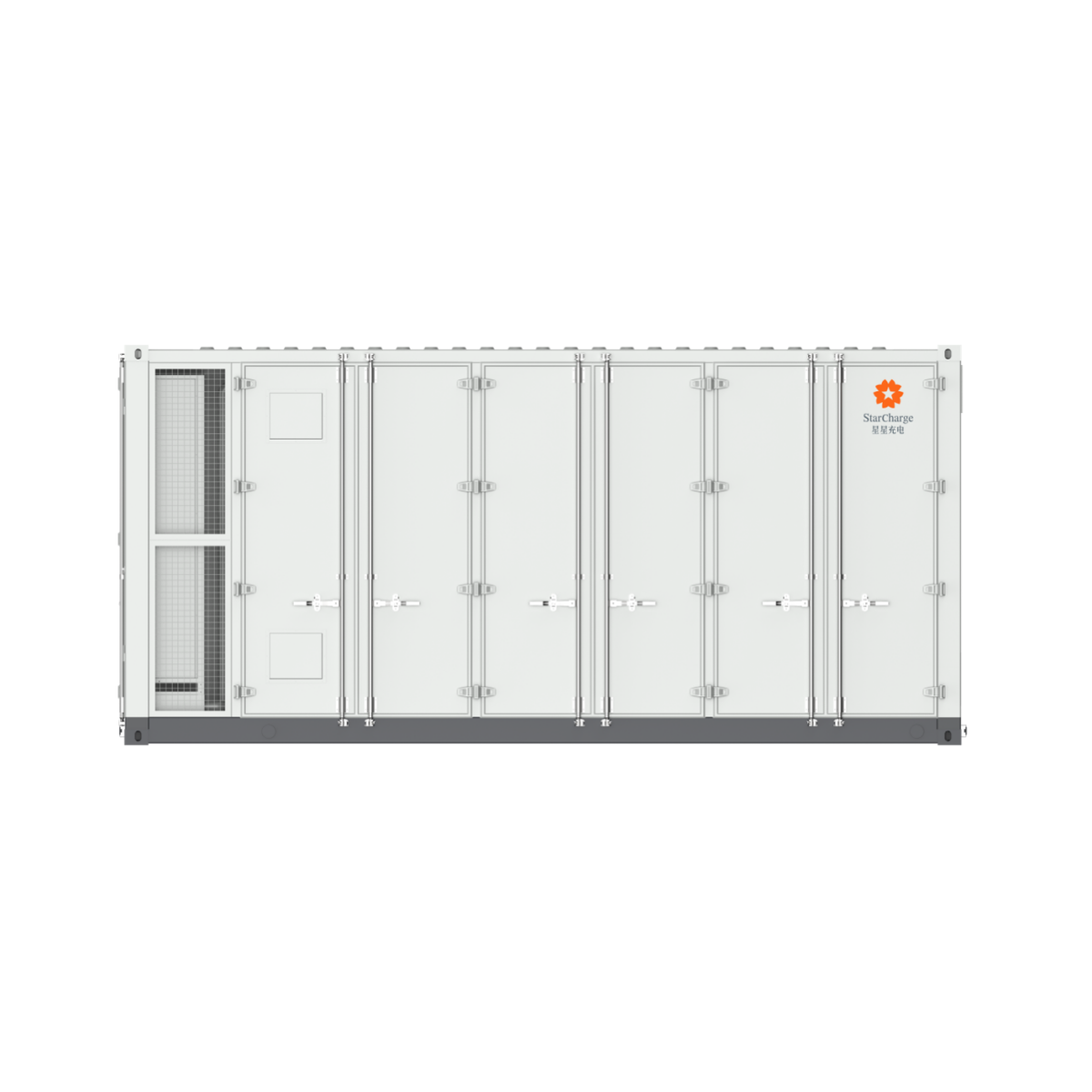

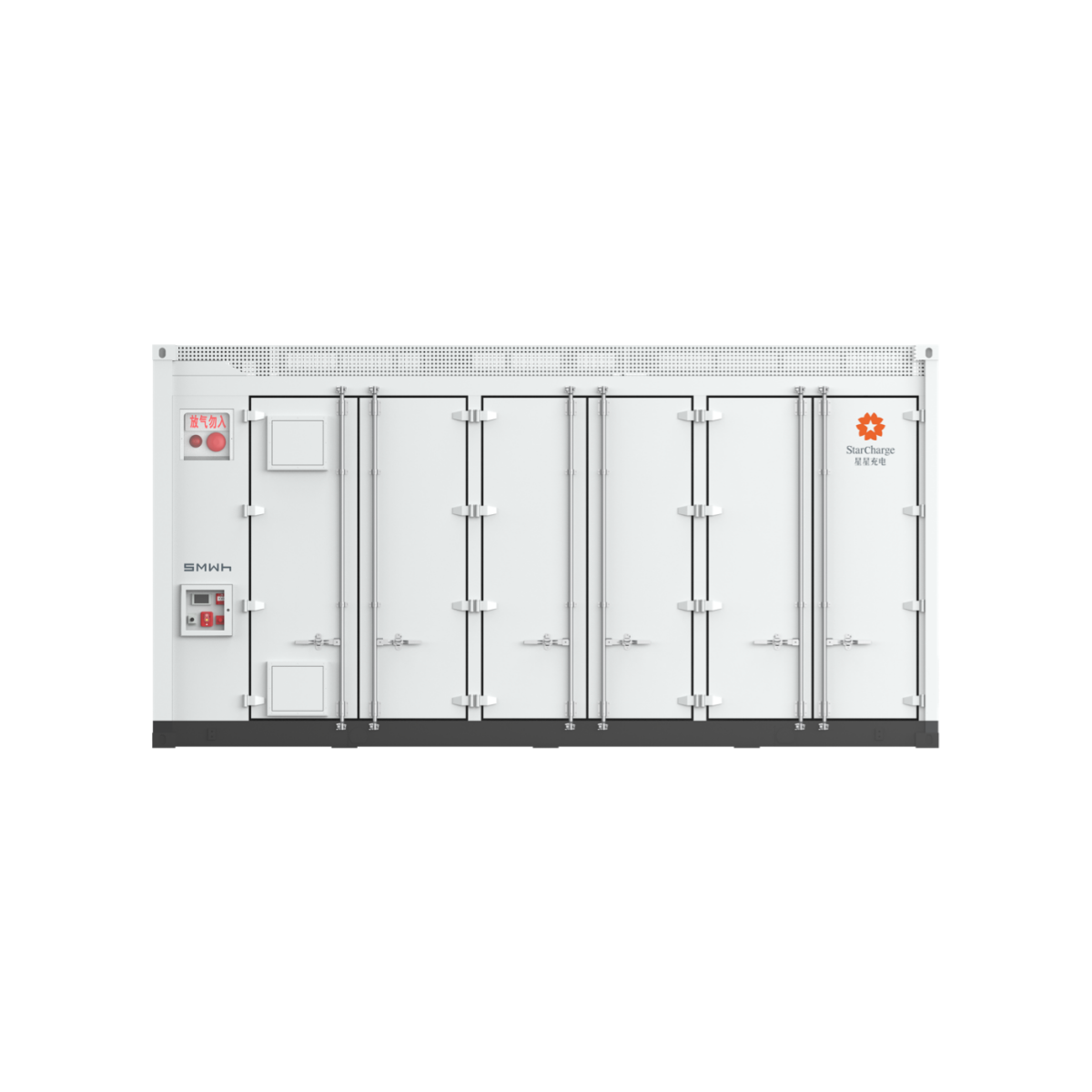

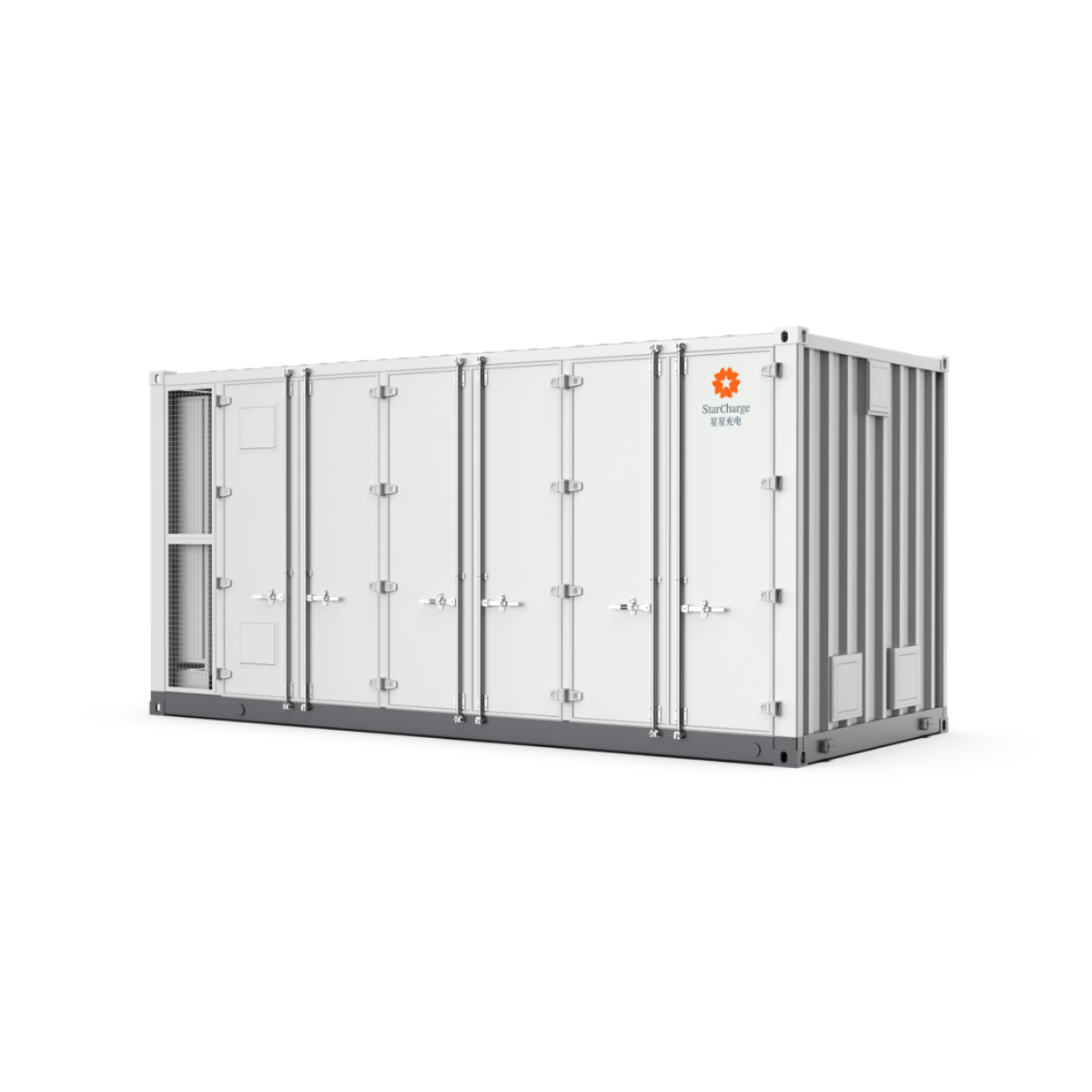

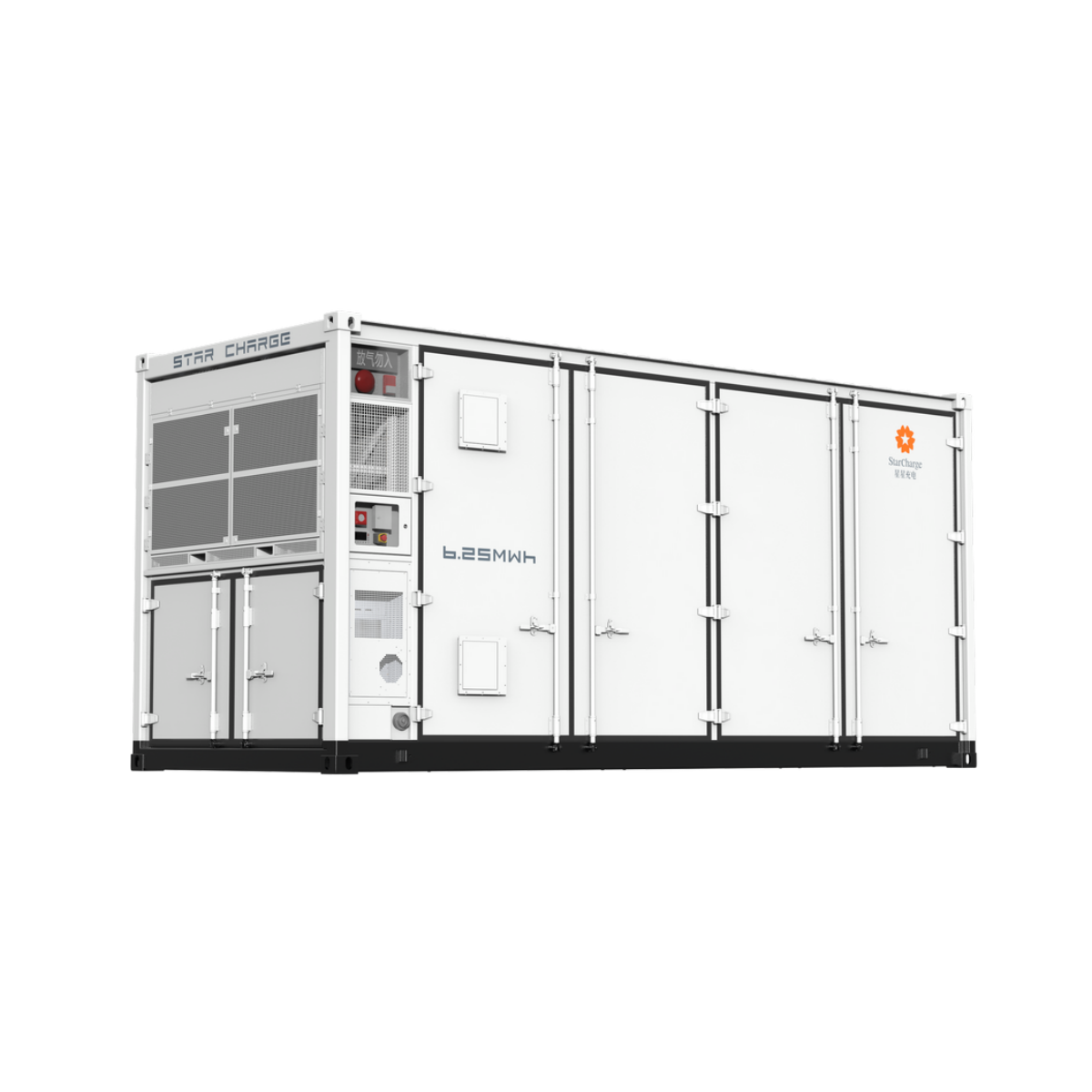

Utility Scale 5MWh Energy Storage Container 2.5MW Grid-Forming PCS LFP BESS with AI Thermal Management
Utility Scale 5MWh Energy Storage Container 2.5MW Grid-Forming PCS LFP BESS with AI Thermal Management
Utility Scale 5MWh Energy Storage Container 2.5MW Grid-Forming PCS LFP BESS with AI Thermal Management
Utility Scale 5MWh Energy Storage Container 2.5MW Grid-Forming PCS LFP BESS with AI Thermal Management
Utility Scale 5MWh Energy Storage Container 2.5MW Grid-Forming PCS LFP BESS with AI Thermal Management
1 / 5
Utility Scale 5MWh Energy Storage Container 2.5MW Grid-Forming PCS LFP BESS with AI Thermal Management
Utility Scale 5MWh Energy Storage Container 2.5MW Grid-Forming PCS LFP BESS with AI Thermal Management
Utility Scale 5MWh Energy Storage Container 2.5MW Grid-Forming PCS LFP BESS with AI Thermal Management
Utility Scale 5MWh Energy Storage Container 2.5MW Grid-Forming PCS LFP BESS with AI Thermal Management
Utility Scale 5MWh Energy Storage Container 2.5MW Grid-Forming PCS LFP BESS with AI Thermal Management

Utility Scale 5MWh Energy Storage Container 2.5MW Grid-Forming PCS LFP BESS with AI Thermal Management

Send Inquiry

Product Description

Product Presentation 1
Product Presentation 2
Product Details & Applications

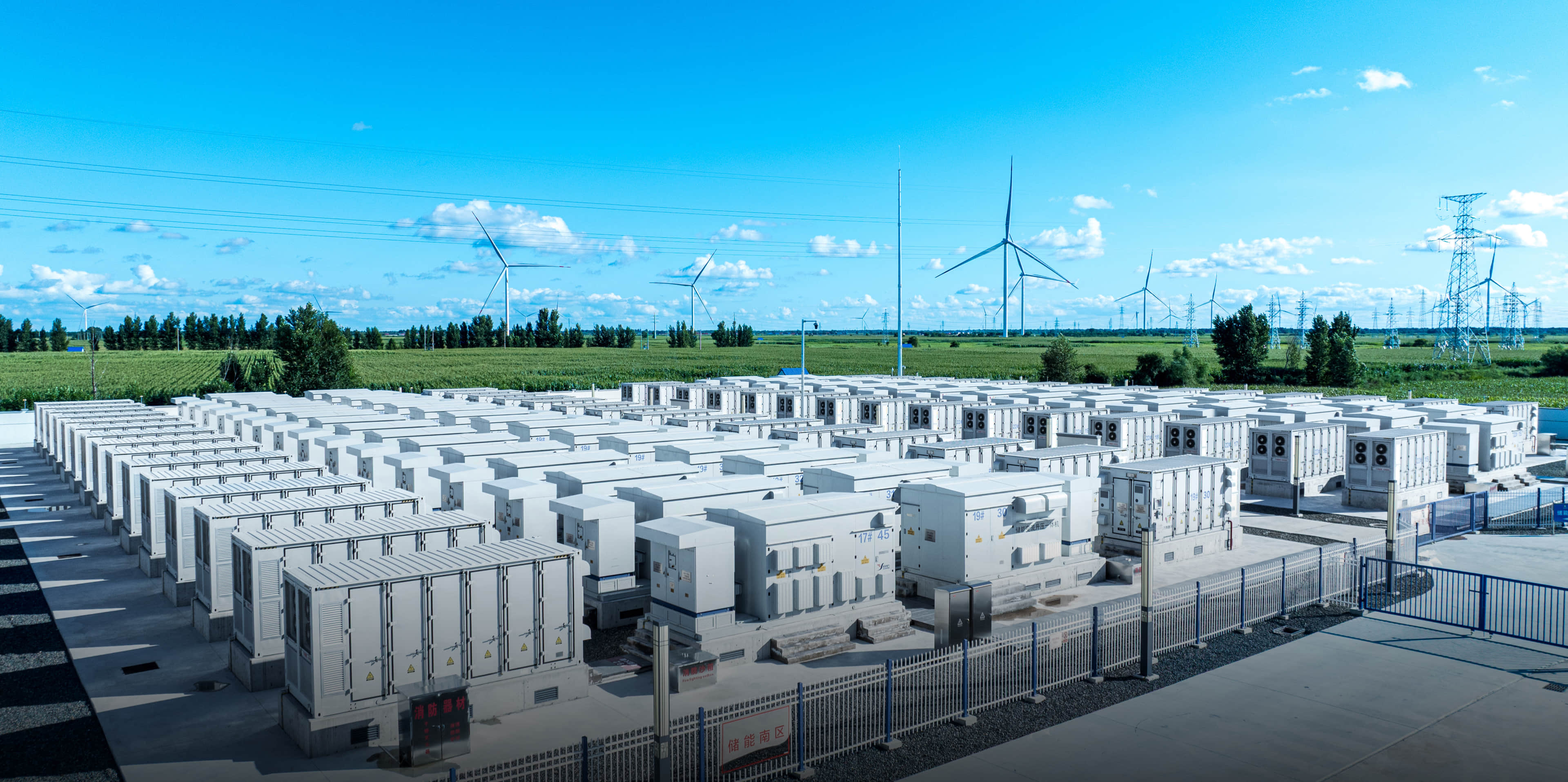

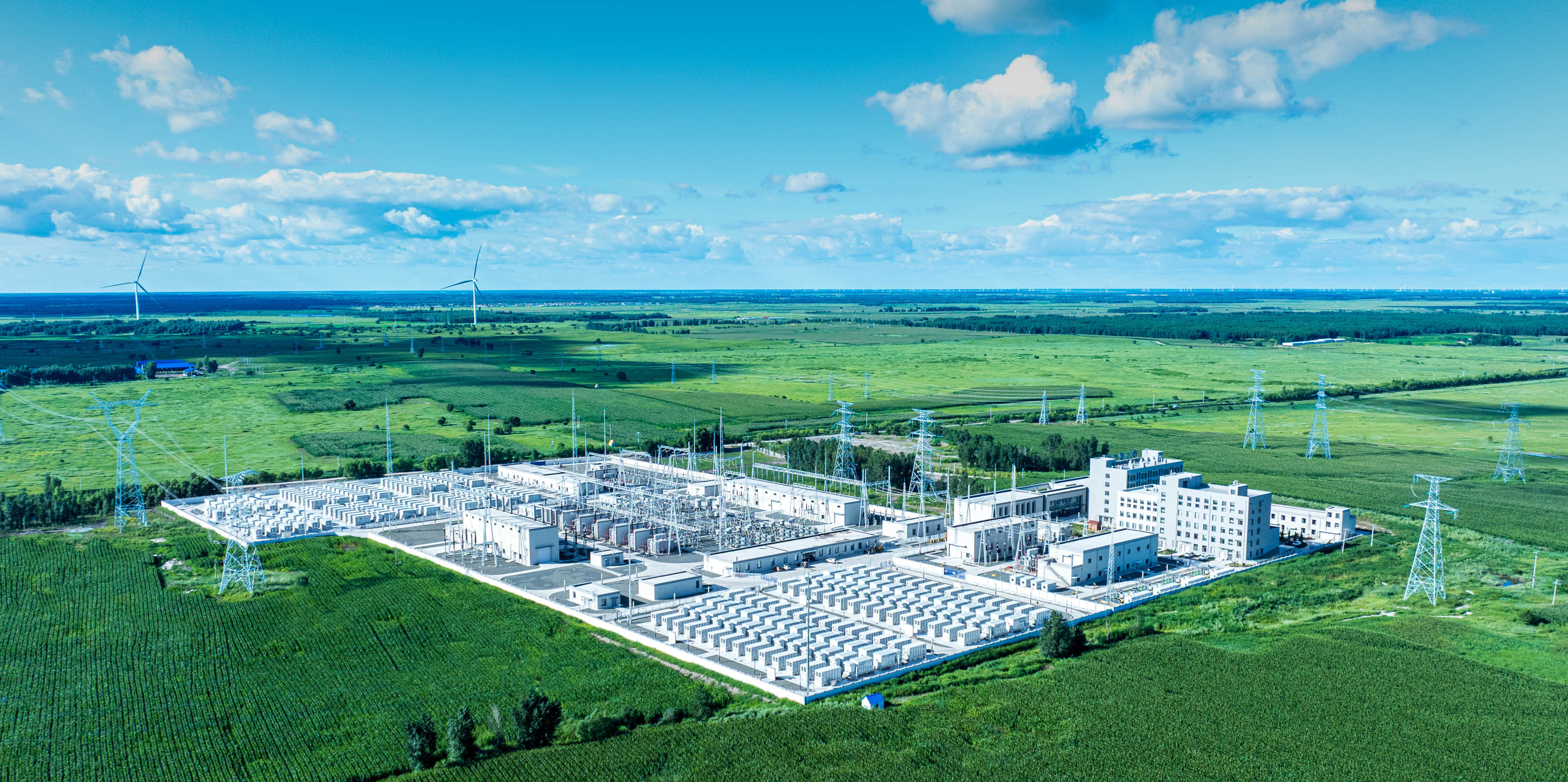

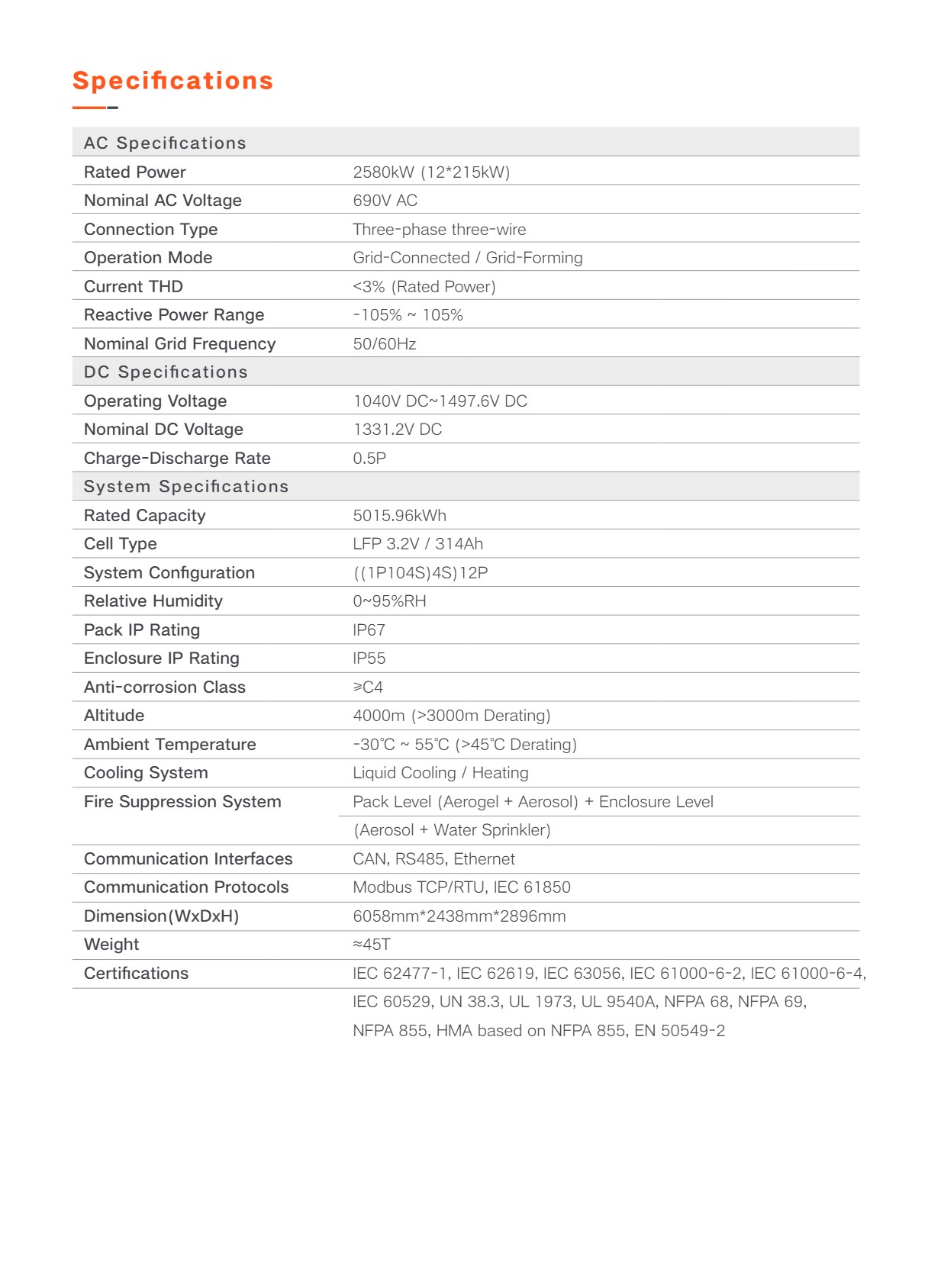

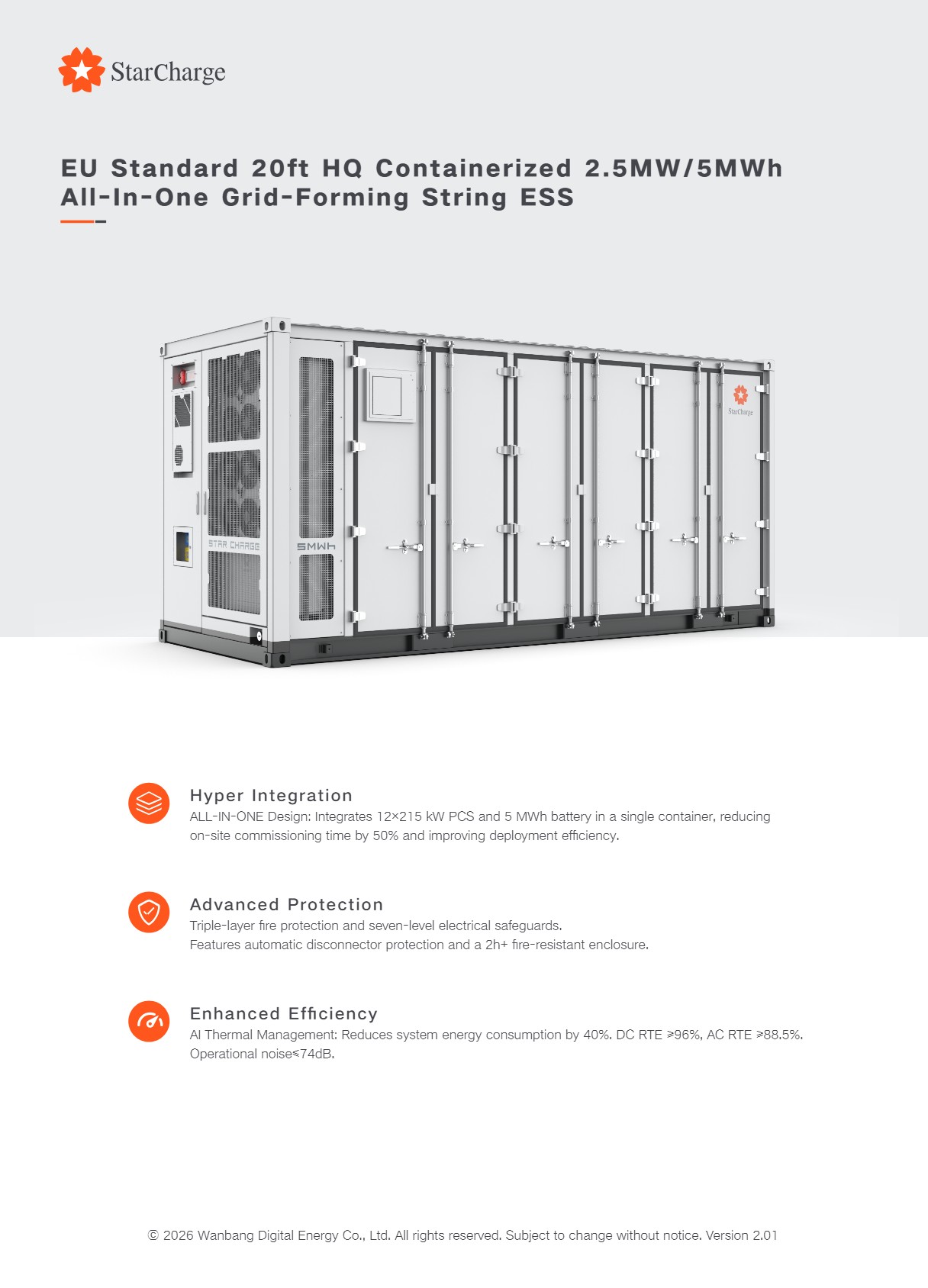

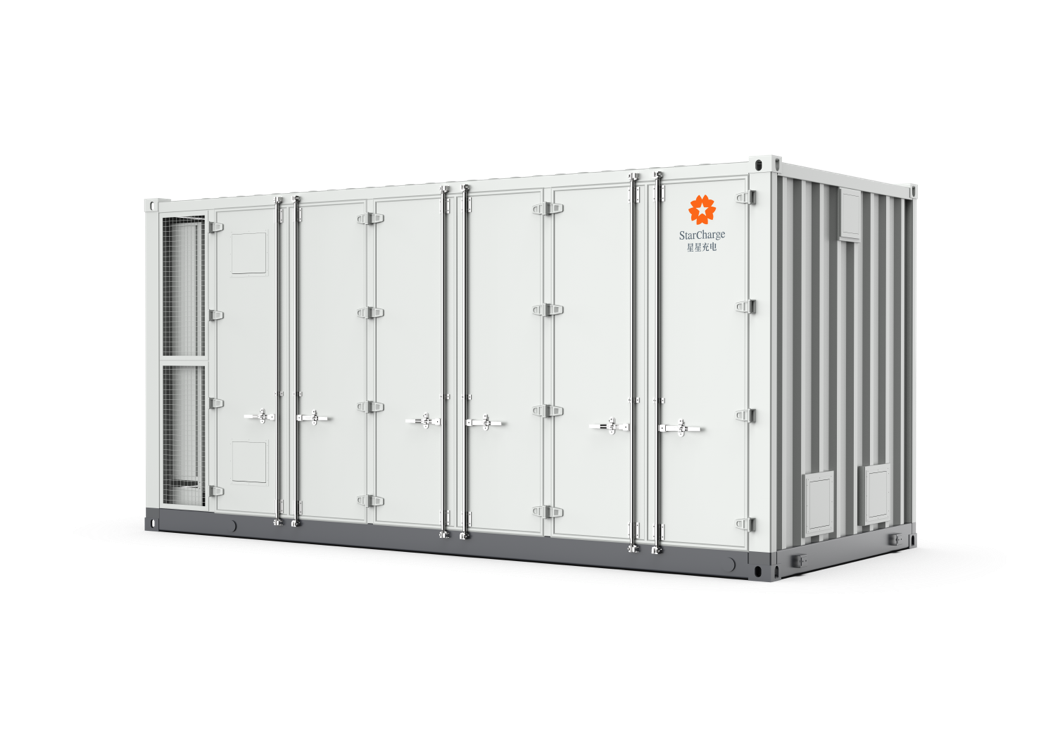

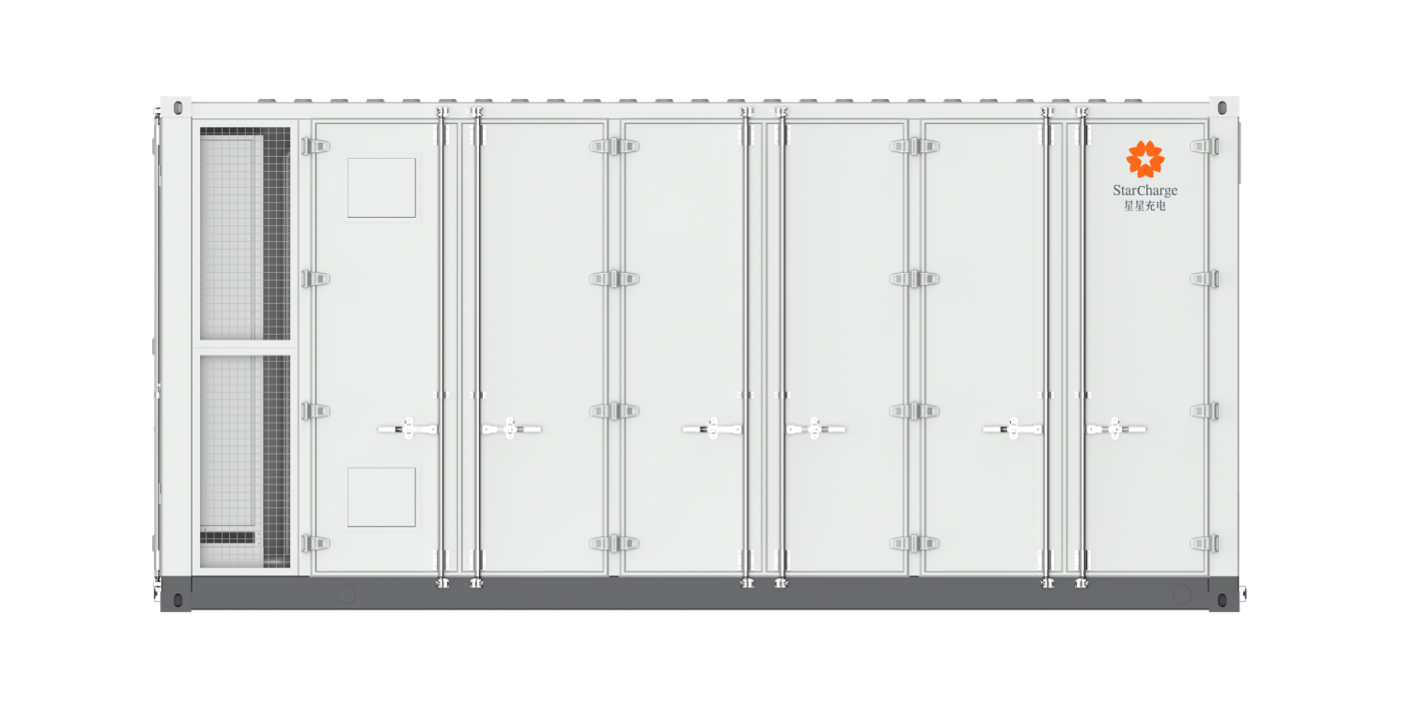

Details 1 Details 2 Details 3 Details 4 Details 5 Details 6 Details 7 Details 8 Details 9 Details 10
Product Presentation 3
Technical Specifications
Battery Type LiFePO4
Place of Origin China
Dimension (L*W*H) 6058*2462*2896mm
Weight 37ton/45ton
Communication Port Rs485, CAN, ETH
Protection Class IP55
Grid connection Hybrid grid
Cooling Liquid cooling+ air conditioning
Environment temperature -20°C to 55°C (-4°F to 131°F)
Humidity 10%~95%RH
Altitude <2000m (2000m-4000m, reduced power operation)
Certifications UN38.3/IEC62619/DE-AR-N 4105/IEC 62109
Fire fighting fm200 extinguishing system
Noise ≤75 dB @1m(3.28ft)
Product Presentation 4
Product Presentation 5
Product Presentation 6
Frequently Asked Questions
What chemistry does this energy storage system use?
This system utilizes high-safety LiFePO4 (Lithium Iron Phosphate) batteries, offering high thermal stability, longer cycle life, and reliable performance.
What cooling system is integrated for temperature control?
The system features a dual cooling design combining advanced liquid cooling with industrial air conditioning to ensure optimal thermal performance.
What are the dimensions and weight of this containerized unit?
The system dimensions are 6058*2462*2896mm, with a total weight ranging between 37 tons and 45 tons depending on the configuration.
Is the system certified for international markets?
Yes, it has been certified under standard international regulations including UN38.3, IEC62619, DE-AR-N 4105, and IEC 62109.
What safety and fire-fighting features are integrated?
The container is protected by an IP55-rated enclosure and includes a built-in FM200 gas fire suppression system for maximum safety protection.
Can the system operate in extreme environments?
Yes, it operates reliably in ambient temperatures from -20°C to 55°C (-4°F to 131°F) and altitudes up to 2000 meters without power derating.
