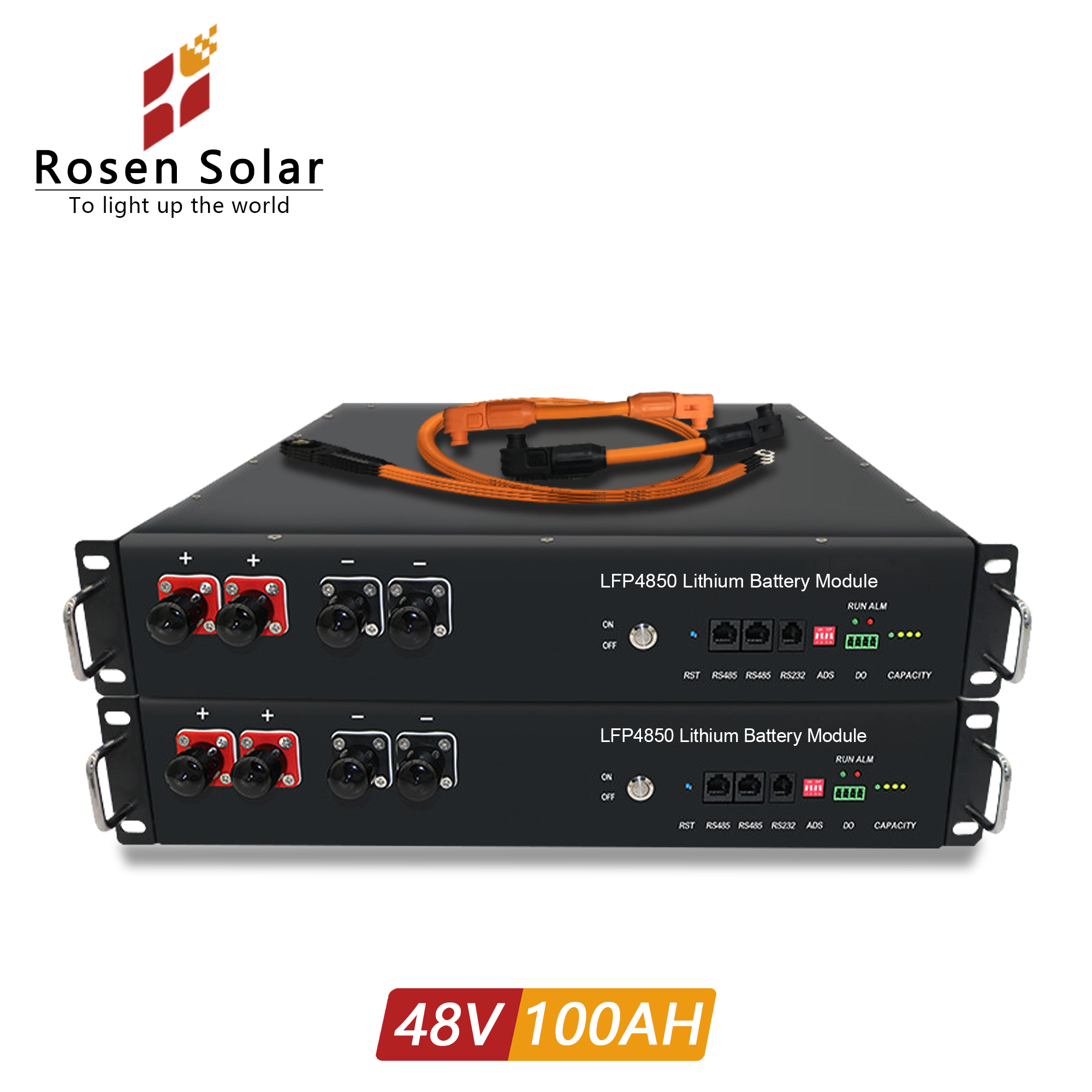

Ess Battery Storage Bank 200ah 300ah Rack 48V Solar Battery Storage 100ah

Product Description

48V 50Ah Lithium Technical Data

Function Parameter
Norminal Battery Energy	2400wh
Norminal Capacity	50Ah
Norminal Voltage	48v
Internal Resistance	≤30mΩ
Cycle Life	<6000
Months Self Discharge	<3%
Charge Data
Charge Voltage	53.2~54V
Charge Mode	0.2C to 54V, then 54V, charge current to 0.02C (CC/CV)
Charger Current	10A
Max. Charge Current	50A
Charge Cut-off Voltage	54±0.2V
Discharge Data
Continuous Current	10A
Max continuous discharge current	50A
Discharge Cut-off Voltage	40.5V
Working Condition
Charge Temperature	0℃ to 45℃ (32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature	-20℃ to 60℃ (-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature	0℃ to 40℃ (32℉ to 104℉) @60±25% Relative Humidity
Enclosure Protection Level	IP20
Mechanical Data
Cell & Method	3.2V50Ah
Shell material	Iron
Dimensions	48036090mm
Weight (lbs./kg.)	22kgs

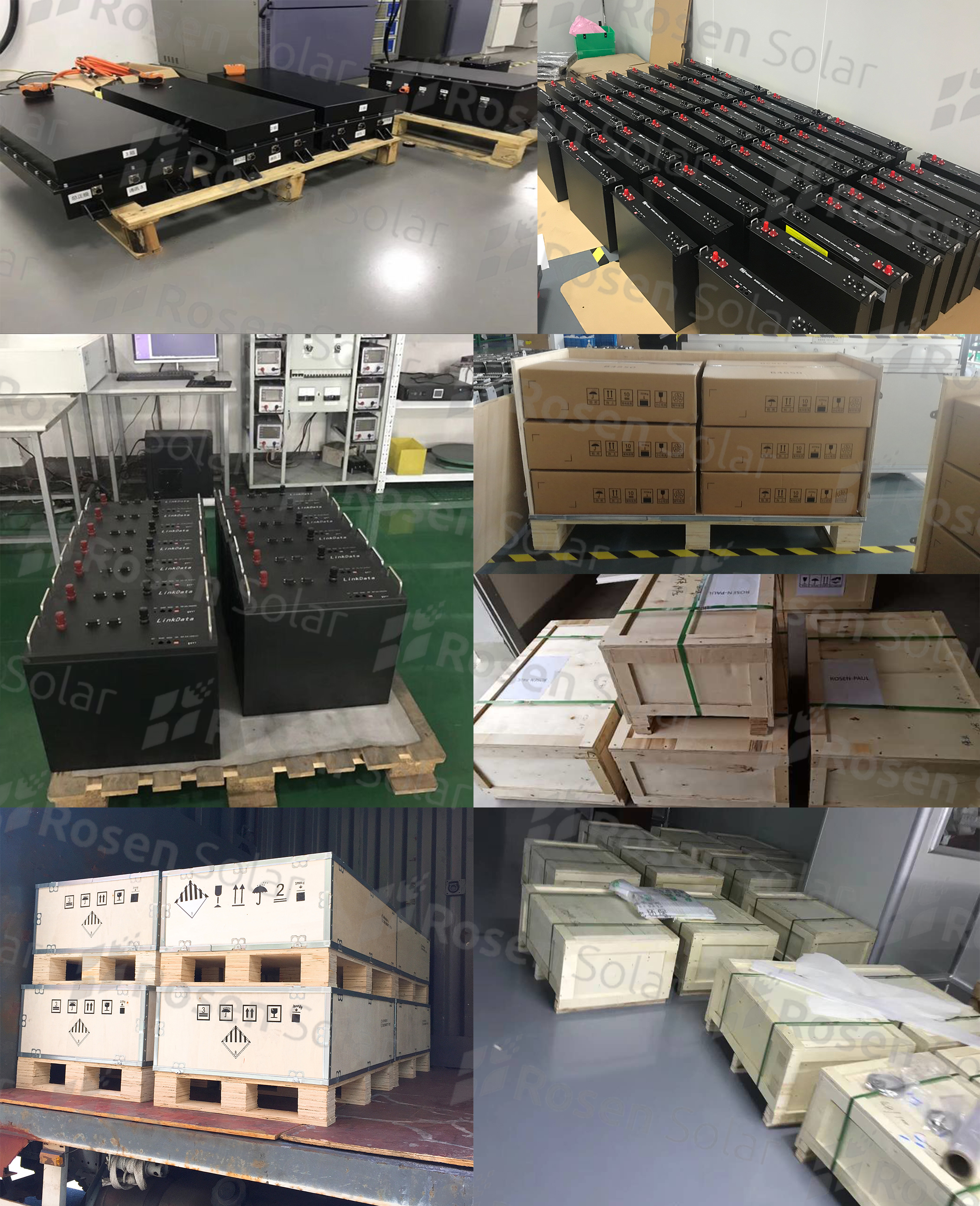

Package and Delivery

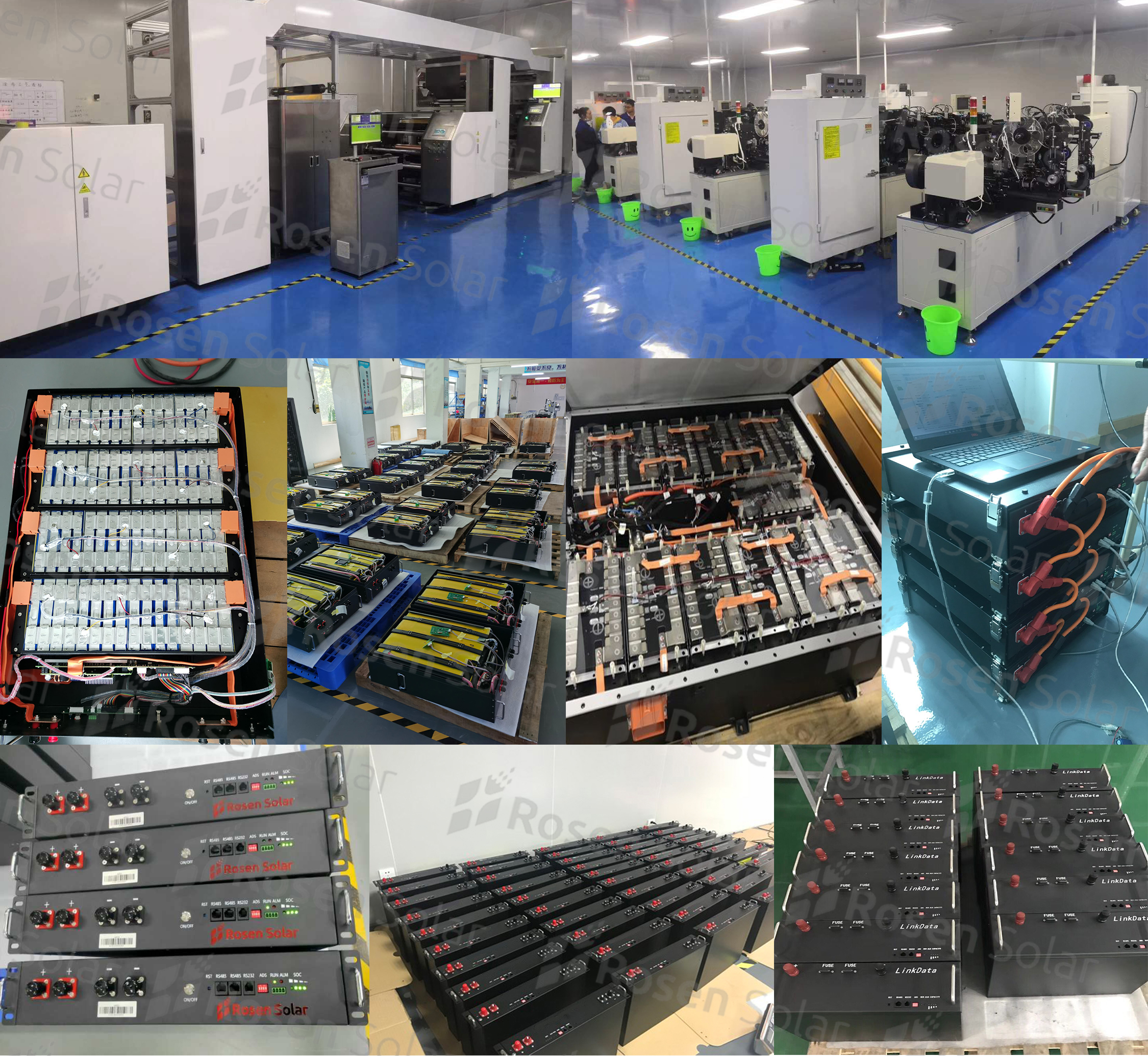

Lithium Battery Production

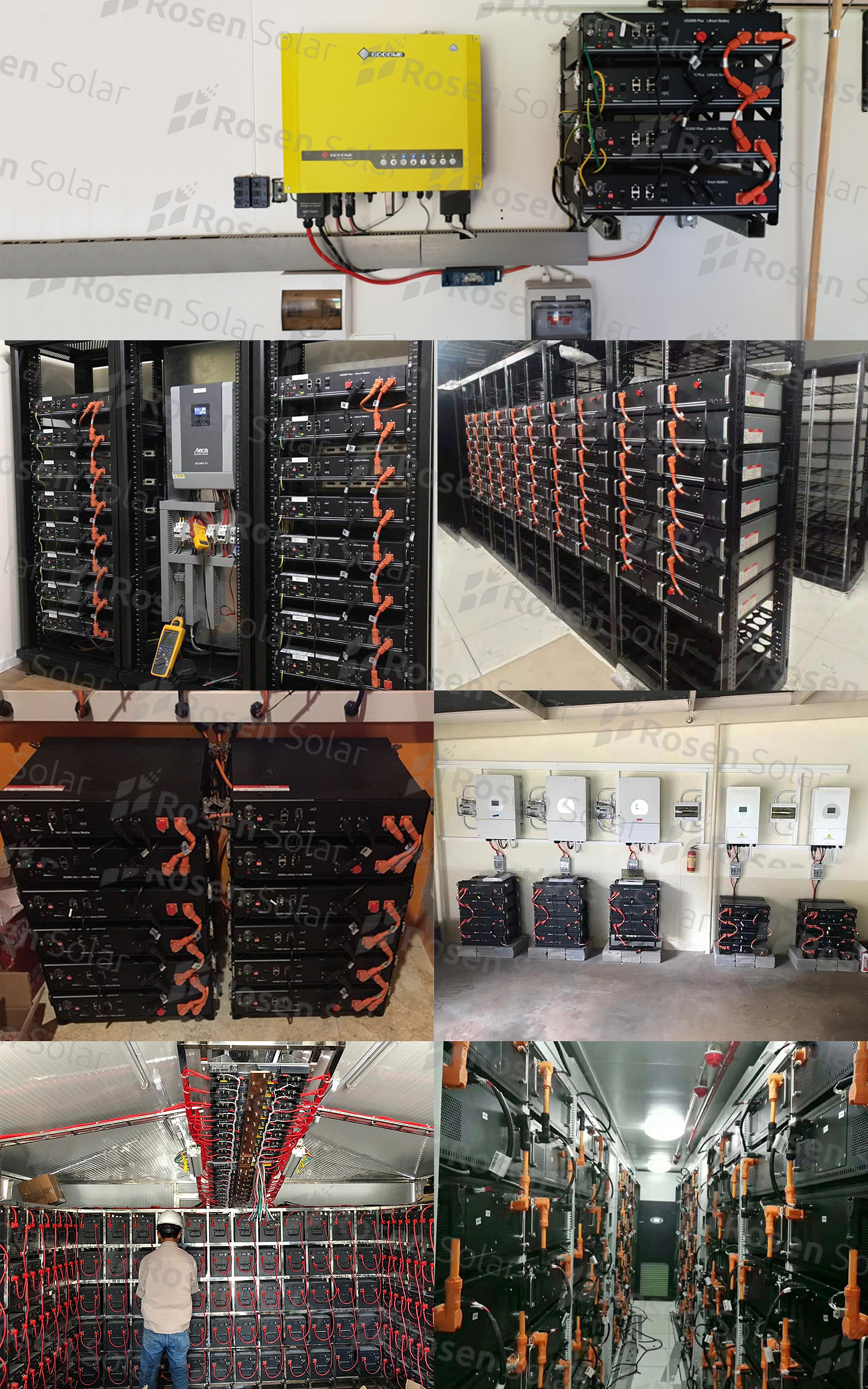

Battery Projects

Frequently Asked Questions

What is the nominal capacity and voltage of this lithium battery?

The battery has a nominal capacity of 50Ah and a nominal voltage of 48V, delivering a total battery energy of 2400Wh.

What is the expected cycle life of the battery?

This lithium battery offers a long cycle life of up to 6000 cycles, ensuring reliable and durable long-term performance.

What are the recommended charging and discharging temperature ranges?

The recommended charge temperature range is 0℃ to 45℃ (32℉ to 113℉), and the discharge temperature range is -20℃ to 60℃ (-4℉ to 140℉).

What is the enclosure protection rating and shell material?

The battery is built with a rugged Iron shell material and features an IP20 enclosure protection level, suitable for indoor installations.

What are the physical dimensions and weight of this product?

The physical dimensions of the battery are 480*360*90mm, and it weighs approximately 22 kilograms (48.5 lbs).

Product Detail
