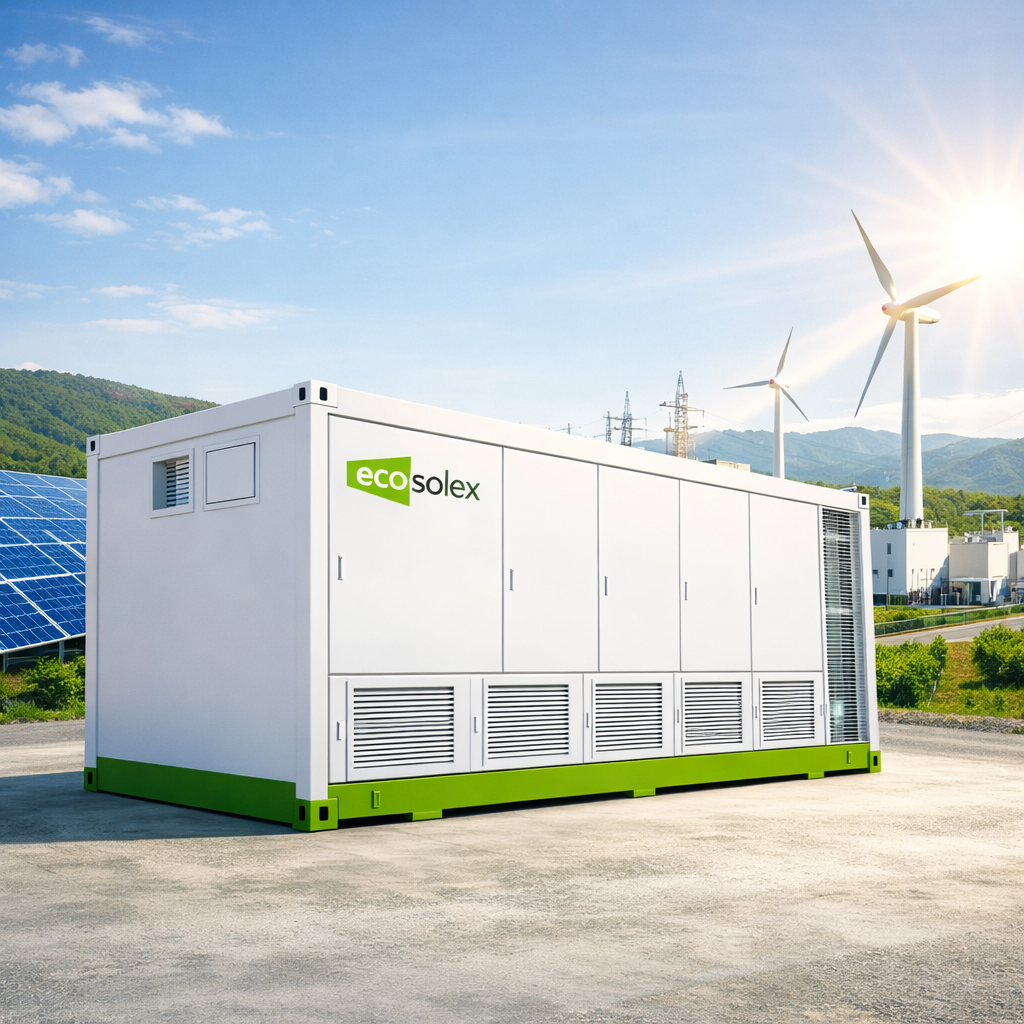

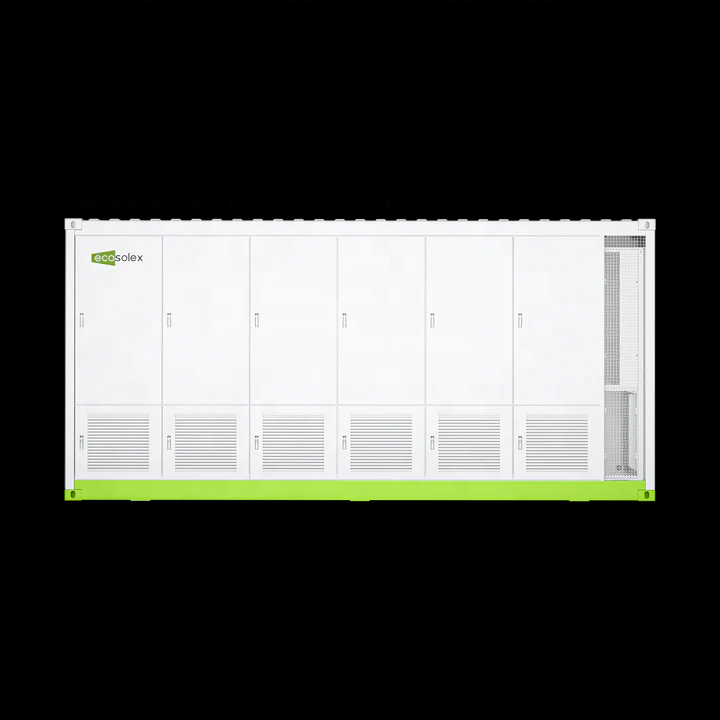

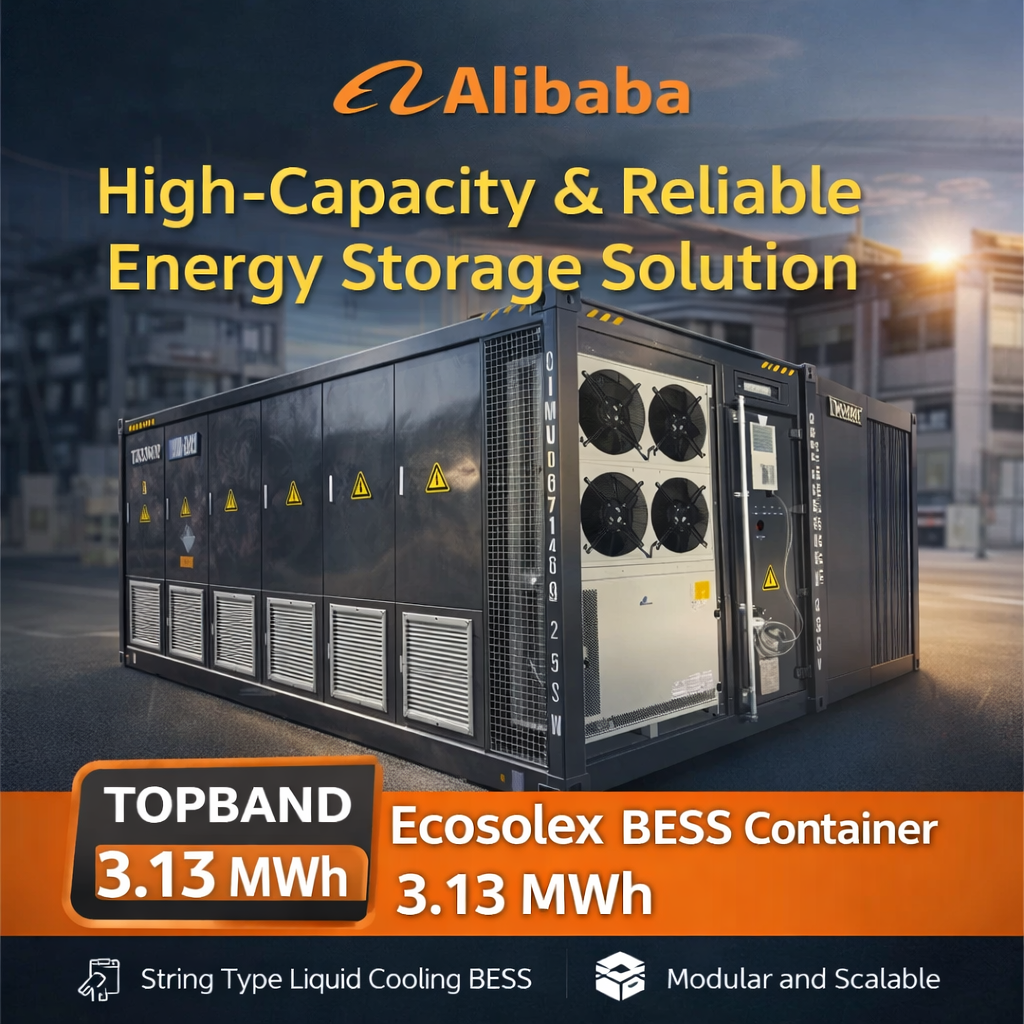

As renewable penetration increases, grid stability and dispatch flexibility become critical. The liquid-cooled BESS container is engineered to deliver reliable, high-capacity energy storage for modern power systems.

This solution helps operators:

• Stabilize renewable fluctuations
• Increase grid reliability
• Generate revenue from ancillary services
• Improve asset utilization
• Reduce curtailment losses

• Rated Energy: 3.13MWh @ BOL
• Battery Type: LFP 3.2V / 314Ah
• DC Voltage: 832V nominal
• Operating Range: 728V–936V
• Total DC Capacity: 261kWh × 72 modules
• Round-Trip Efficiency: ≥90%
• Charge/Discharge Rate: ≤0.5C

Active balancing ensures improved cell consistency and higher usable lifetime energy output.

• Rated Power: 1500kW
• AC Voltage: 400V (±15%)
• Frequency: 50/60Hz
• Three-phase four-wire (3W+N) connection
• Power Factor: 0.99
• THD: ≤2%

Supports both grid-connected and off-grid operational modes.

Liquid cooling system (water-glycol medium) ensures:

• Precise temperature control
• Improved lifecycle performance
• Reduced thermal stress
• Stable operation in extreme climates

• Operating Temperature: -30°C to 50°C
• IP55 enclosure rating
• Corrosion Class: C4 (C5 optional)
• Maximum Altitude: 3000m

Safety is integrated at every level:

• Pack-level and cabinet-level fire suppression
• Gas, smoke & temperature detection sensors
• Aerosol + water-based fire extinguishing system
• Explosion-proof structural design
• Intelligent monitoring & diagnostics

Certifications:

• IEC 62619
• IEC 62477
• IEC 61000
• EN 50549-1
• UN38.3
