Specification
Products Description
| Model |
DW-ESS-100 |
DW-ESS-200 |
| Parameter-BATTERY(DC) |
| Combination method |
1P112S |
1P224S |
| Rated Voltage |
358.4V |
716.8V |
| Voltage range(V) |
313.6-403.2 |
627.2-806.4 |
| Rated Capacity(Ah) |
280Ah |
| Rated Energy[kWh] |
100.3kWh |
200.7kWh |
| Cycle Life |
≥6000 |
| AC(on -grid) |
| Recommend input power |
30kW |
100kW |
| Rated Voltage |
400V |
| Output |
3W+N+PE |
| Voltage range |
-15%-+10% |
| Rated frequency |
50/60Hz |
| AC(off -grid) |
| Rated power |
20 kW |
100kW |
| Rated Current |
43A |
144A |
| Rated Voltage |
380V / 400V/ 440V |
| Rated frequency |
50/60Hz |
| SIZE & INSTALLMENT |
| Dimension(WXDXH) mm |
1680*1500*1700 |
1680*2270*1700 |
| Weight |
1100kg |
2300kg |
| Environmental temp. |
-20℃~+55℃(> 45°C power reduction) |
| Relative humidity |
0-95% non-condensing |
| Protection degree |
IP54 |
| Noise emission |
60dB(A)@1m |
| Max. efficiency |
95% |
| Maximum altitude |
4000m (derate over 2000m) |
| Cooling |
Forced-air, Intelligent fan adjustment |
| Communication |
Modbus-RTUCAN2.0B |
| Display |
Touch screen LCD (Optional) |
| Interface |
RS485/CAN |
Inquire for Quotation & Special Offers
Send an inquiry to get a quotation and have a chance to get a $100 coupon. We look forward to working with you!
Our Advantages
-
1. Premium Cells
A grade full new quality prismatic cells with original QR codes. Never use second-hand cells. Cell brands include REPT, GANFENG, LISHEN, and GOTION, featuring a typical lifespan of 10-15 years.
-
2. Complete Protection
Each battery features a built-in Battery Management System (BMS) for safety and longevity.
-
3. Flexible Interfaces
Equipped with RS485, RS232, and CAN communication ports.
-
4. High Compatibility
Compatible with all hybrid and off-grid inverters. Our engineers can configure compatibility with inverters on the market upon receiving the inverter communication protocol.
-
5. Extended Warranty
Standard 5-year warranty, extendable up to 10 years for long-term cooperation customers.
-
6. Low Maintenance
Maintenance-free, low self-discharge rates, alongside fast and efficient charging capabilities.
-
7. Accessories Included
Comes with free cables and a paper-version user manual.

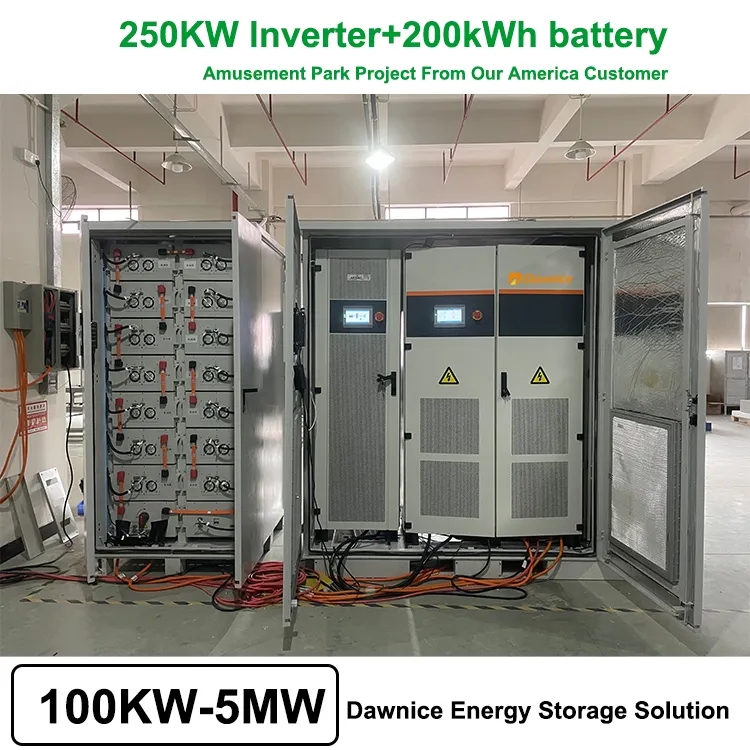

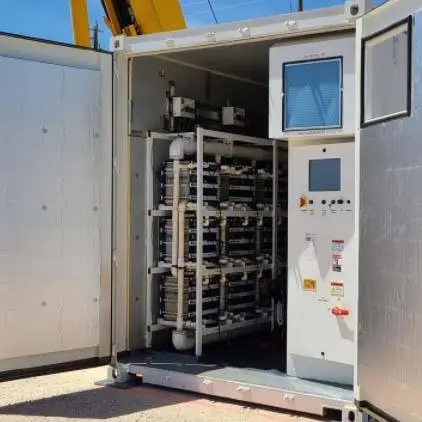

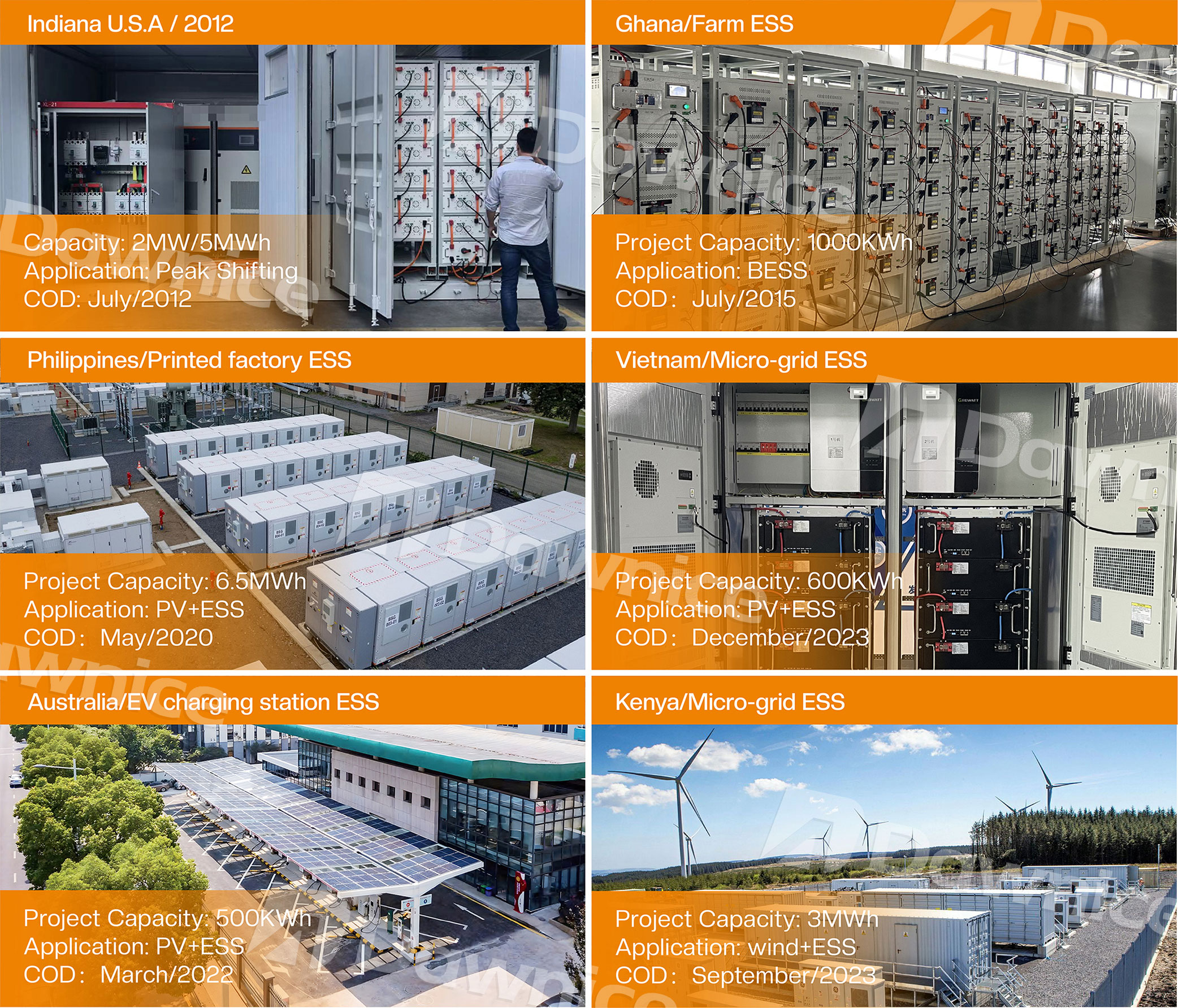

Application Project

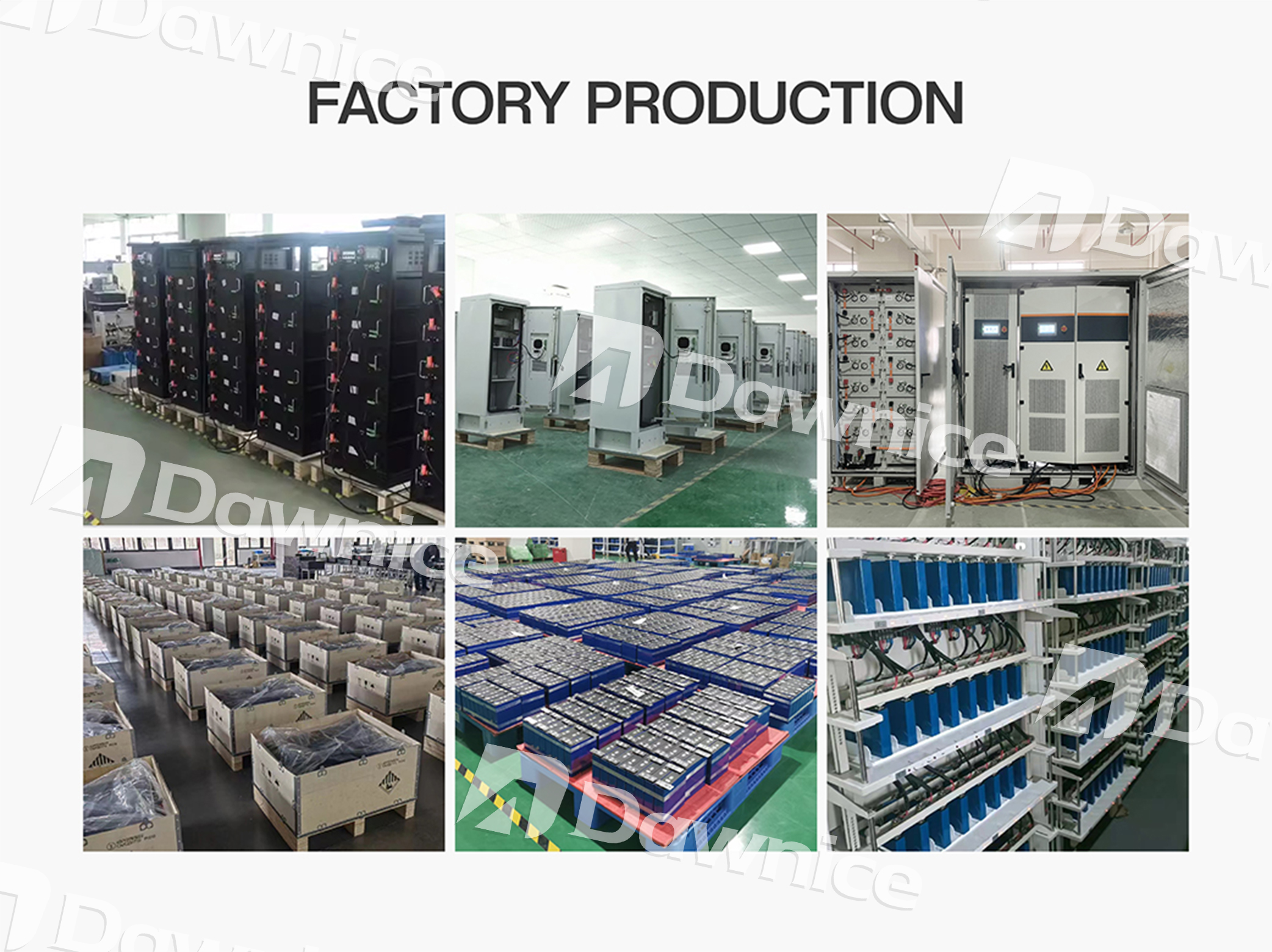

Factory Overview
Established in 2009, the factory holds 30 product patent certificates and specializes in BESS, Energy Storage Batteries, and Solar Energy Systems. We provide one-stop energy solutions including energy supply, management, and storage. Serving over 50 traders, products are exported worldwide to regions including the United States, Canada, Germany, Australia, Lebanon, and the Philippines.
Frequently Asked Questions (FAQ)
What types of battery cells do you use?
We use brand new, A-grade prismatic cells with original QR codes from leading manufacturers like REPT, GANFENG, LISHEN, and GOTION. We never use second-hand cells.
What is the lifespan of these energy storage systems?
Our battery cells feature a typical lifespan of 10 to 15 years, combined with robust protection from integrated Battery Management Systems (BMS).
Are these ESS systems compatible with my existing inverter?
Yes, our systems are compatible with virtually all hybrid and off-grid inverters on the market. Our engineering team can configure compatibility if you provide the inverter communication protocol.
What communication interfaces are supported?
The systems support RS485, RS232, and CAN communication interfaces for easy connection and system integration.
What warranty terms do you provide?
We offer a standard 5-year warranty. For long-term cooperative partnerships, we can extend this warranty support up to 10 years.
Are necessary accessories and user manuals included?
Yes, all energy storage units come complete with free connecting cables and a printed user manual for installation and operation.
