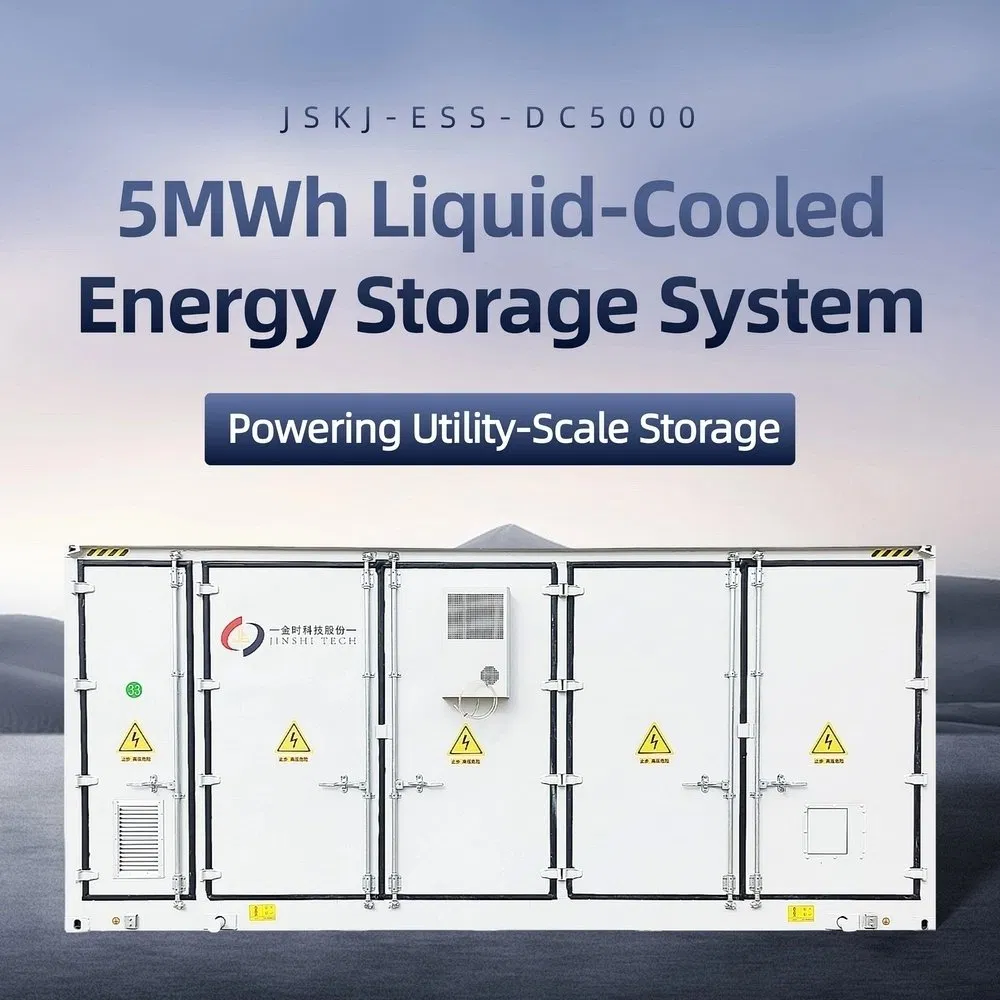

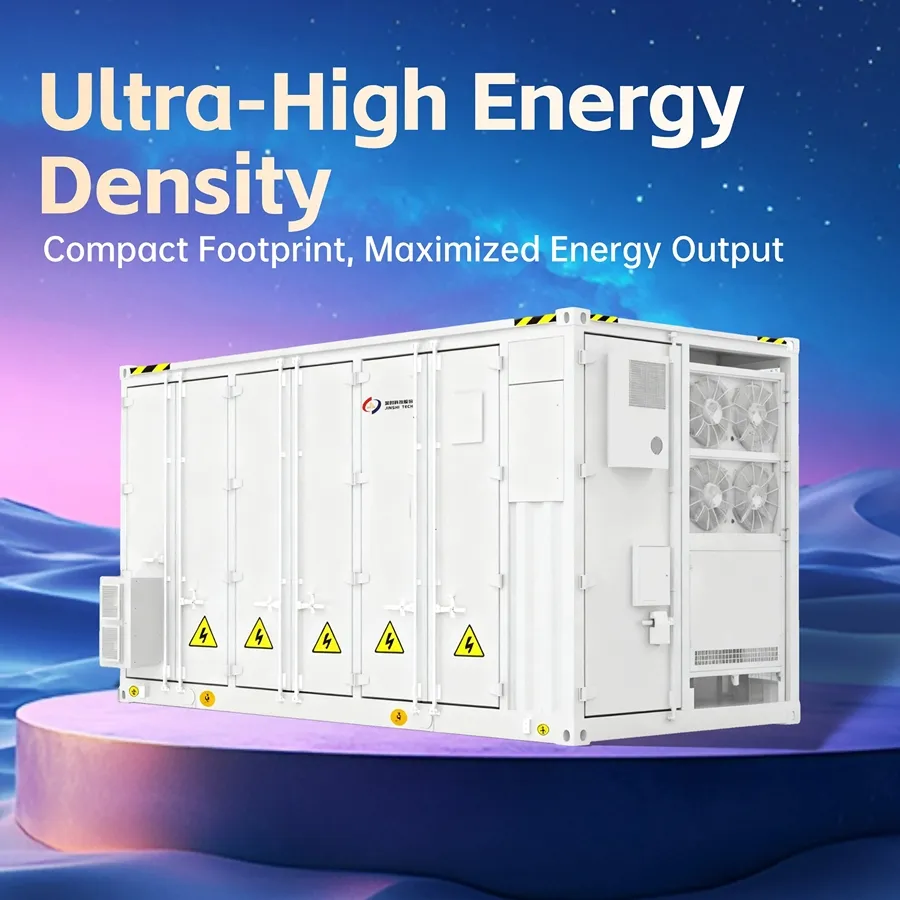

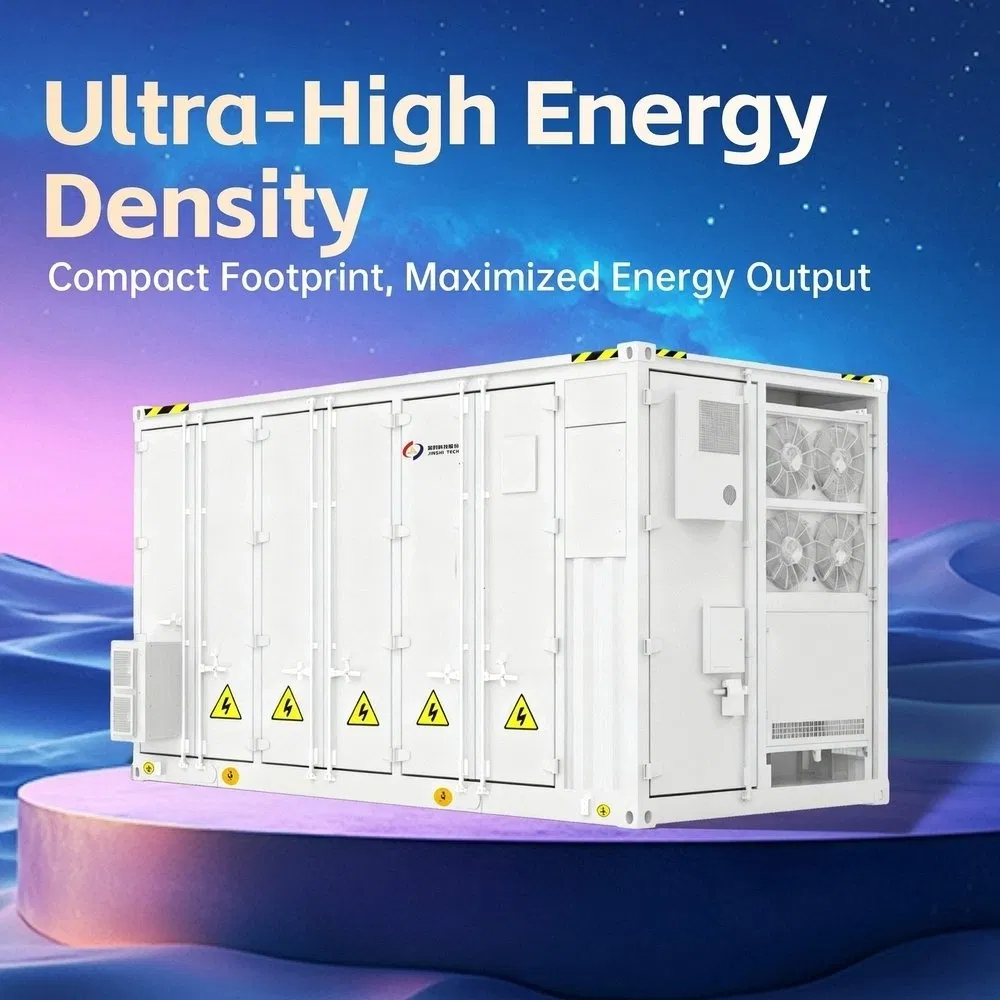

The 5MWh liquid-cooled system enhances energy density by 30% and extends battery life by 50% via AI-driven thermal management. Ideal for grid-side peak shaving, frequency regulation, and industrial energy arbitrage.

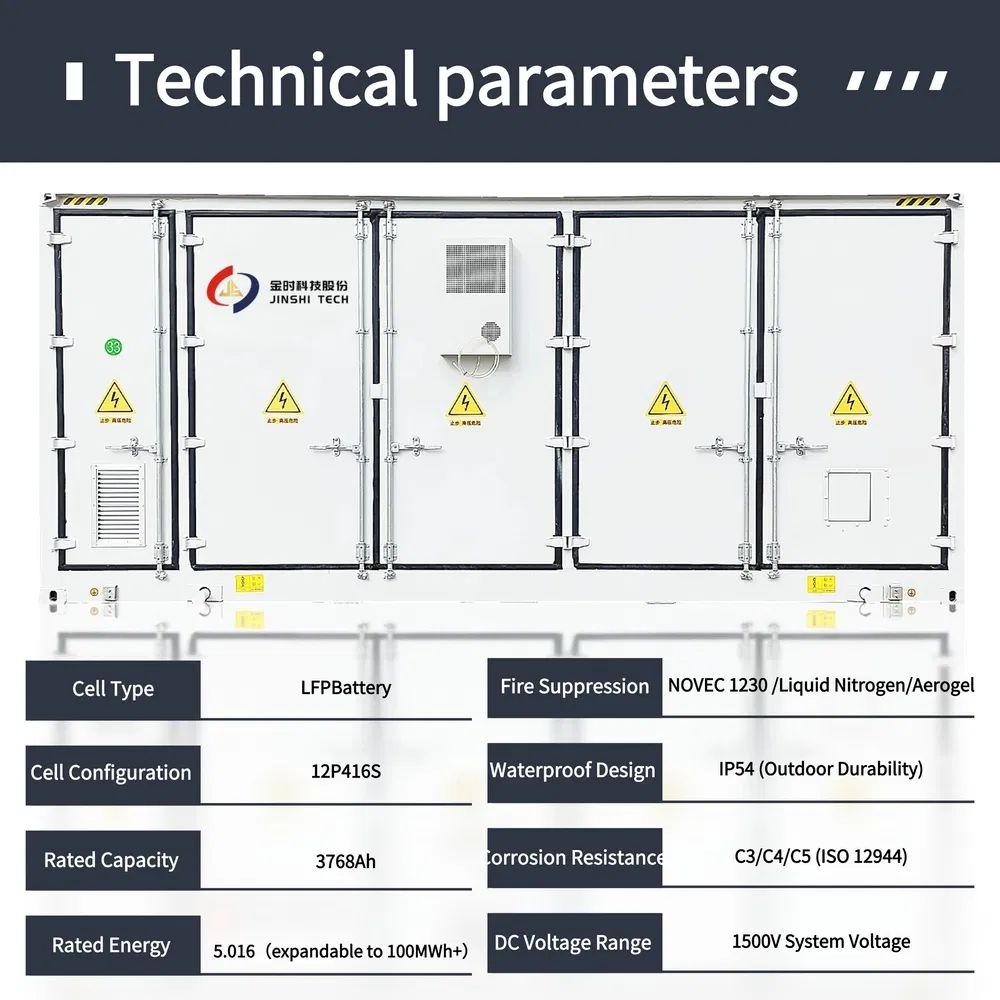

| TECHNICAL PARAMETERS | |
|---|---|
| Cell Type | LFPBattery |
| Cell Configuration | 12P416S |
| Rated Capacity | 3768Ah |
| Rated Energy | Expandable To 100MWh+ |
| Rated Voltage | 1331.2V |
| Charge/Discharge Rate | 0.5P |
| Operating Voltage Range | 1164.8-1497.6V |
| Standard Charge/Discharge Current | 1884A/1884A |

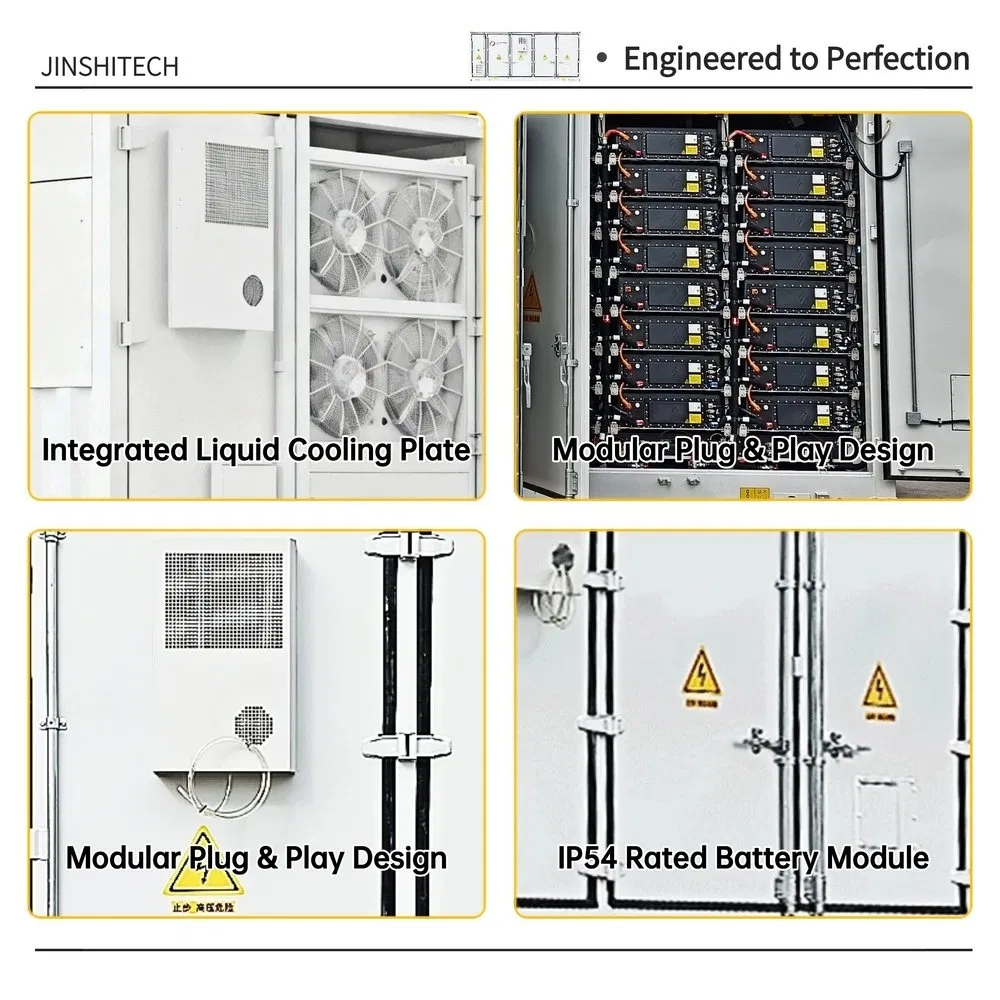

| Cooling Method | Liquid + Air Cooling Dual Thermal Management |
| Fire Detection | Temp, CO, Smoke Sensors |
| Corrosion Resistance | C3/C4/C5 (ISO 12944) |
| System Architecture | Triple Fire Protection + Triple BMS |
| Waterproof Design | IP54 (Outdoor Durability) |
| Application Scenarios | Inland, Plateau, Coastal |
| DC Voltage Range | 1500V System Voltage |
Three-level fusing system with targeted explosion discharge design; supports NOVEC 1230, perfluorohexanone, and liquid nitrogen fire suppression agents
24/7 BMS (Battery Management System) with real-time temperature, CO, and smoke sensors; triple BMS redundancy ensures fail-safe operation
IP54 waterproof rating for outdoor durability; C3/C4/C5 corrosion resistance (ISO 12944) suitable for inland, plateau, and coastal applications
Optimized for rapid response grid services with a 1500V DC system voltage for enhanced efficiency

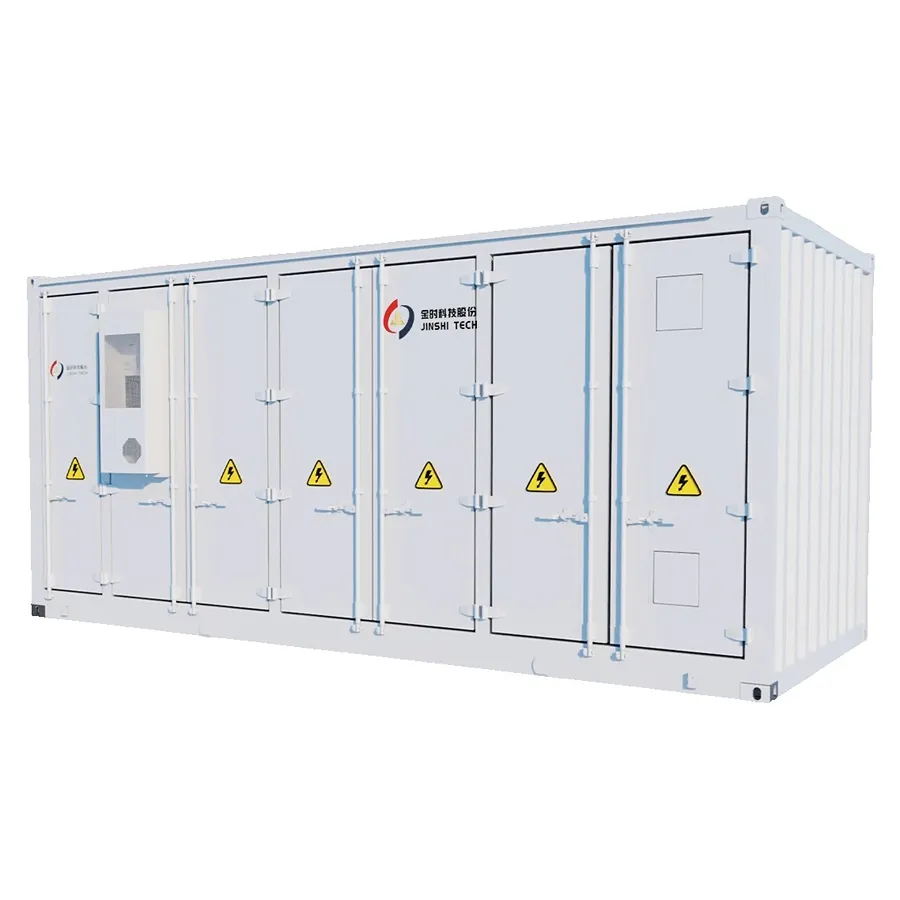

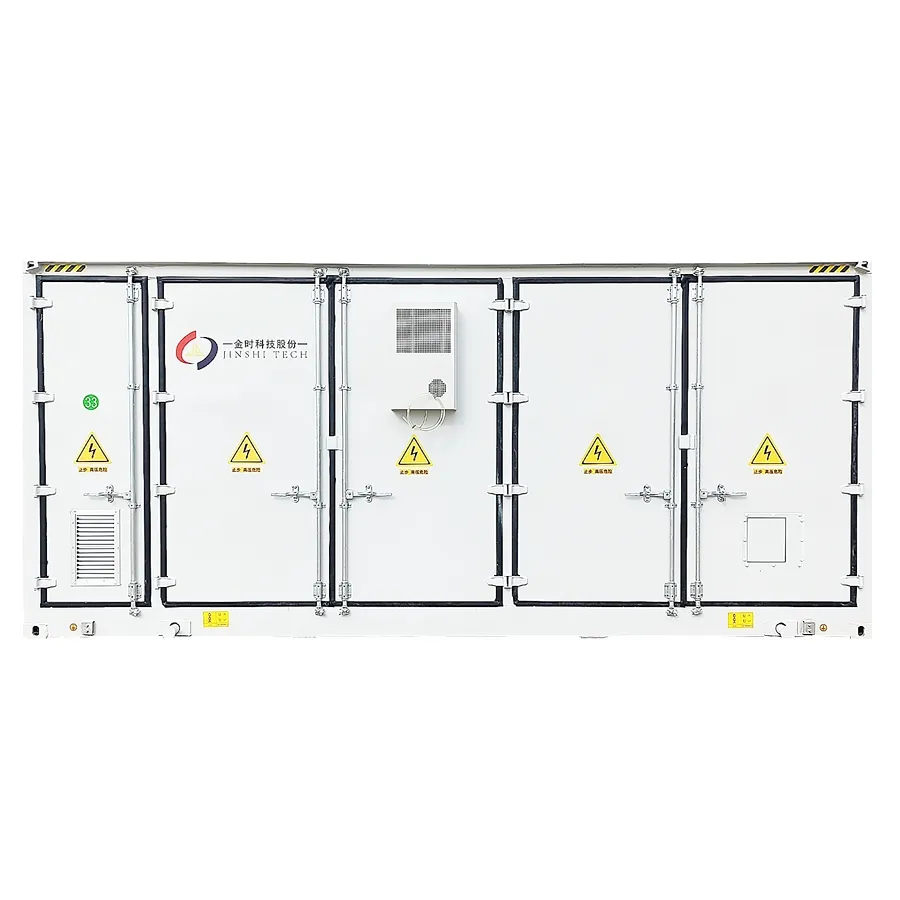

Containerized design with standardized interfaces for quick deployment and commissioning
