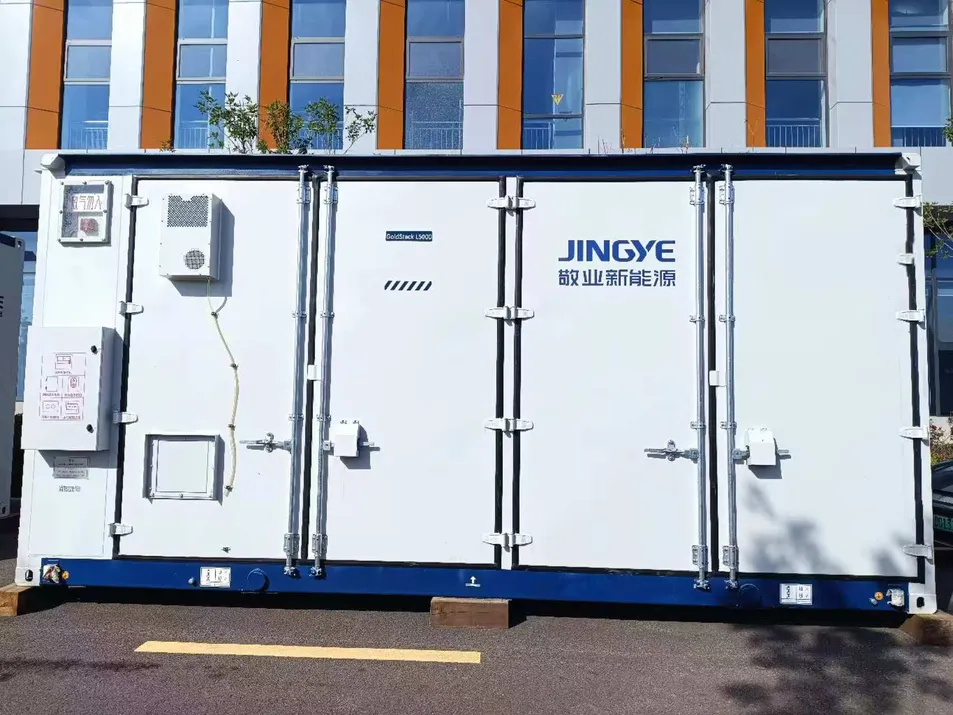

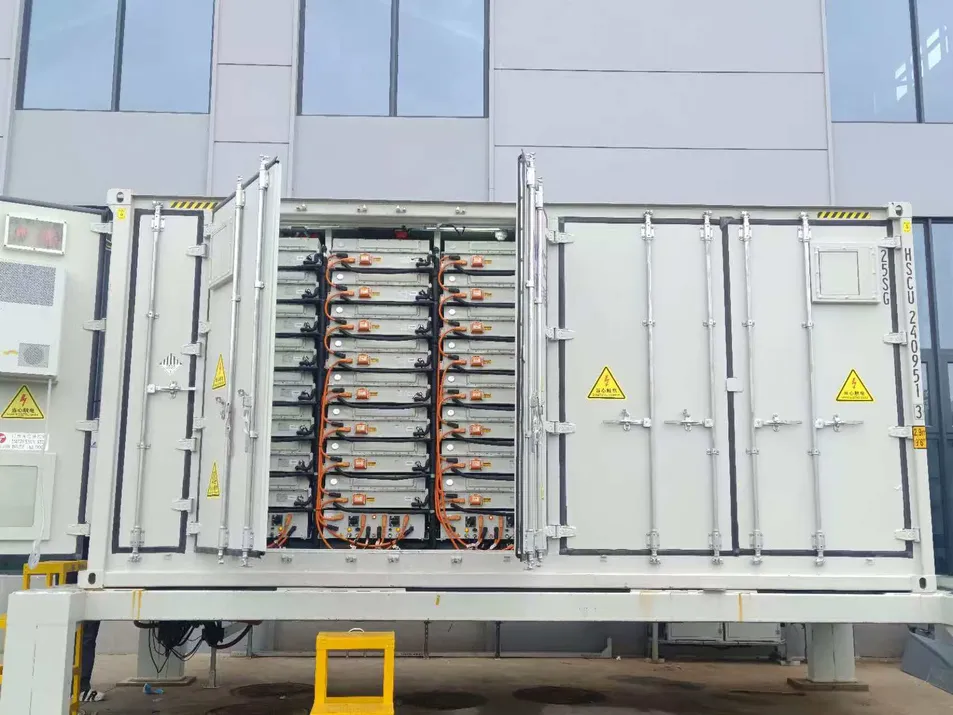

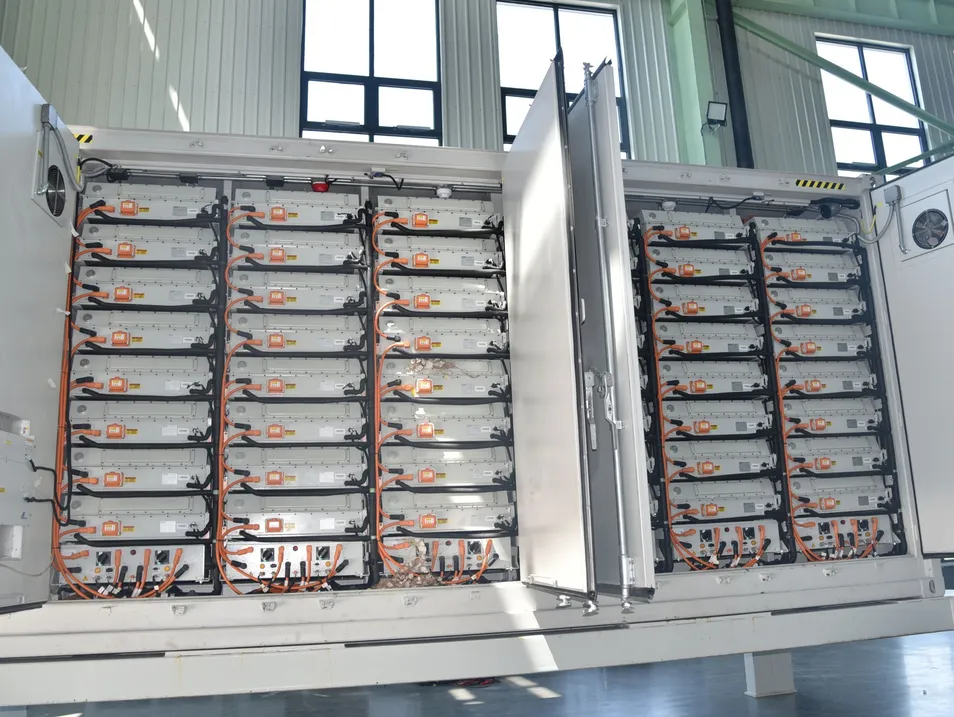

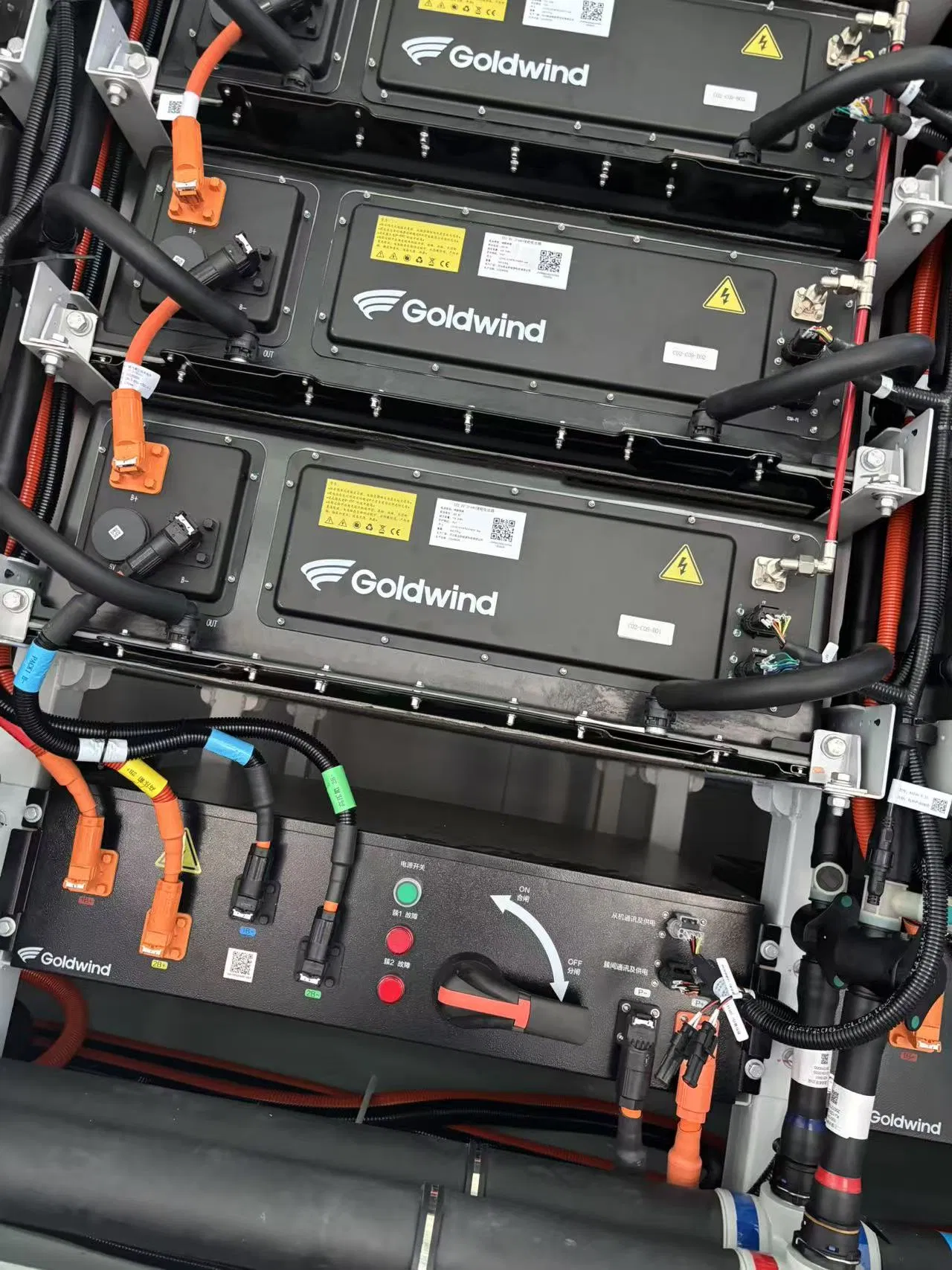

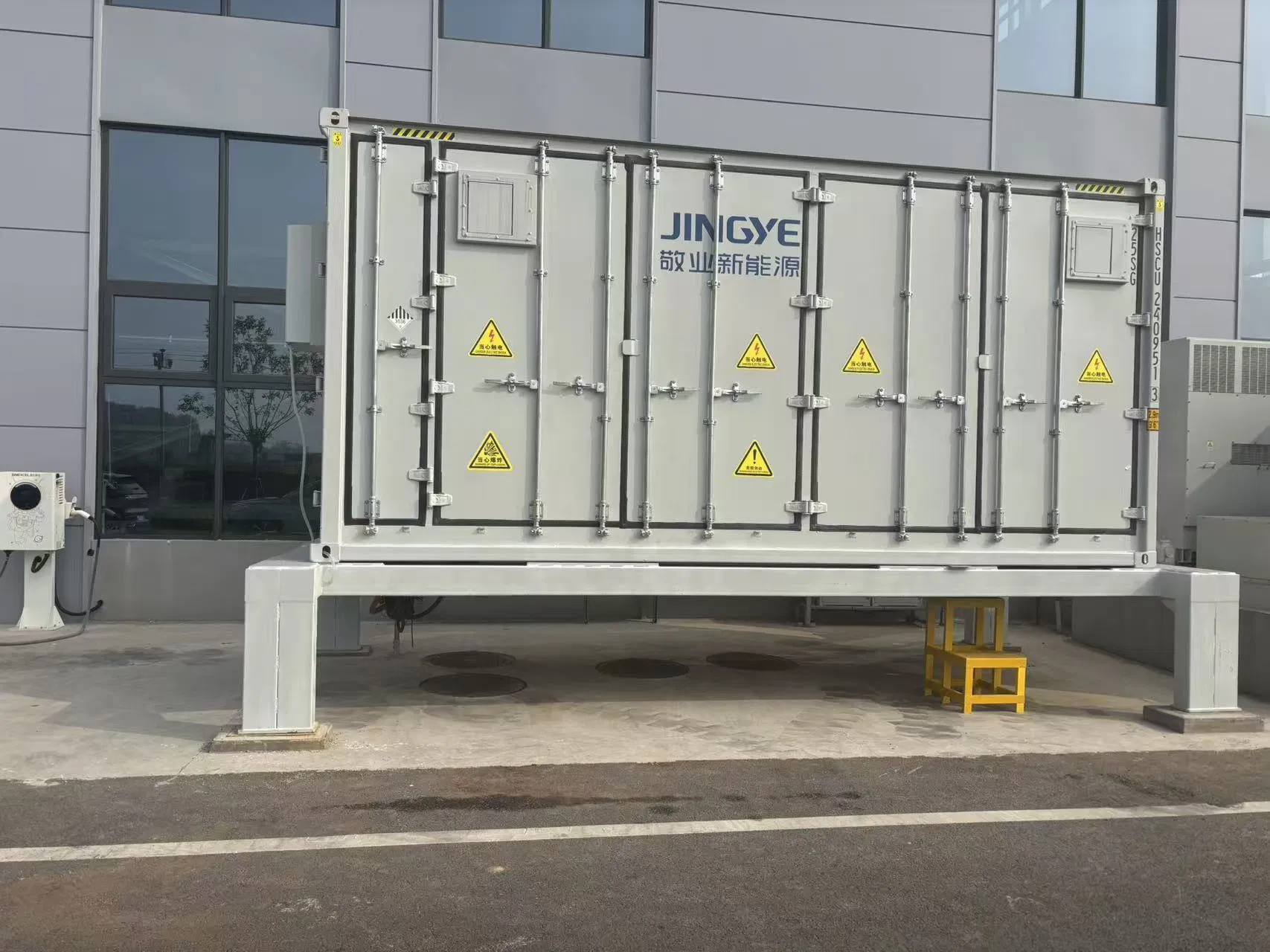

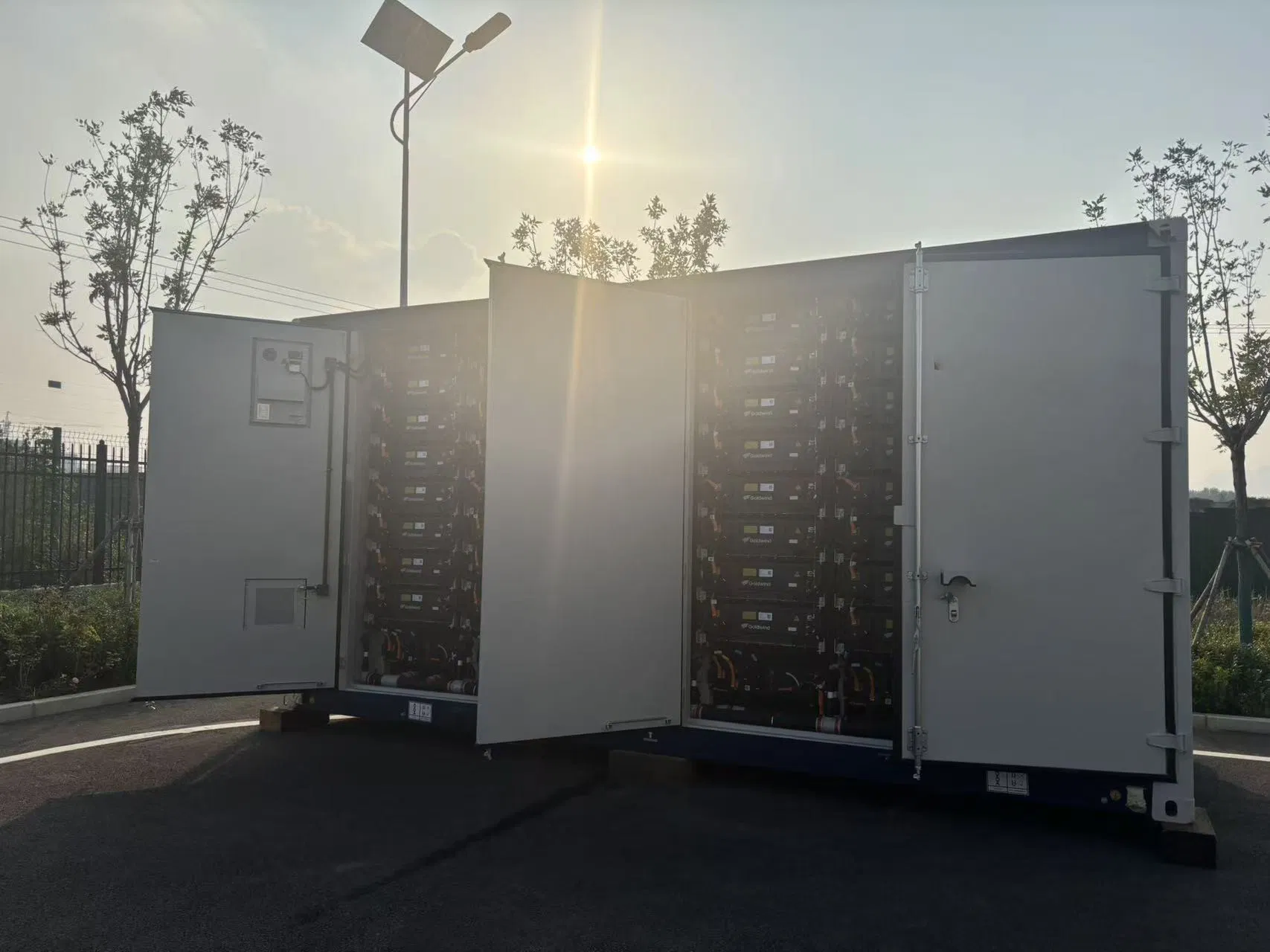

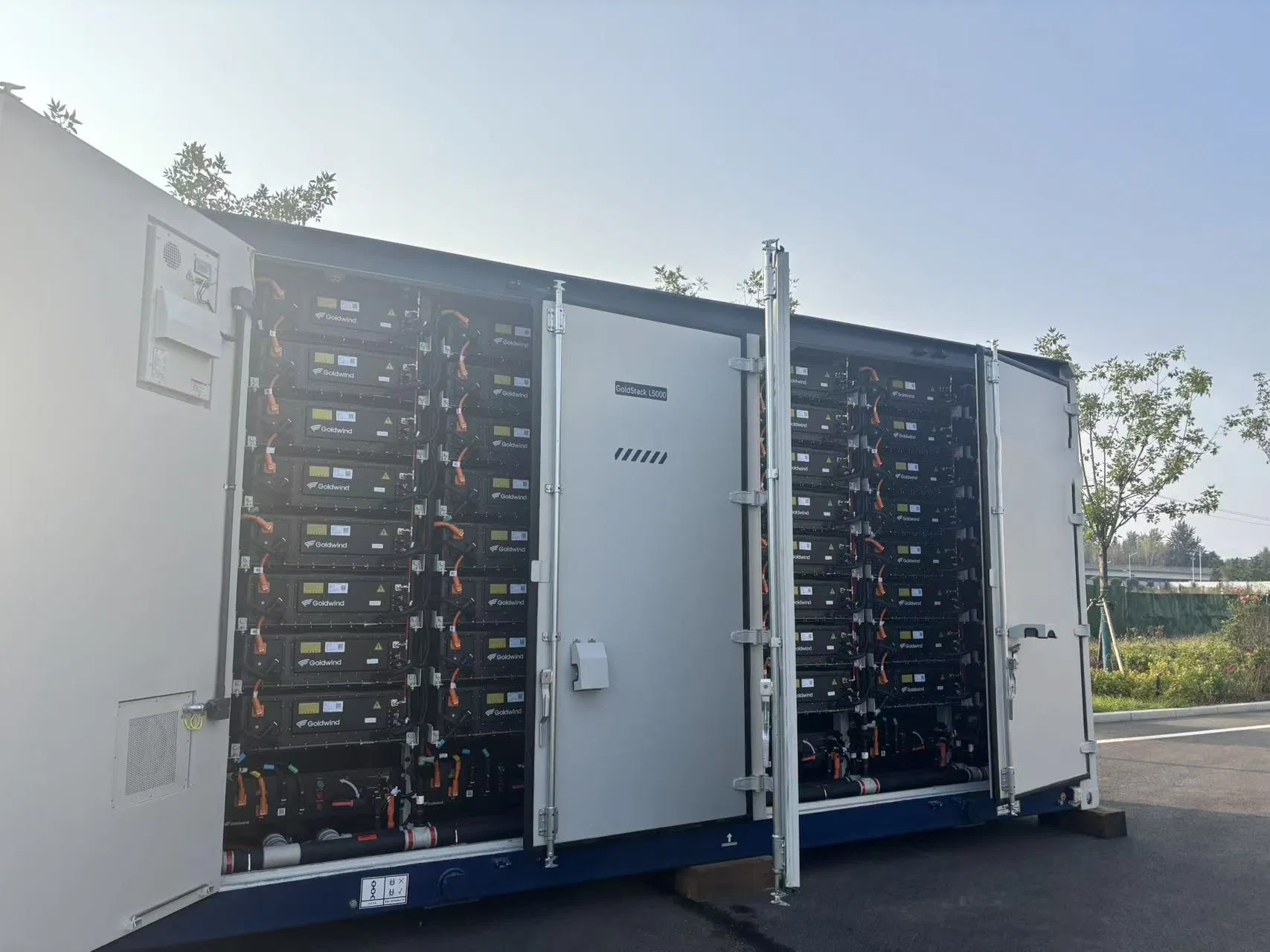

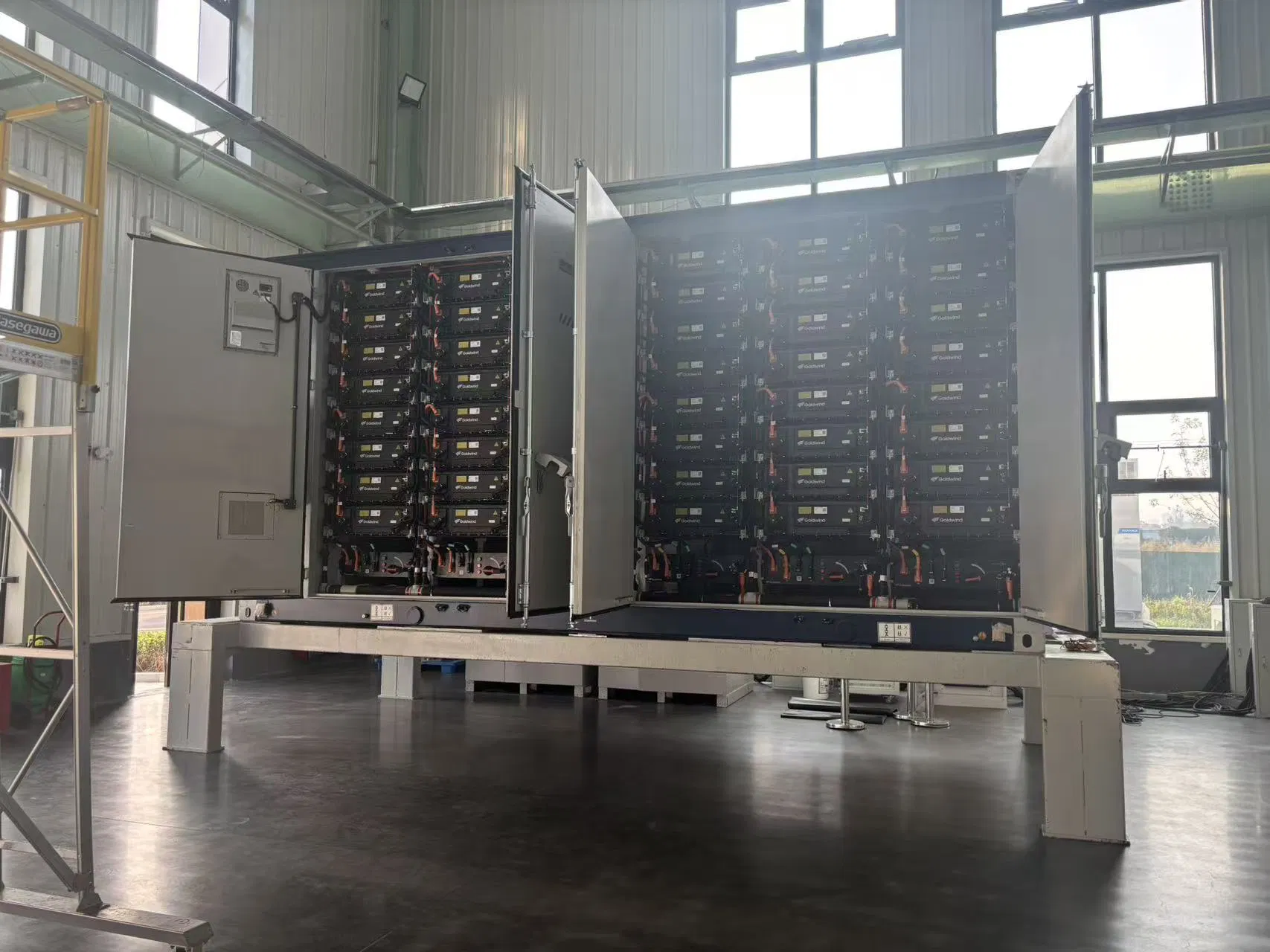

5015KWh Liquid Cooling energy storage system based on domestic high-capacity 314Ah energy storage cells, consisting of a 104S long PACK, battery cluster units, battery management systems, fire protection systems, lighting systems, thermal management systems, electrical systems, and environmental control systems. The energy storage system uses simplified integration technology, installing PACK, distribution busbars, liquid cooling units, temperature control systems, and fire protection systems within a standard 20-foot container (2438mm-2896mm-6058mm), arranged in three compartments, ensuring safety control while being suitable for various transportation conditions and site designs.
Battery Management: Equipped with advanced intelligent battery management products to ensure product safety.
Thermal Management: Achieves high-precision intelligent operation environment control through industrial-grade air conditioning systems, ensuring a temperature difference of 3℃ inside the PACK and 5℃ in the cabinet.
Safety Protection: Optional fire protection system using perfluorohexane or aerosol.
Automatic Alarm and Fire Extinguishing System: Configured with a three-level automatic alarm fire extinguishing system for PACK, cluster, and compartment.
Monitoring System: Installed with temperature and humidity, smoke, video monitoring, and access state monitoring equipment inside the container.
Modular Design: Highly modular product design, simple structure, easy for transportation, installation, and maintenance.
Technical Specifications
5MWh Liquid Cooling Battery Container
No.
Item
Specification
1
Configuration
12*(1P104S*4)
2
Rated Power
5MWh
3
Rated Voltage
1331.2VDC
4
Voltage Range
1164.8V -1497.6VDC
5
Rated Charging Power
≤ 2.5MW
6
Rated Discharge Power
≤ 2.5MW
7
Auxiliary Power Supply
400VAC±5% 50Hz/ 220VAC(significant load)
8
Storage Environment
5℃ < T ≤ 35℃
9
Work Environment
0℃ < T ≤ 60℃ (charging) / -30℃ < T ≤ 60℃ (discharging)
10
Altitude
≤ 4000m (>4000m derating)
11
Dimensions
L6058 x W2438 x H2896mm
12
Color
Default
13
Weight
About 43t
14
IP Rating
IP54(default)
15
Refrigeration method
Liquid Cooling
16
Communication Protocol
Ethernet, CAN, ModbusRTU
17
Coolant
50% ethylene glycol aqueous solution
Main Products
Company Profile
Workshop & Equipment
The company has the most advanced and automated production line, and now has an annual production capacity of 5 GWh of energy storage system and 2.4 million pieces of CCS busbars. The products are widely used in smart grids, wind and solar power distribution and storage, industrial and commercial energy storage, green transportation, and other fields. The company has a global layout of new energy market, established branches at domestic and overseas, and provides rapid, efficient, and high-quality services to global customers.
Certifications
Exhibition
Frequently Asked Questions
What are the main products?
Our main offerings include the 5MWh Energy Storage Container, Commercial & Industrial Energy Storage Cabinets, CCS Integrated Busbars, and high-performance Battery Packs.
Do you support customization services?
Yes, we offer flexible customization services for our products across diverse process types and configurations to meet your specific technical requirements.
How do you ensure production and delivery timelines?
Equipped with a highly automated, comprehensive production line and proficient technical personnel, we are fully capable of guaranteeing both stable quality control and on-time delivery of products.
How can we contact you for detailed quotations?
Simply contact the online staff directly via our website—they will respond promptly to provide you with a comprehensive and detailed quotation.
Are you a sales company or a source factory?
We are a formal source factory with standardized production processes, allowing us to offer the most competitive manufacturer prices along with top-quality products.
What is the expected warranty and life cycle of the 5MWh Liquid Cooling system?
The system features a 3-year warranty and a design cycle life of 10 years, assuming a typical operation profile of 2 complete charges and discharges daily.
