Basic Info.
Model NO.
BATTERY SYSTEM + PCS
Certification
ISO9001-2000, ISO9001, CCC
Usage
Distribution Transformer, Three-Phase Transformer
Frequency Characteristics
Power Frequency

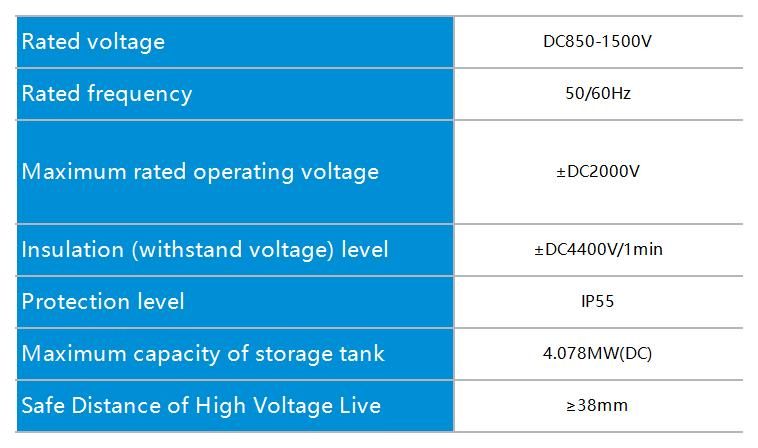

Rated Voltage
DC 850-1500V
Maximum Rated Operating Voltage
+DC 2000V
Insulation (Withstand Voltage) Level
± DC4400V/1min
Maximum Capacity of Storage Tank
4.078MW(DC)
Safe Distance of High Voltage Live
Z38mm
Transport Package
Wooden Pallets/ Wooden Frames/ Wooden Boxes
Production Capacity
500000
Product Description

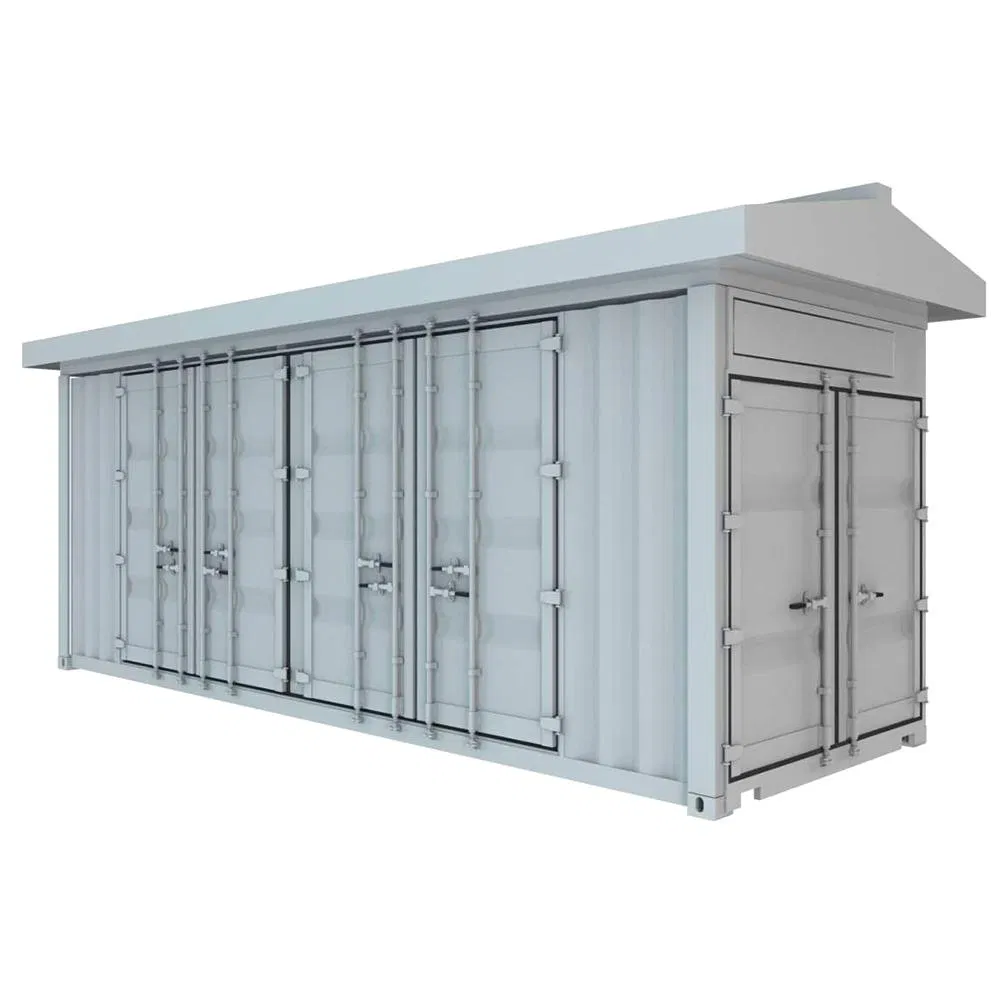

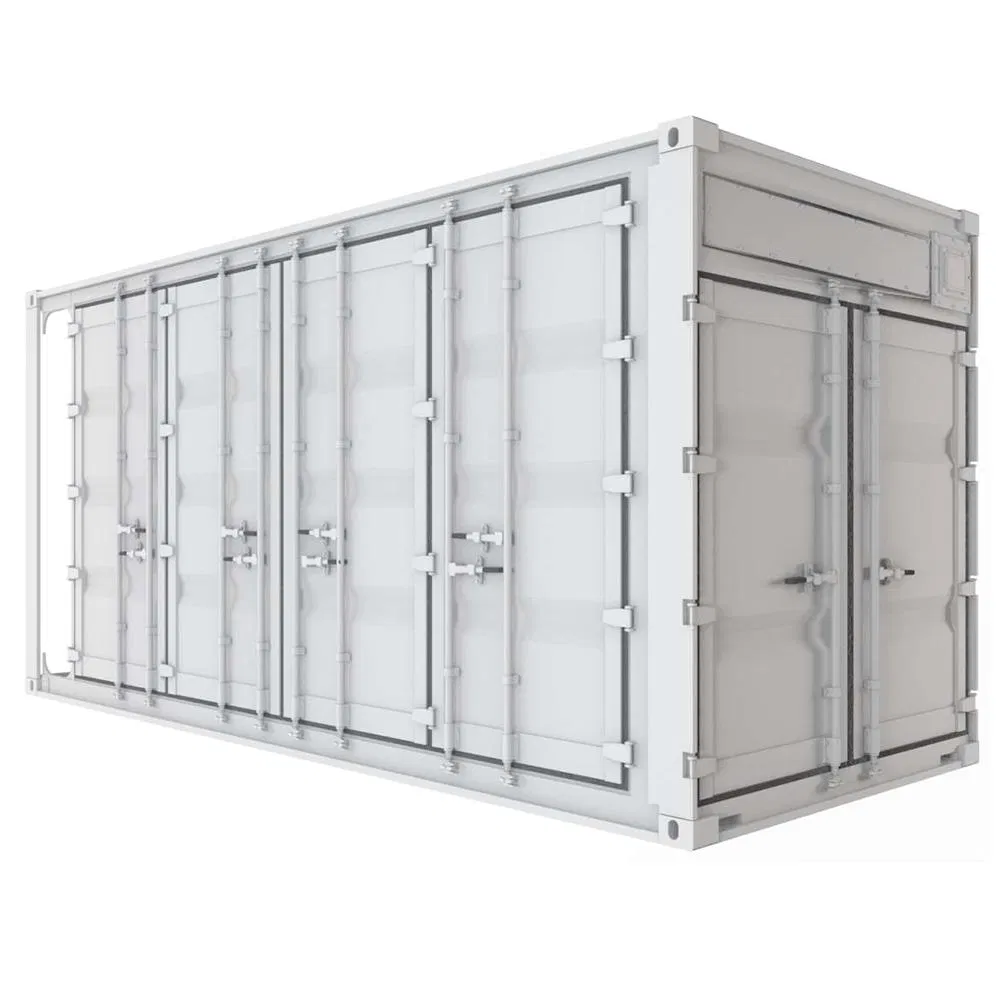

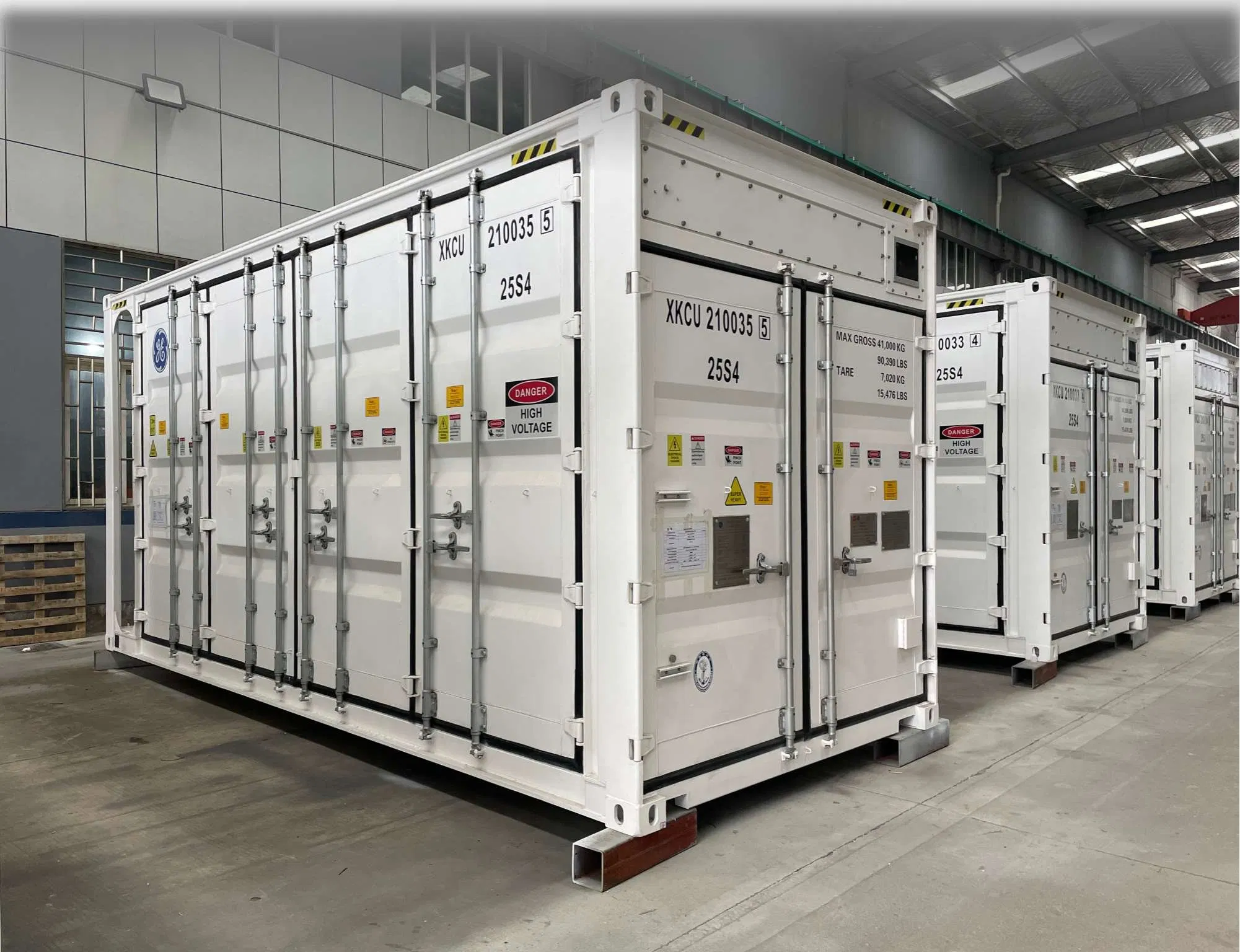

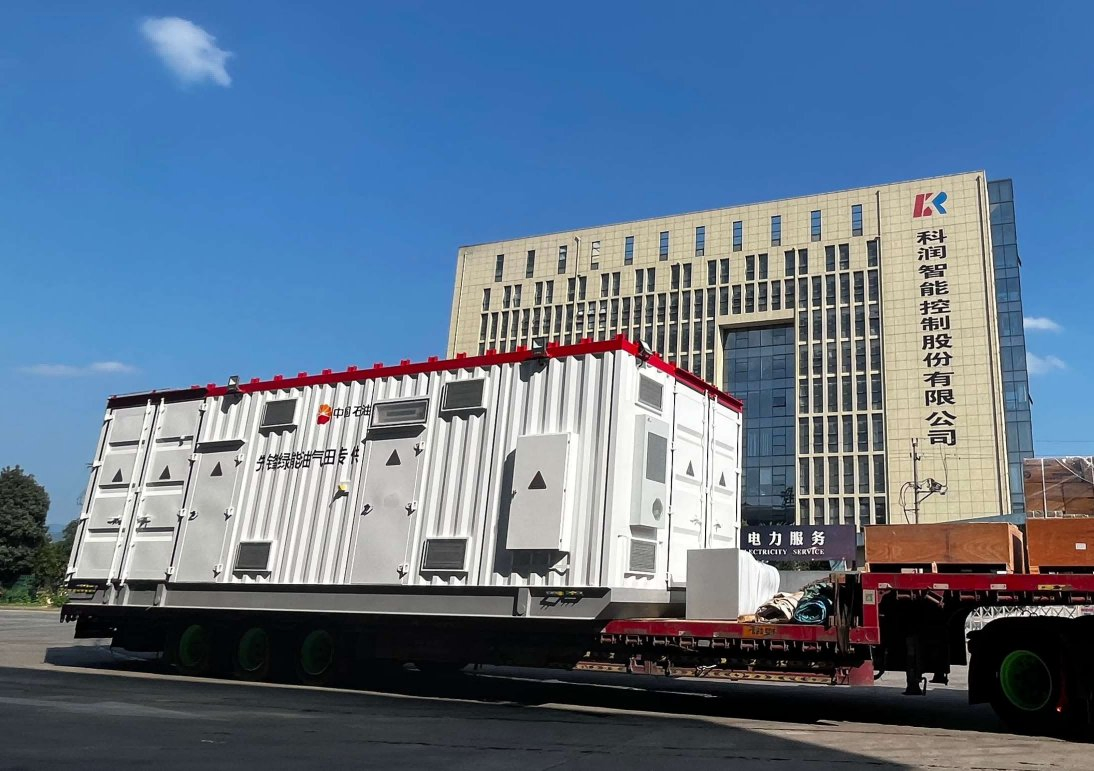

Prefabricated Containerized Battery Energy Storage System
Technical Description
- Small size: 20 feet ISO international standard container (6058 length * 2438 width * 2896 height mm).
- Rated voltage: DC850-1500V.
- Maximum working voltage: DC2000V.
- Busbar power frequency (1min) withstand voltage: DC4400V.
- Frequency: 50/60Hz.
- Protection level: IP55.
- Maximum capacity: 4.078MWh (DC).
- Long discharge time: 3h (hours).
- Maximum output current: 1600A.
- Maximum total weight: 41 tons.
- High electrical safety performance: safety distance 38mm.
- Intelligent control for battery charging and discharging process.
- Adaptable ambient temperature: -45°C to +60°C.
- Box features double-sided doors, special cooling ducts, and is made of high-strength weather-resistant SPA-H steel with double insulation.
Prefabricated Containerized Battery Energy Storage System
Technical Description
- Voltage level: 3.6kV~40.5kV.
- Maximum capacity of transformer: 6300kVA.
- Rated frequency: 50Hz.
- Protection level: IP55.
- Structure type: cold plate welding type, container type.

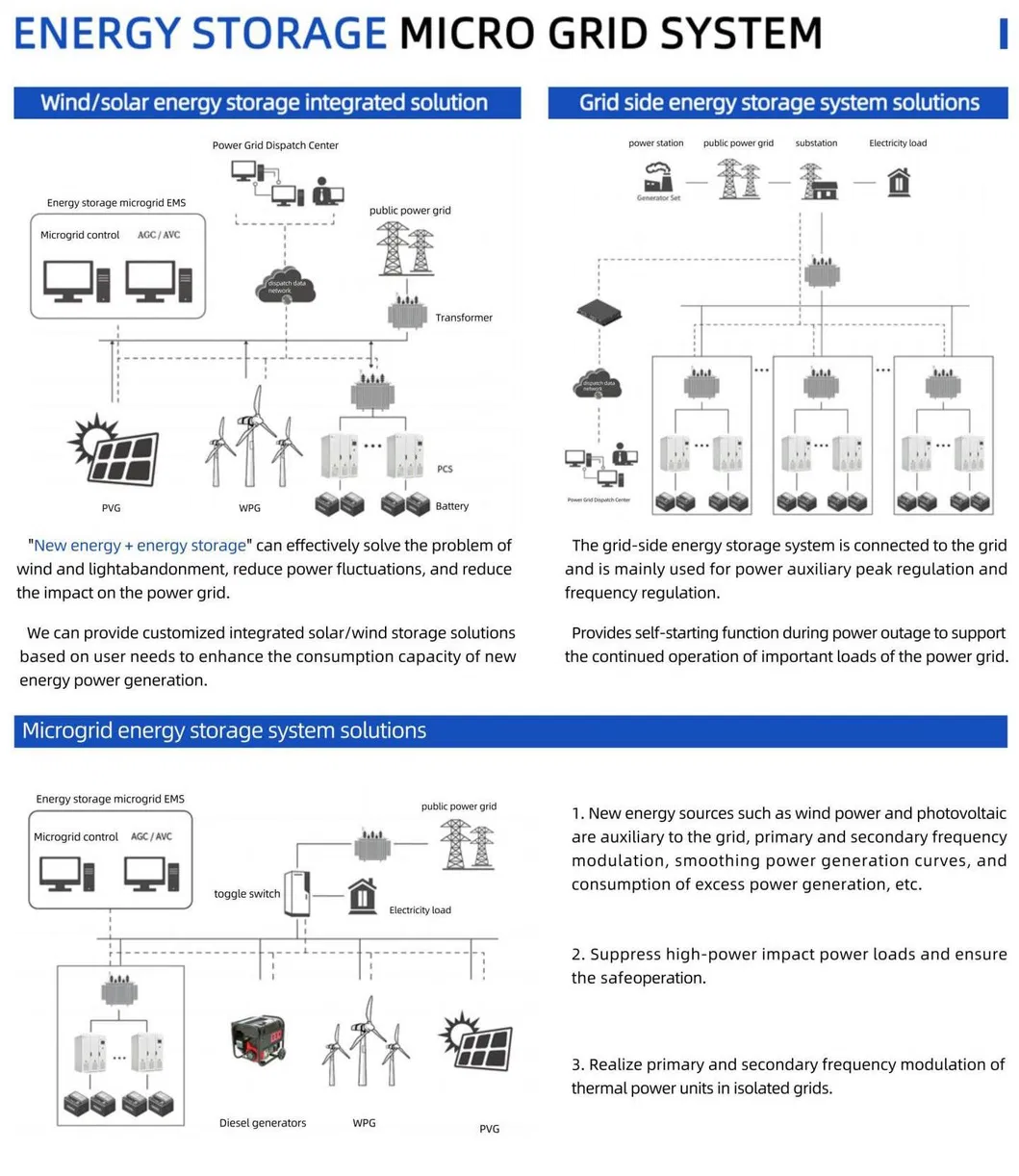

- Applicable to: power transformation and distribution of new energy power generation systems, outdoor power distribution systems and other projects.
- Shell material technology: cold plate spray painting, container shell, aluminum-zinc coated plate anti-corrosion wooden strips, etc.
Prefabricated Containerized Battery Energy Storage System Advantages:
- Utilizes a focus factory concept leading to deep expertise in specific products, providing a very high level of consistency in design, manufacturing, and testing.
- Distribution transformer factories operate on a common design platform, ensuring best-in-class performance, consistency, and repeatability.
- Incorporates premium manufacturing and quality processes to guarantee compliance with the most stringent requirements.
Prefabricated Containerized Battery Energy Storage System Manufacturers:
Engineers possess 40 years of experience in the transformer industry and have accumulated a wealth of expertise participating in different projects globally. Based on diverse project collaboration cases, we help analyze the exact types of transformers needed for your project construction and offer complete power distribution and energy solutions.
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a professional transformer manufacturer with more than 20 years of experience, fully supporting both OEM and ODM requirements.
Which markets do you mostly export to?
We export to more than 20 countries across South America, North America, Europe, the Middle East, Africa, and other global regions.
What certificates and standards do your products conform to?
We hold ISO9001-2008, OHSAS 18001:2007, and ISO4001:2004 certificates. Our designs and products comply with international standards such as IEC, ANSI, KEMA, and GOST.
How long is the delivery time?
Once the customized plan is finalized, production and shipping are typically completed within 20 days. The exact timeframe varies depending on the order volume.
What packaging standards are used?
Our standard packaging consists of three options: wooden pallets, wooden frames, and robust wooden boxes. Custom packaging requirements can also be accommodated.
Which currencies and payment types do you support?
We accept USD and CNY currencies. Supported payment methods include T/T (Telegraphic Transfer) and L/C (Letter of Credit).
