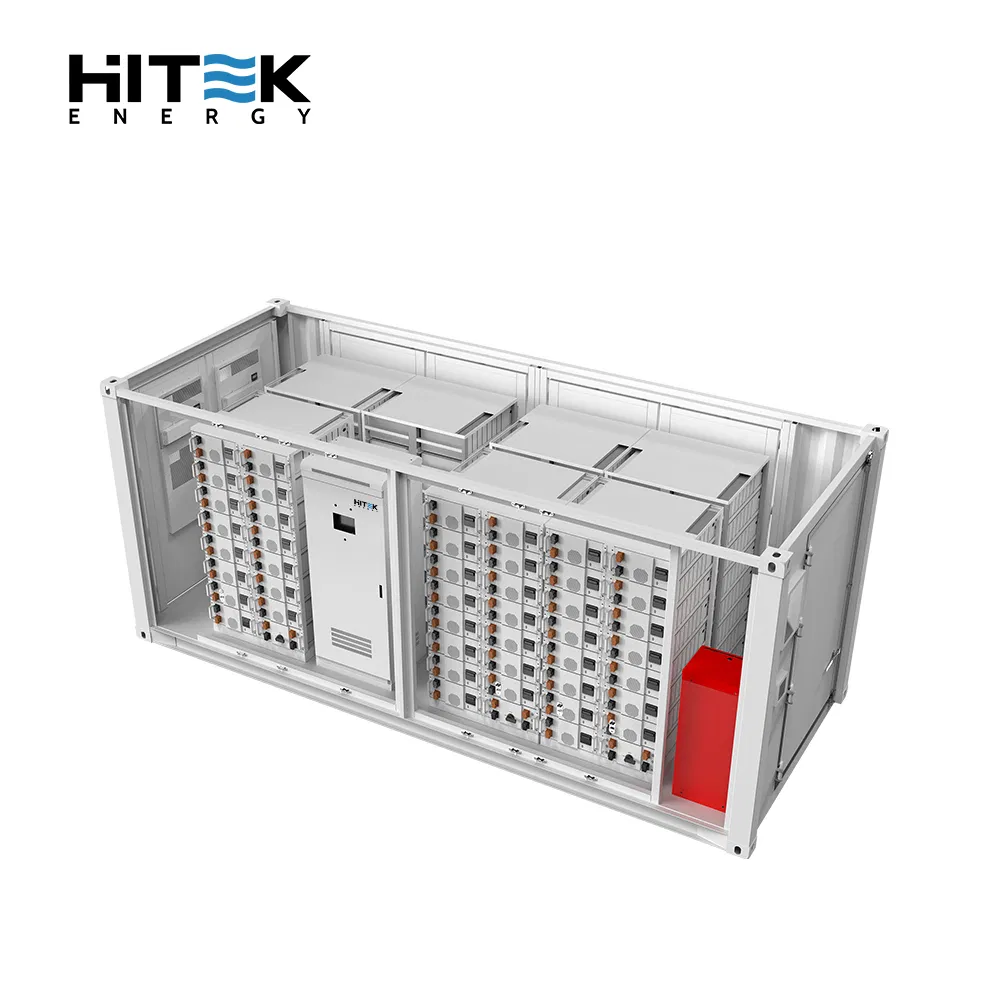

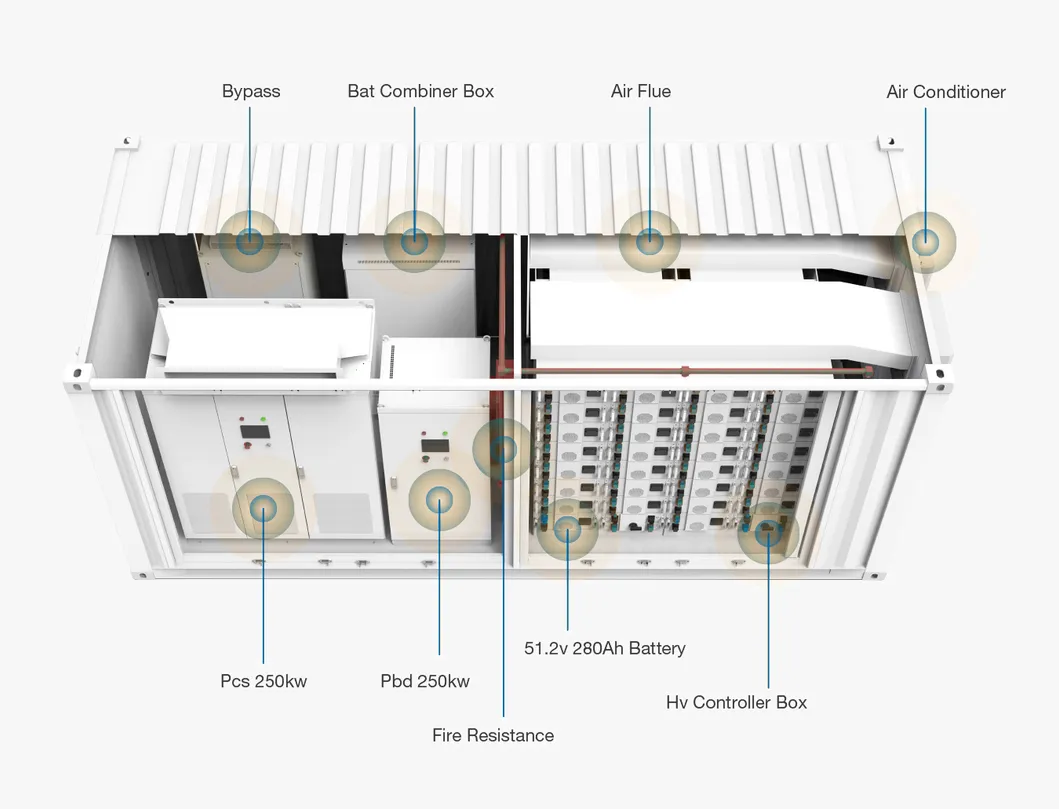

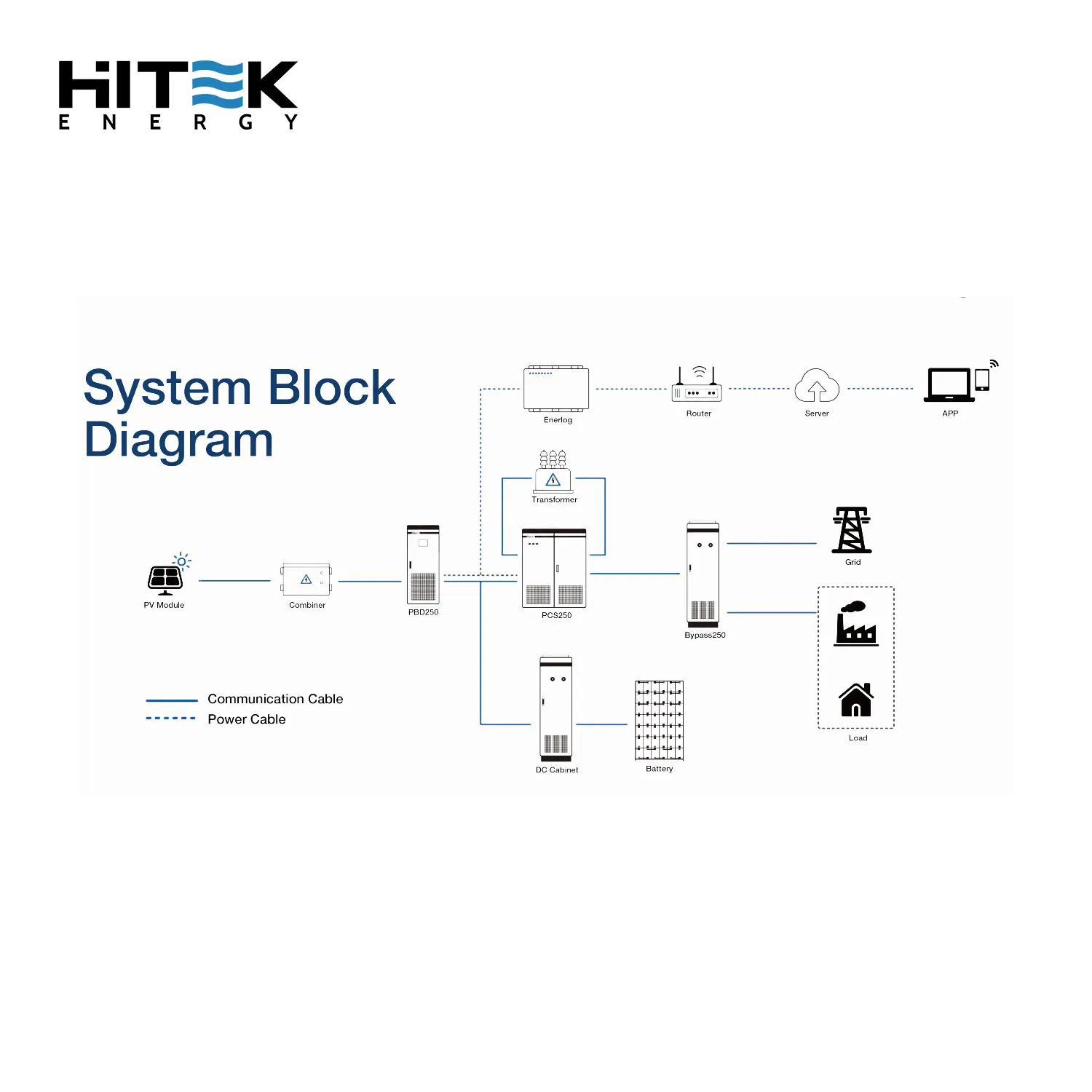

| 20FT ESS Lithium Energy Storage Container Energy Storage System | |||
|---|---|---|---|
| Item | Description | Quantity (pcs) | Remarks |
| PV Solar Panel | HT560M-72H | 480 | 12 pieces/string; A total of 40 strings; A total of 268.8kWp |
| Battery 860.16KWH (688.12KWH@80%DOD) Backup | Combiner Box 1500V-1500A | 1 | For combination of multiple battery racks |

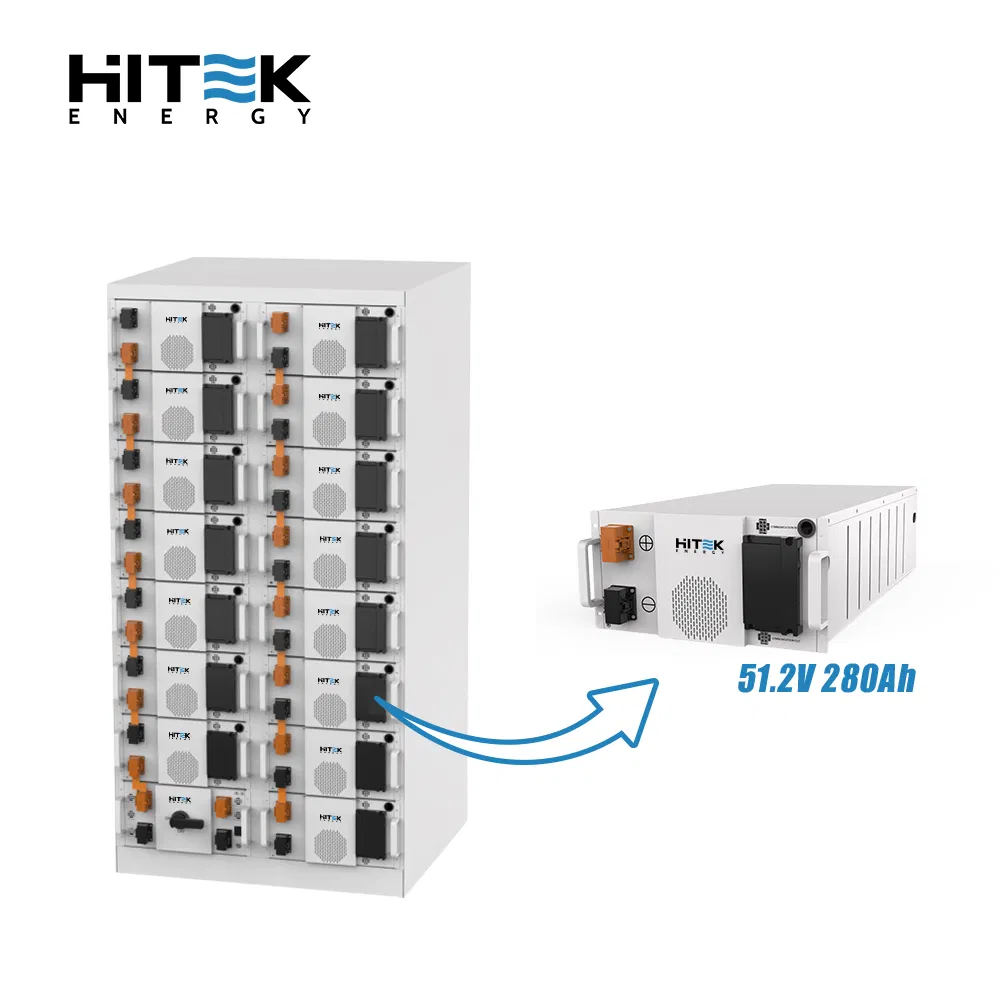

| 280Ah Lithium Battery Module | 60 | Battery With BMU module 51.2V 280AH Capacity 14.3kWh | |
| Controller 1500V 300A | 4 | High Voltage Controller Box | |
| PV-Combiner Box | 8 Inputs 1 Output | 3 | For combination of multiple PV module strings |
| PBD250 | - | 1 | 250kW solar charge controller |
| PCS250 | - | 1 | 250kW battery inverter |
| Bypass 250 | - | 1 | Switch between on-grid and off-grid |
| EnerLog | - | 1 | Monitoring datalogger |

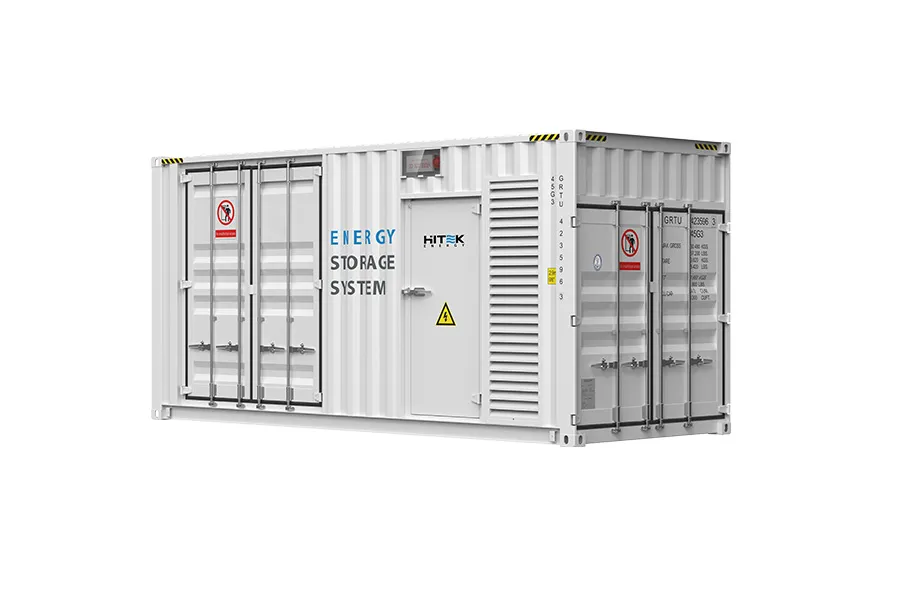

| 20FT Container | - | 1 | For outdoor installation, IP54, including lighting, fire-resistance system, battery rack, air conditioner |
This product is not a standard specification, need to be configured according to your own needs. Please feel free to customize your exclusive solution.
Model: HT560M-72
Peak Power Watts: 560Wp
Open Circuit Voltage (Voc/v): 49.84v
Short Circuit Current (Isc/A): 14.14A
Voltage at Maximum Power (Vmp/V): 41.08v
Current at Maximum Power(Imp/A): 13.64A
Dimensions: 2279*1134*35mm
Weight: 28±3%kg

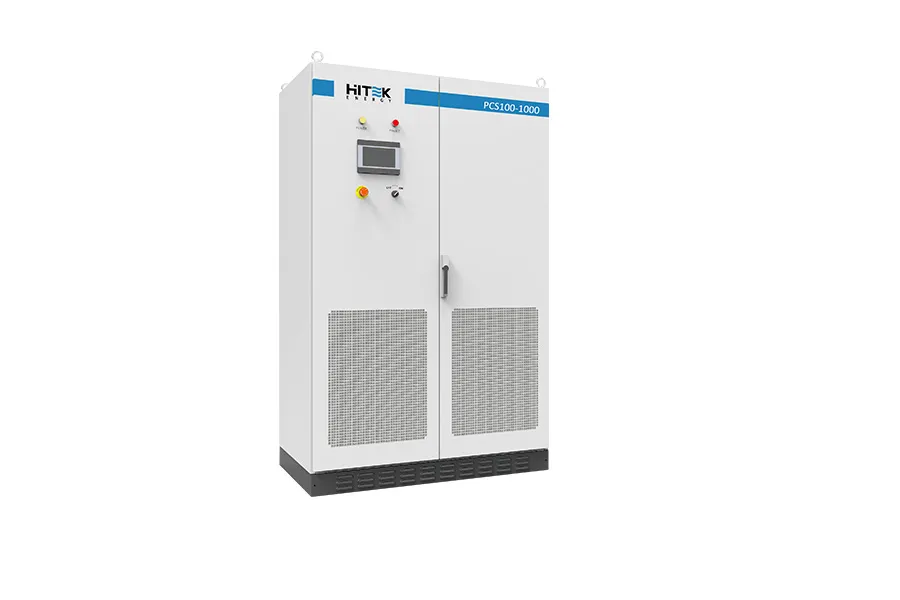

Bidirectional battery inverter 500KW, can be used alone or with solar charger and other accessories for different application scenario. Paralleling multiple units, Flexible Configuration, Programmable working mode, Support remote control of DG, Touchscreen LCD.

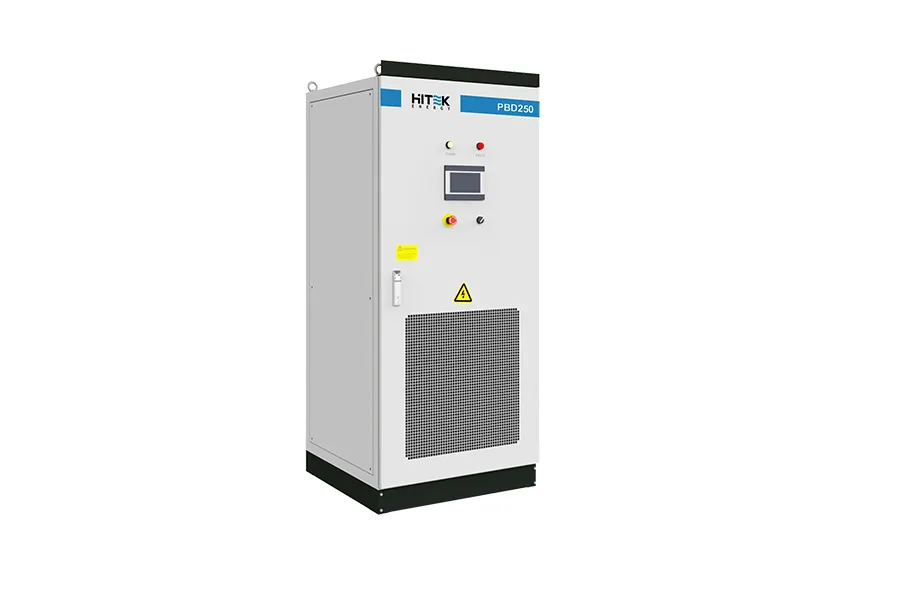

1000V level DC to DC solar charge controller, used together with PCS and Bypass for large scale solar projects.
Bypass cabinet is designed to be used together with bidirectional battery inverter and PV inverter to realize seamless transfer between on and off grid mode automatically.

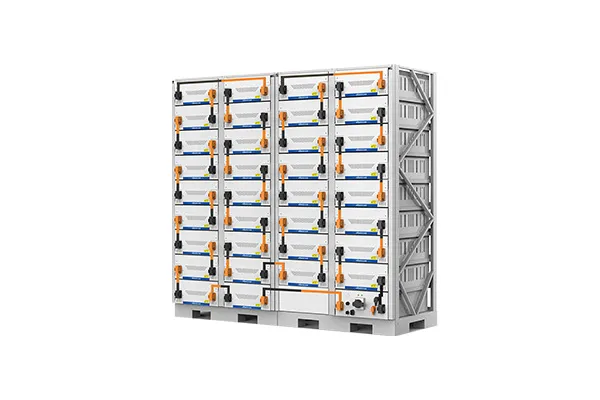

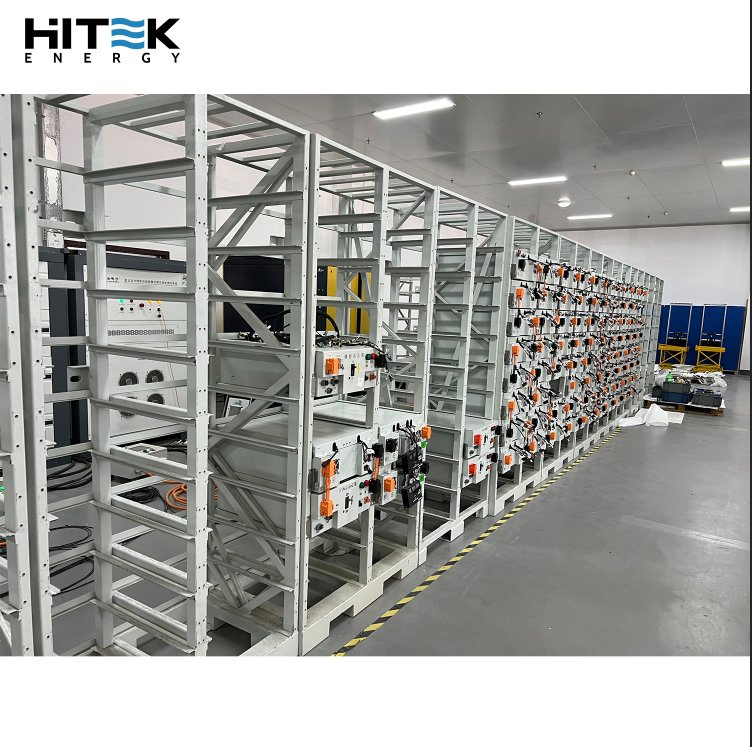

The energy storage standard module consists of 60 single cells, each unit power is 14.3kWh, the nominal voltage is 51.2V, totally 686kWh@80% DOD.

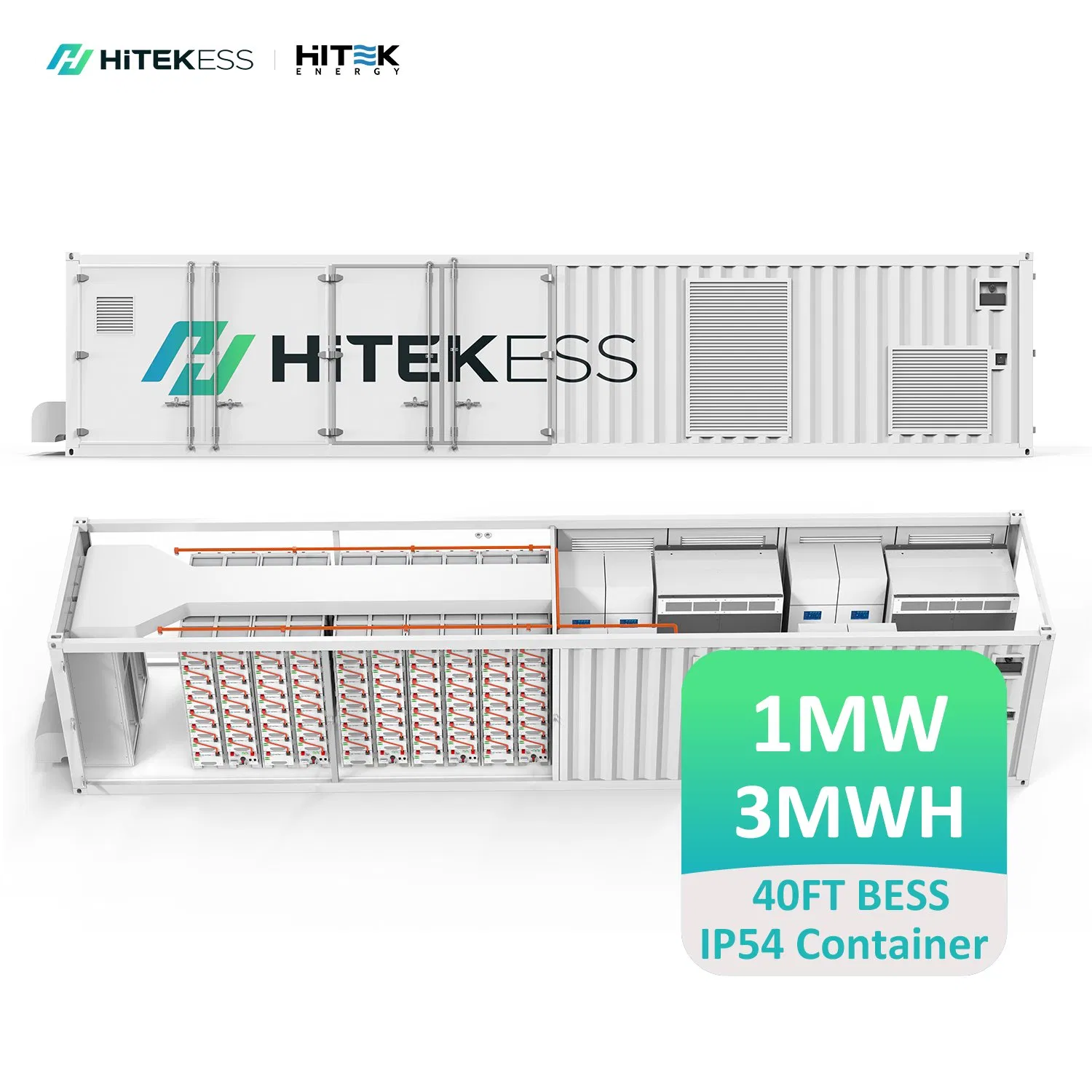

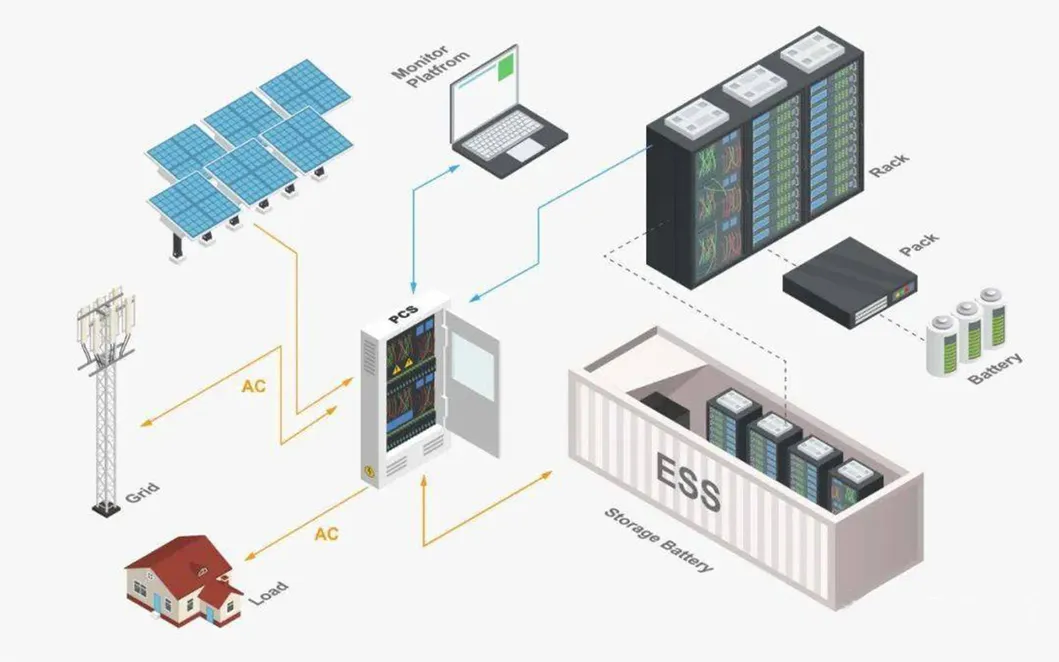

Our containerised energy storage system (BESS) is the perfect solution for large-scale energy storage projects. The energy storage containers can be used in the integration of various storage technologies and for different purposes.
