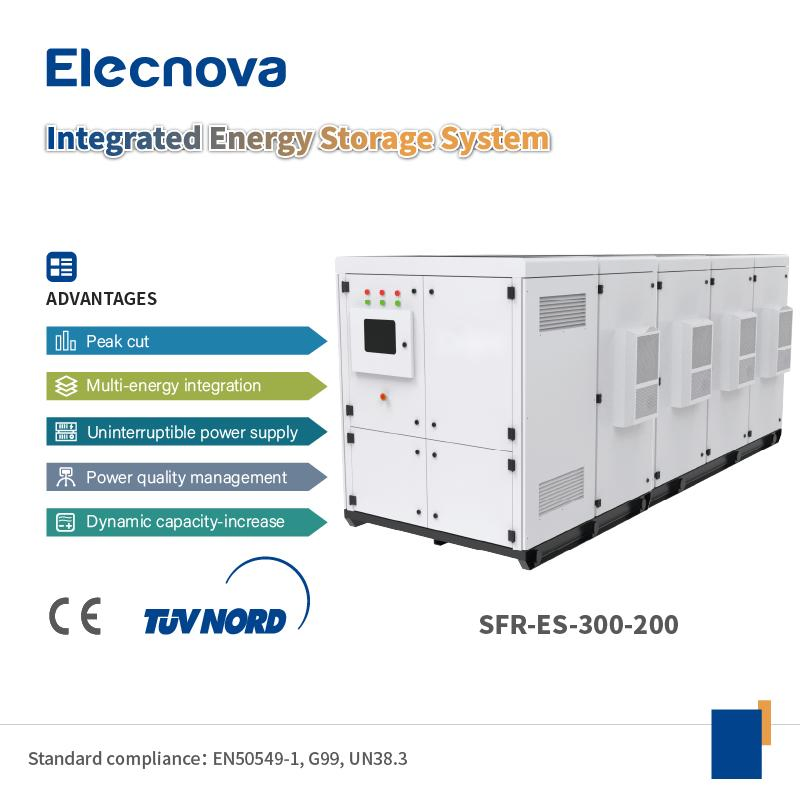

| Model NO. | SFR-ES-300-200 |
| Nominal Capacity | 300kwh |
| Cycle Life | 4000 Cycles |
| Relative Humidity | 0~95%(No Condensing) |
| Max Working Altitude(M) | 4000 (>2000 Derating) |
| on/off Grid Switching | Sts |
| Dimension(W*D*H)(mm) | 1680*3830*2300mm |
| Specification | 1680*3830*2300mm |
| Origin | China |
| Model NO. | SFR-ES-300-200 | Output Frequency | 50/60Hz |
| Controller Type | MPPT | Battery Type | Lithium Ion |
| The Charging Ratio | 2c | Battery | LiFePO4 Lithium Battery |

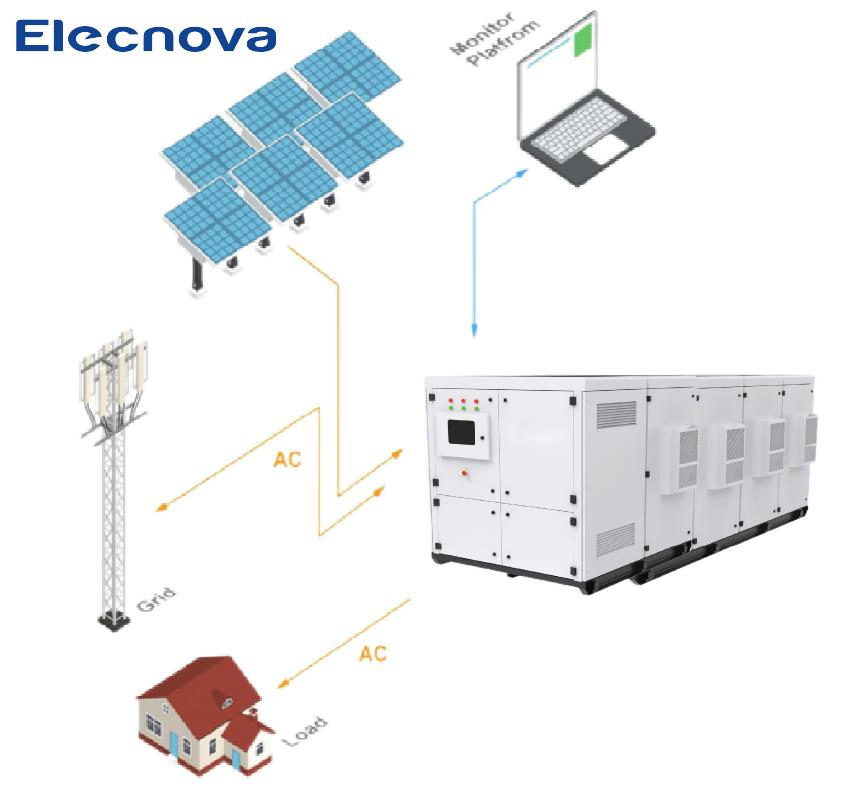

| Components | PCS, Lithium Battery System | Work Time (H) | 24/7 |
| Power Grid | 3W+N+PE | Rated Grid Voltage (V) | AC 380/400 |
| Rated Output Power(Kw) | 2000kw | Output Current Harmonics | ≤3% (Rated Power) |
| Application | Industrial, Solar Energy Systems, Uninterruptible | Maximum Output Power (Kw) | 220kw |
| Specification | 1680*3830*2300 | Origin | China |

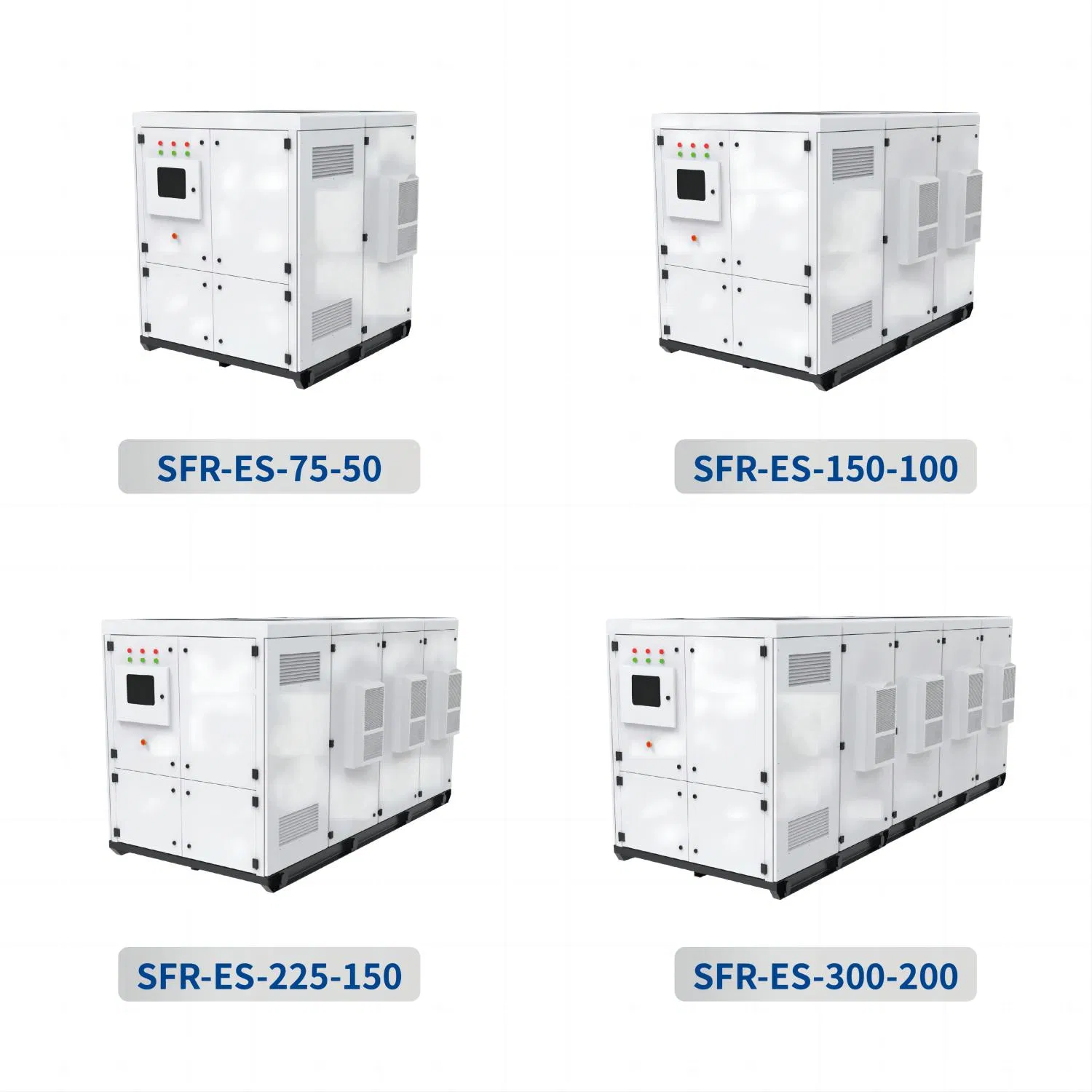

| Model | SFR-ES-75-50 | SFR-ES-150-100 | SFR-ES-225-150 | SFR-ES-300-200 |
|---|---|---|---|---|
| AC parameters (grid connected) | ||||
| Rated output power (kW) | 50 | 100 | 150 | 200 |
| Max output power (kW) | 55 | 110 | 165 | 220 |
| Rated grid voltage (V) | 3W+N+PE, 380 | |||
| Rated grid frequency (Hz) | 50/60 | |||
| Power factor | >0.99(Rated voltage) | |||
| Overload capacity | 110% Long term | |||
| AC parameters (off grid) | ||||
| Rated output power (kW) | 50 | 100 | 150 | 200 |
| Max output power (kW) | 55 | 110 | 165 | 220 |
| Rated grid voltage (V) | 3W+N+PE, 380 | |||
| Overload capacity | 110% Long term | |||

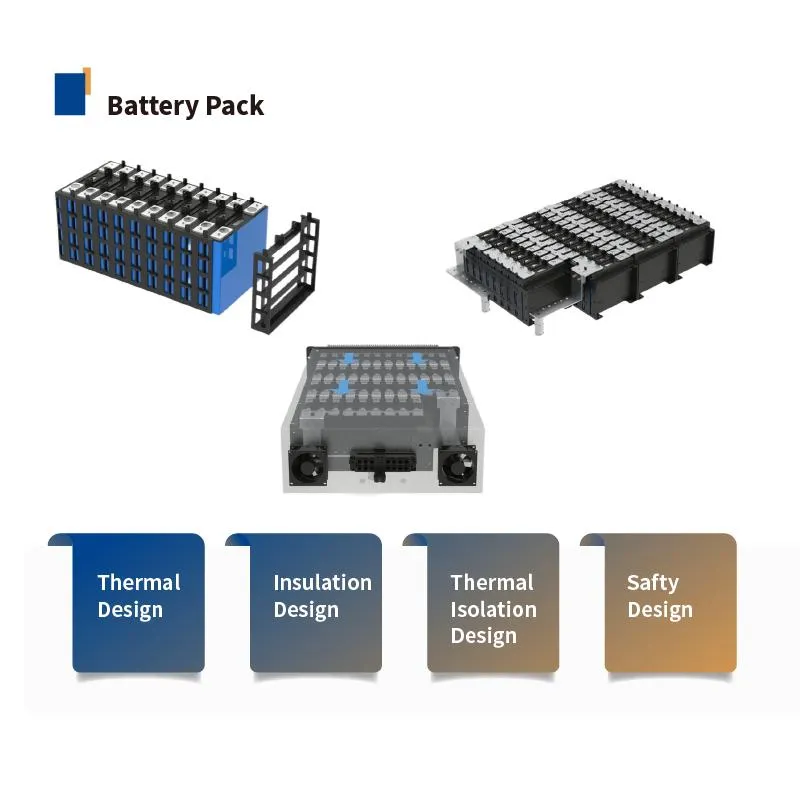

| Battery | ||||
| Battery Type | Lithium iron phosphate | |||
| Energy of each module(kWh) | 5.12 | |||
| Module qty | 15 | 30 | 45 | 60 |
| Total power (kWh) | 76.8 | 153.6 | 230.4 | 307.2 |
| Cyclelife | 25°C 0.5C/0.5C 100%DOD EOL80% >4000 times | |||
| System efficiency | ||||
| Max efficiency | 95% | |||
| Basic Parameters | ||||
| Working temperature | -20 ~ 55°C (>45°C derating) | |||
| Relative humidity | 0 ~ 95% (no condensing) | |||
| Protection | Outdoor IP54 | |||
| Certification | IEC62477-1/EN61000/IEC62619/IEC62620/UN38.3 | |||
| Communication | RS485, CAN, LAN | |||
| Communication protocol | Modbus-RTU, Modbus-TCP, CAN2.0B | |||

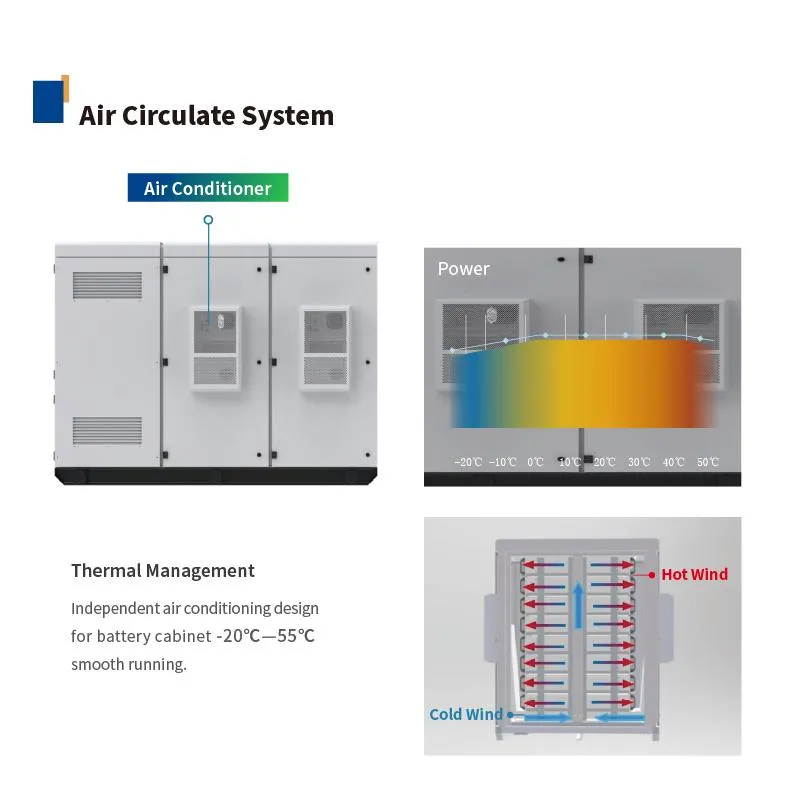

| Cooling | Intelligent air cooling (intelligent heating optional) | |||
