| 20FT System Configuration | |||
|---|---|---|---|
| Item | Model/Specification | Quantity | Description |
| PV | Panel (W): 600W | 420 | 12pieces/string, total 35 strings. Capacity: 252kw |
| PV Combiner Box | PV Combiner Box | 5 | 7 inputs 1 output For Combination of Multiple PV module strings |
| Inverter | PBD250 | 1 | 250kW solar charge controller |
| PCS250 | 1 | 250kW battery inverter | |
| Bypass 250 | 1 | Switch Between On grid and Off grid | |
| Enerlog | Enerlog | 1 | Monitor |
| Battery | BAT-Combiner box 1500V-1500A |
1 | For combination of multiple battery racks |

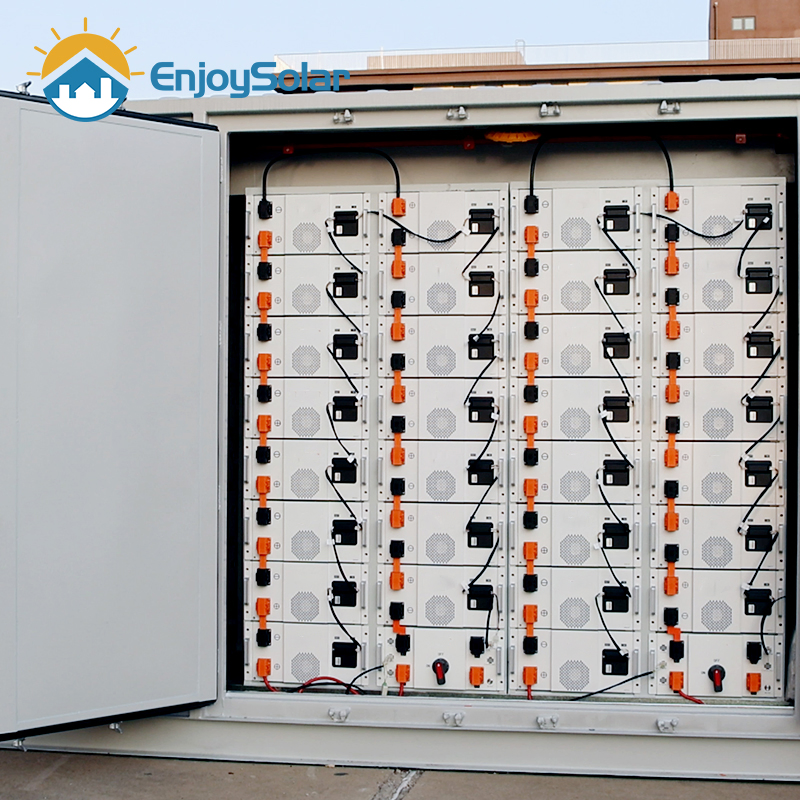

| 51.2V 280AH module | 60 | Battery With BMU module 51.2V 280AH Capacity 14.3kWh | |
| High Voltage Controller Box 1500V 300A |
4 | High Voltage Controller Box | |

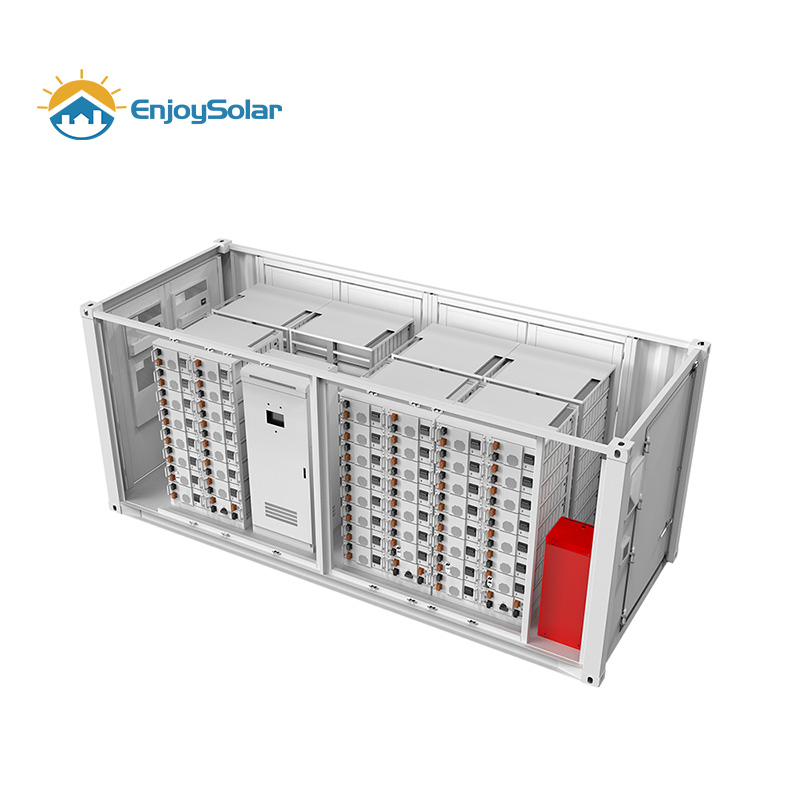

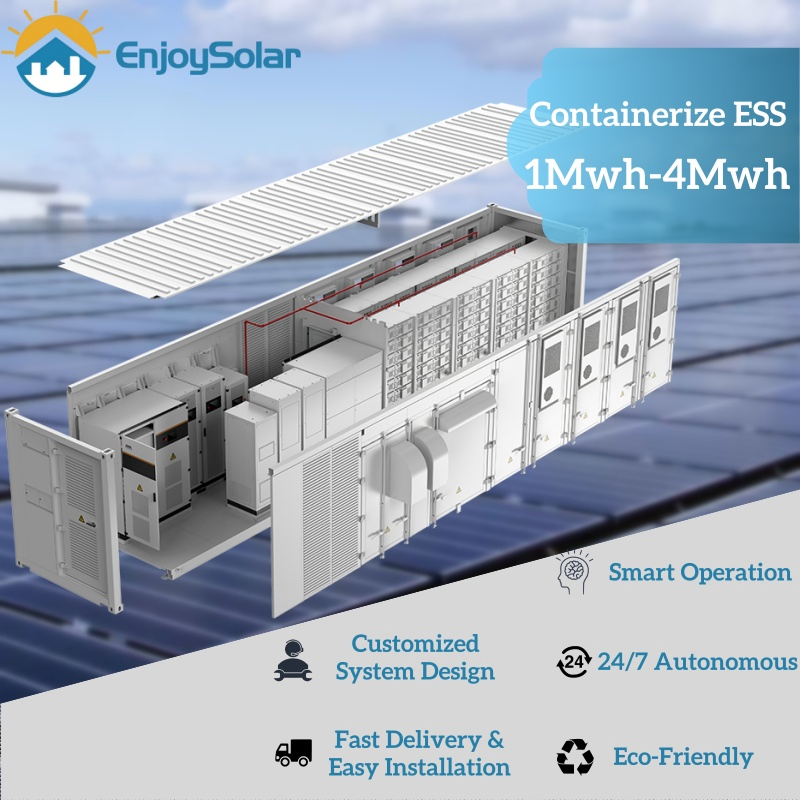

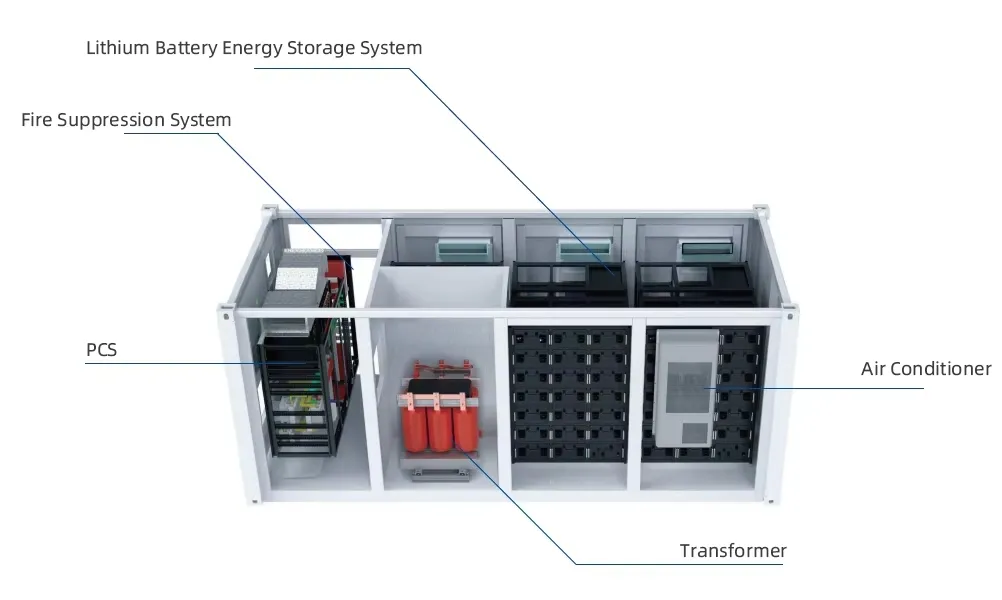

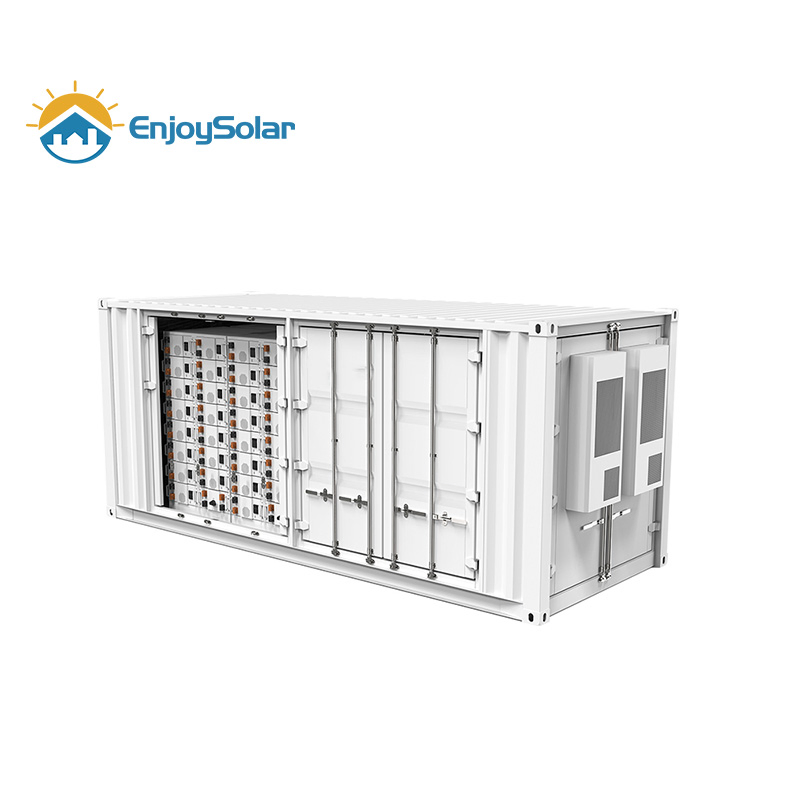

| 20ft Container | 20ft Container | 1 | For outdoor installation, IP54, including lighting, fire-resistance system, battery rack, air conditioner |
| 40FT System Configuration | |||
|---|---|---|---|
| Item | Model/Specification | Quantity | Description |
| PV | Panel (W): 600W | 840 | 12pieces/string, total 70 strings. Capacity: 504kw |
| PV Combiner Box | PV Combiner Box | 10 | 7 inputs 1 output For Combination of Multiple PV module strings |
| Inverter | PBD250 | 2 | 250kW solar charge controller |
| PCS500 | 1 | 500kW battery inverter | |
| Isolation Transformer 500 | 1 | 500KVA Isolation Transformer | |
| Bypass 500 | 1 | Switch Between On grid and Off grid | |
| Enerlog | Enerlog | 1 | Monitor |
| Battery | BAT-Combiner box 1000V-1500A |
1 | For combination of multiple battery racks |
| 51.2V 280AH module | 150 | Battery With BMU module 51.2V 280AH Capacity 14.3kWh | |
| High Voltage Controller Box 1000V 300A |
10 | High Voltage Controller Box | |
| 40ft Container | 40ft Container | 1 | For outdoor installation, IP54, including lighting, fire-resistance system, battery rack, air conditioner |
