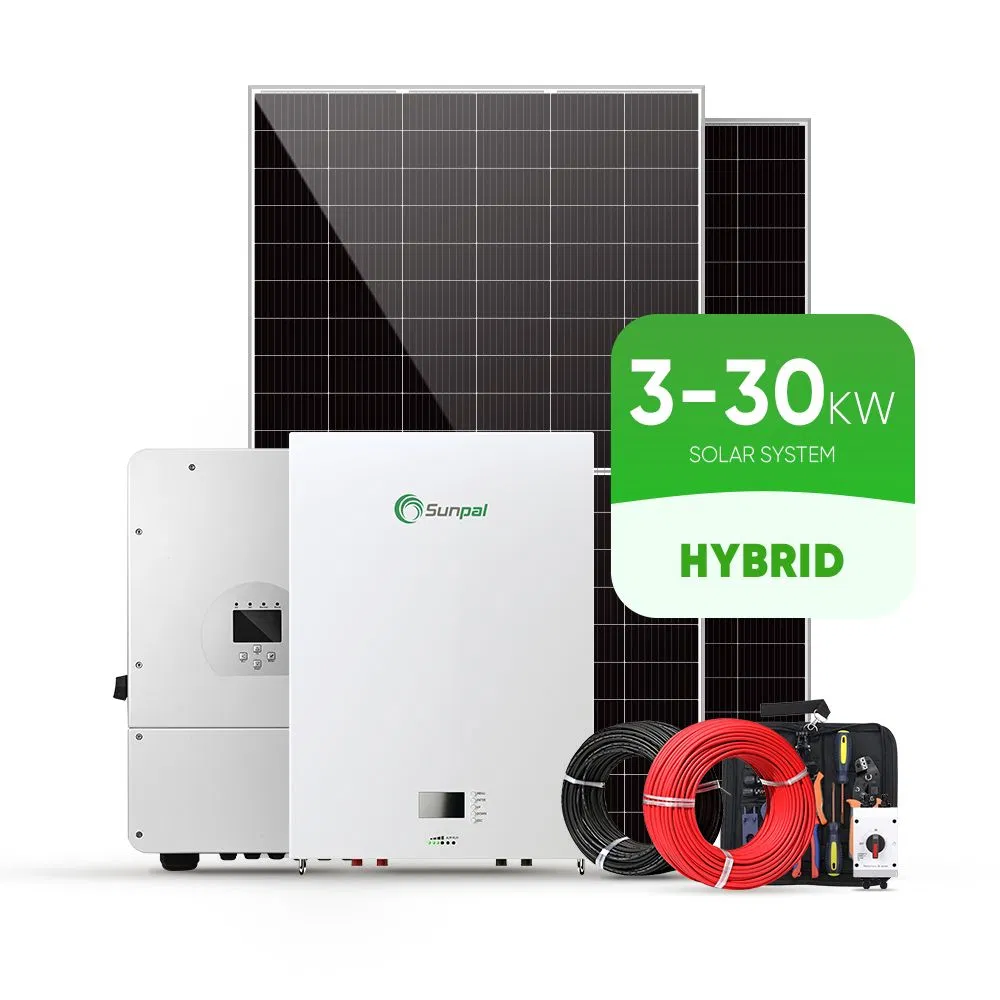

Sunpal Hybrid Home Solar Power System 5Kw 10Kw 40Kw 50Kw Off Grid Energy Storage System Solar Kit

1 / 5

Sunpal Hybrid Home Solar Power System 5Kw 10Kw 40Kw 50Kw Off Grid Energy Storage System Solar Kit

Send Inquiry

Product Description

Hybrid Home Solar Power System Off Grid Energy Storage System Solar Kit

Warranty

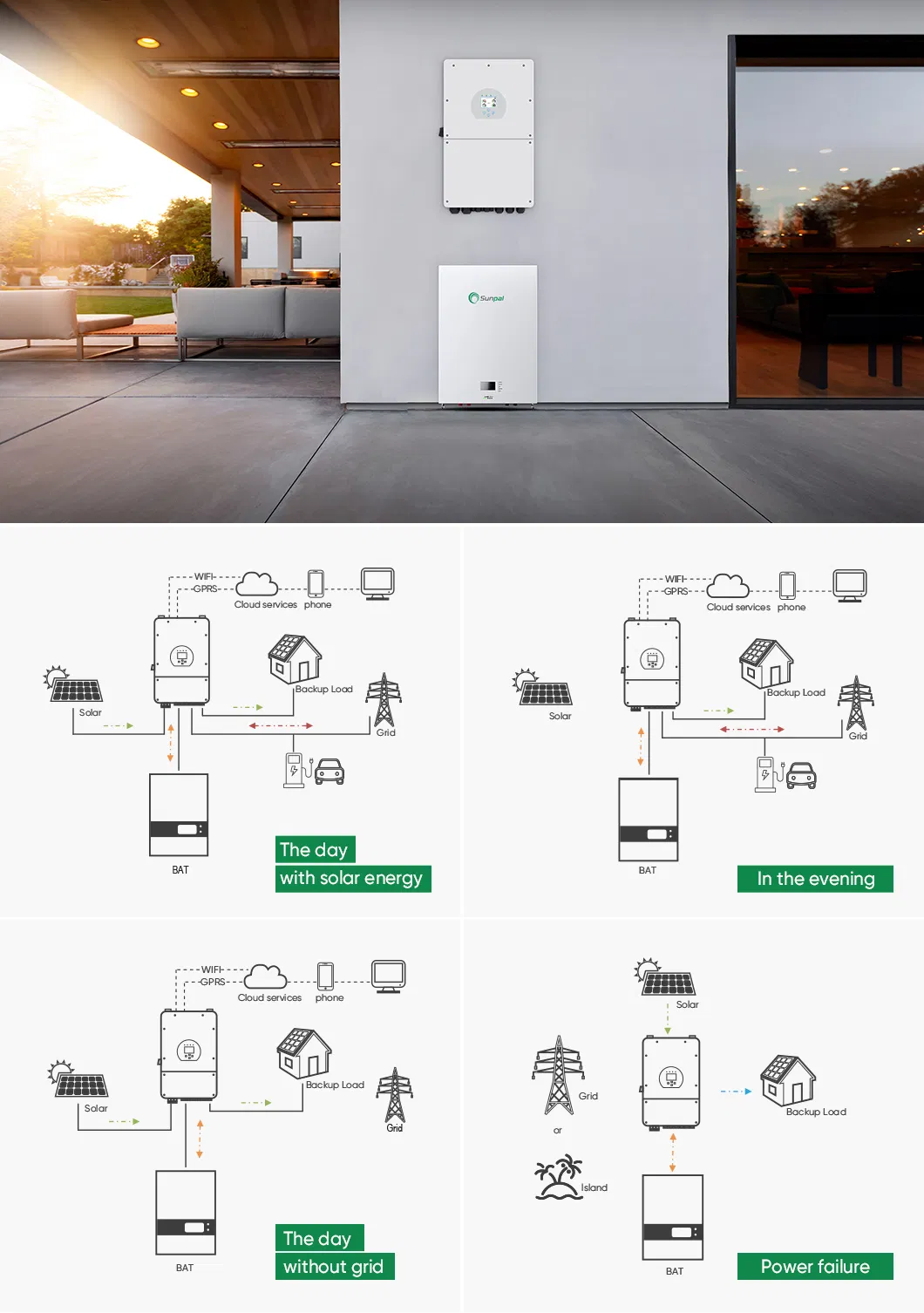

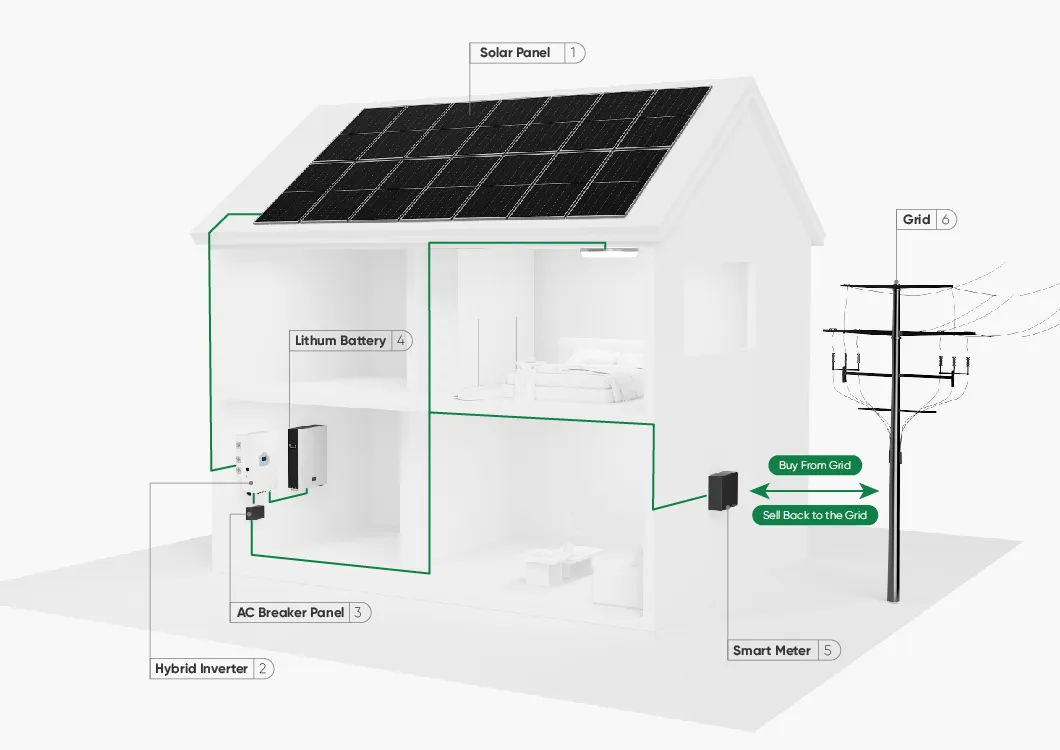

How It Works

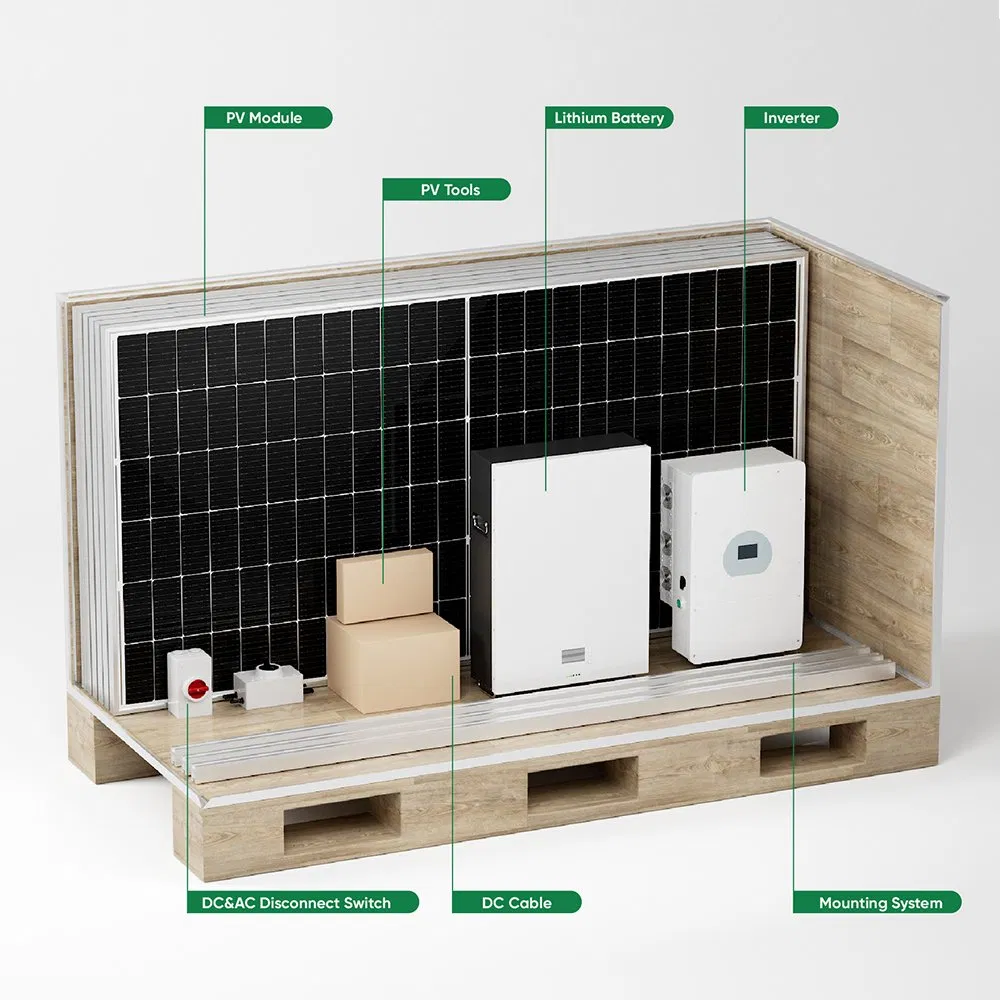

What's Included

Model	SP-3KW-HY	SP-5KW-HY	SP-10KW-HY
Half Cut Mono 550W Solar Panel	6 Pieces	10 Pieces	20 Pieces
DC Disconnect Switch	1 Piece	2 Pieces	3 Pieces
Hybrid Inverter	SUN-3K-SG04LP1-EU	SUN-5K-SG03LP1-EU	SUN-10K-SG04LP3-EU
Wall Mounted LiFePo4 Battery	5Kwh	5Kwh	10Kwh

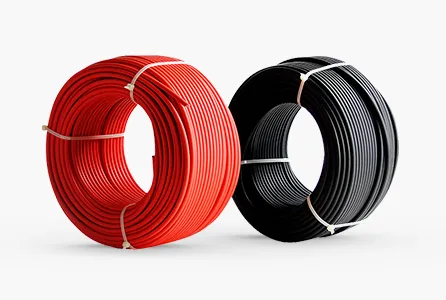

DC Cable 4mm2	100 meter	200 meter	400 meter
AC Disconnect Switch	1 Piece	1 Piece	1 Piece
MC4 Connector	10 Pairs	10 Pairs	10 Pairs
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	1 Set

Model	SP-15KW-HY	SP-20KW-HY	SP-30KW-HY
Half Cut Mono 550W Solar Panel	30 Pieces	42 Pieces	63 Pieces
DC Disconnect Switch	4 Pieces	6 Pieces	9 Pieces
Hybrid Inverter	SUN-5K-SG03LP1-EU 3 Pieces	SUN-10K-SG03LP1-EU 2 Pieces	SUN-10K-SG04LP3-EU 3 Pieces
Wall Mounted LiFePo4 Battery	15Kwh	20Kwh	30Kwh
DC Cable 4mm2	600 meter	800 meter	1000 meter
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	1 Set

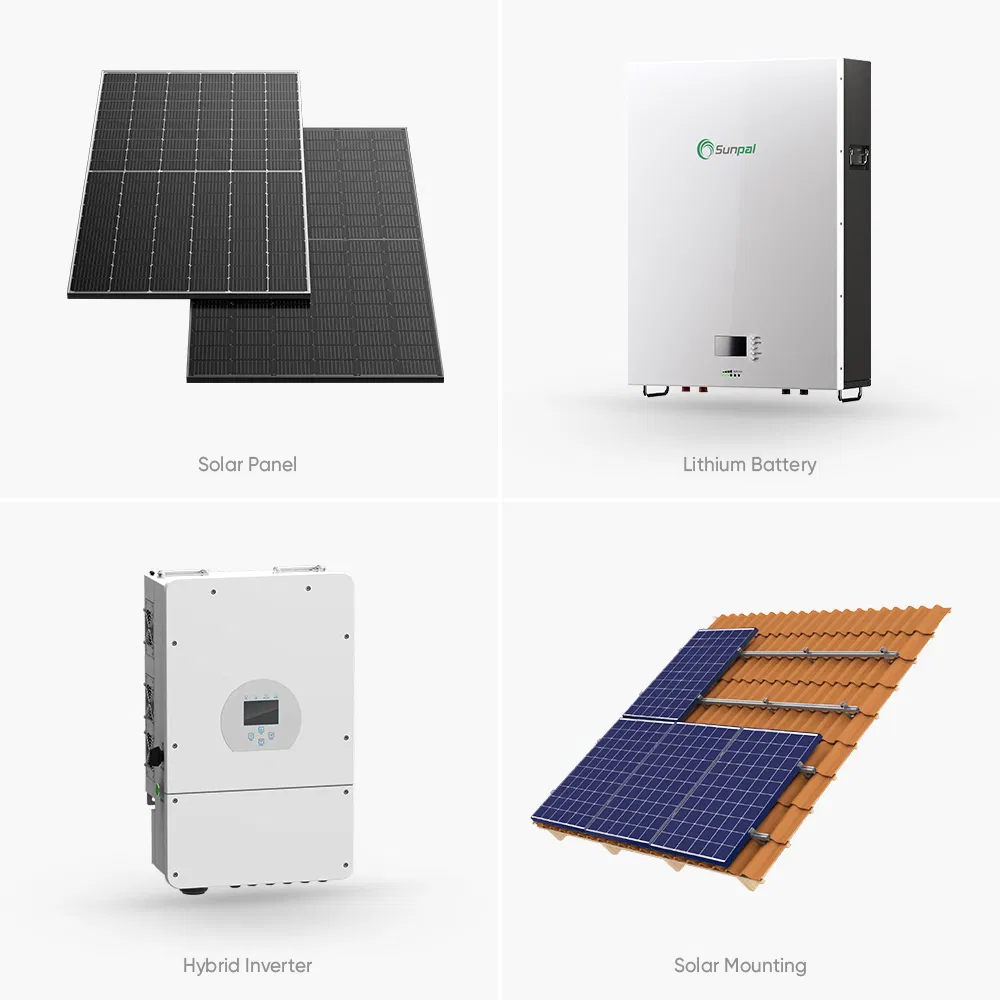

System Components

Half Cut Mono 550W Solar Panel

Peak Power Watts: 550W
Maximum Power Voltage: 42.06V | Maximum Power Current: 12.84A
Open Circuit Voltage: 49.75V | Short Circuit Current: 13.63A
Dimensions: 2279x1134x35mm | Weight: 26.9 kg

Hybrid Solar Inverter

48V low voltage battery, transformer isolation design.
6 time periods for battery charging and discharging.
Max. charging/discharging current of 240A.
Max. 10pcs parallel capability.
Supports DC couple and AC couple to retrofit existing solar systems.

Monitoring System

Open station supports one-click installation and registration.
Problem support one-click dispatch and navigation.
Safe operation, traceable logs, and lifecycle data storage to ensure data security and reliability.

Wall Mounted LiFePo4 Battery

15-20 years design life with up to 6000+ cycle life.
Wall mount or ground stack brick setup, easily connecting to inverter.
Scalable battery module for larger storage systems.
Built-in high quality BMS to protect battery cells continuously.
Safe lithium iron phosphate battery technology for home usage.

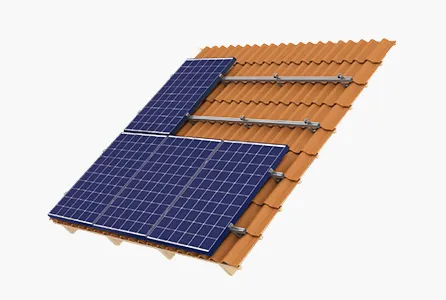

PV Mounting System (Option A)

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35, 40, 45, 50mm.
L Foot Asphalt Shingle Mount & Hanger Bolt Optional.
Cable Clip & Tie Optional | Ground Clip & Lugs Optional.

PV Mounting System (Option B)

DC & AC Disconnect Switch

IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20, M25, MC4
Rated Current: 16A, 20A

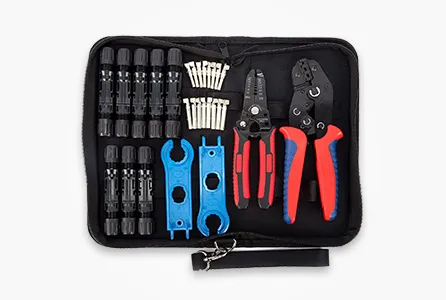

PV Tools

Wire Cable Cutter & Stripper.
MC3 MC4 Crimper.
MC4 Connectors Assembly & Disassembly Tool.

Product Packaging

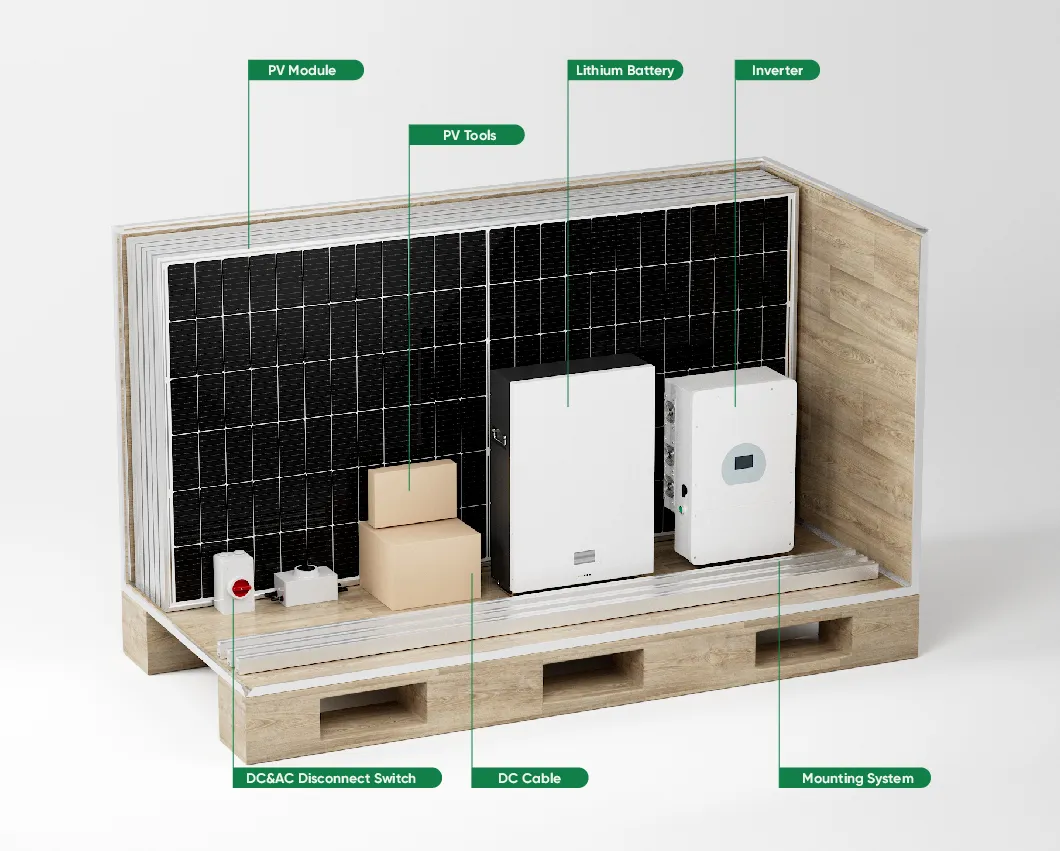

Hybrid Home Solar Power System Packaging Method 1

Hybrid Home Solar Power System Packaging Method 2

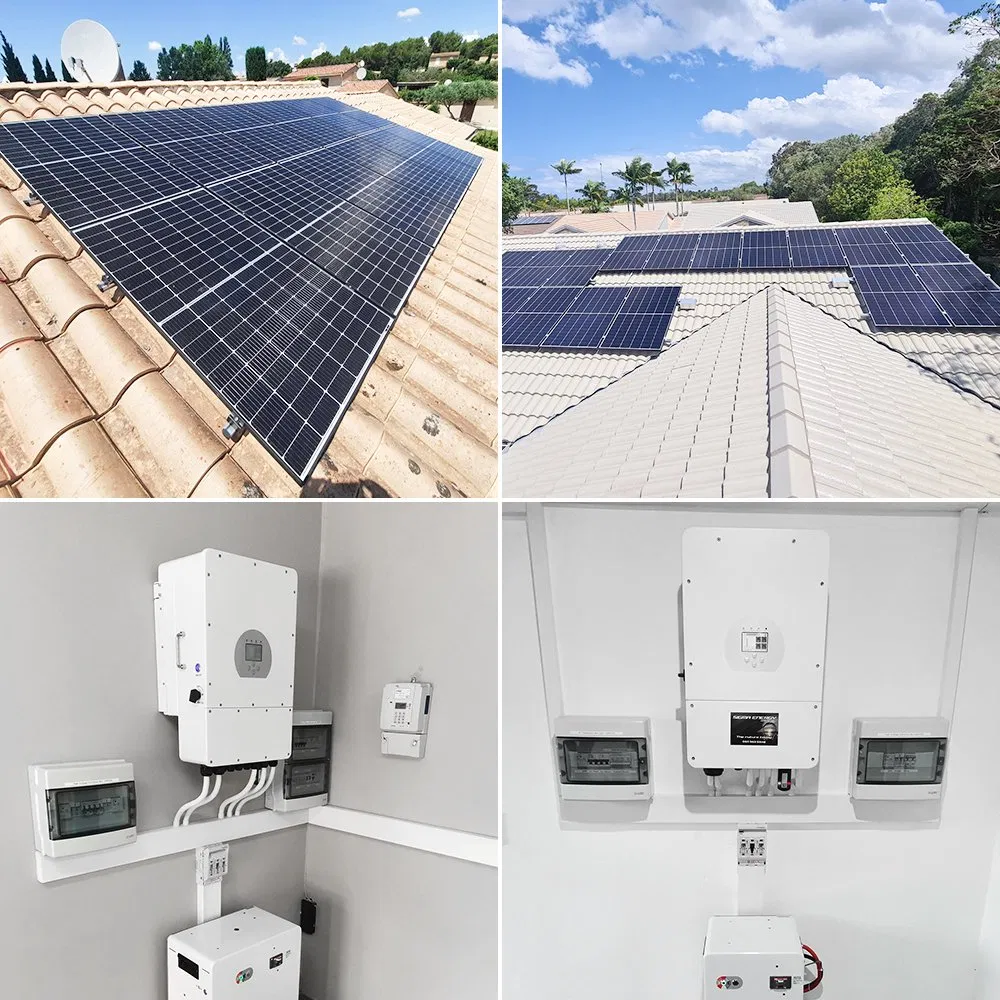

Project Cases

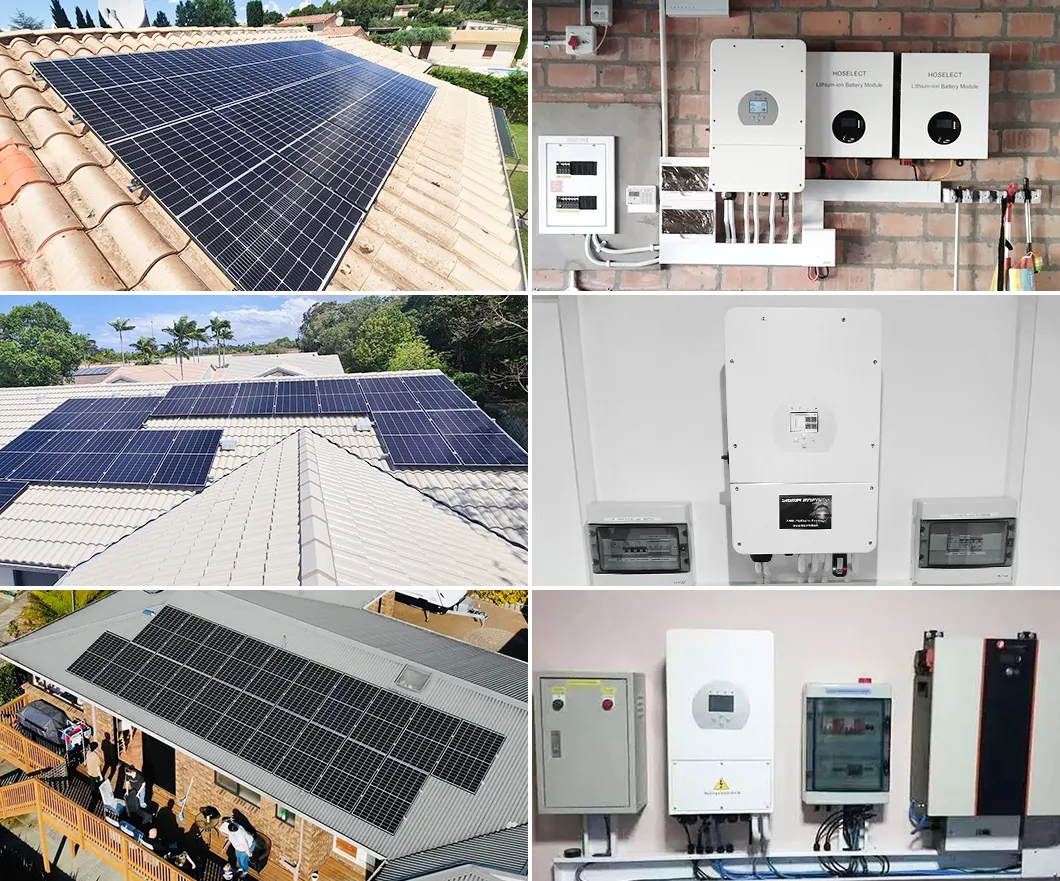

Hybrid Home Solar Power System Installed Project Case

Factory Facility

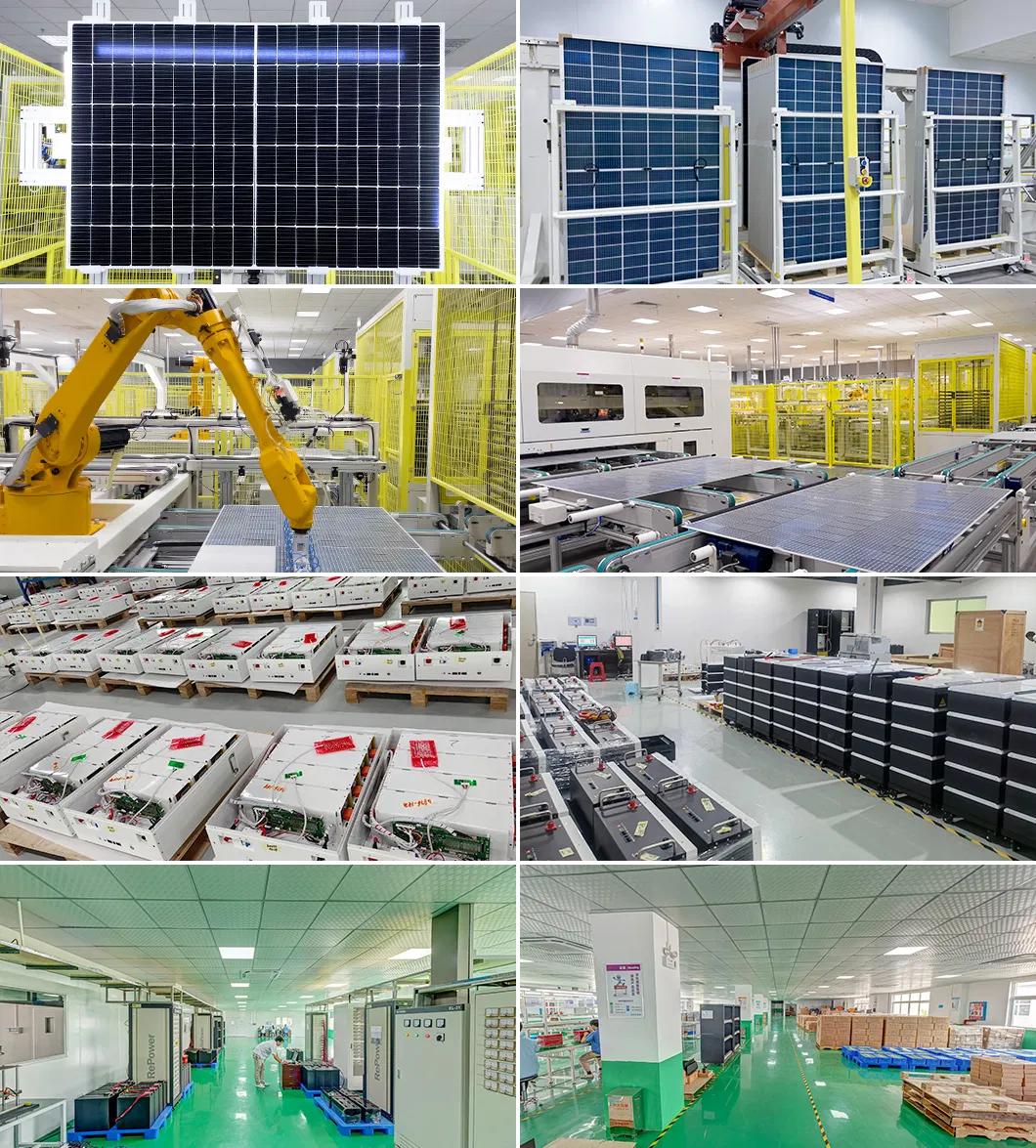

Solar PV Products Manufacturing Plant Process

Frequently Asked Questions (FAQ)

Q1: How does a hybrid home solar power system work?

A1: A hybrid solar power system combines solar panels, a hybrid inverter, and a LiFePo4 battery pack. It converts sunlight into electricity during the day to power your home and charge the batteries. Any excess power can be stored for nighttime use or fed back into the utility grid. If grid power goes down, the system transitions to battery backup to keep critical appliances running.

Q2: What is the lifespan and cycle capability of the LiFePo4 battery?

A2: The wall-mounted lithium iron phosphate (LiFePo4) batteries feature a 15-20 years design life. They are capable of undergoing over 6000 charge/discharge cycles, maintaining excellent safety and capacity retention throughout their lifecycle.

Q3: Can I expand the battery storage capacity later?

A3: Yes, the battery modules are completely scalable. You can easily connect additional battery modules in parallel alongside your existing setup to match larger energy storage requirements as your usage grows.

Q4: Are the PV mounting systems compatible with all roof types?

A4: Yes, our mounting solutions are fully customized based on the specific installation environment. Whether you are installing panels on an asphalt shingle roof, tile roof, flat roof, or directly on the ground, the system is designed to adapt.

Q5: How can I monitor the performance of my hybrid solar system?

A5: The system includes a dedicated monitoring solution that supports one-click registration. It tracks operating data in real-time, stores historical logs, and supports remote diagnosis to ensure secure, reliable, and visible energy management.

Q6: What tools are included for system installation?

A6: Each kit is supplied with 1 set of professional PV installation tools, including a wire cable cutter/stripper, an MC3/MC4 crimper, and an MC4 connectors assembly/disassembly tool to assist with proper onsite setup.
