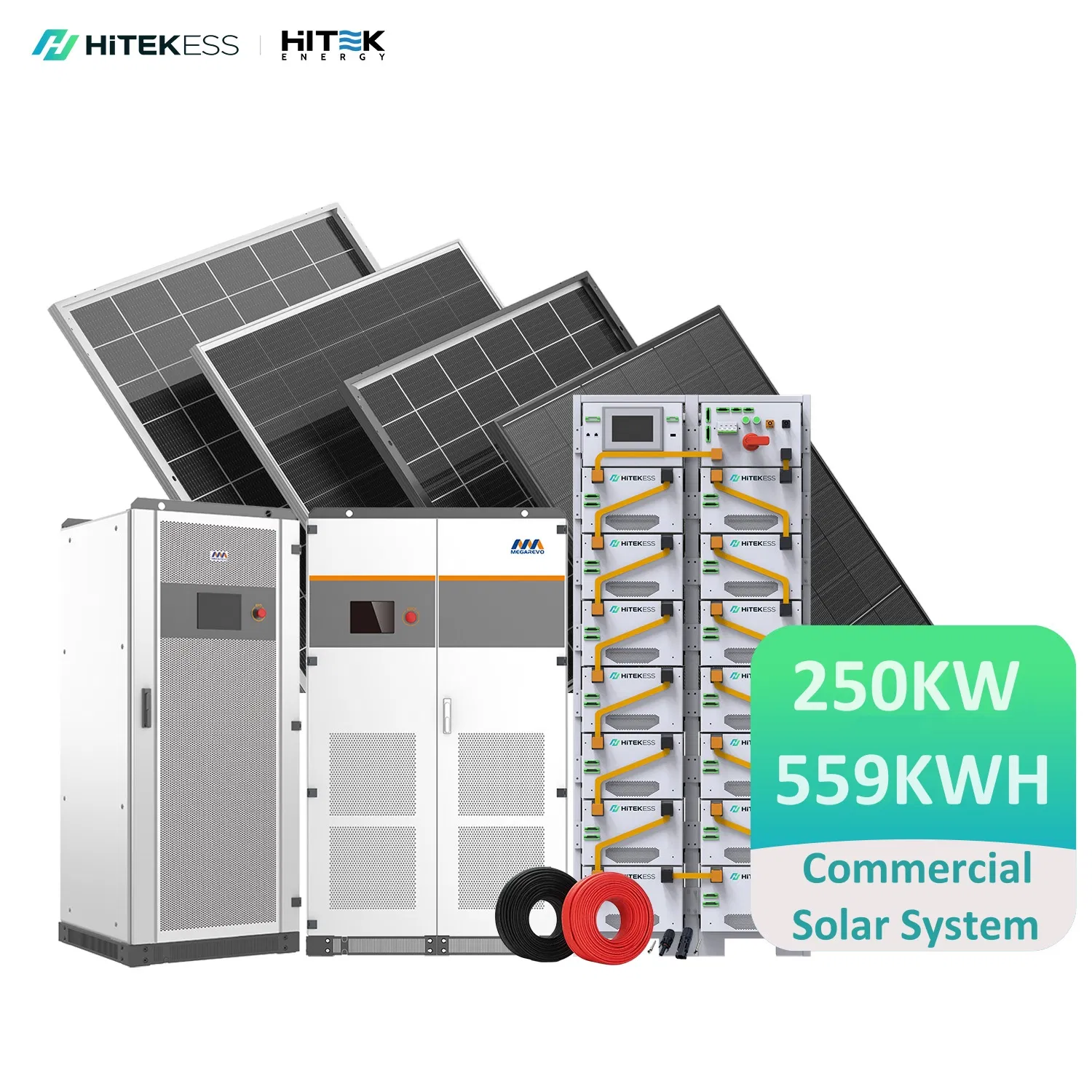

Renewable Energy Hitek Best 250kw Inverter off Grid on Grid Hybrid 50kw 100kw 150 Kw 250kw Complete Solar Power System Cost All in One Solar Panels System

Customization:	Available
After-sales Service:	Available
Warranty:	5 Years

Overview

Renewable Energy Best 250kw Inverter off Grid on Grid Hybrid 50kw 100kw 150 Kw 250kw Complete Solar Power System Cost All in One Solar Panels System

Basic Info.

Model NO.	HT250KW-HY
Condition	New
Certification	ISO, CE
Application	Home, Industrial, Commercial
Specification	Normal, Normal, 30KW-500KW
Product Name	Complete Solar Power System Cost All in One
System Type	Hybrid Solar System
Solar System Application	Industrial/Commercial Solar Energy System
Output Voltage	380V/400/415VAC 50Hz 3phase
Solar System Power	30kw, 50kw, 100kw, 150kw, 250kw, 300kw, 500kw
Solar Panel Type	Monocrystalline Solar Panel
Battery Type	Lead Acid, Lithium Ion, LiFePO4 Battery
Technical Support	Complete Professional Technical Guidance
Online Monitoring	WiFi/LAN/GPRS
Solar Panels System	off Grid on Grid Hybrid 50kw 100kw 150 Kw 150kw Co
Transport Package	Wooden Box Package by Sea
Origin	China
HS Code	8501722000
Production Capacity	10000 Piece/Pieces Per Day

Packaging & Delivery

Package Size	232.00cm * 118.00cm * 25.00cm
Package Gross Weight	2600.000kg
Lead Time	25 days (1 - 250000 Watt) To be negotiated ( > 250000 Watt)

Product Description

Warranty

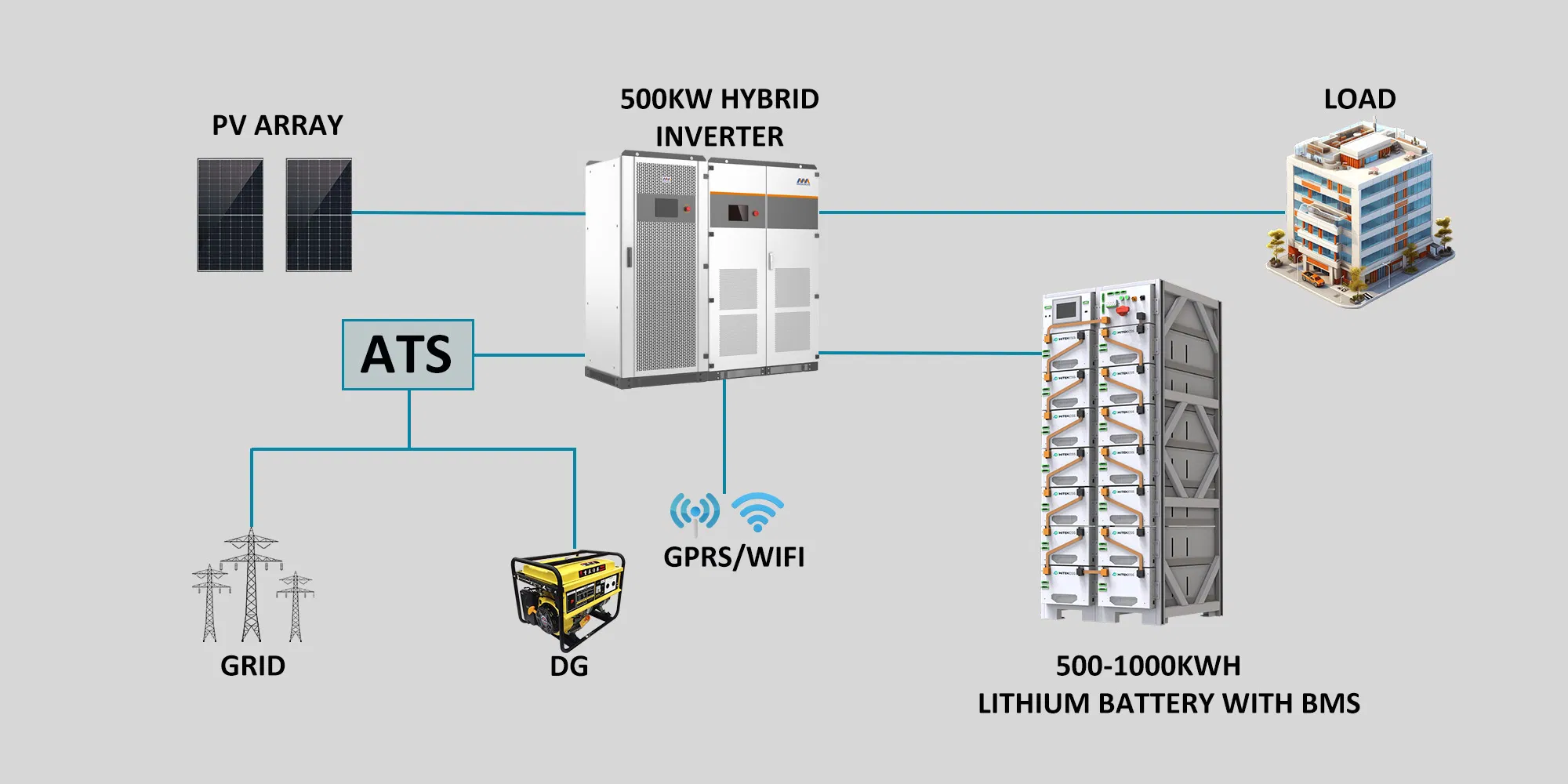

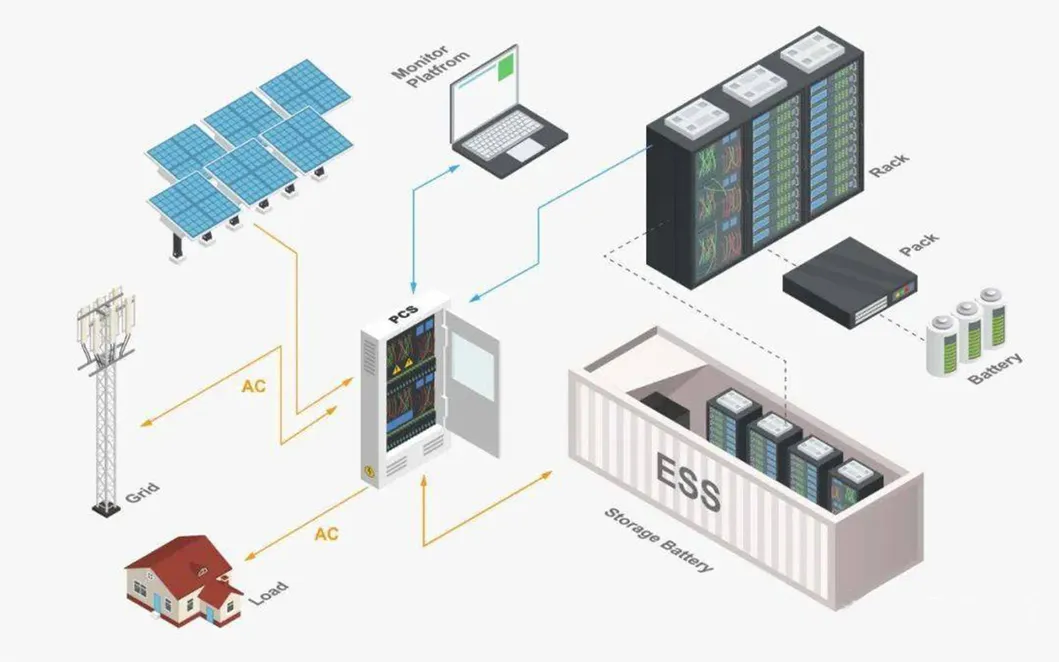

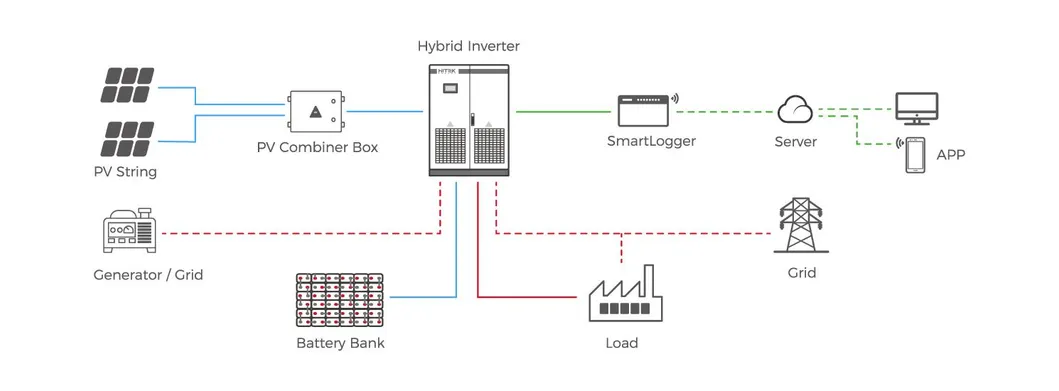

How It Works

This hybrid solar system is a renewable energy system that is grid-tied and includes battery storage. The system uses solar panels to produce energy during the day, while the batteries store excess energy for use later at night when there is no sunlight.

Hybrid solar systems have both on-grid and off-grid capabilities, allowing you to continue running on solar power even if the grid goes dark.

The hybrid solar system is an excellent choice to lower electricity bills while keeping your property powered during unexpected outages.

Configuration Details

	Model. No.	HT30KW-HY	HT50KW-HY	HT100KW-HY	HT150KW-HY	HT250KW-HY	HT500KW-HY
System Parameter	AC Rated Power	30KW	50KW	100KW	150KW	250KW	500KW
	Grid Voltage	380/400VAC
	Rated grid frequency	50/60HZ
	Max. Output (KVA)	33	55	110	165	275	550
Solar Panel	Quantity	68PCS	102PCS	204OCS	289PCS	510PCS	1020PCS
	Model	HT560M-72
	Power in total	38.08KW	57.1KW	114.24KW	161.84KW	285.6KW	571.2KW
Hybrid Inverter	Quantity	1PC	1PC	1PC	1PC	1PC	1PC
	Model	HTMPS30	HTMPS50	HTMPS100	HTMPS150	HTMPS250	HTMPS500
	Rated current (A)	43A	72A	144A	216A	361A	722A
	Rated Power (KW)	30KW	50KW	100KW	150KW	250KW	500KW
	MPPT Voltage	250-850VDC
Lithium Battery	Quantity	8PCS	7PCS	14PCS	22PCS	33PCS	66PCS
	Model	HT48100	HT48100	HT48280	HT48280	HT48280	HT48280
	Nominal Voltage (Vdc)	51.2	51.2	51.2	51.2	51.2	51.2V
	Nominal Capacity (AH)	100	280	280	280	280	280
	Voltage Range (Vdc)	44.8-57.6V
	Battery Bank Capacity	40.96KWH	100.352KWH	200.704KWH	315.392KWH	473.088KWH	946.176KWH
BOS	Battery Combiner Box	0 set	0 set	1 set	1 set	1 set	1 set

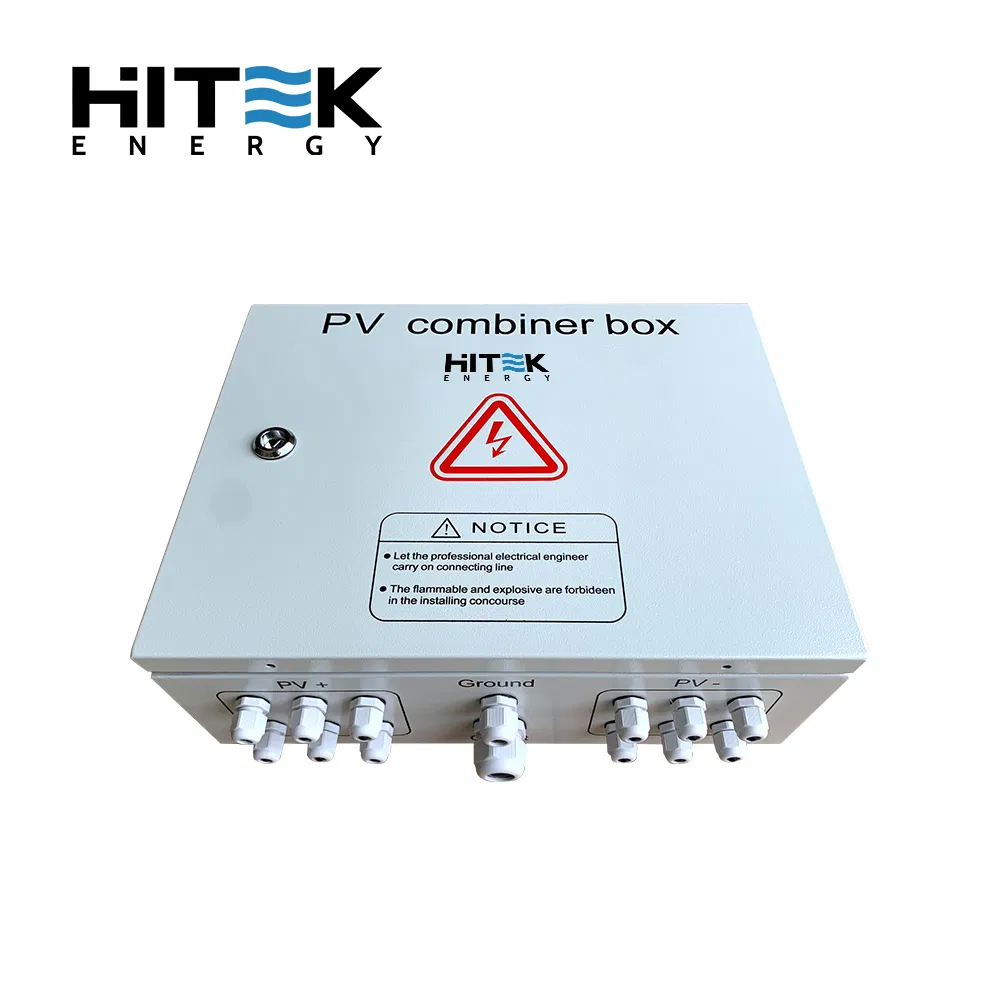

	PV Combiner Box	1 set	1 set	1 set	1 set	1 set	1 set
	PV Cable 4MM2	400m	600m	1200m	1700m	3000m	6000m
	MC4 Connectors	16 paris	24 pairs	48 pairs	68 pairs	120 pairs	240 pairs
	EMS	BR3000 (Optional)	BR3000 (Optional)	BR3000 (Optional)	BR3000 (Optional)	BR3000 (Optional)	BR3000 (Optional)
	ATS	ATS-30 (Optional)	ATS-50 (Optional)	ATS-100 (Optional)	ATS-150 (Optional)	ATS-250 (Optional)	ATS-500 (Optional)
	Container	/	/	10ft (Optional)	10ft (Optional)	20ft (Optional)	20ft (Optional)
General Data	Operation Temperature Range	-35~50ºC(>40ºC derating)
	Operation Humidity Range	0~95% (no condensation)
	Maximum Operation Altitude	2000m

System Components

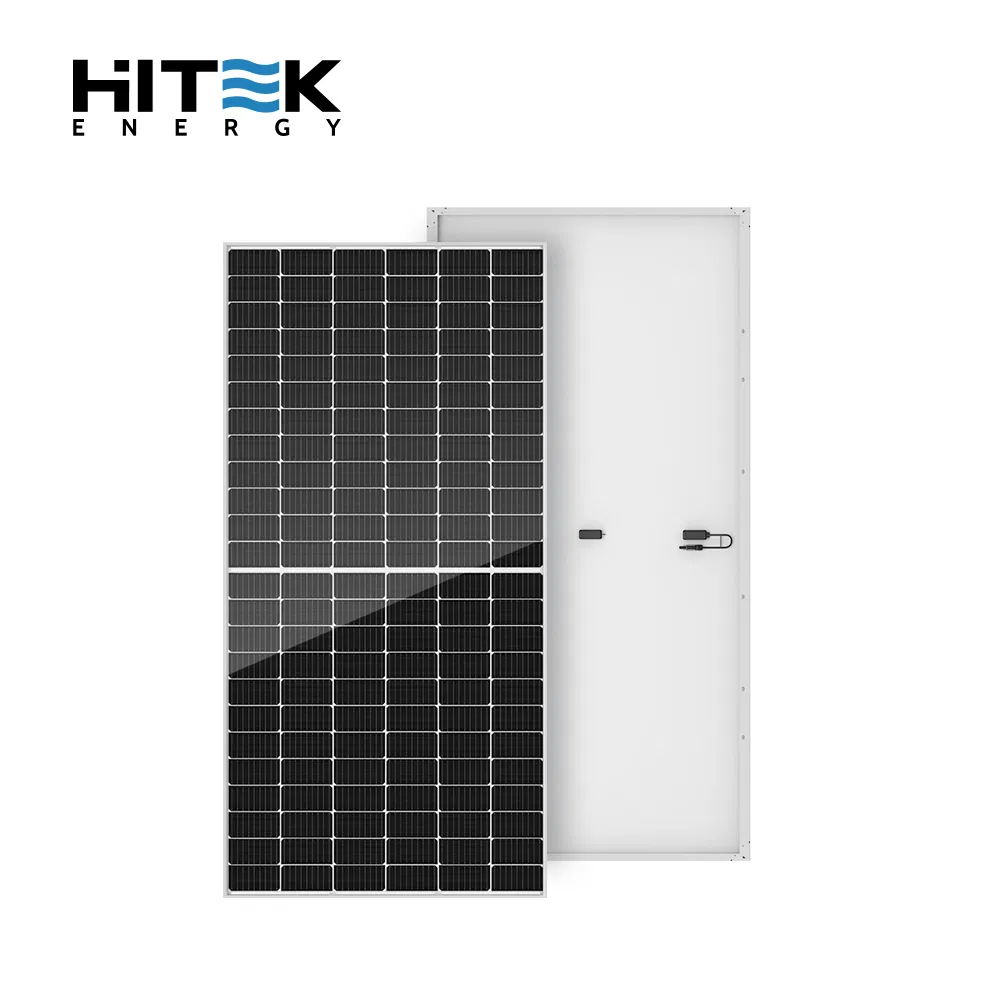

Mono Solar Panel

Model: HT560M-72
Peak Power Watt: 560Wp
Open Circuit Voltage (Voc/V): 49.84V
Short Circuit Current (Isc./A): 14.14A
Voltage at Maximum Power (Vmp./V): 41.08V
Current at Maximum Power (Imp./A): 13.64A
Dimensions: 2279*1134*35mm
Weight: 28.0±3% kg

All-in-one Solar Hybrid Inverter

Programmable working mode
Touchscreen LCD
Seamless Transfer
Dry Contact Output
Scalable Design (Can get paralleled up to 4 Units)

Online Monitoring System

Open Station Supports one-click installation and registration
Support one-click dispatch and navigation
Safe operation, traceable logs, etc.
Support full lifecycle data storage to ensure data security and reliability

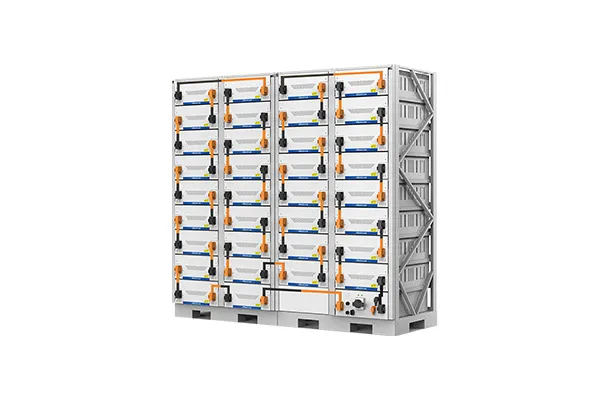

Solar Battery Packs

Rack mounted, Deep Cycle, long lifespan
High discharge performance, Easy installation and Maintenance-free
AGM/GEL/LiFePO4 Lithium Ion Battery Type
2V/12V/48V/High Voltage Battery
More than 6000 times cycle life, up to 90% DOD
Wide suitability of ambient temperature range

DC & AC Disconnect Switch

Rated Voltage: 1000VDC
Connection Type: M20, M25, MC4
Rated Current: 16A, 20A

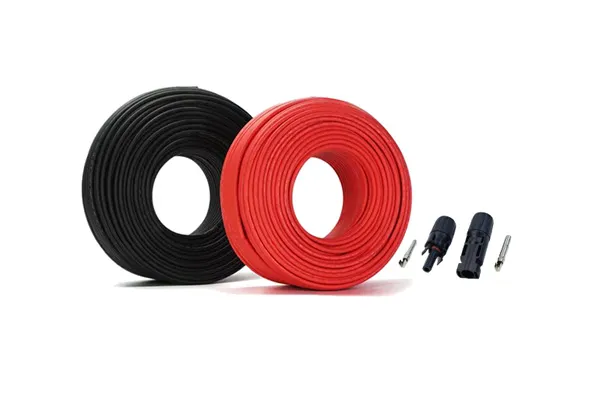

DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 Optional
Rated Voltage: 600VDC / 1000VDC (TUV)
Rated Current: 55A, 70A
Colors: Black For STD, Red Optional
Lifetime: ≤25 Years

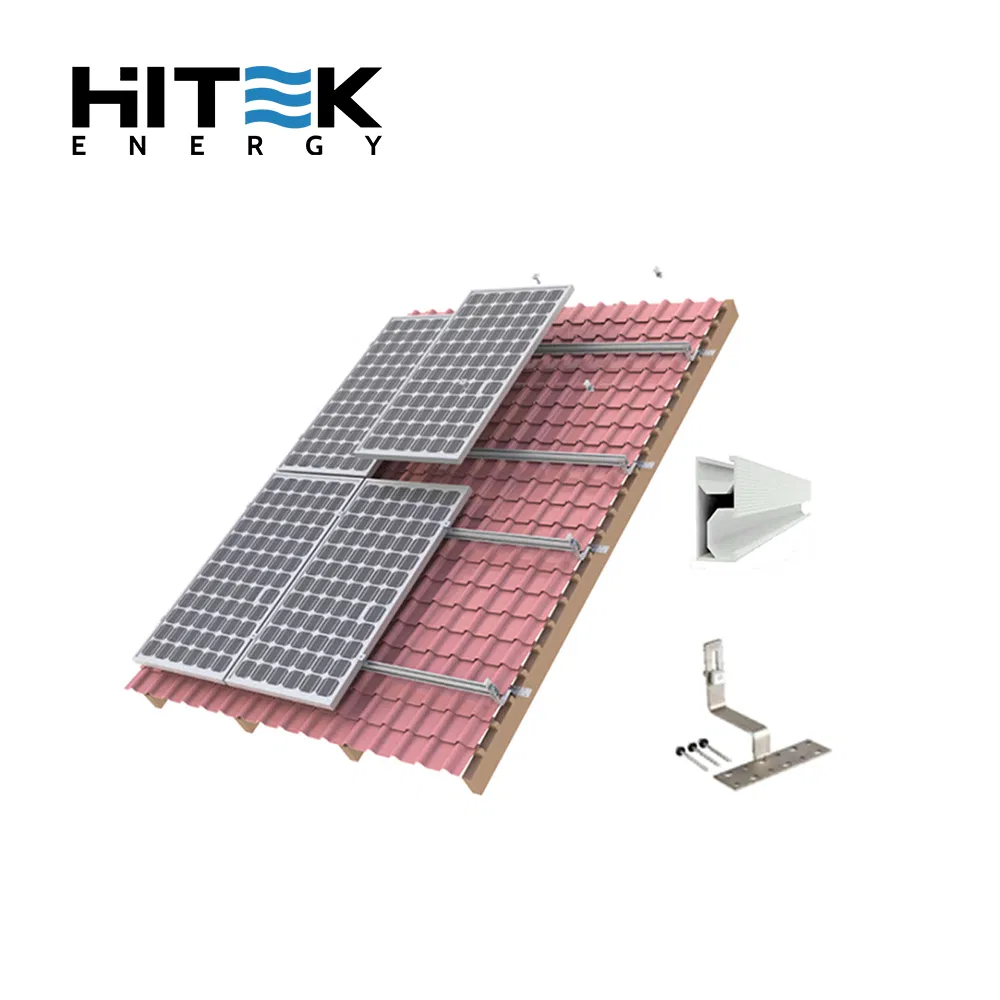

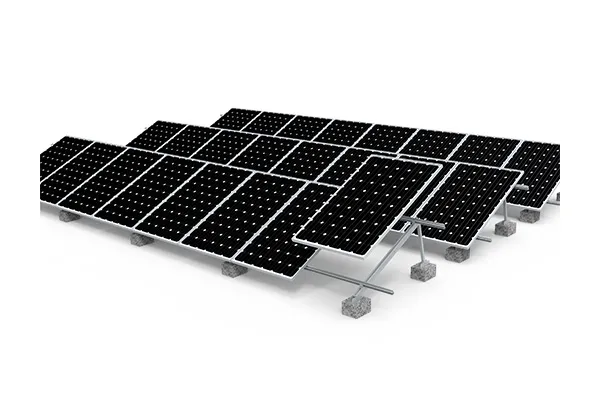

PV MOUNTING SYSTEM

MOUNTING RAIL & RAIL SPLICE KIT: Al6005 & SUS304 BOLT
MID & END CLAMPS: 30, 35, 40MM
L FOOT ASPHALT SHINGLE MOUNT & HANGER BOLT OPTIONAL
CABLE CLIPS & TIE OPTIONAL
GROUND CLIPS & LUGS OPTIONAL

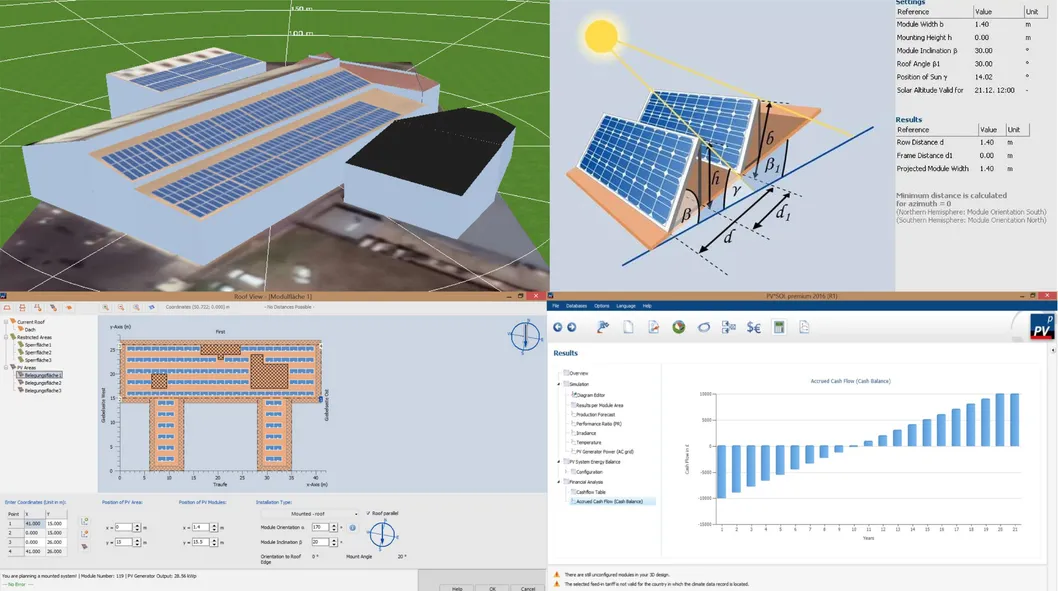

Complete Technical Support

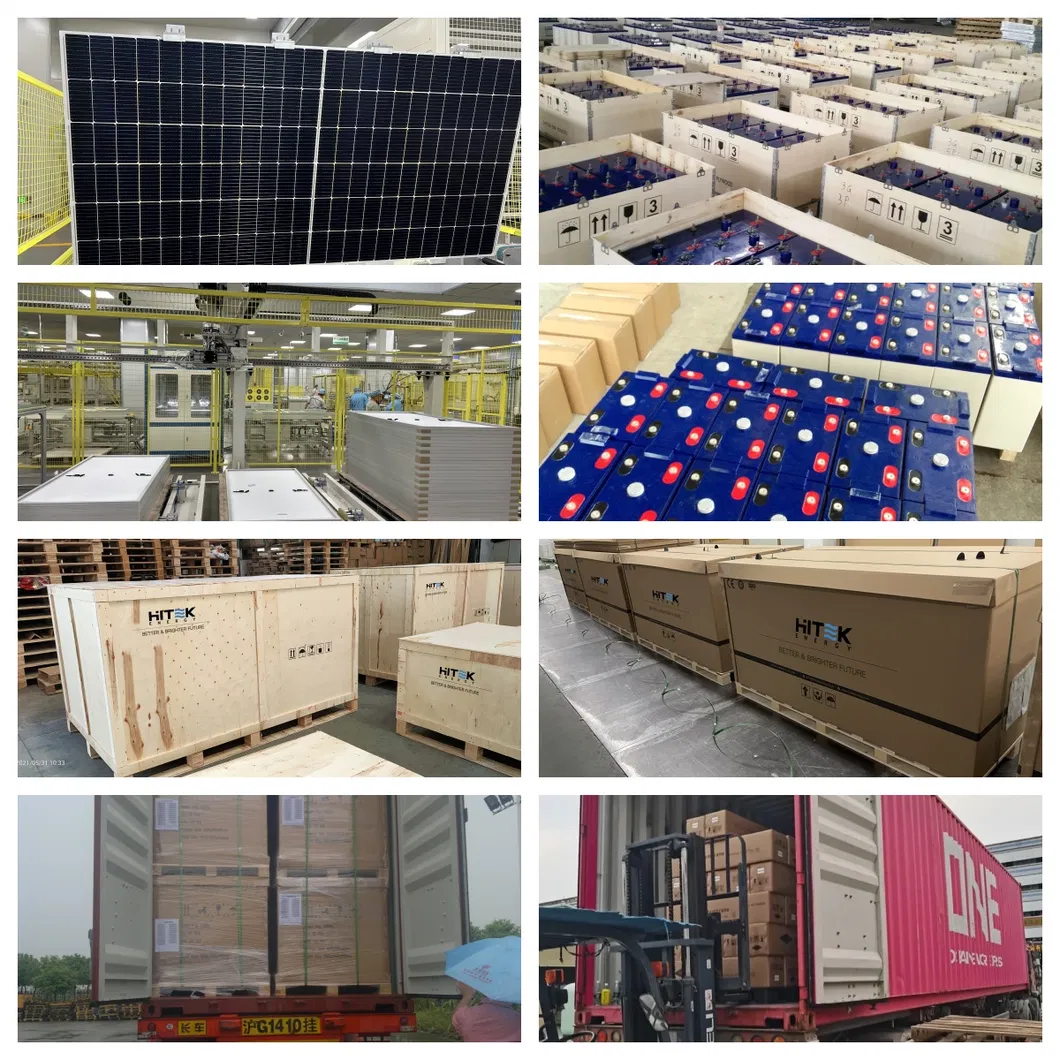

Packaging & Shipping

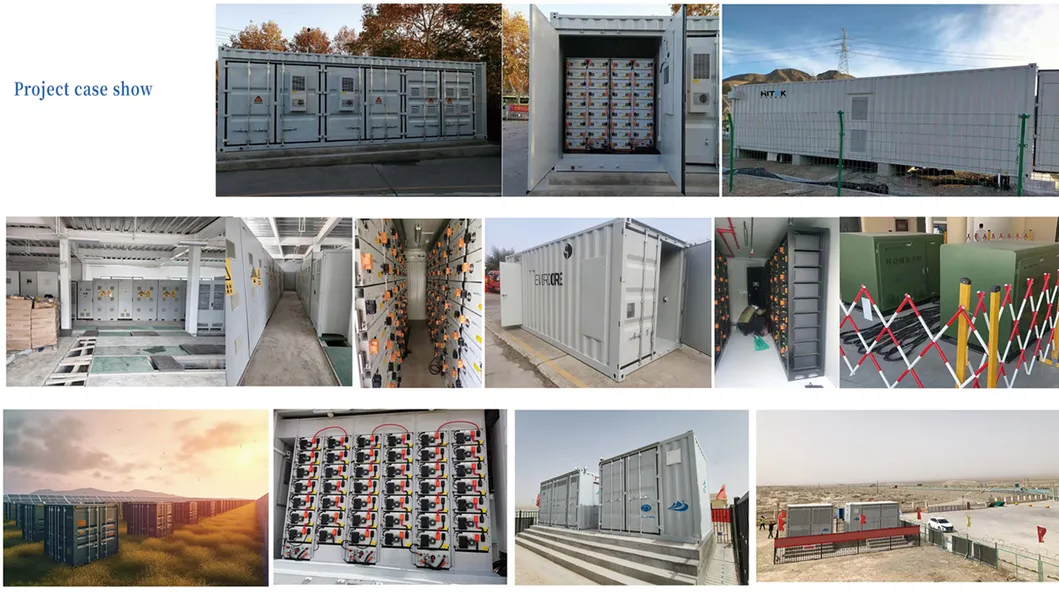

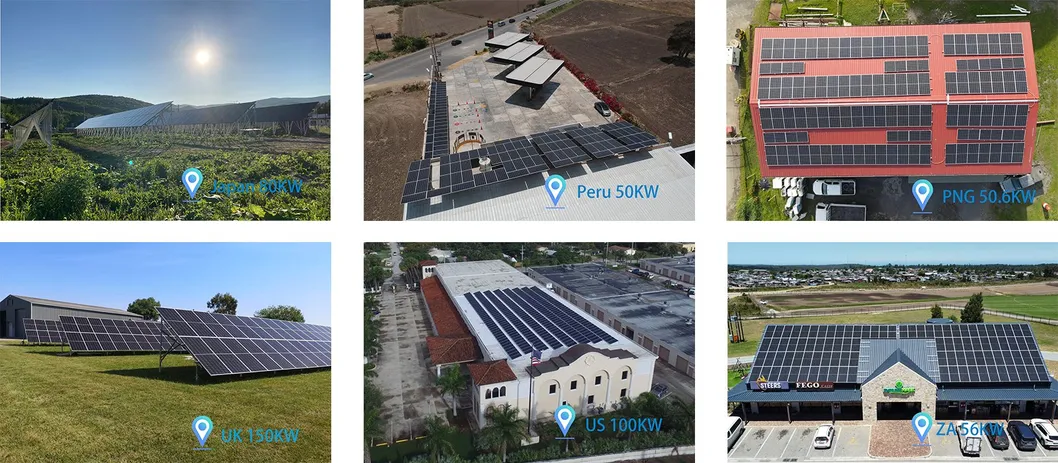

Project Cases

Our Advantages

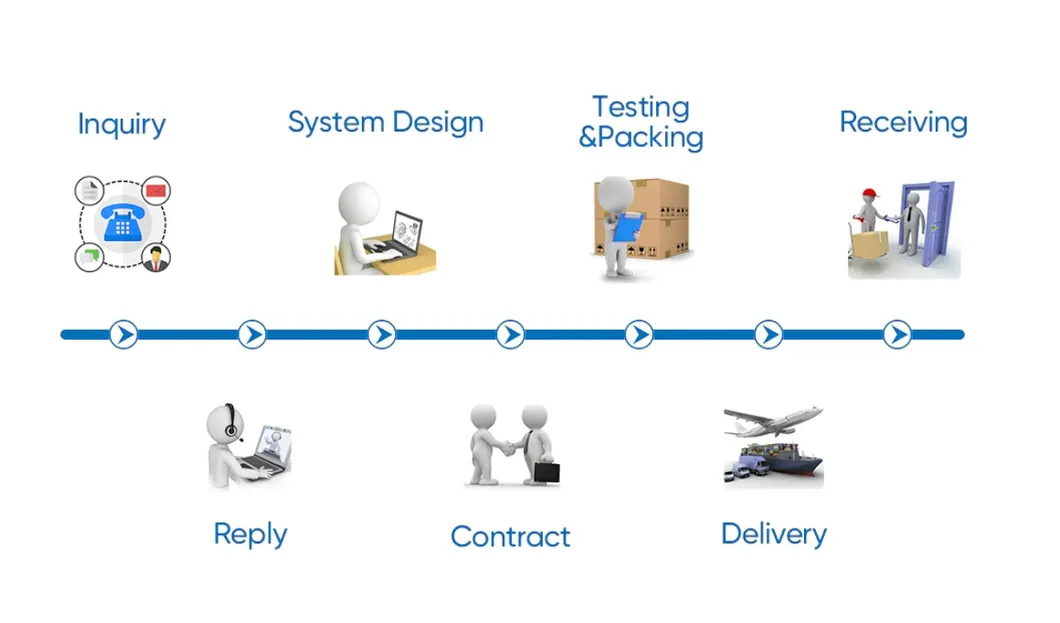

How to Get My System?

Frequently Asked Questions

What is a Hybrid Solar System and how does it work?

A hybrid solar system combines grid-tied functionality with battery storage capabilities. It uses high-efficiency monocrystalline solar panels to generate power during daylight hours. Excess energy is stored in battery packs rather than being sent back to the utility grid. At night, or during utility power outages, the stored battery energy is used to power the system loads.

Can the system run on-grid and off-grid simultaneously?

Yes. The hybrid solar system features an all-in-one solar hybrid inverter with programmable working modes. This allows seamless transitions between on-grid and off-grid operations, ensuring continuous power output to essential loads even if the main utility grid fails.

What types of batteries are recommended for this system?

This hybrid system supports various battery chemical structures, including Lead Acid, standard Lithium-Ion, and high-performance LiFePO4 (Lithium Iron Phosphate) batteries. For high discharge performance, long lifespan, and up to 90% Depth of Discharge (DOD), LiFePO4 rack-mounted configurations are highly recommended.

Does the solar system include an online monitoring application?

Yes, the system supports comprehensive online monitoring through WiFi, LAN, or GPRS. The application supports one-click station installation, real-time tracking, operation status checks, traceable logs, and lifecycle data storage to ensure security and reliability.

What is the typical shipping packaging and lead time?

For safe maritime transit, components are packed securely in standard wooden box packages. The typical delivery lead time is approximately 25 days for systems below 250,000 Watts. Systems larger than 250,000 Watts can be scheduled through customized project timeline negotiations.
