PV Panel System 5kw 10kw 15kw 20kw 40kw 60kw off-Grid Home Solar Power System

1 / 5

PV Panel System 5kw 10kw 15kw 20kw 40kw 60kw off-Grid Home Solar Power System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info

Model NO. BR-SHS

Output Type AC Three Phase

System Off-Grid system

Certification CE, ISO, RoHS, 3 Years, 5 Years

Power 6kW-50MW

Standard Standard

Application for Home, Factory

Output Voltage(V) DC12V*4 Output & 220V*2 Output

Mobile Charging Yes

Computer Charging Yes

Air Conditioner Yes

TV Yes

LED Lamp Yes

Transport Package Carton and Pallet

Specification 5KW solar power system

Origin China

HS Code 8501310000

Production Capacity 1000set/Month

Packaging & Delivery

Package Size 2279.00cm * 1134.00cm * 35.00cm

Package Gross Weight 28.600kg

Product Description

PV Panel System 5kw 10KW 15KW 20KW 40KW 60KW off-Grid home Solar Power System

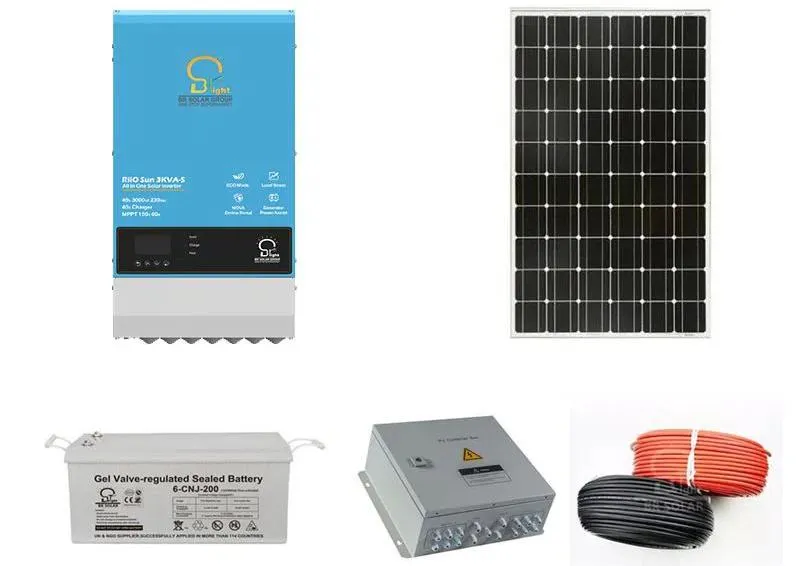

5KW off-grid solar power system for home

Off Grid Solar Inverter & Controller

Inverter Specifications:

Pure sine wave output & Low frequency toroidal lower loss (50/60HZ±1%)
Brand new wide LCD screen, clearly and precisely shows working data
Three-stage charging: Constant current, constant voltage, float charge (220VAC±2%)
Three Types Working modes; Battery type selectable
Added fault code query function, easy to monitor the operation in real time
Supports RS232 or RS485 communication port

Controller Specifications:

Built-in 50A controller
Pure sine wave, high frequency output
Support grid/Diesel input

Solar Mounting System

Customized for: Rooftop (Flat/Pitched), Ground, Carport etc.
Adjustable tile angle from 0 to 65 degrees

Solar Panel

Optional Mono/Poly Panels
25 years Warranty
Excellent mechanical load resistance
PID Resistant, High salt and ammonia resistance

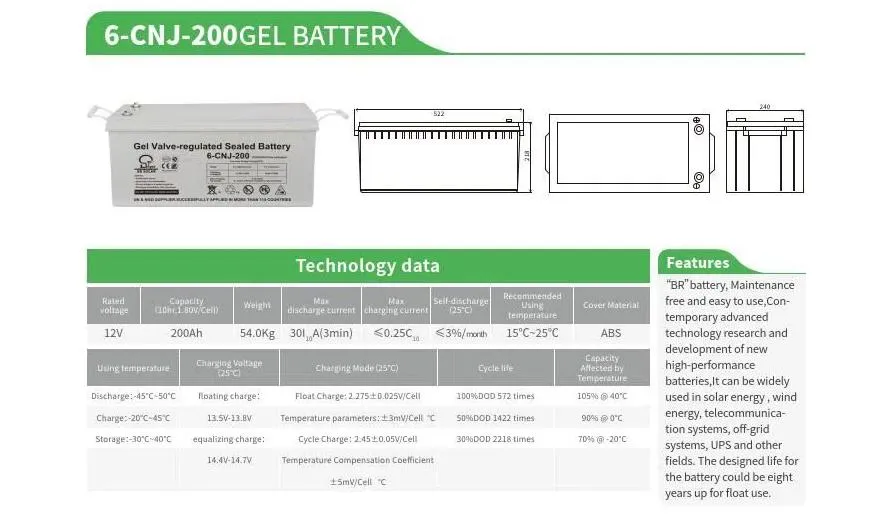

Battery

Capacity: 200AH/12V
Full Sealed Maintenance-Free Gel Battery
Service Life: 6-10 Years
Size: 522*240*242mm
Connection way: 4 Pieces In Series to Get 48V
Total Release Power: 6.7KWH

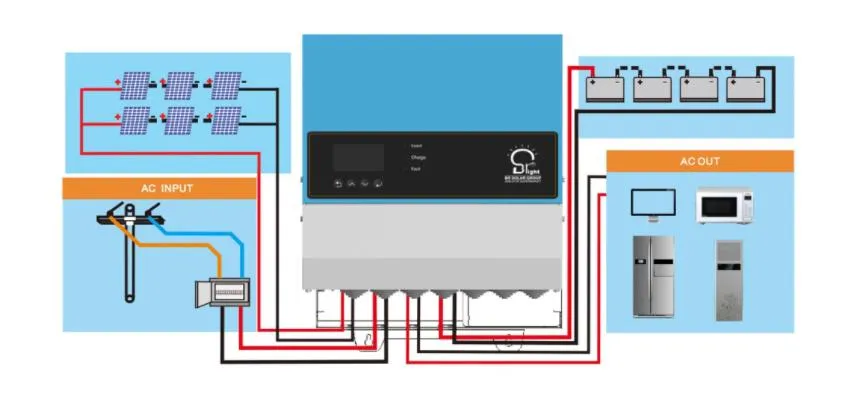

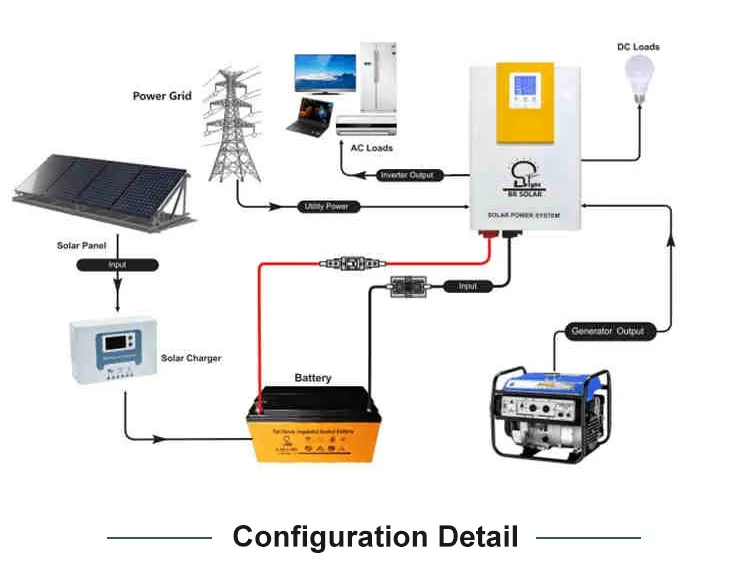

System Diagrams

Product Guidance

Just connect the solar panel interface to the input end of the machine, and then adjust the button. The machine will be charged automatically.

This kind of system can only use TV, fans, computers, lights and other small power appliances.

The configuration of this system can be customized. We can change the configuration of the battery and solar panels according to requirements.

When the machine experiences overload, short circuit, low pressure, high pressure, high temperature, etc., it will sound an alarm and stop working automatically. The protection mechanism prevents damage.

Charging mode: 1. Solar 2. City power

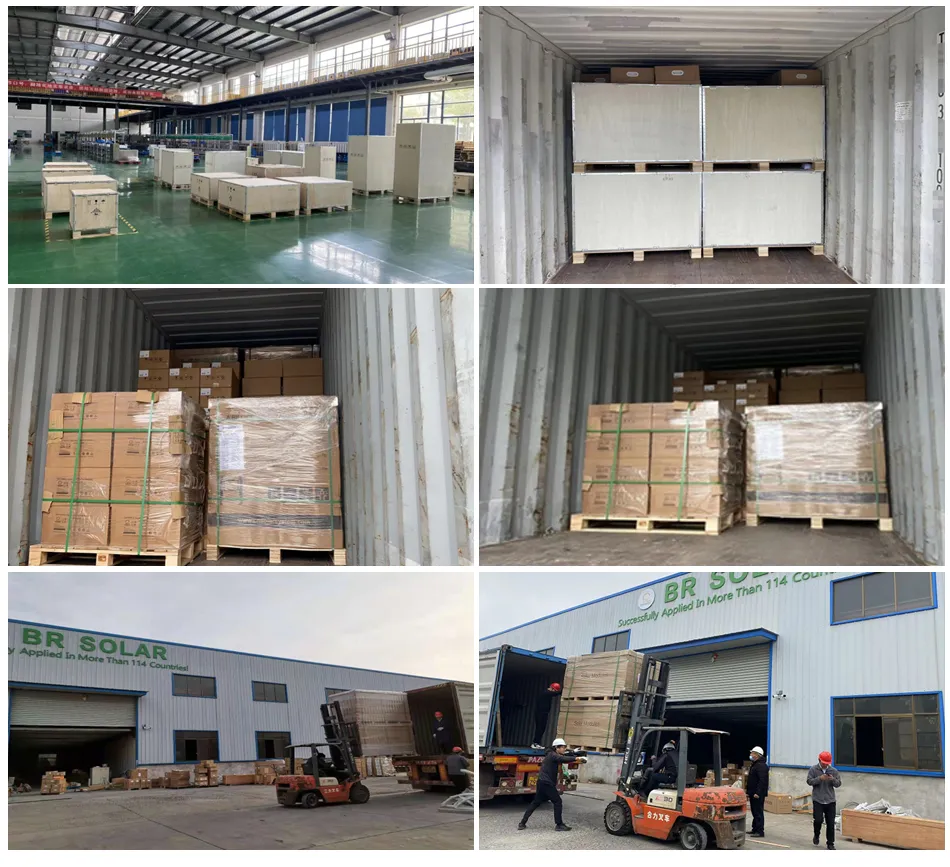

Safe Packing

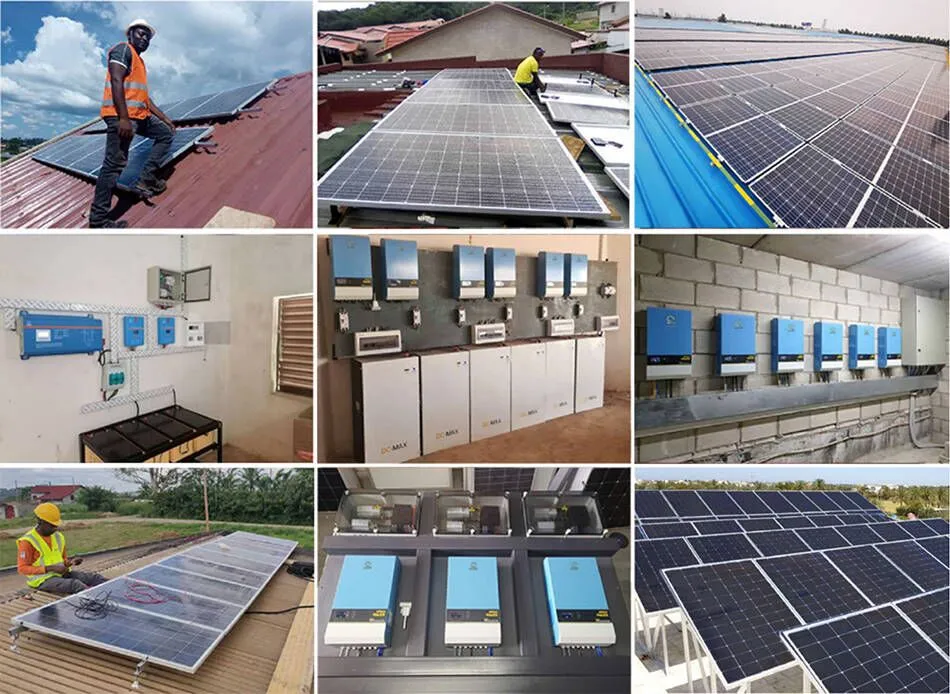

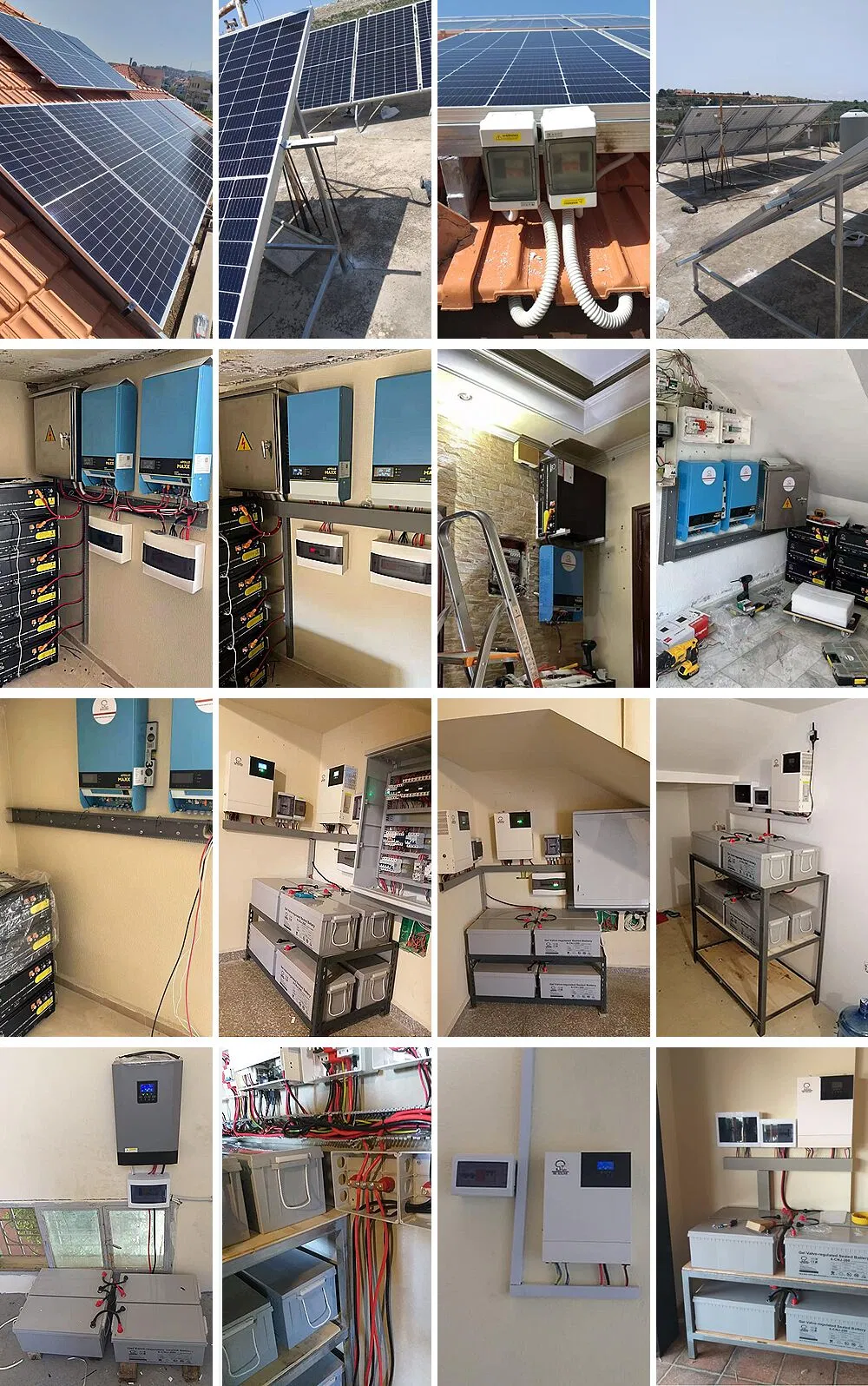

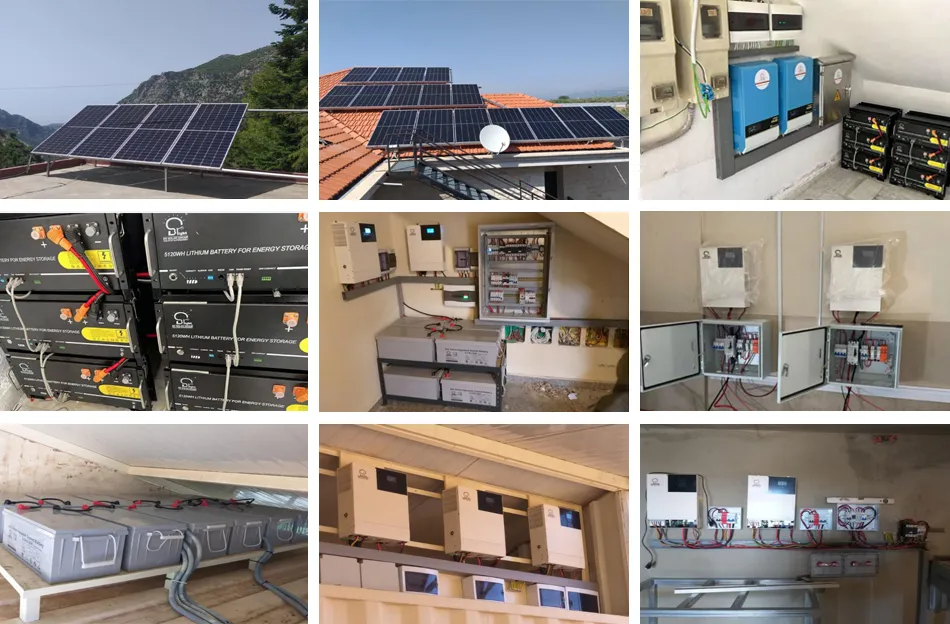

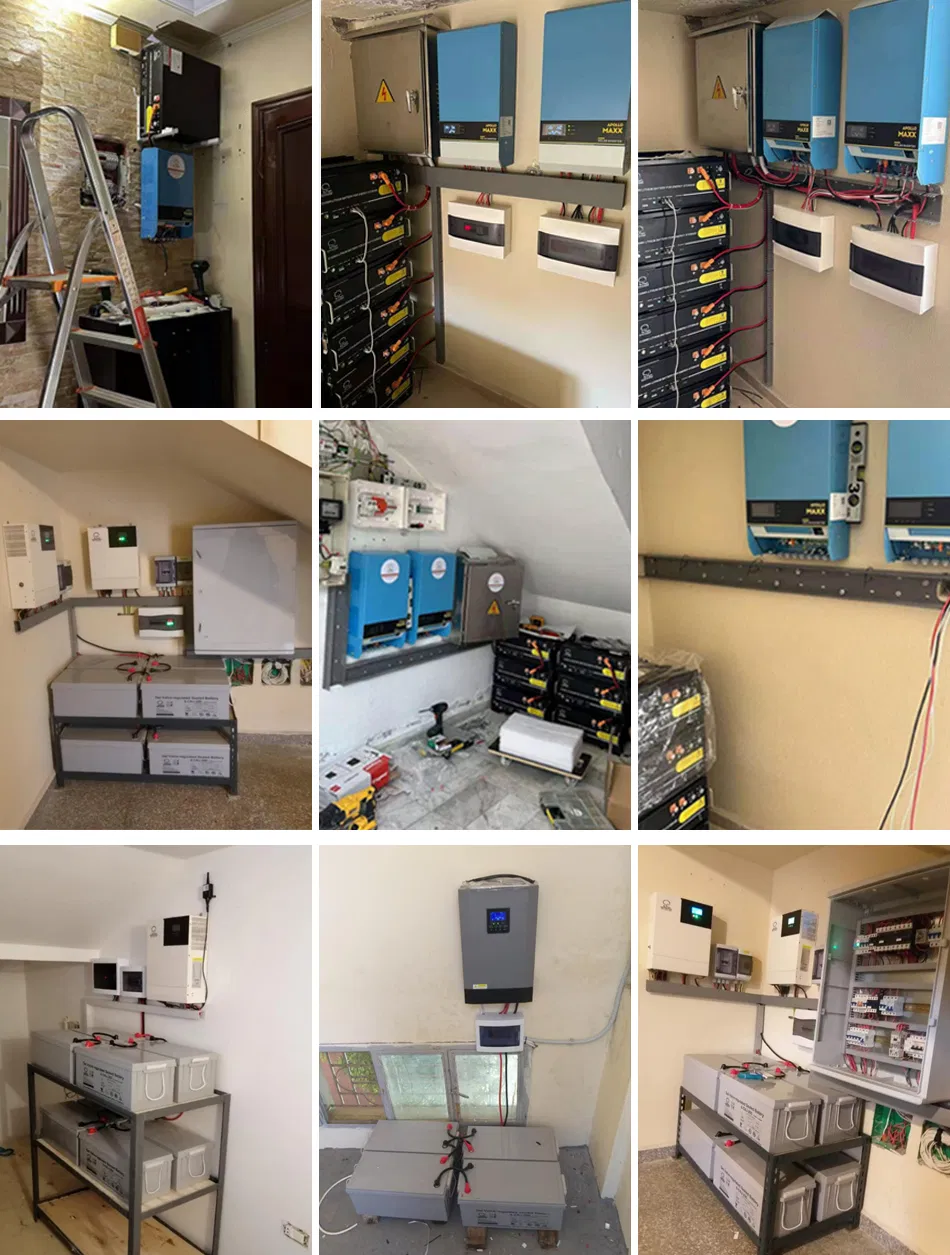

Global Projects

Our Customers & Certificates

Thanks for your time and welcome your inquiry!

Frequently Asked Questions (FAQ)

What home appliances can this 5KW off-grid solar system support?

This system is designed to support household loads such as lights (LED lamps), televisions, computers, fans, and small-power appliances, as well as air conditioners depending on the startup current.

Can the configuration of the solar panels and batteries be modified?

Yes. The system configuration is customizable. We can adjust the specifications and quantities of the battery storage and solar panels to meet your specific requirements.

What charging methods does the solar system support?

The system supports dual charging modes: primary charging from solar energy, and backup charging via city power (utility grid) or diesel generator input.

What protection mechanisms does the system have against failures?

The machine features built-in safety protection. In the event of overload, short circuit, low pressure, high pressure, or high temperature, it will sound an alarm and shut down automatically to prevent damage.

What is the lifespan of the system components?

The solar panels come with a 25-year warranty. The fully sealed, maintenance-free gel batteries have an expected service life of 6 to 10 years depending on usage.

How are the products packaged for transportation?

All system components are safely packaged in standard export cartons and secured on pallets to guarantee safe transit and protection against handling damage.
