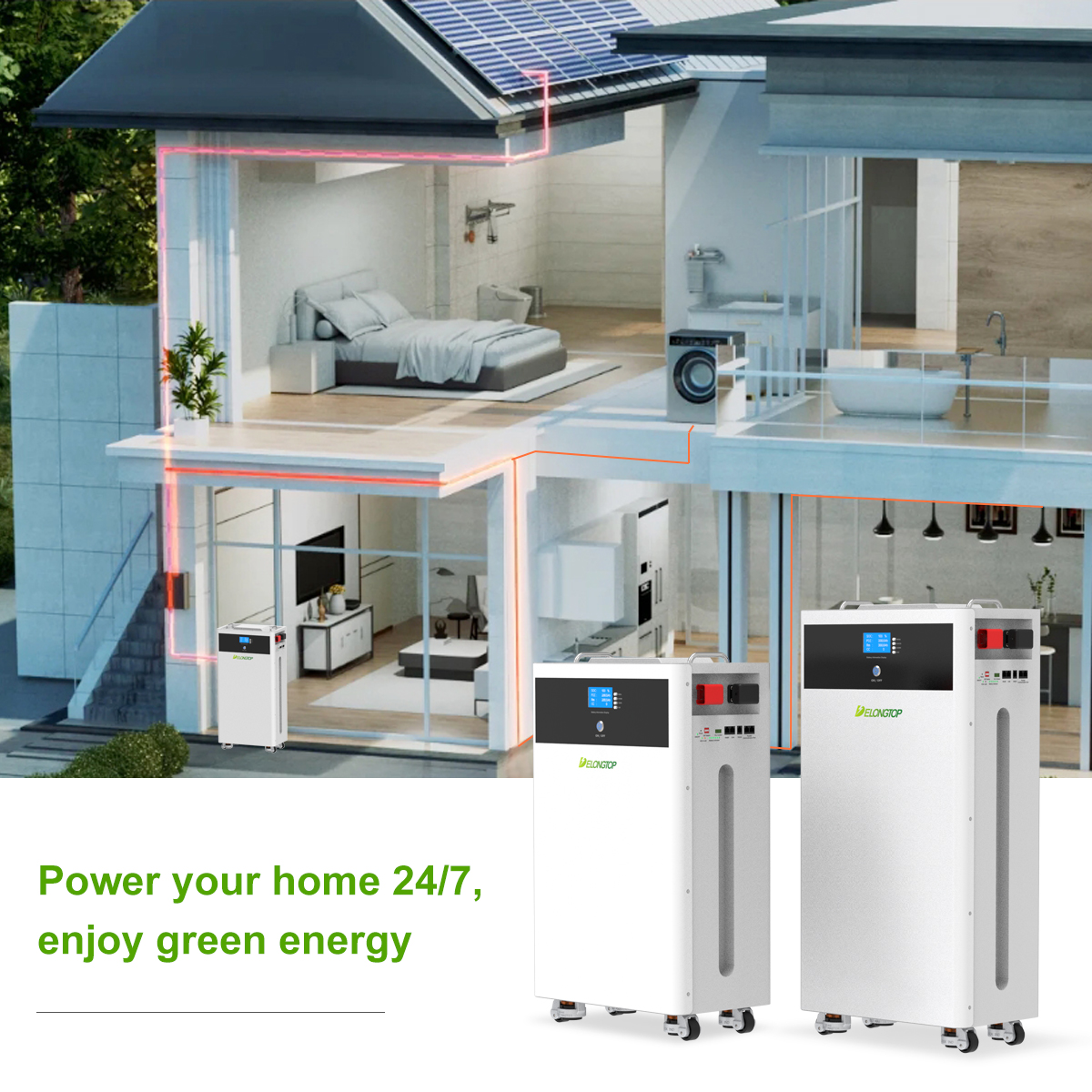

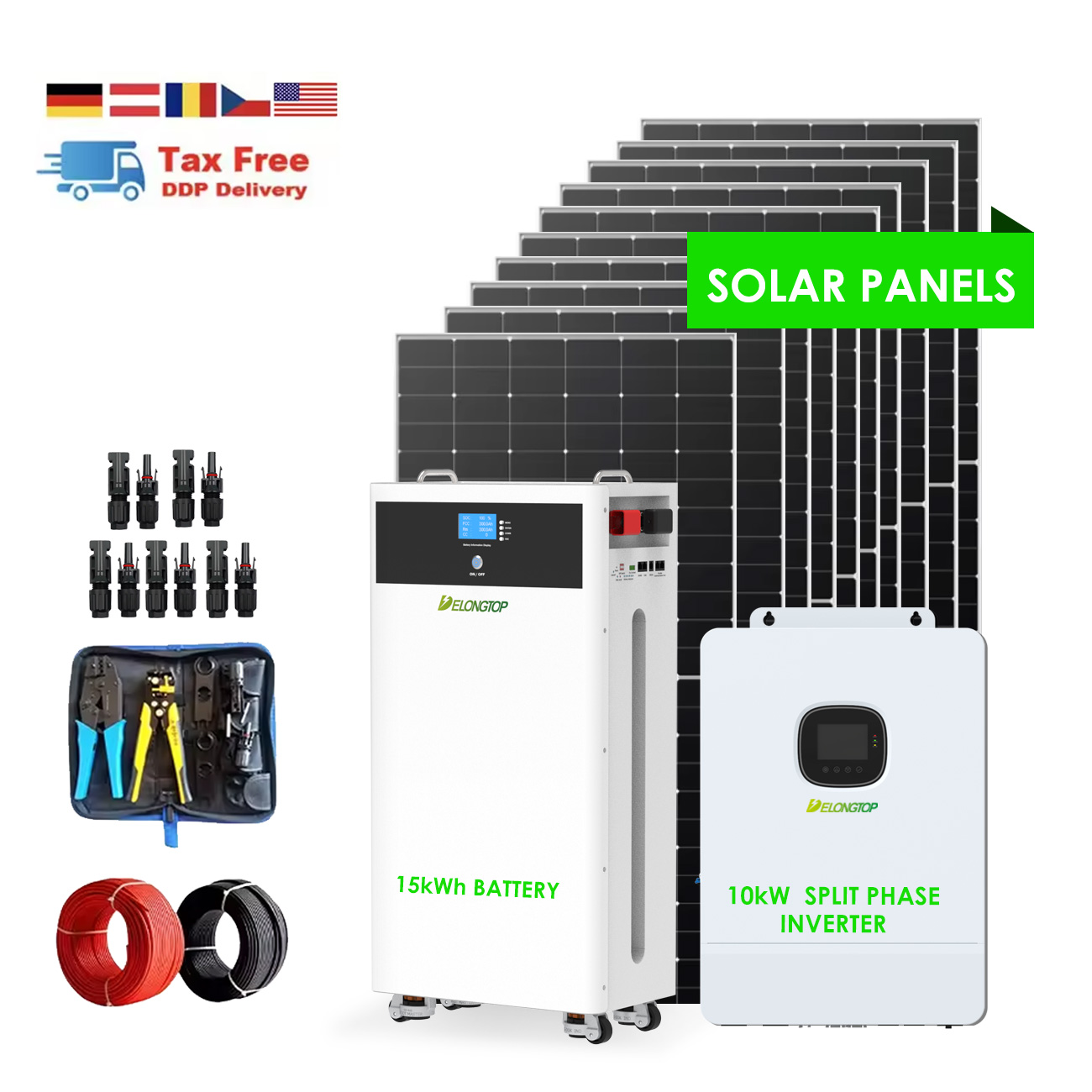

EUstock Movable Deep Cycles Solar Energy Storage Battery 10kwh 15kwh 48V Solar Lithium Battery 51.2V Complete Solar Kit for Home

Product Description

Certifications

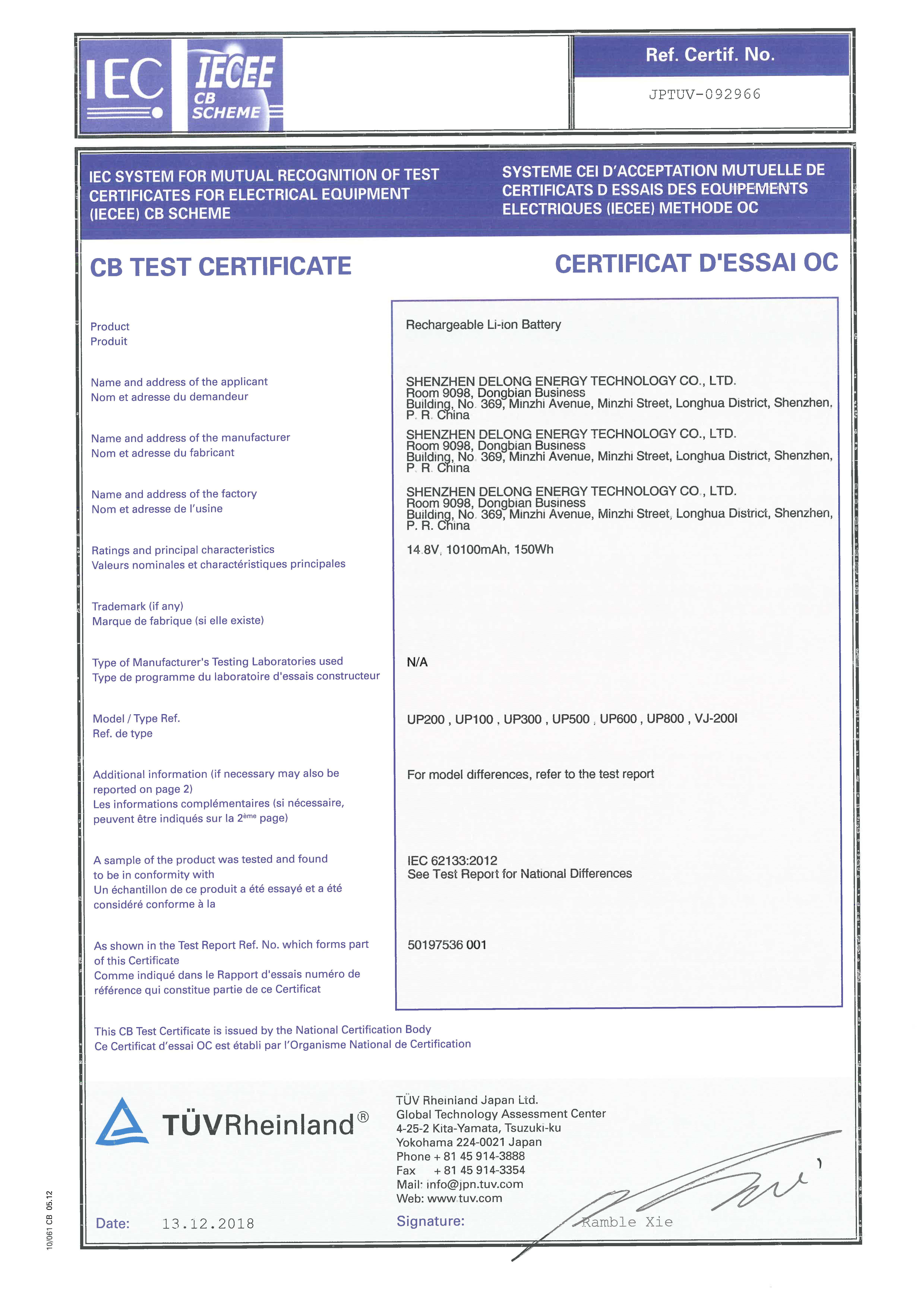

CB Certification
CB
EMC Certification
EMC

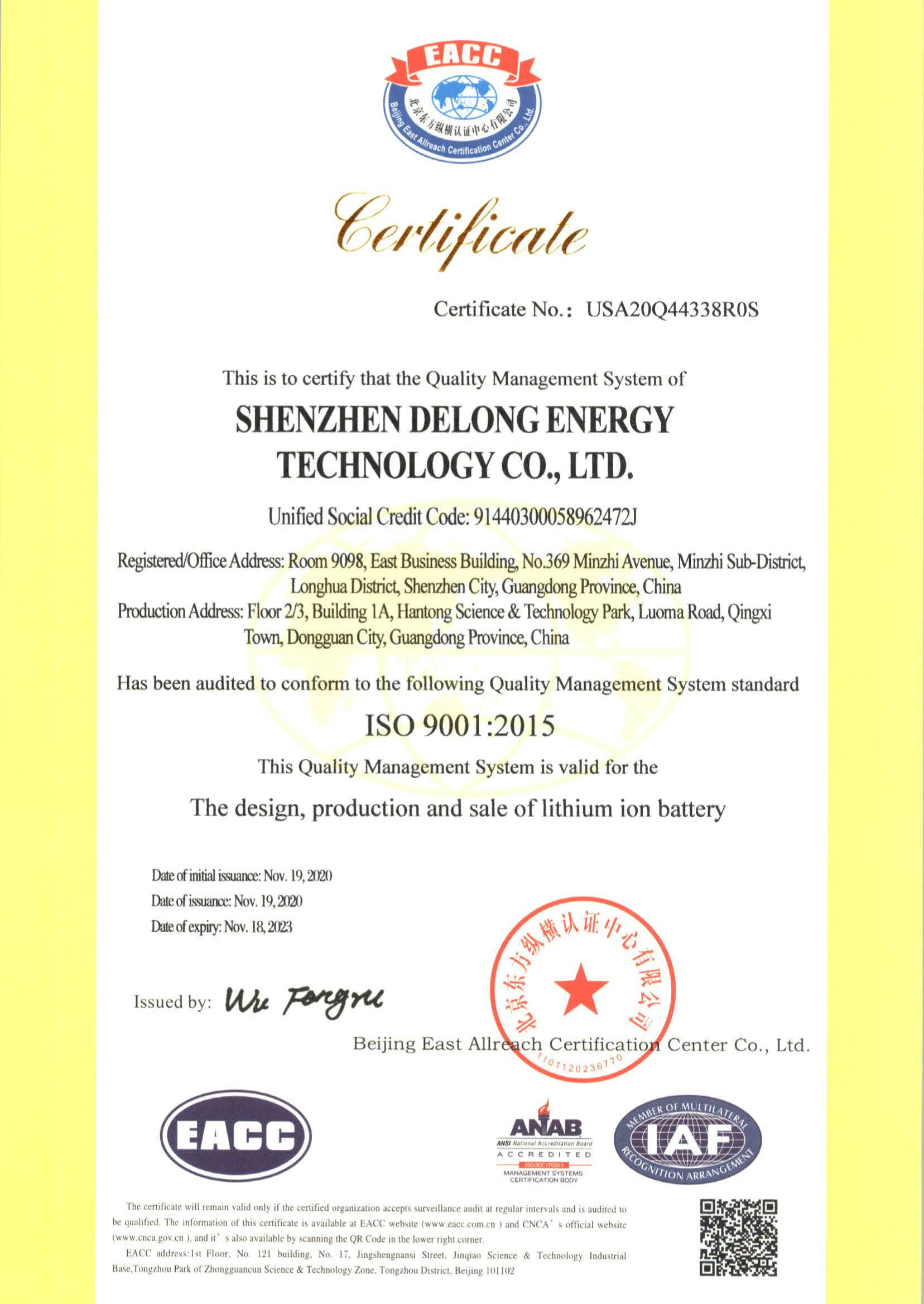

ISO Certification
ISO
KC Certification
KC

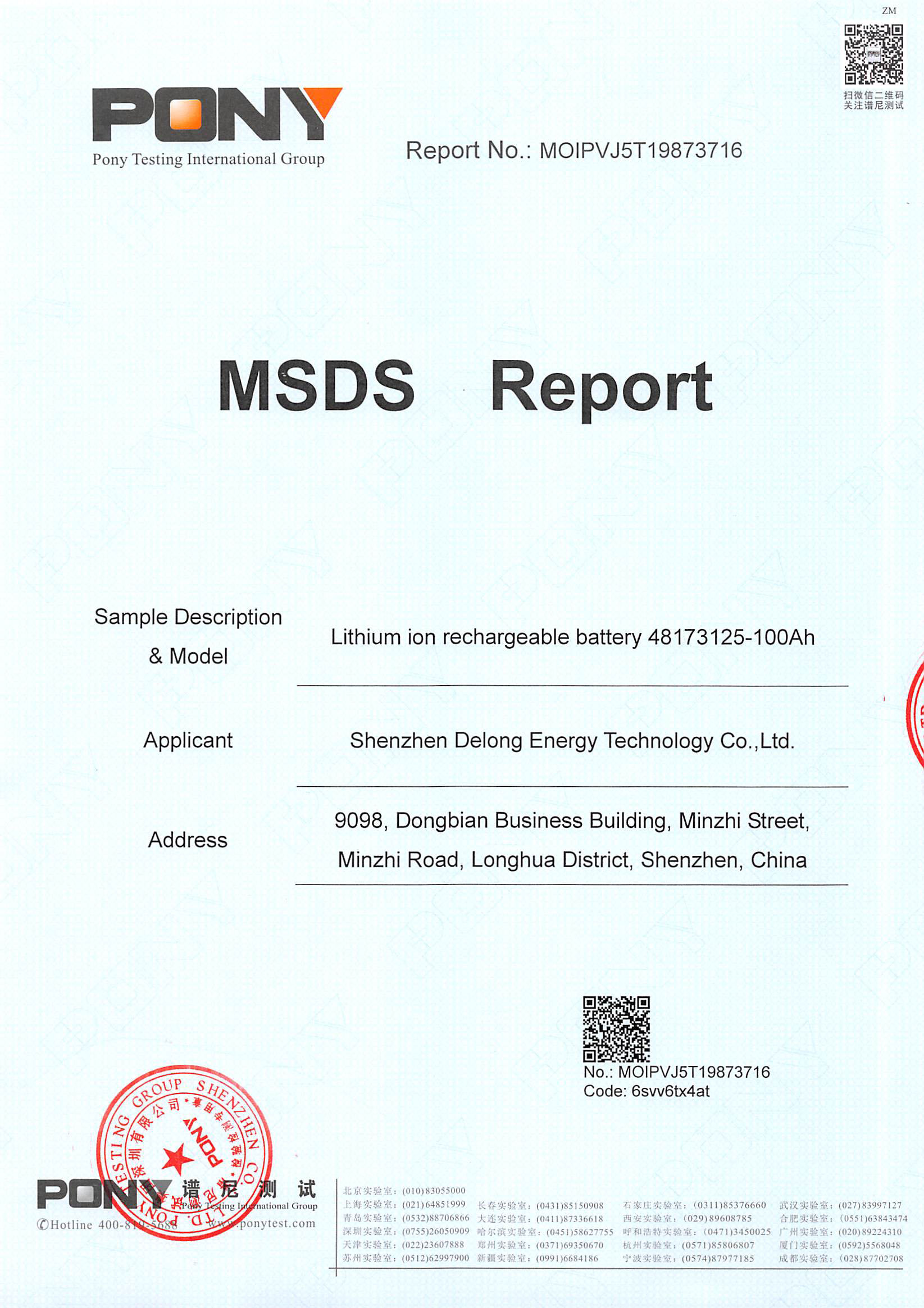

MSDS Certification
MSDS

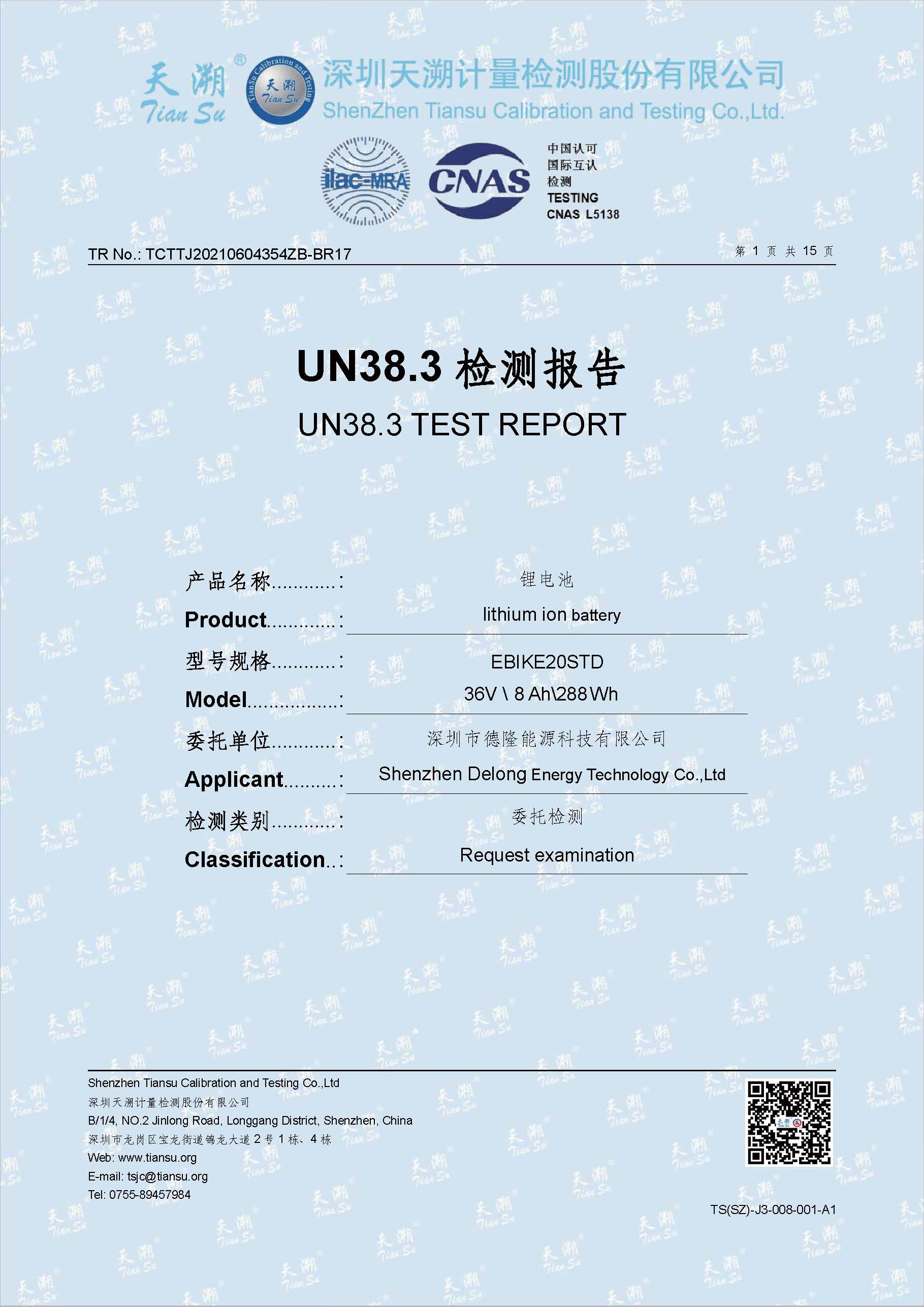

UN38.3 Certification
UN38.3

Products Description

Smart Communication Function

SUPPORT ALL IN ONE SMART COMMUNICATION FUNCTION

Our BMS is a complete set of communication functions, supporting RS485, RS232 and CAN-BUS communication protocols.

We can also customize the communication content according to the protocol information which customers provide. Customers can through the host computer software to monitor the batteries, and check the working status of each cells and set specific parameters on the computer.

WHAT BATTERY CELL WE USE:

As a over 10-year-old store engaged in the battery business, we are responsible for our customers and our brand. Using only A grade cells, the cycle life can up to 6000-8000 times: 10AH/ 25AH/ 30AH/ 50AH/ 100AH/ 200AH...

  • Our batteries are the primary source of supply from the original cells manufacturer, battery cells are paired and distributed before outgoing, and can be assembled directly.
  • Through a number of certification and testing, quality assurance.
  • There are two types of pouch cells and prismatic cells. The pouch cells: lighter, cheaper, and easy to customized in special sizes. The prismatic cells: not easily deformed , stable performance, mature market, more popular at present.
Battery Cell Information
Movable Deep Cycles Solar Energy Storage Battery 10kwh 15kwh 48V Solar Lithium Battery 51.2V Complete Solar Kit for Home

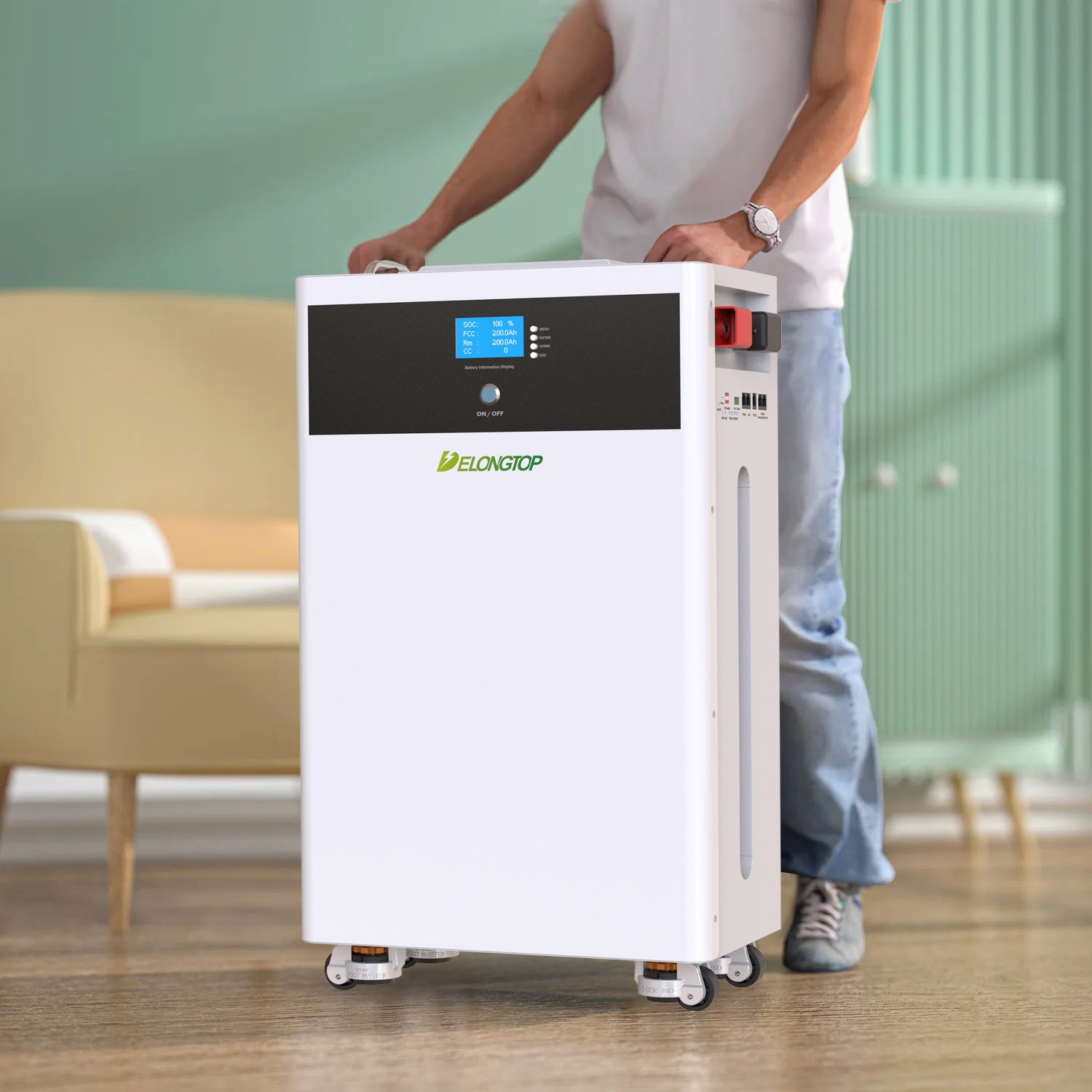

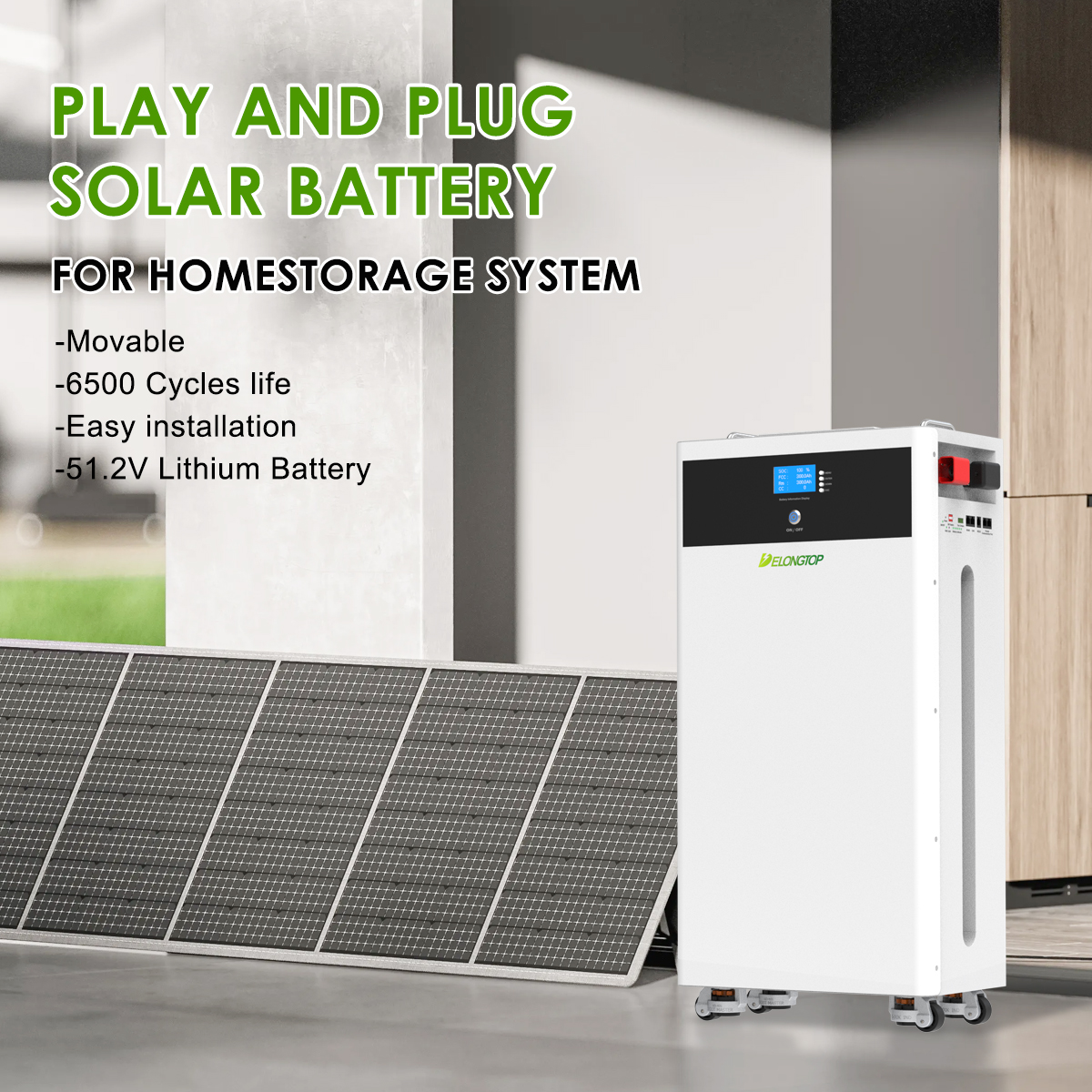

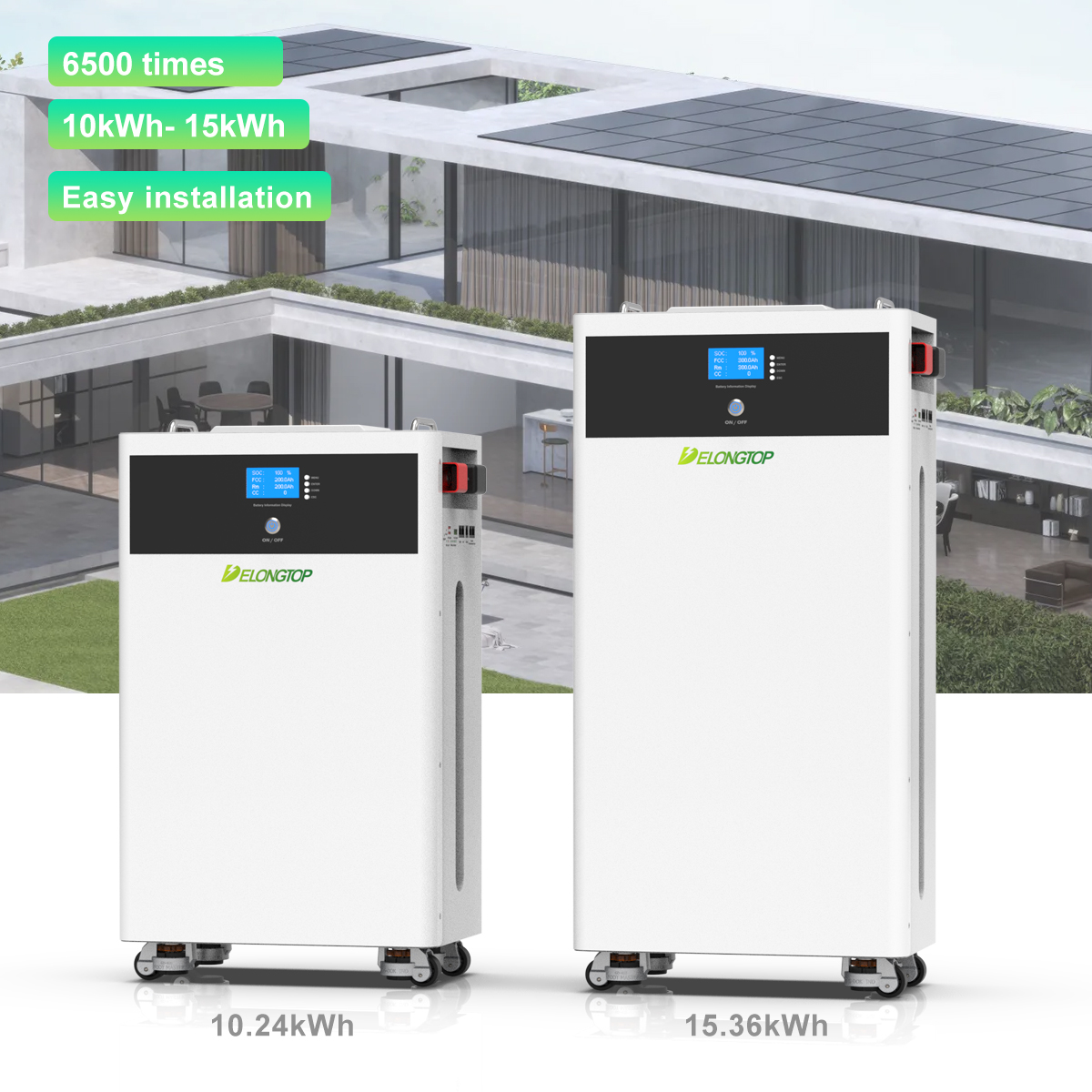

Movable Solar Battery Showcase

Product Specifications

Product Specification 51.2V 200Ah 51.2V 230Ah 51.2V 280Ah 51.2V 300Ah
Battery Energy 10.24Kwh 11.776Kwh 14.336Kwh 15.36Kwh
Max Charge Current 100A
Max Discharge Current 200A
Recommended load 5~8Kw
Charging Cut-off Voltage 57.6V ± 0.2V
Discharging Cut-off Voltage 44.8V ± 0.2V
Cell Type LiFePO4 Battery
Terminal M8
Case Material Metal Box
Charge Temperature Range 0 ~ 45℃
Discharge Temperature Range -5 ~ 55℃
Cycle Life ≥6500 Cycles
Designed Life 12 Years
Colour white
Weight ≈90KG ≈92KG ≈108KG ≈110KG
Dimensions (LxDxH) 436*262*725mm 436*262*875mm
Assembly Method Movable
Maybe you want to customize different specifications? Click to ask

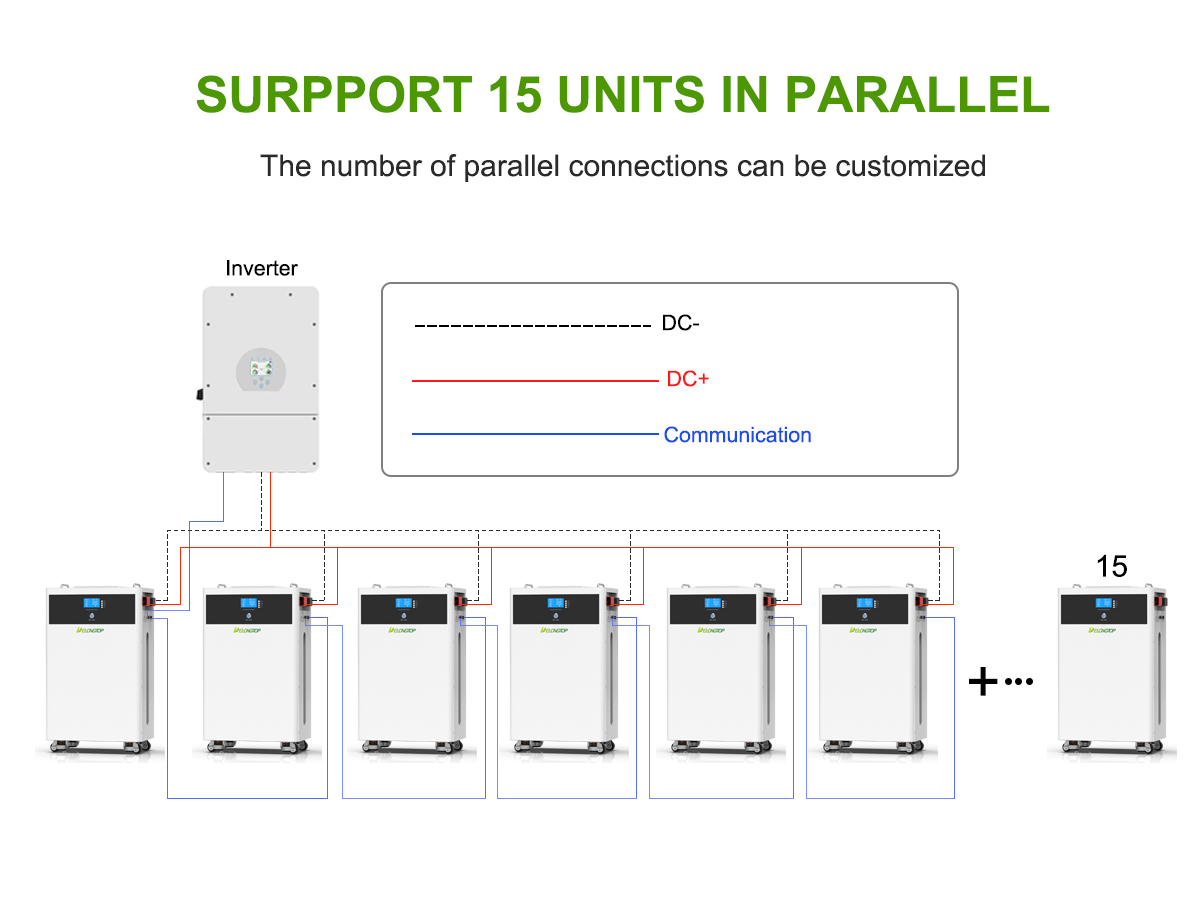

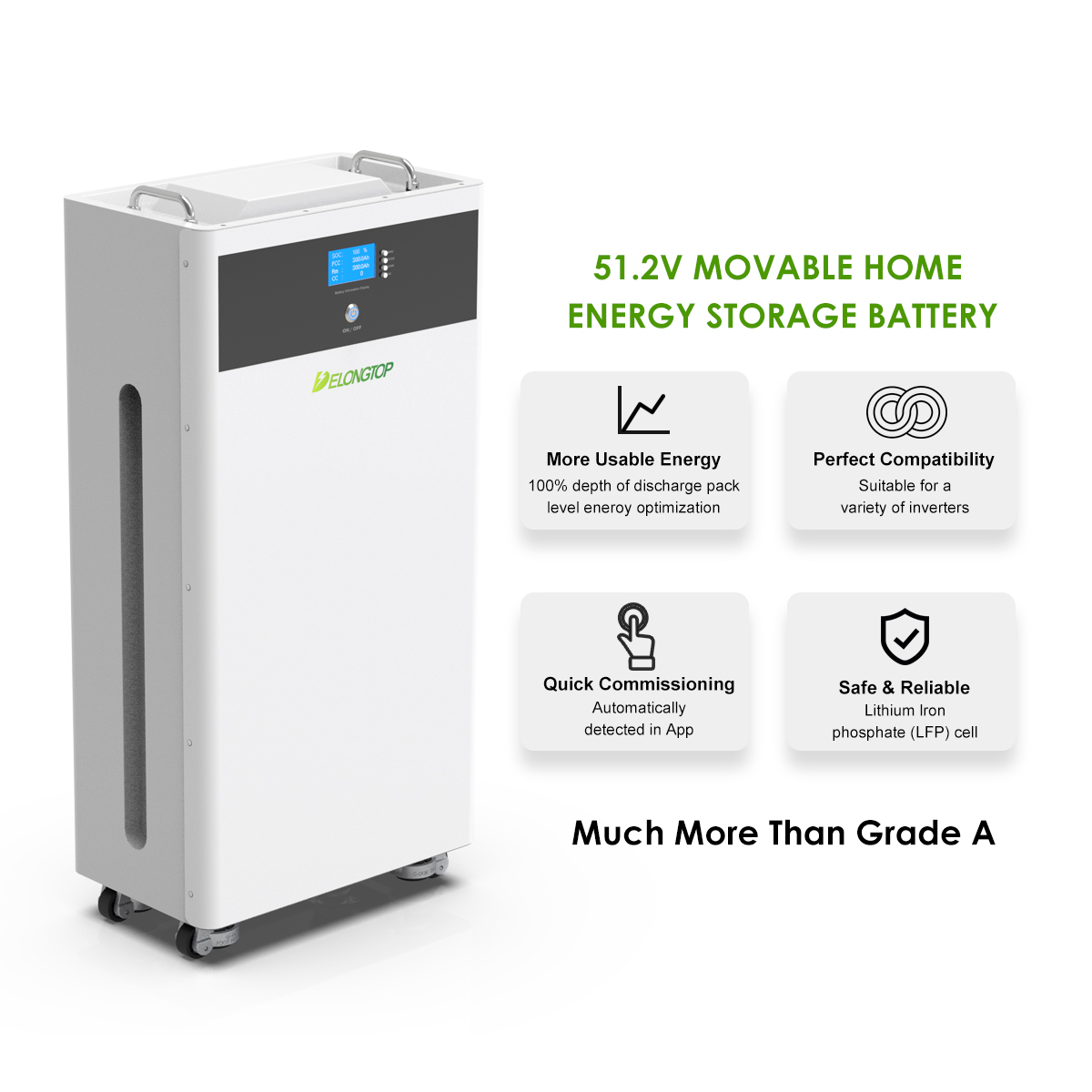

Detailed Product Views

Detailed Dimension Diagram

Product Images

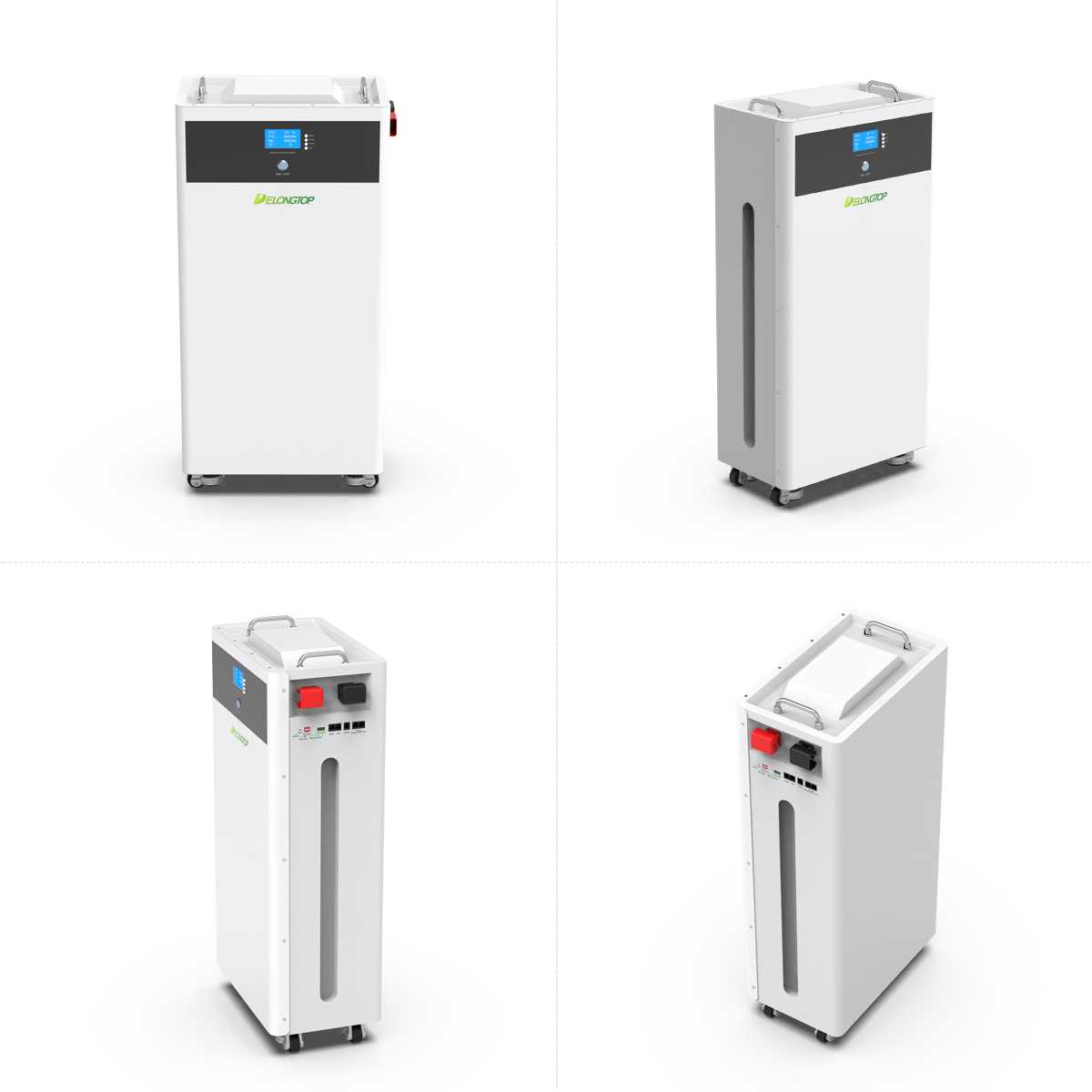

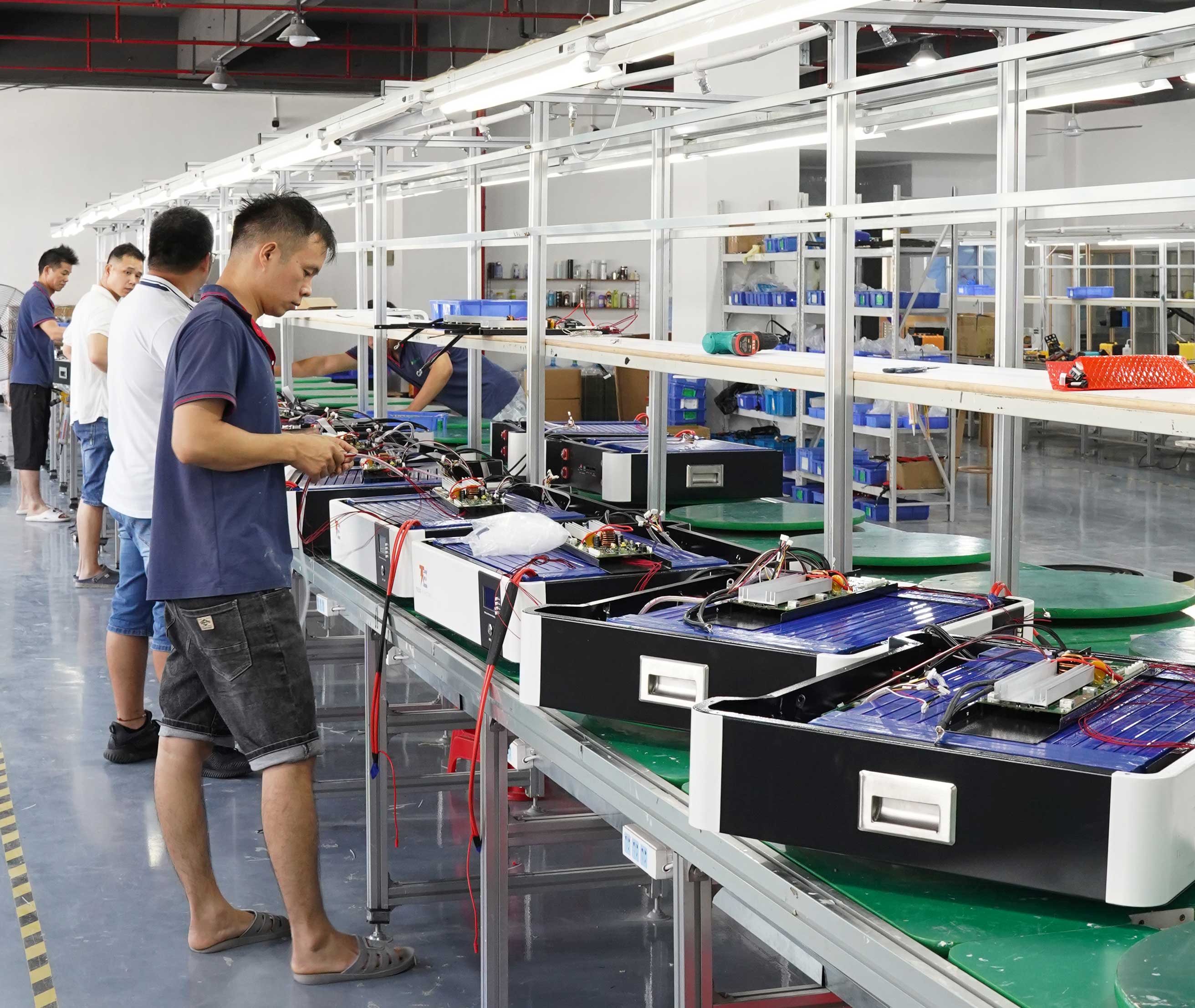

Battery Assembly Details
Decorative Divider Block

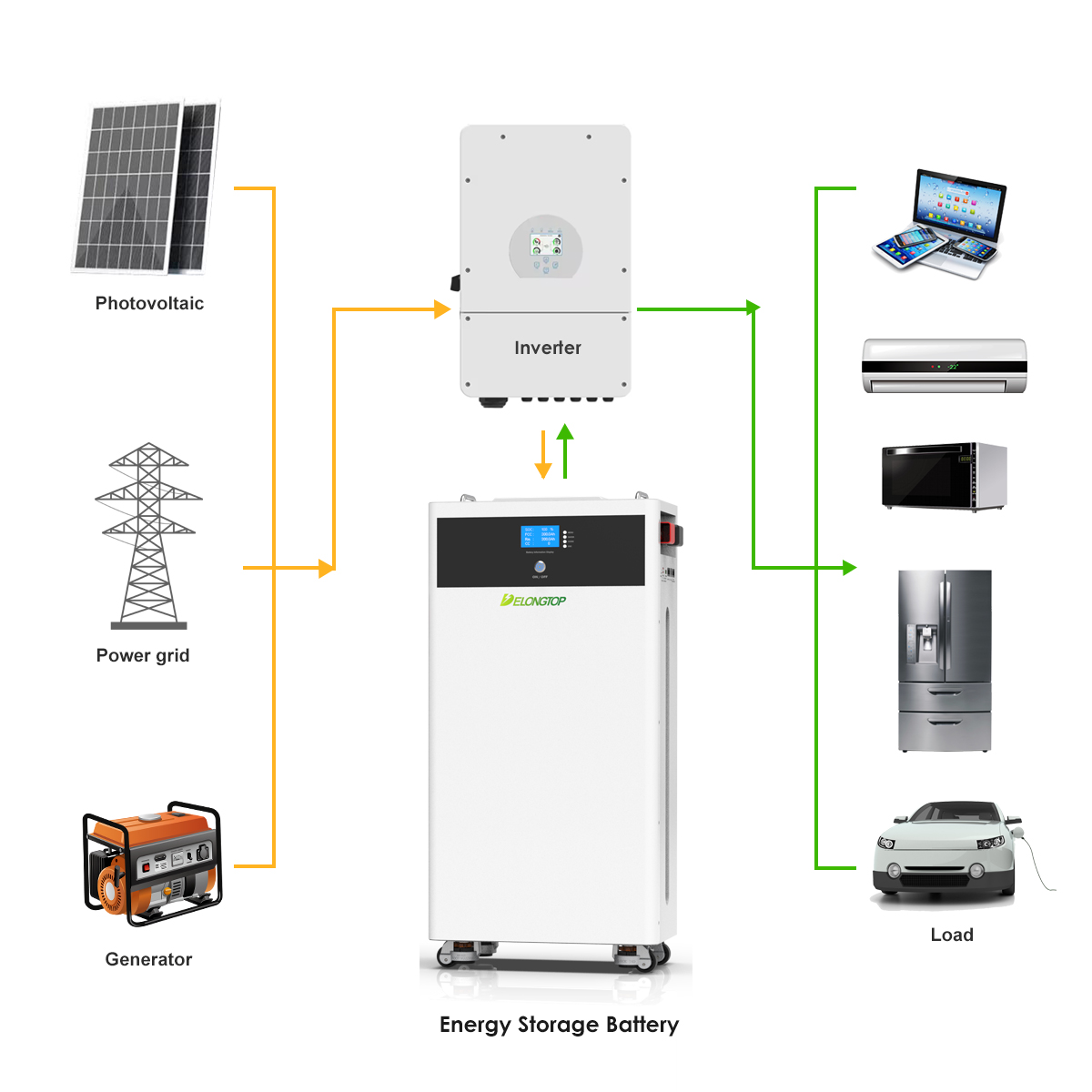

Product Application

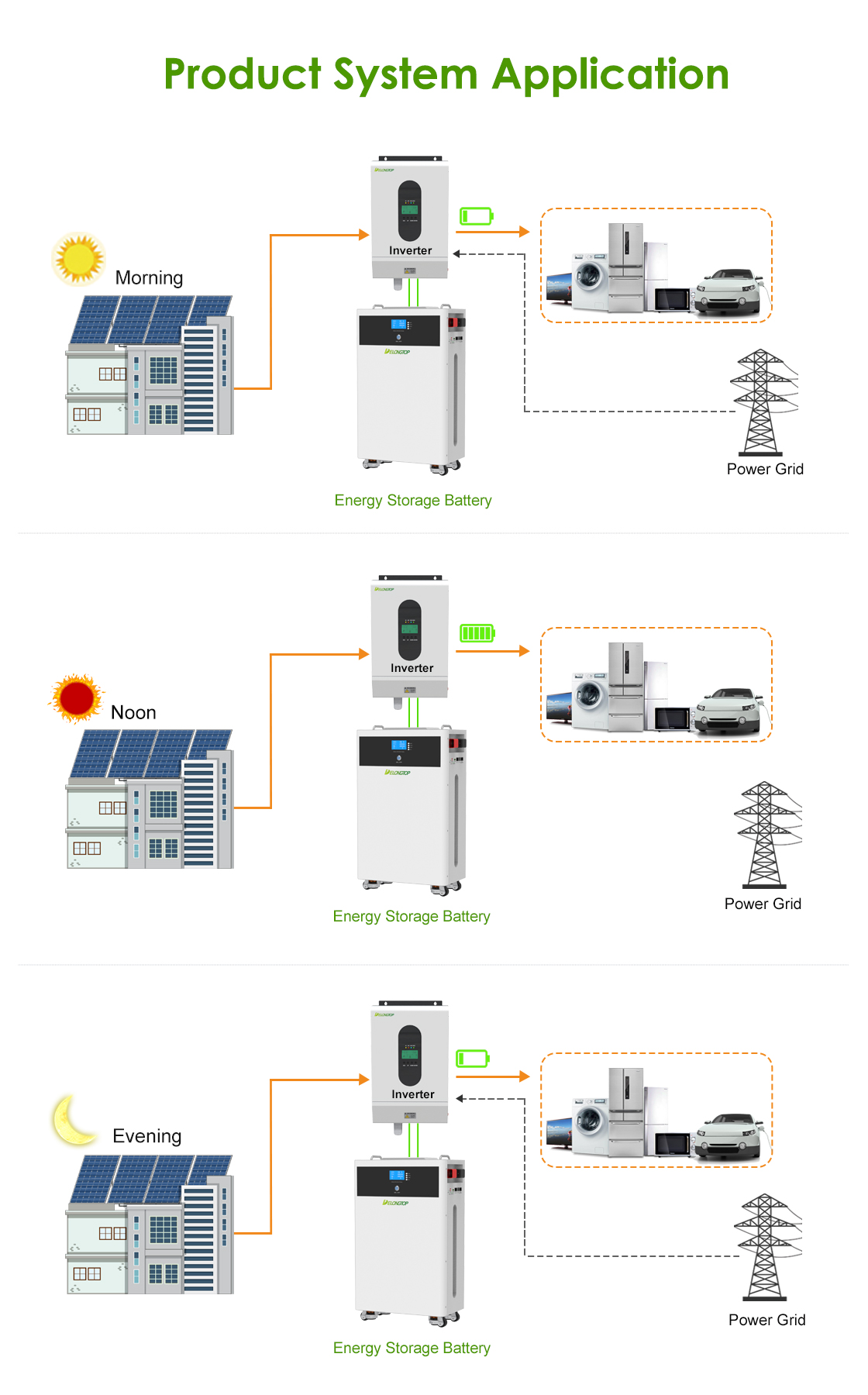

Product Application scenarios

Why Choose Us

Manufacturing quality standard

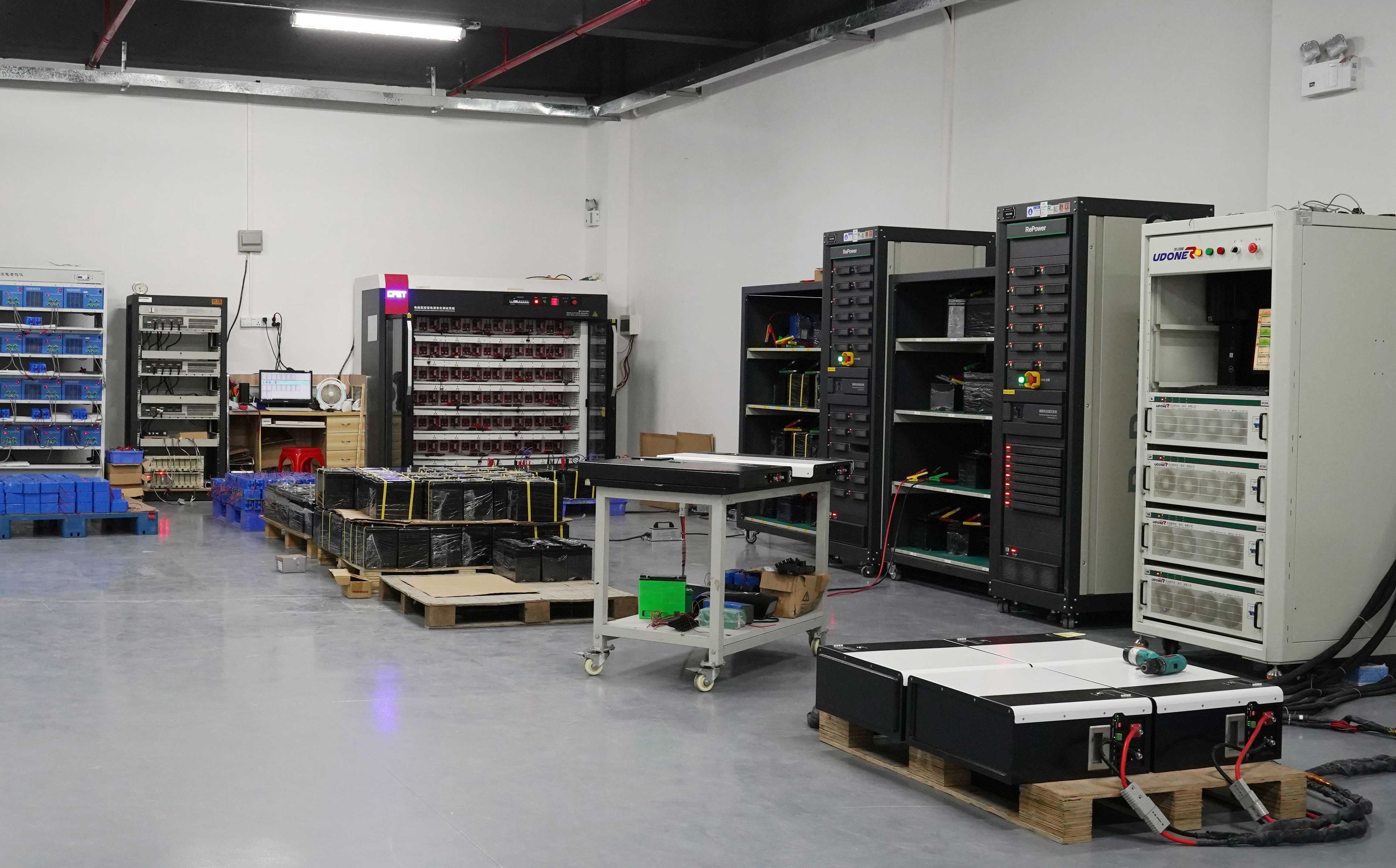

Standard Testing Procedures
Customer-centric policy
Divider Line

Customers Reviews

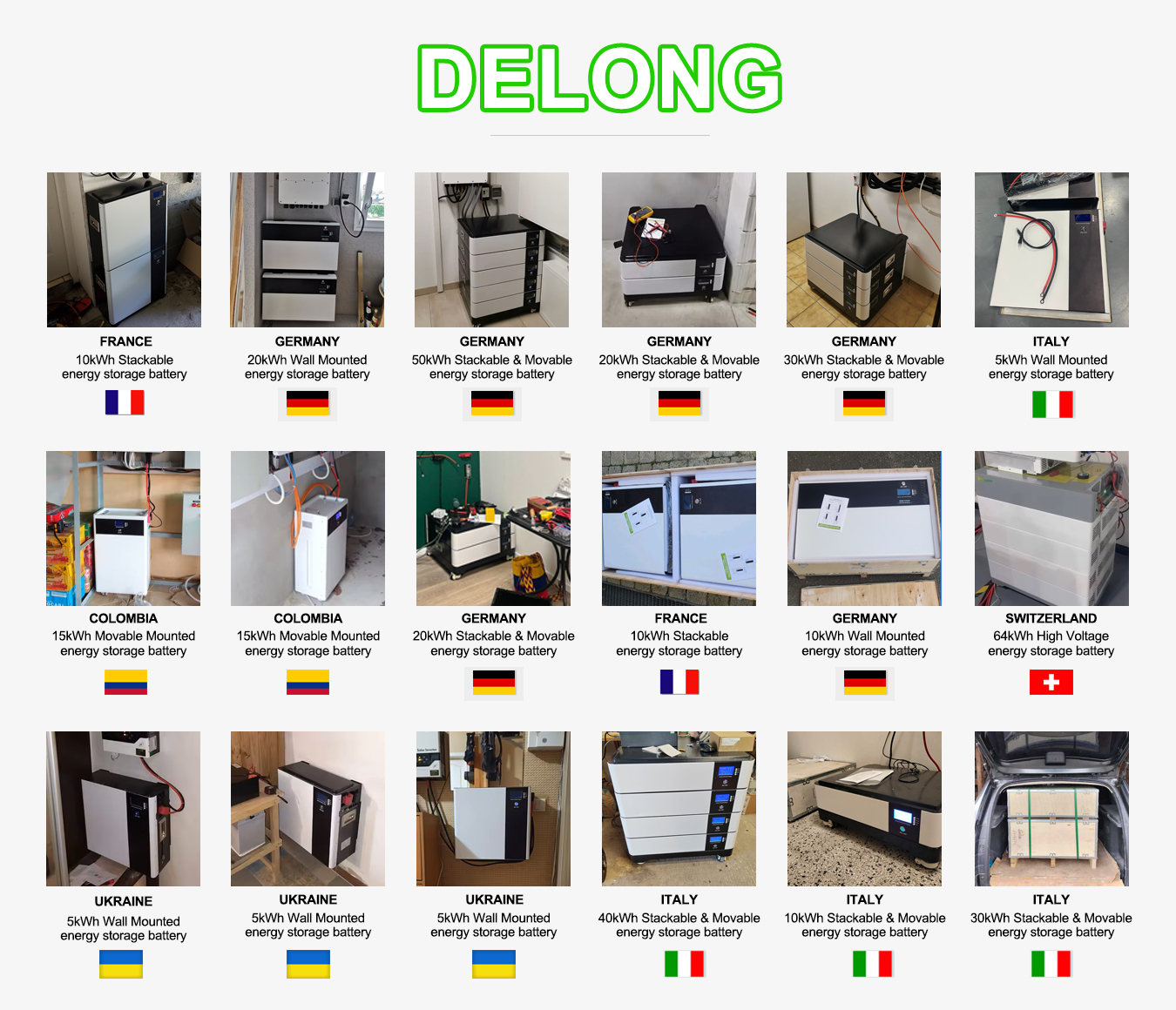

Positive reviews summary screenshot

FAQ

Q1What is included for a battery or pack, and may I buy a charger from you?
Battery case, BMS, battery pack. You can also purchase customized connectors and chargers from us.
Q2How long frequency does recharge the battery?
Usually every 2 months to recharge the battery pack. The time required to charge the battery fully depends on the charger current you use. A 20A charger can fully charge a 12V 100Ah battery in 5 hours, while a fast charger (50A) takes 2 hours.
Q3What's the sample lead time and bulk order delivery, and how long can I get it?
Fast delivery: If small quantity, orders can be finished in 3-5 days after payment. Bulk orders take 10-25 days depending on the quantity.
Shipping: For sample orders or small battery packs, we ship via express delivery through FedEx, UPS, TNT, etc. If the parcel exceeds 50KG, sea shipping is available and is more cost-effective. Customers can share their nearest airport name and sea port name with our sales representative to check the best options.
Q4What is your warranty?
We offer a 10-year warranty for all our LiFePO4 battery packs for different scenarios. We ensure at least 6000 cycles life for the LiFePO4 battery pack, which means it can be used for at least 10 years based on a normal 1-time charge and discharge cycle daily.
Q5Can I customize the size of the battery?
Yes, absolutely, as long as your targeted quantity meets the workable MOQ requirements.
Q6Can we put different LiFePO4 battery packs in parallel or series by ourselves?
Yes, the battery packs can be set in parallel or series by customers. However, please pay attention to these guidelines:
1. Make sure the voltage of each battery is identical before putting them in parallel. If not, charge them to the same rate.
2. Do not mix discharged and undischarged batteries in parallel, as this can reduce the capacity of the entire pack.
3. Advise us of the target capacity of the whole pack if you intend to set them in series so we can select the suitable BMS for each battery.
4. If you are not a professional in parallel and series configurations, please do not handle it yourself to avoid danger and damage to the battery's cycle life.
Q7Can we use it for a car engine?
Yes, our battery pack includes a BMS. However, you can use it for low-speed cars only or as auxiliary power for a standard car. Do not connect it to a standard car directly, as that requires a more complex BMS design.
