| Technical Specifications | AF-DC-60-Y-B-O-3/4/5/6-H | AF-DC-1200-Y-B-O-3/4/5/6-H | AF-DC-160-Y-B-O-3/4/5/6-H | |
|---|---|---|---|---|
| Detailed Specification | Rated Power | 60KW | 120KW | 160KW |
| User Interface | 7 inch LCD color display touch screen | |||

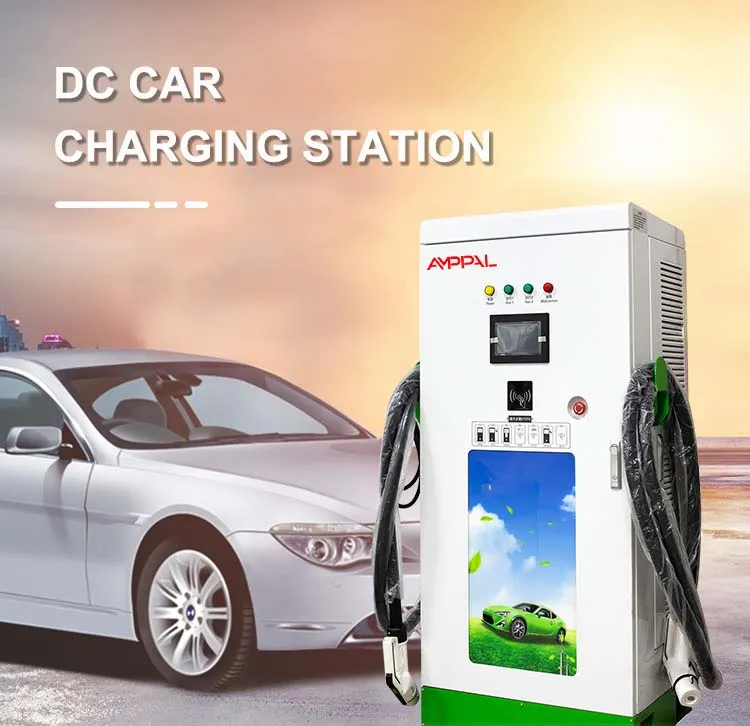

| Charging Equipment | Installation | Floor-standing/Down in down out | ||
| Device Size | 635*423*1600(mm) | |||
| Input Voltage | AC380V±20% | |||
| Input Frequency | 45~65Hz | |||
| Output Voltage | 200-750VDC | |||
| Single Gun Output Current Range (200V-500V) | 0-200A | 0-200A | 0-200A | |
| Single Gun Output Current Range (200V-750V) | 0-60A | 0-80A | 0-107A | |
| Single Gun Output Current Range (0-112A / 0-150A) | 0-112A | 0-150A | / | |

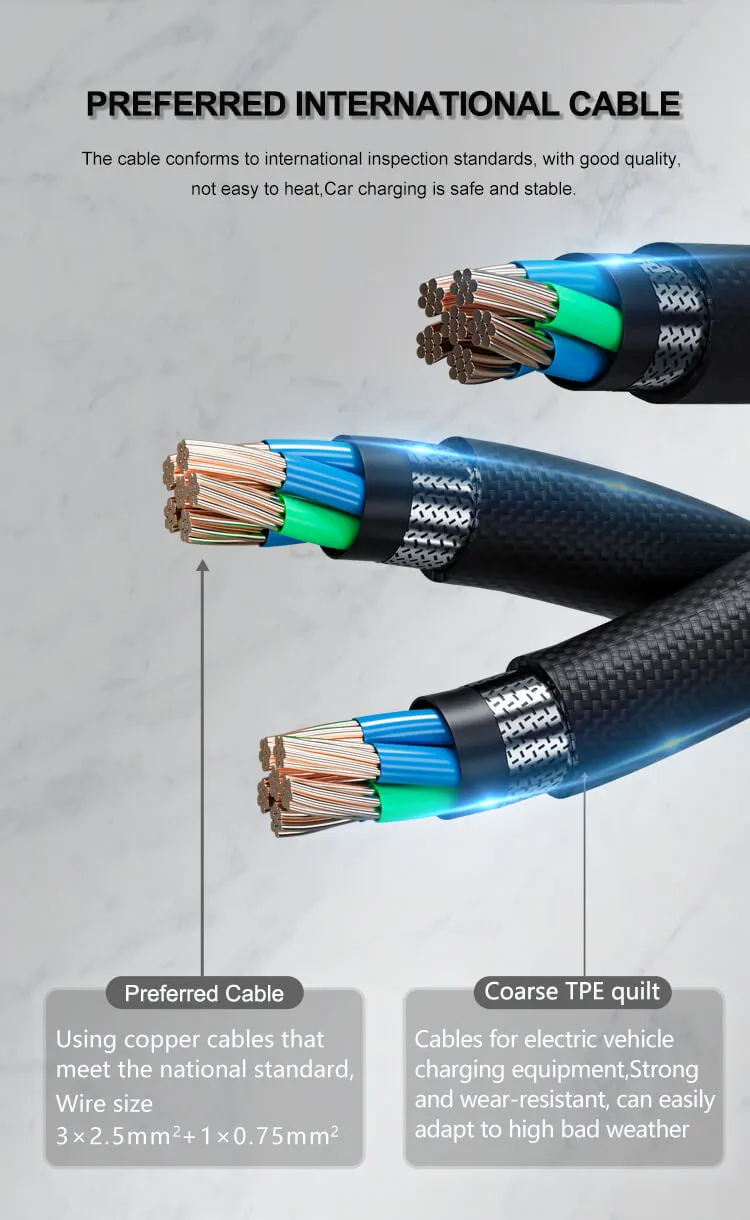

| Cable Info | Cable Length | 5m | ||
| Electrical Index | Measurement Accuracy | Level 0.5 | ||
| Current Limit Protection Value | ≥110% | |||
| Voltage Regulation Accuracy | ≤±0.5% | |||
| Steady Flow Accuracy | ≤±1% | |||
| Ripple Coefficient | ≤±0.5% | |||
| Effectiveness | ≥94.5% | |||
| Power Factor | ≥0.99 (50% load or more) | |||
| Harmonic Content THD | ≤5% (50% load or more) | |||
| Feature Design | HMI | 7 inch LCD color display touch screen, LED indicator | ||
| Charging Mode | Auto full / fixed power / fixed amount / fixed time | |||

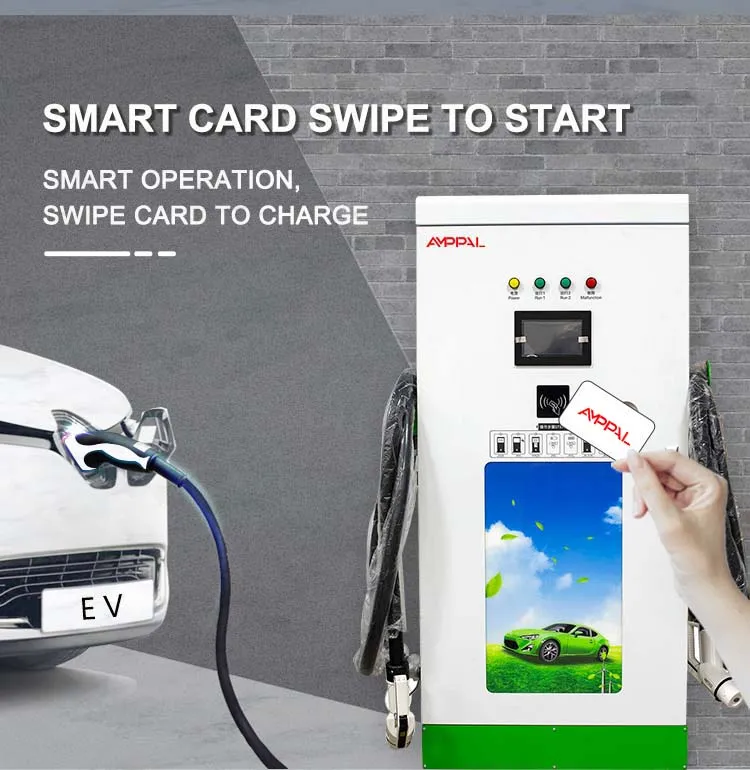

| Payment Method | Credit card payment / APP payment / scan code payment | |||
| Communication Interface | Ethernet 2/3/4G (optional) | |||
| Safety Design | Executive Standard | GB/T 20234, GB/T 18487, GB/T 27930, NB/T 33008 | ||

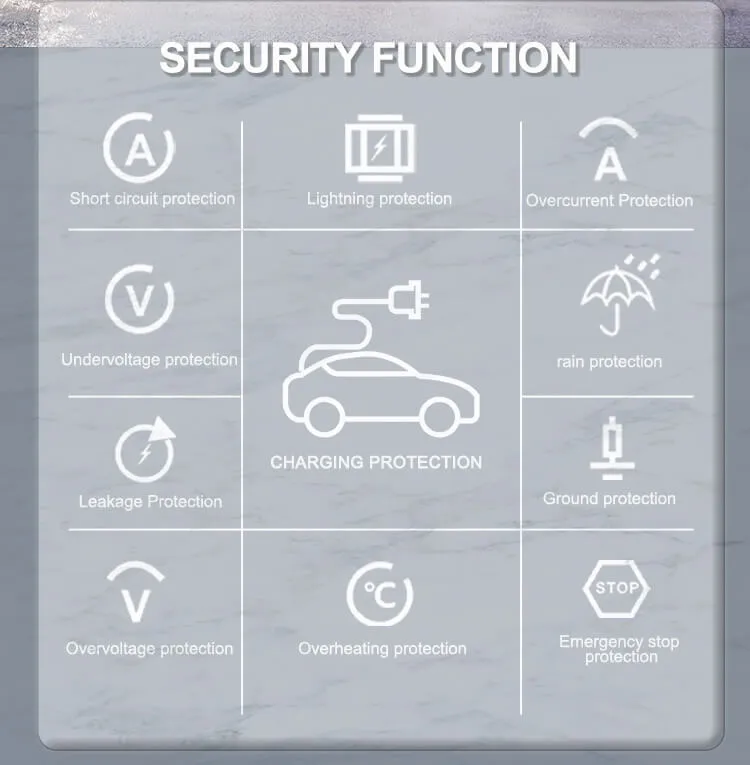

| Security Function | Charge gun temperature detection, overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, over temperature protection, low temperature protection, insulation monitoring protection, polarity reverse connection protection, lightning protection, emergency stop protection, leakage protection | |||
| Environmental Indicators | Operating Temperature | -25°C~+50°C | ||
| Working Humidity | 5%~95% non-condensing cream | |||
| Working Elevation | <3000m | |||

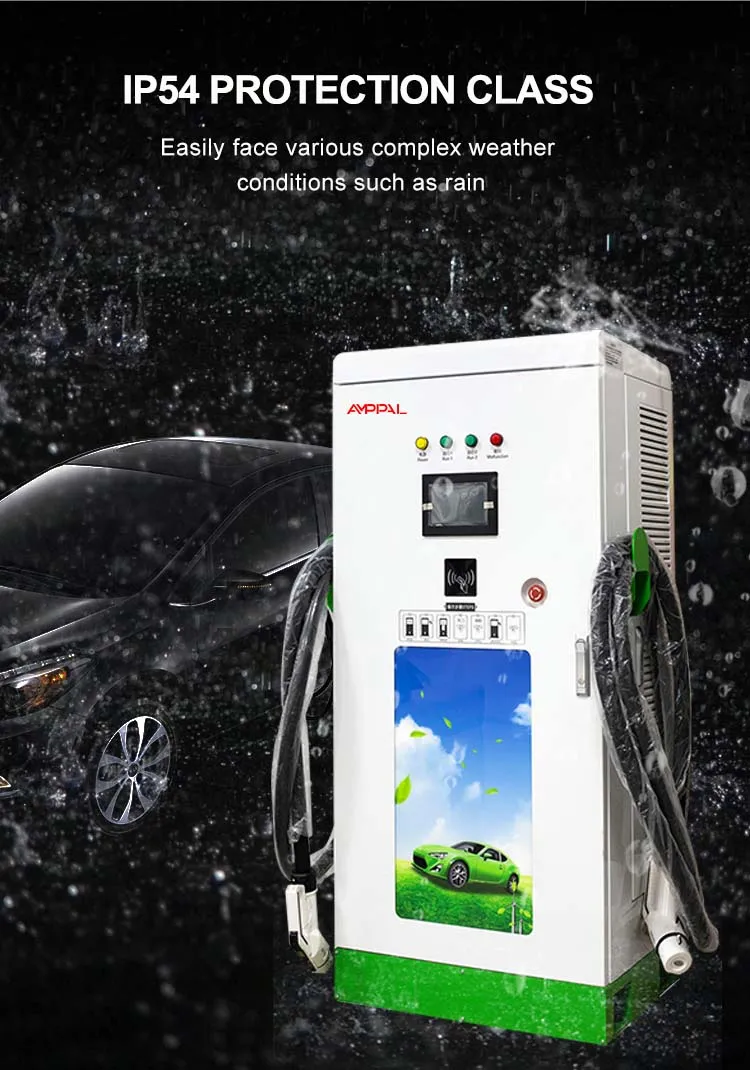

| Protection Level | IP54 | |||
| Cooling Method | Forced air cooling | |||
| Noise Control | ≤60dB | |||
| MTBF | 100,000 hours | |||
