The Solar System absorbs the sun's energy to light up your home and power your home electrical appliances, including charging mobile phones.

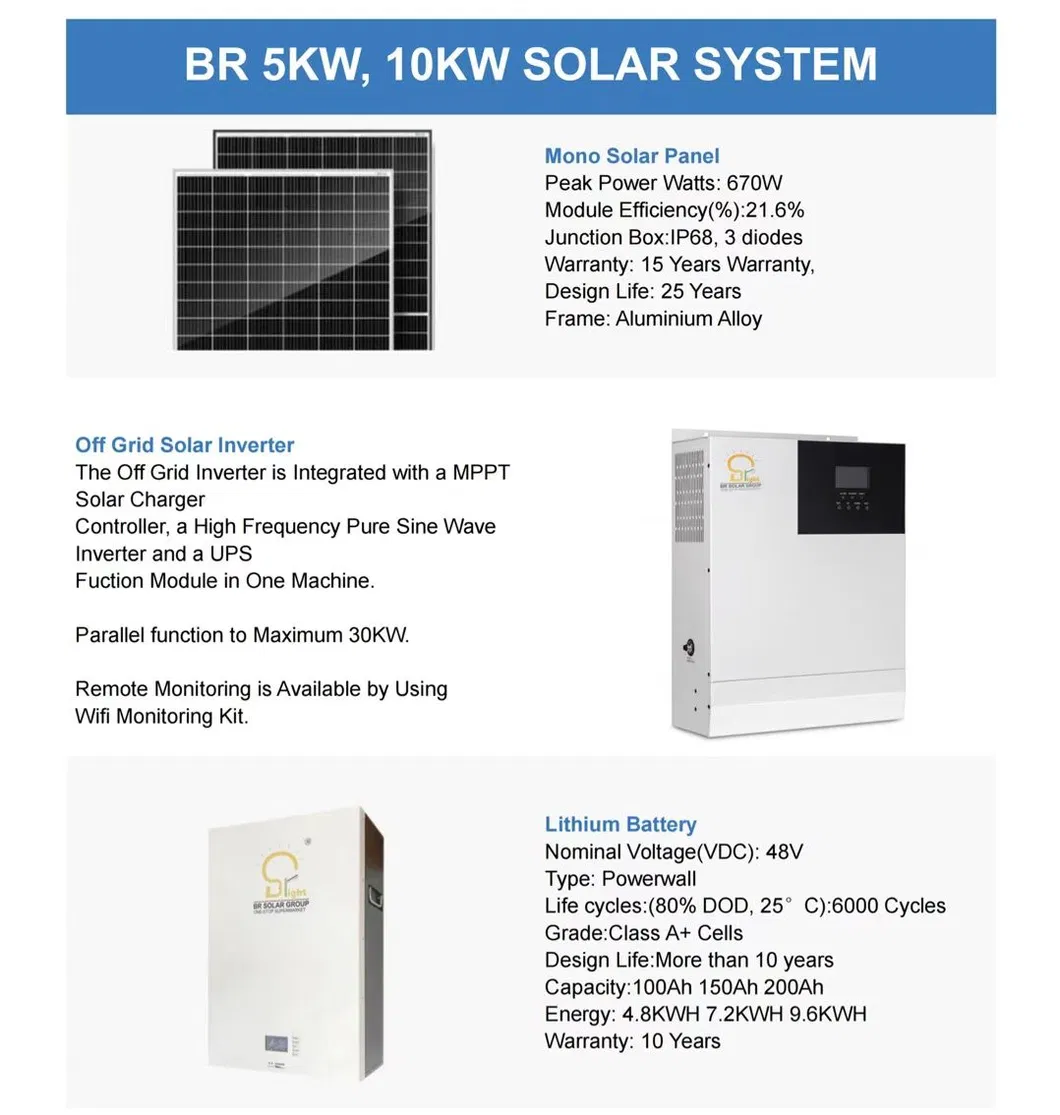

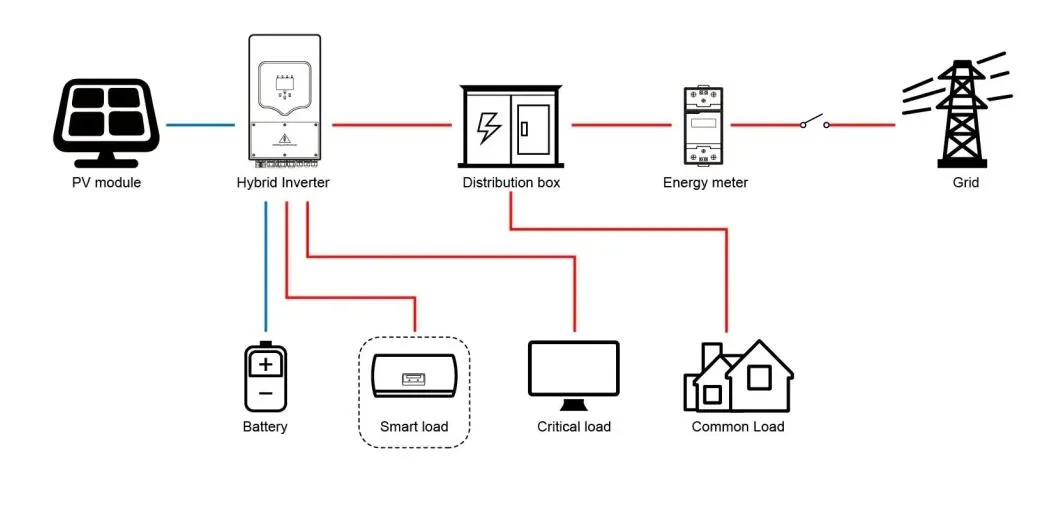

The components of the solar system include solar panels, lighting bulbs, an integrated control box featuring an internal charge controller, solar battery, and inverter. The system can support additional configurations for fans, TV sets, laptops, air conditioners, and other home utilities.
Providing clean illumination generated from solar energy, the solar panels in the system convert sunlight directly into electricity. This electricity is safely stored in the battery storage unit and deployed whenever lighting or power is required.

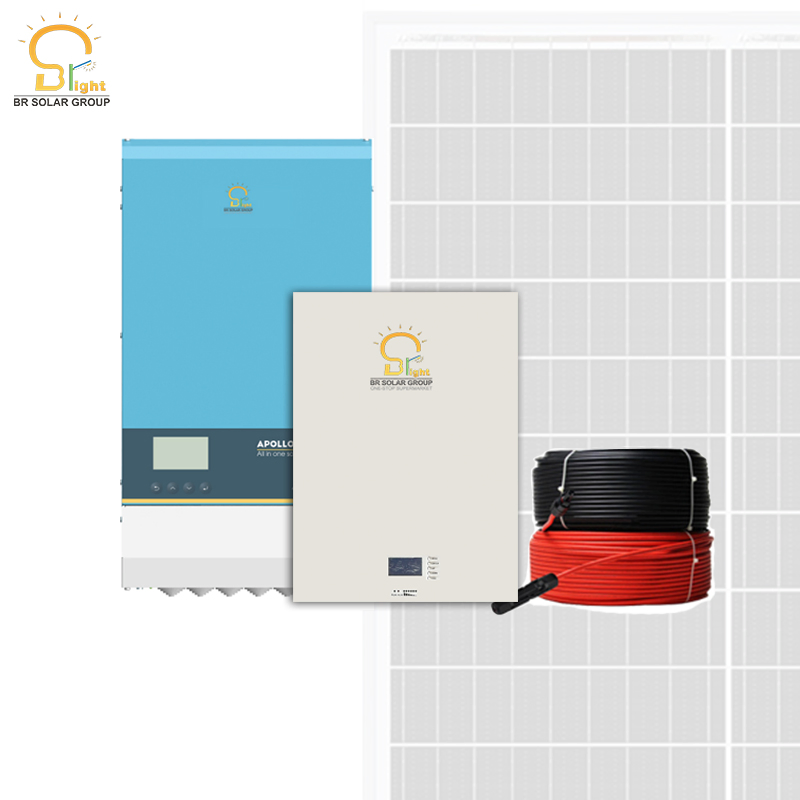

Our Solar System features a compact, portable, and easily mountable design. It serves as an economical solution to power generation challenges and is delivered in an easy-to-install kit format.
The 5KW off-grid solar system is widely utilized in the following setups:
| Part | Specification | Qty | Unit |
|---|---|---|---|
| Solar panel | M580W N Type TOPCon Solar Module TUV Certificate by Germany Connection method: 15 strings x 4 parallels 25 Years Design Lifespan |
60 | Pcs |

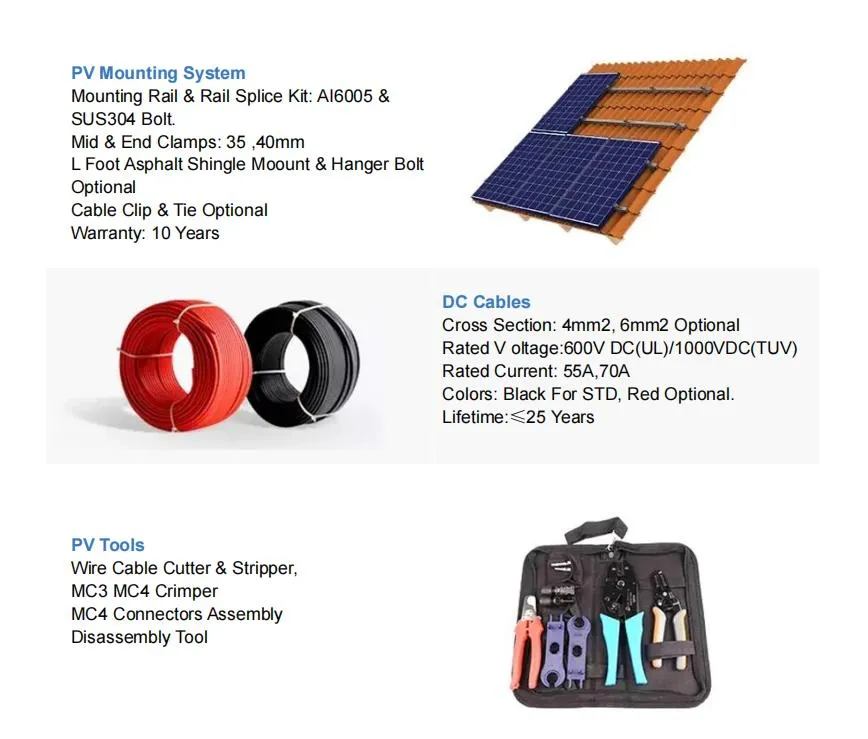

| Bracket | Aluminum alloy rail tripod system Anti-Rust, Anti-Corrosion, Anti-Salt Spray Wind resistance ≥ 150KW/H |
1 | Set |

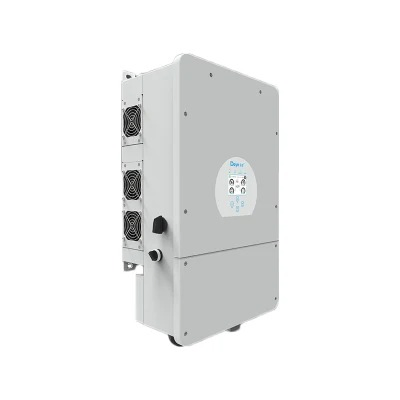

| Hybrid Inverter 50KW with WIFI monitor | Hybrid Inverter 50KW/380AC 3-PHASE 1. AC input: 380/400VAC. 2. Support grid/Diesel Input. 3. Pure sine wave, power frequency output. 4. AC output: 380/400VAC, 50/60HZ (optional). 5. Battery Voltage range: 40-60 low voltage 6. 6 time periods for battery charging/discharging 7. Max. charging/discharging current of 240A 8. Frequency droop control, Max.16pcs parallel 15 Years Design Lifespan |
1 | Pcs |

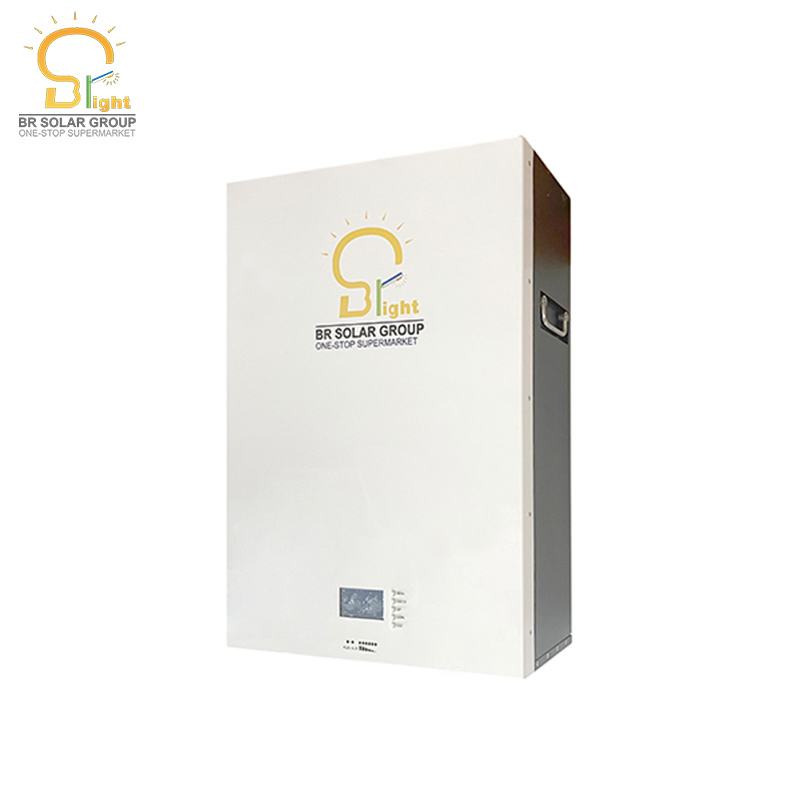

| Lithium Battery | 51.2V--280AH modules, * 7pcs Including high voltage box 1. DOD: 90%, > 6000 cycles 2. Communication: CAN 3. Battery protection: Over-current/Over-voltage/Short circuit/Under-voltage Total 100.3KWH 15 Years Design Lifespan |
1 | Set |
| Connector | MC4 Rated Voltage: 1000V DC Rated current: 30A Water-proof and dust-proof grade: IP67 Ambient temperature: -40ºC to +85ºC |
10 | Pairs |
| PV cables (solar panel to combiner box to Inverter) | 6mm² Pure Copper | 200 | M |
| BVR cables (Battery Box to Inverter) | 25mm² Pure Copper | 20 | M |
| Groundwire | 10mm² | 20 | M |
| Grounding | Φ16 | 1 | Pcs |
| AC Connecting cables | YJV3*25+2*16mm² | 20 | M |
| AC Distribution Board | 50KW | 1 | Pcs |
| MC4 Crimping Tool Kits | Standard Installation Toolkit | 1 | Set |
| Item | Part | Specification | Quantity | Remarks |
|---|---|---|---|---|
| 1 | Solar panel | Mono Half Cell M550W Class A+, 21.6% Efficiency |
4 pcs | Class A+ Grade, 550W, TUV Certificate authorized by Germany Connection: 2 strings x 2 parallels Daily power generation: 9.3KWH 25 Years Design Lifespan |
| 2 | Y-TYPE MC4 CONNECTOR | 2-1 Type | 1 pc | 4 inputs, 1 output 20 Years Design Lifespan |
| 3 | Mounting Bracket | Hot-dip Galvanized Rooftop Mounting Brackets | 1 set | Anti-Rust, Anti-Corrosion, Anti-Salt Spray Wind resistance ≥ 160KW/H 35 Years Design Lifespan |
| 4 | Power Frequency Inverter | Bright Series All in one Inverter 48V/5kw |
1 set | 1. AC input: 220VAC. 2. Support grid/Diesel Input. 3. Pure sine wave, power frequency output. 4. AC output: 220VAC, 50/60HZ (optional). 15 Years Design Lifespan |
| 5 | Deep Cycle GEL Battery | 2218 Times 30% Deep Cycling Gelled Battery 12V-200AH |
4 pcs | European Projects Standard 58KGS Design 4pcs in series Total release power: 6.7KWH 12 Years Design Lifespan |
| 6 | MC4 Connector | Standard MC4 | 2 pairs | 20 Years Design Lifespan |
| 7 | PV cables (solar panel to combiner box) | 4mm² | 60m | 20 Years Design Lifespan |
| 8 | BVR Cables (combiner box to Controller) | 6mm² | 10m | 20 Years Design Lifespan |
| 9 | BVR Cables (Controller to Battery) | 16mm² | 2 sets | 20 Years Design Lifespan |
| 10 | BVR Cables (Inverter to Battery) | 25mm² | 2 sets | 20 Years Design Lifespan |
| 11 | Connecting Cables | 25mm² | 4 sets | 20 Years Design Lifespan |
| 12 | Breaker | 2P63A | 1 pc | 20 Years Design Lifespan |
| 13 | Installation Tools | PV Installation Package | 1 Pkg | Included Accessories |
| 14 | Extra Accessories | Maintenance replacements | 1 Set | Included Spares |

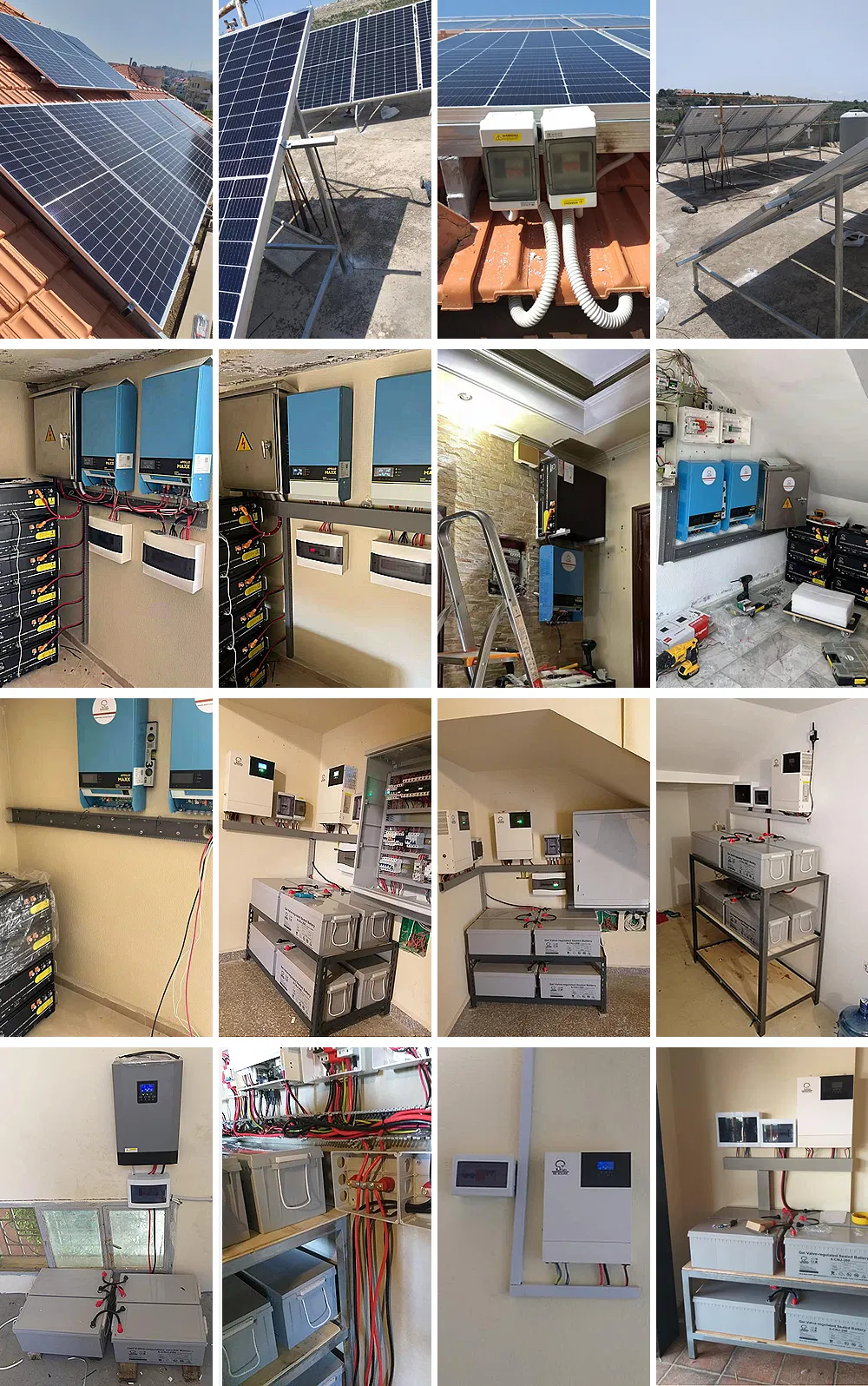

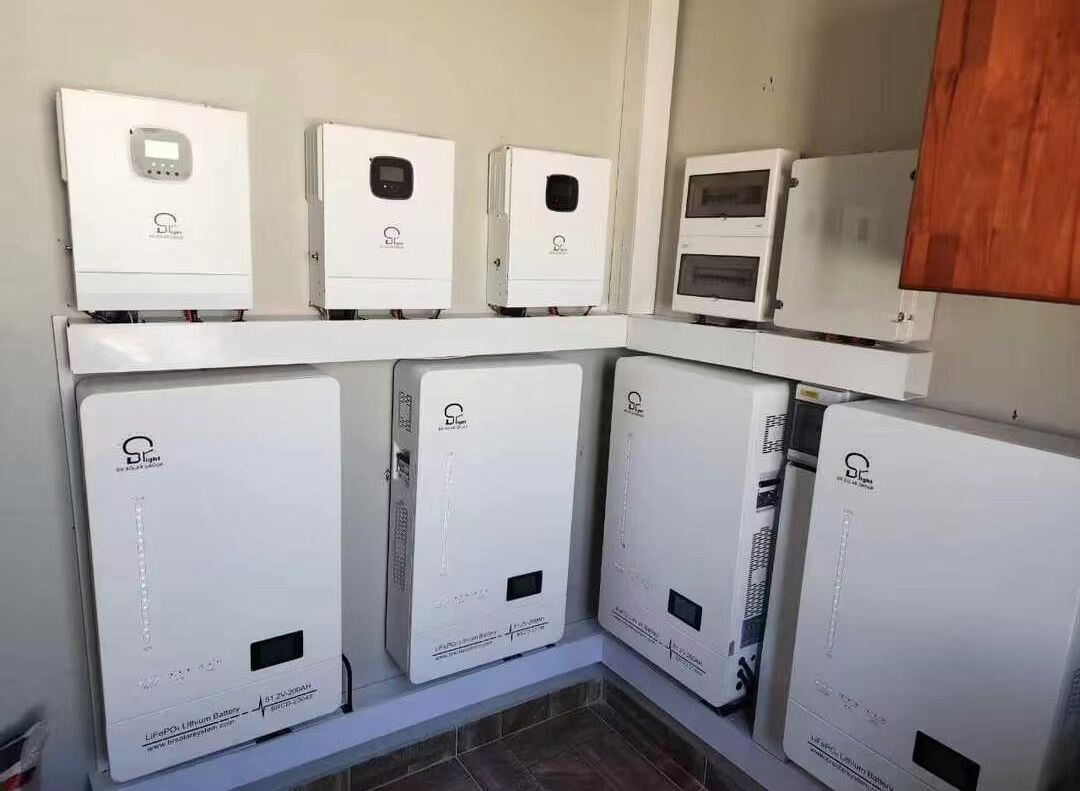

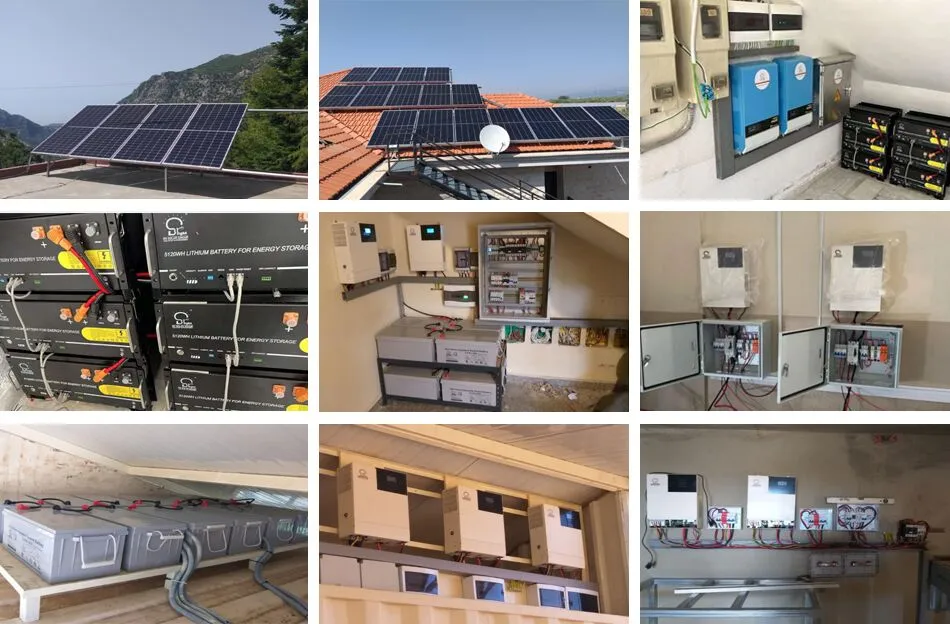

We choose high-grade materials; quality is at the center of our manufacturing culture. Our solar power systems have been successfully installed and commissioned in over 128 countries, including UN-led assignments and NGO projects.
