Solar System absorbs sun's energy to light up your home and power your home electrical appliances including charging mobiles.

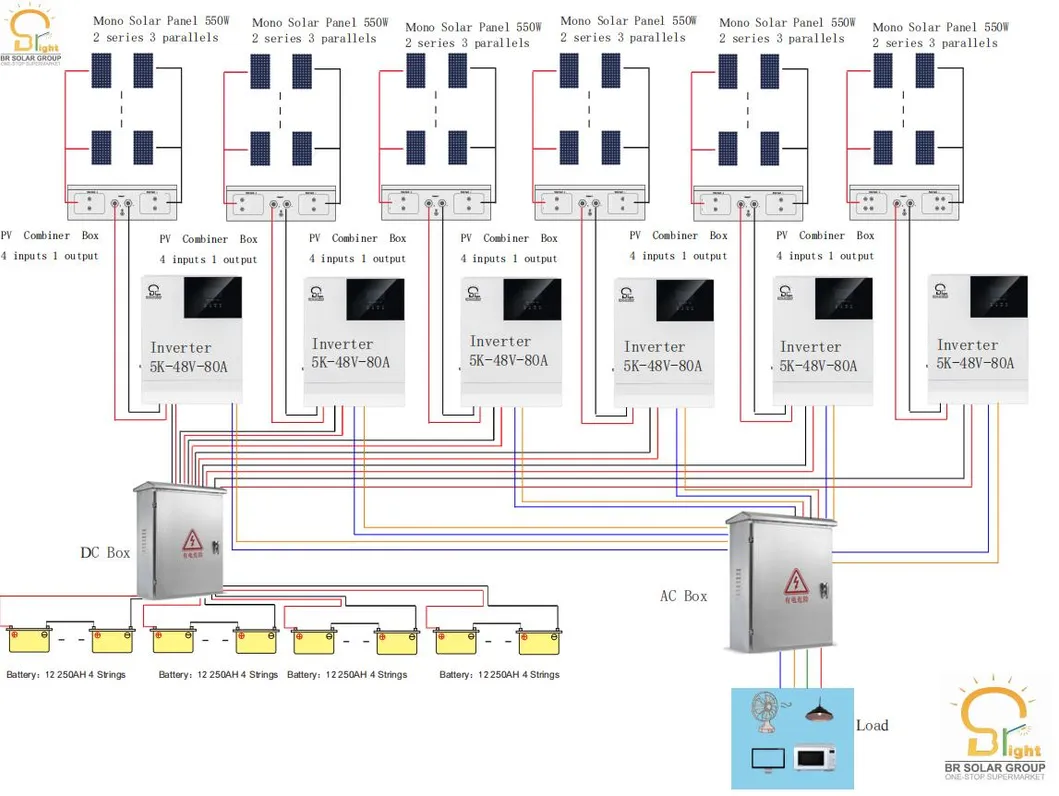

The components of the solar system includes solar panel, lighting bulbs, integration controlling box inside with charge controller, solar battery, and inverter. Some system can be with fan, TV set, laptop, air conditioner, etc.
Providing illumination powered from the sun energy, the solar panel in the system convert the sun's energy directly into electricity.
This electricity can be stored in the battery and used for lighting whenever required.
Our solar System, compact, portable and easily mountable, is an economical solution to all your power problems and comes in an easy-to-install kit.
5KW off grid solar system is widely used in the following places:
| Item | Part | Specification | Quantity | Remarks |
|---|---|---|---|---|

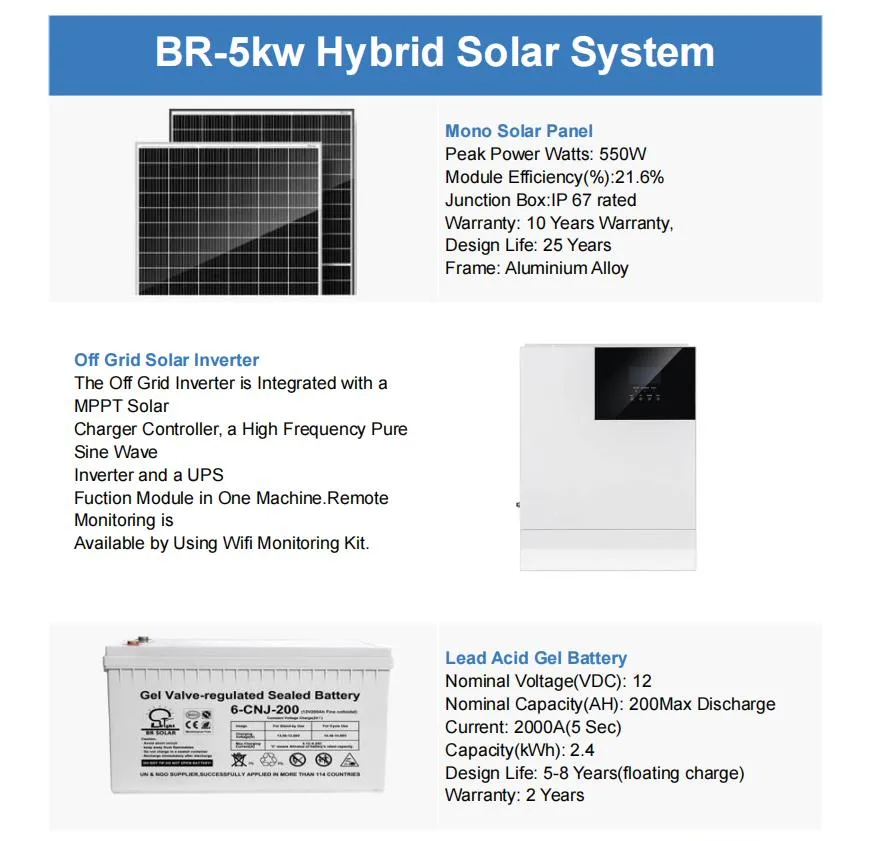

| 1 | Solar panel | Mono Half Cell M550W Class A+, 21.6% Efficiency |
4pcs | Class A+ Grade, 550W, TUV Certificate authorized by Germany Connection method: 2 strings x 2 parallels Daily power generation: 9.3KWH 25 Years Design Lifespan |
| 2 | Y-TYPE MC4 CONNECTOR | 2-1 | 1pc | 4 inputs, 1 output 20 Years Design Lifespan |

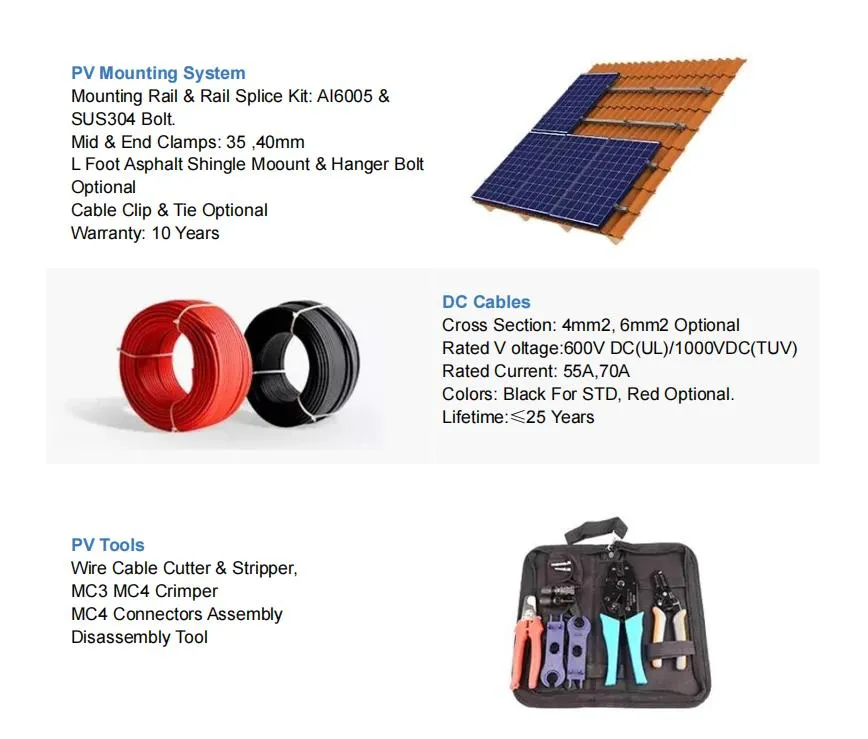

| 3 | Mounting Bracket | Hot-dip Galvanized Rooftop Mounting Brackets | 1set | Rooftop Mounting Brackets Anti-Rust, Anti-Corrosion, Anti-Salt Spray, wind resistance ≥160KW/H 35 Years Design Lifespan |

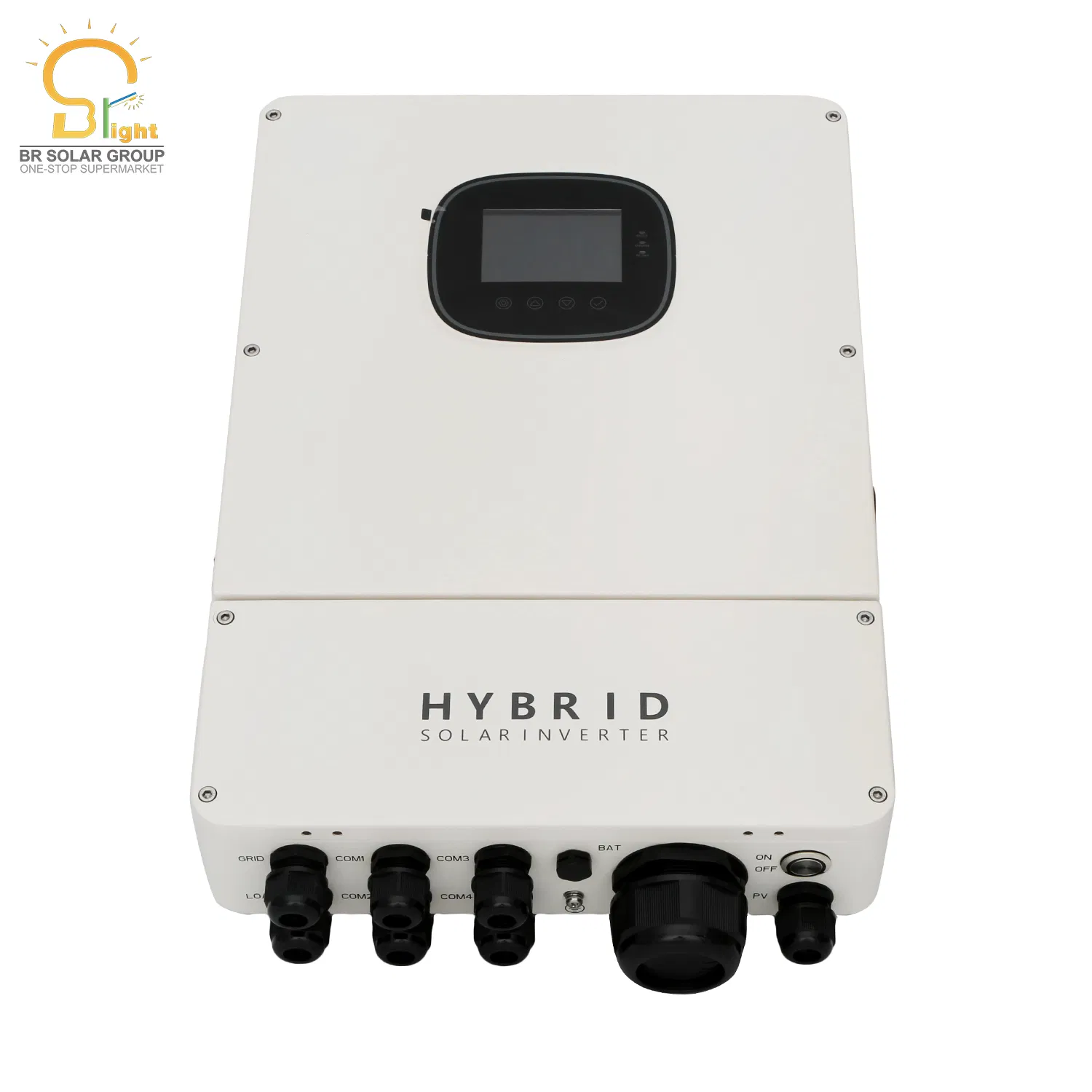

| 4 | Power Frequency Inverter | Bright Series All in one Inverter 48V/5kw |
1set | 1, AC input: 220VAC. 2, Support grid/Diesel Input. 3, Pure sine wave, power frequency output. 4, AC output: 220VAC, 50/60HZ (optional). 15 Years Design Lifespan |
| 5 | Deep Cycle GEL Battery | 2218 Times 30% Deep Cycling Gelled Battery 12V-200AH |
4pcs | European Projects Standard 58KGS Design 4pcs in series Total release power: 6.7KWH 12 Years Design Lifespan |
| 6 | MC4 Connector | MC4 | 2 pairs | 20 Years Design Lifespan This length for free. Longer length needs to be negotiated when order confirmed. 20 Years Design Lifespan |
| 7 | PV cables (solar panel to PV combiner box) | 4mm2 | 60m | 20 Years Design Lifespan |
| 8 | BVR Cables (PV combiner box to Controller) | 6mm2 | 10m | |
| 9 | BVR Cables (Controller to Battery) | 16mm2 | 2sets | |
| 10 | BVR Cables (Inverter to Battery) | 25mm2 | 2sets | |
| 11 | Connecting Cables | 25mm2 | 4sets | |
| 12 | Breaker | 2P63A | 1pc | |
| 13 | Installation Tools | PV Installation Package | 1 Package | FREE GIFTS |
| 14 | Extra Accessories | FREE CHANGING | 1 SET | FREE GIFTS |

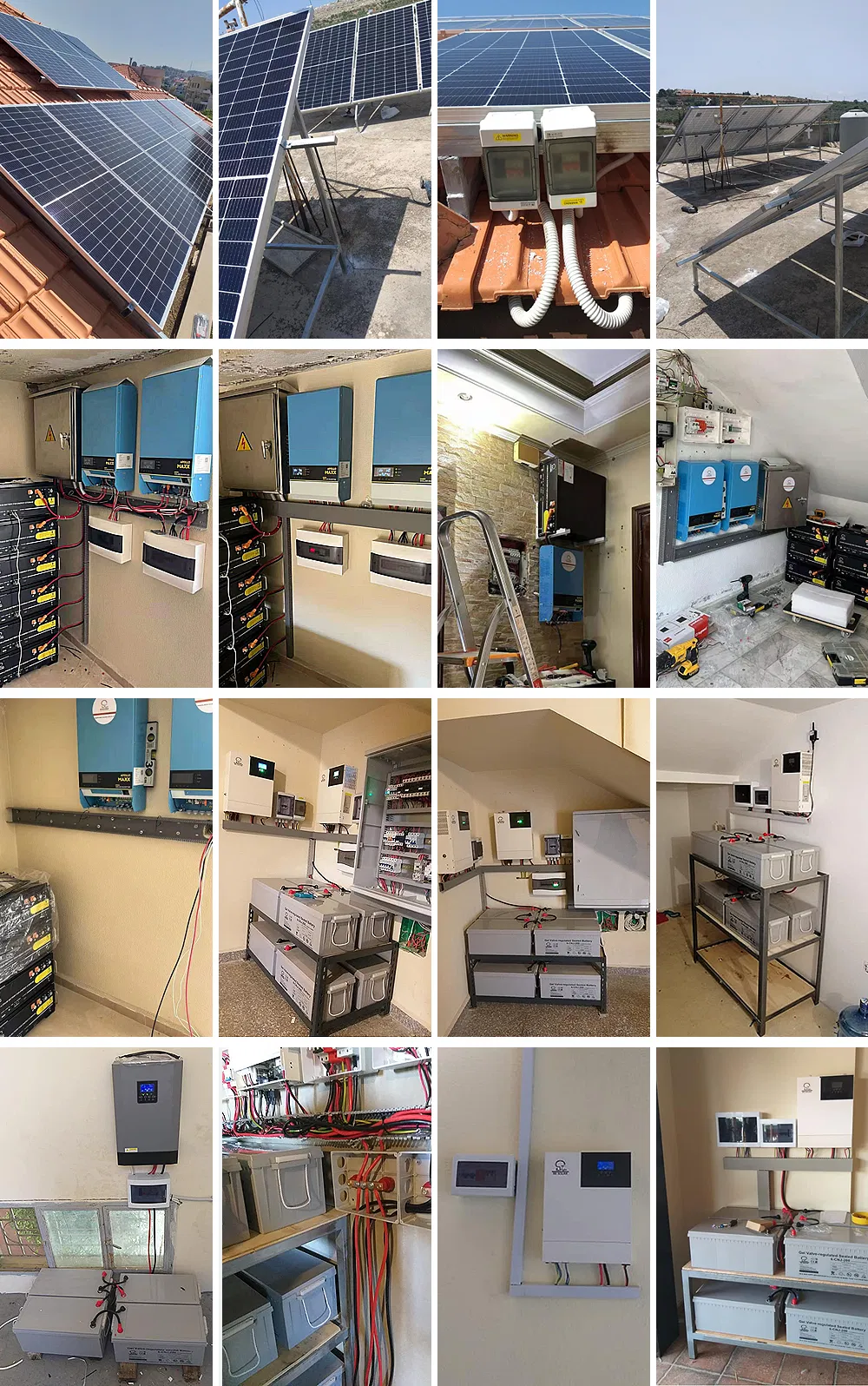

We Choose A Quality Material, Quality Is Our Culture. So Our Solar Products Have Been Successfully Applied In More Than 128 Countries Including UN Projects and NGO Projects.
