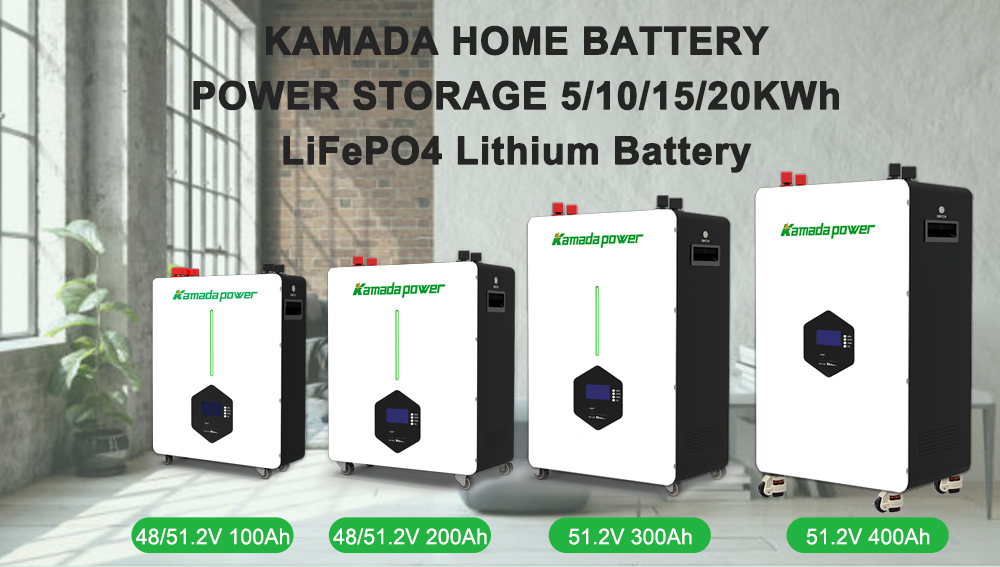

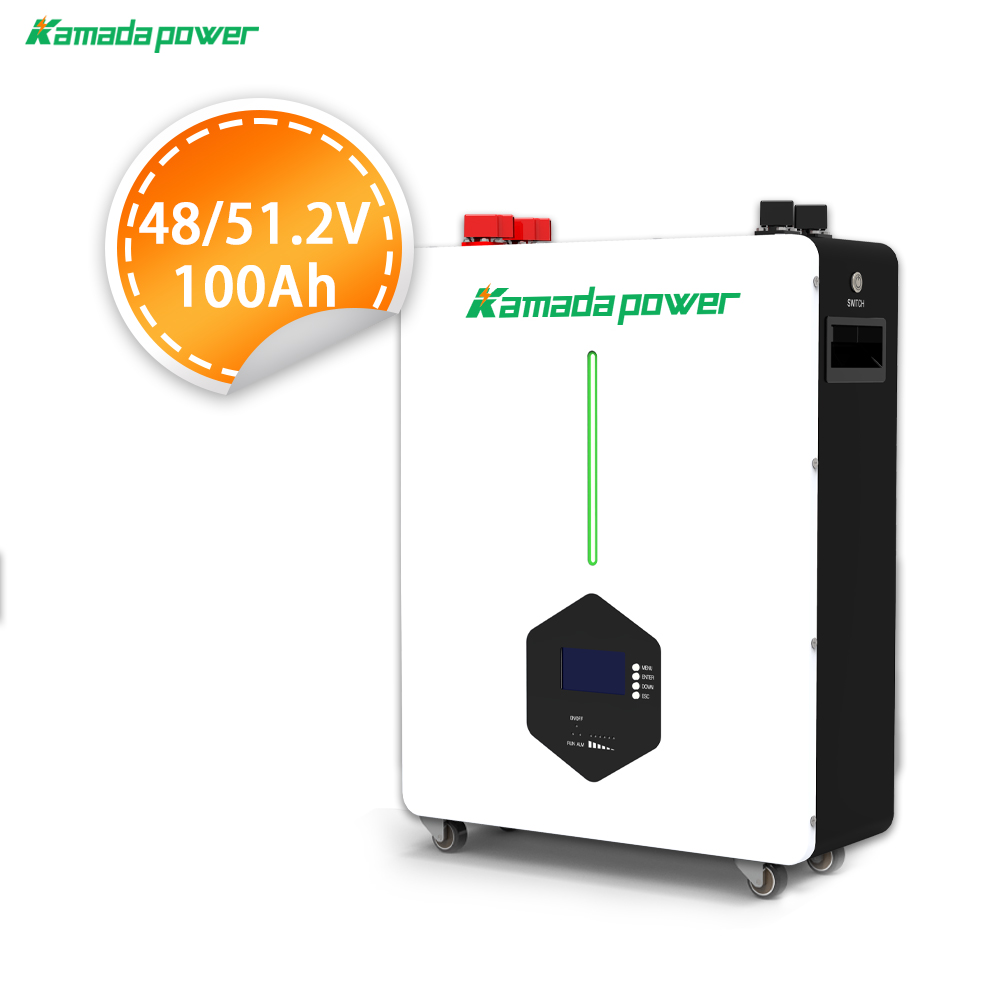

| Battery Specifications | KMD-PW51100 | KMD-PW51200 | KMD-PW51300 | KMD-PW51400 |
|---|---|---|---|---|
| ELECTRICAL | ||||
| Nominal Voltage | 48V/51.2V | |||
| Energy Capacity | 100Ah(5KWH) | 200Ah(10KWH) | 300Ah(15KWH) | 400Ah(20KWH) |
| Battery Type | LFP(LiFePO4) | |||
| Depth Of Discharge (DoD) | 95% | |||
| OPERATION | ||||
| Max. Charging Current | 90A @25°C | 90A @25°C | 90A @25°C | 90A @25°C |
| Max. Discharging Current | 100A @25°C | 100A @25°C | 100A @25°C | 100A @25°C |
| Operating Temperature Range | 0°C~+50°C(Charging)/-20°C~+60°C(Discharging) | |||
| Storage Temperature Range | -30°C~+60°C | |||
| Humidity | 5%~ 95% | |||
| BMS | ||||

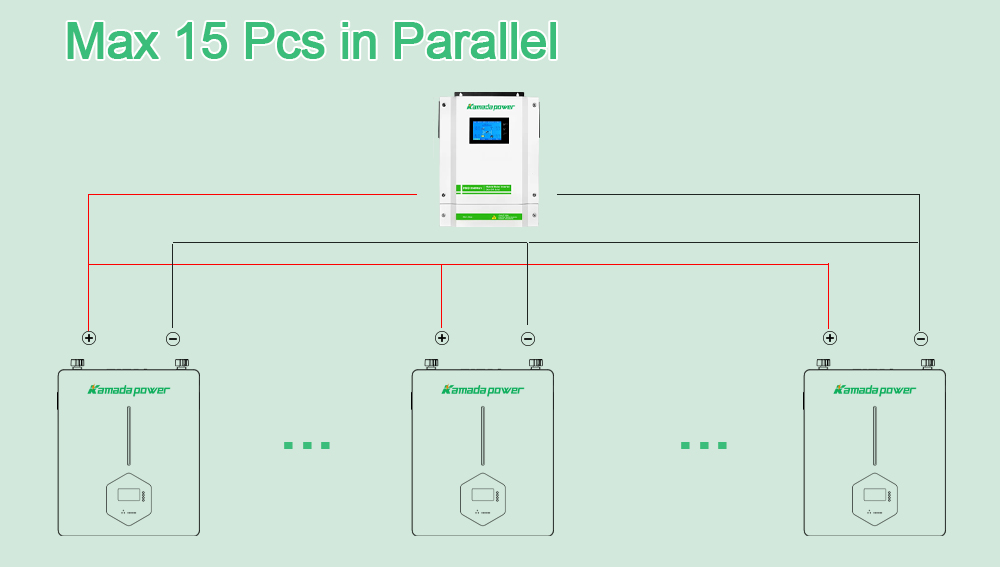

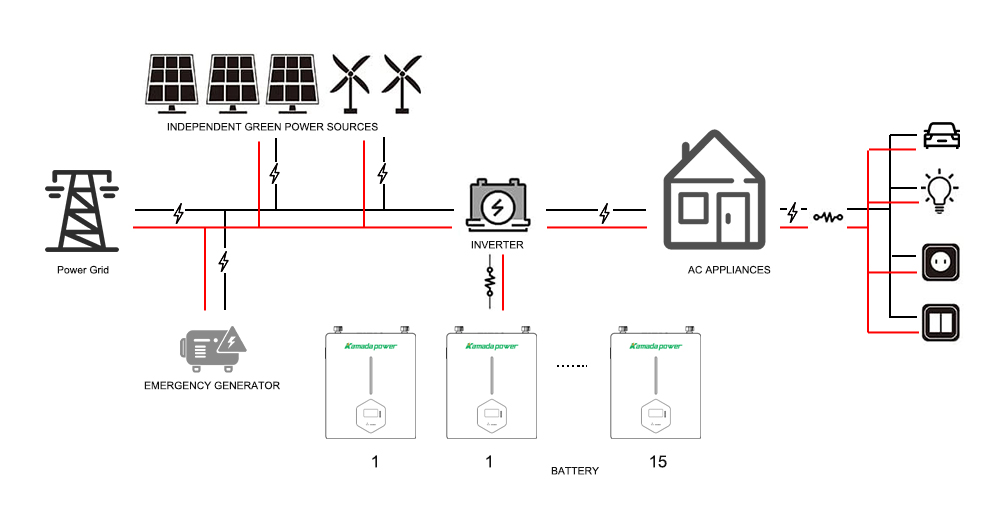

| Modules Connection | Max 15 Batteries In Parallel | |||
| Power Consumption | <2 W | |||

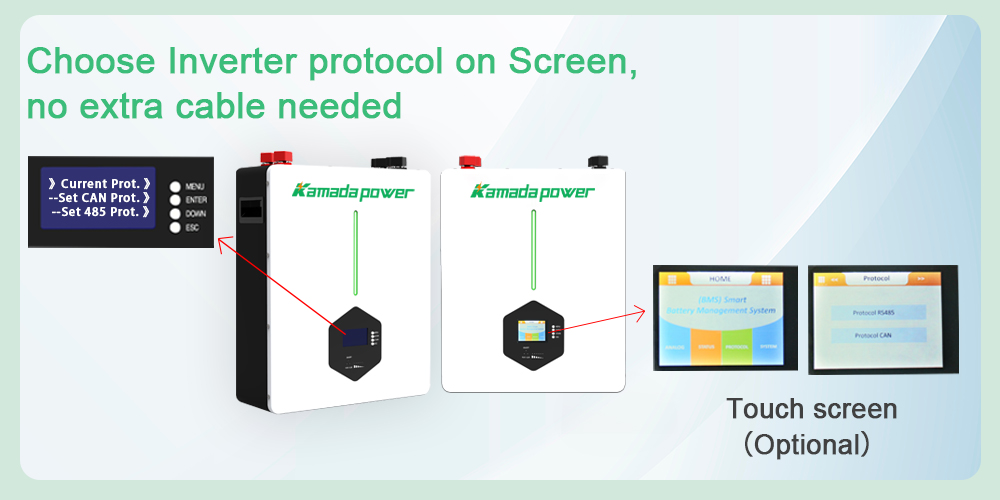

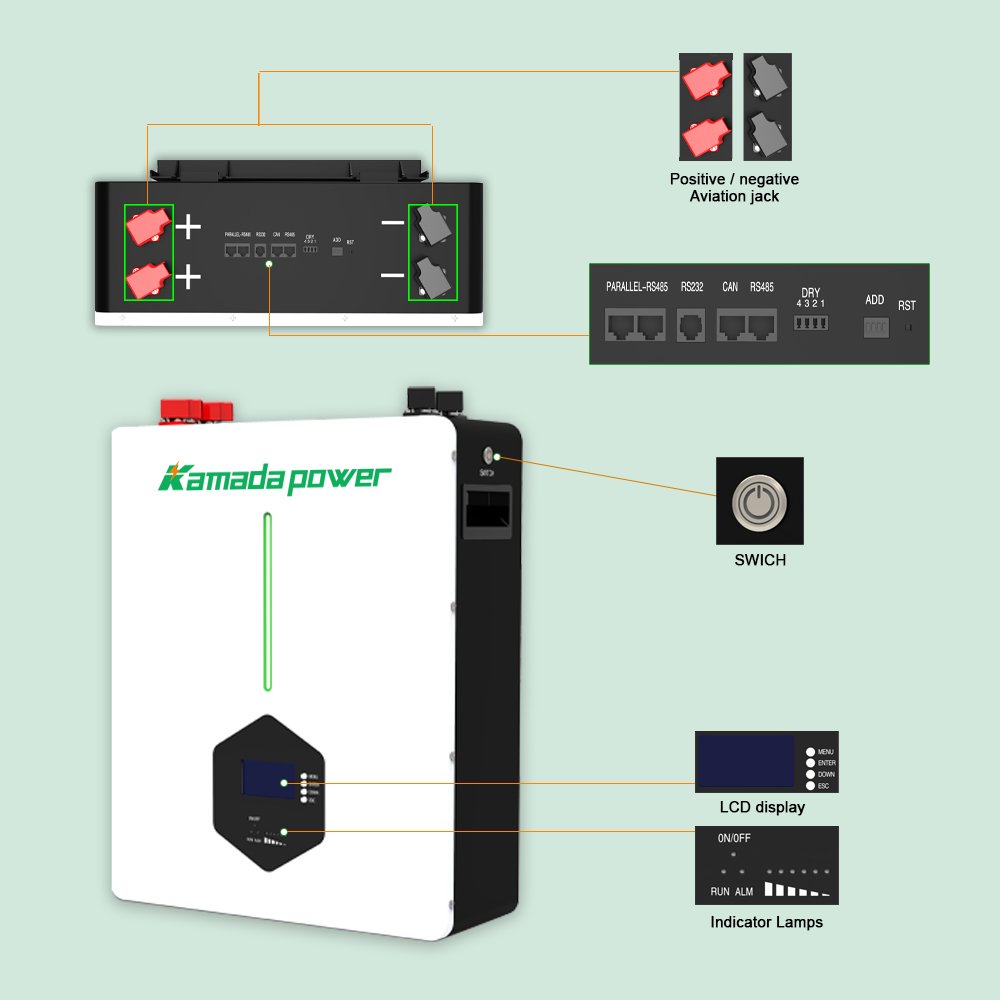

| Communication | RS485/RS232/CAN(Optional) | |||
| PHYSICAL | ||||

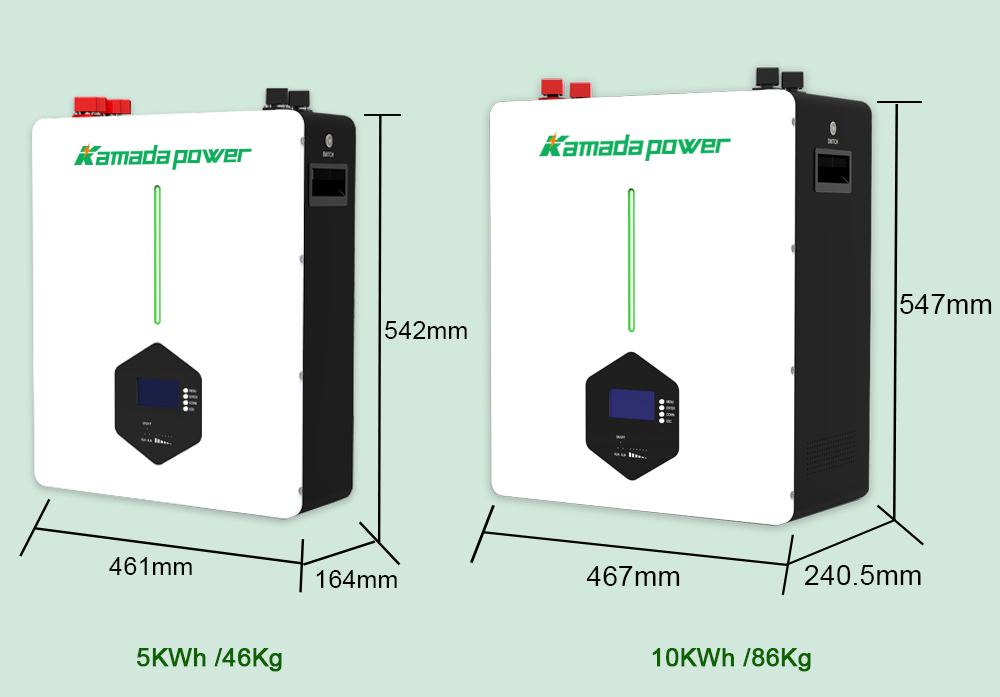

| Dimensions (LxWxH)(mm) | 542x461x164 | 547x467x240 | 768x468x247 | 846X570x278 |
| Dimensions(With Wheels) | 612x461x164 | 627x467x240 | 848x468x247 | 928X570x278 |
| Weight | 48KGS | 88KGS | 117KGS | 170KGS |
| Weight(With Wheels) | 49KGS | 89KGS | 119KGS | 172KGS |

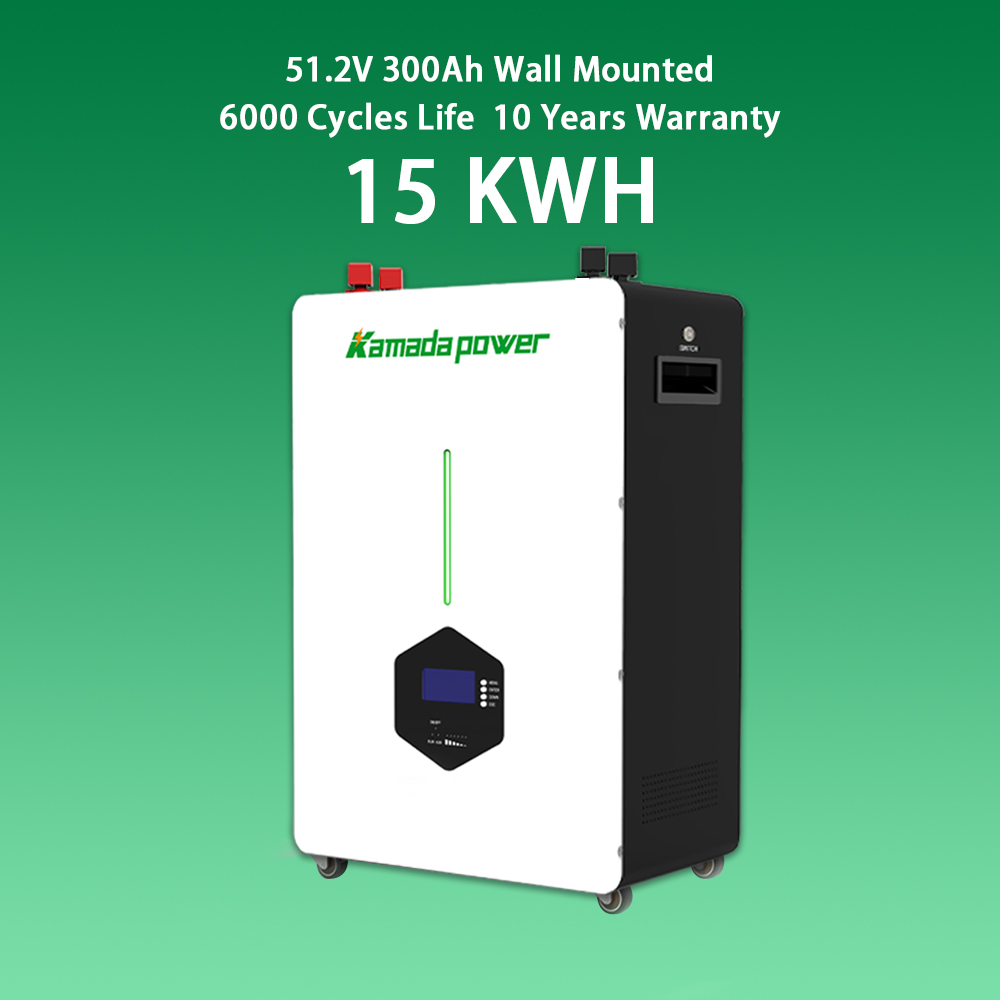

| Option | Wheels | |||
| Ingress Protection Rating | IP20 | |||
| Cycle life | Around 6000 Times | |||
| Warranty | 5 Years Product Warranty, 10 Years Design Life Warranty | |||
| CERTIFICATE | ||||
| Certificate | CE/UN38.3/MSDS | |||
