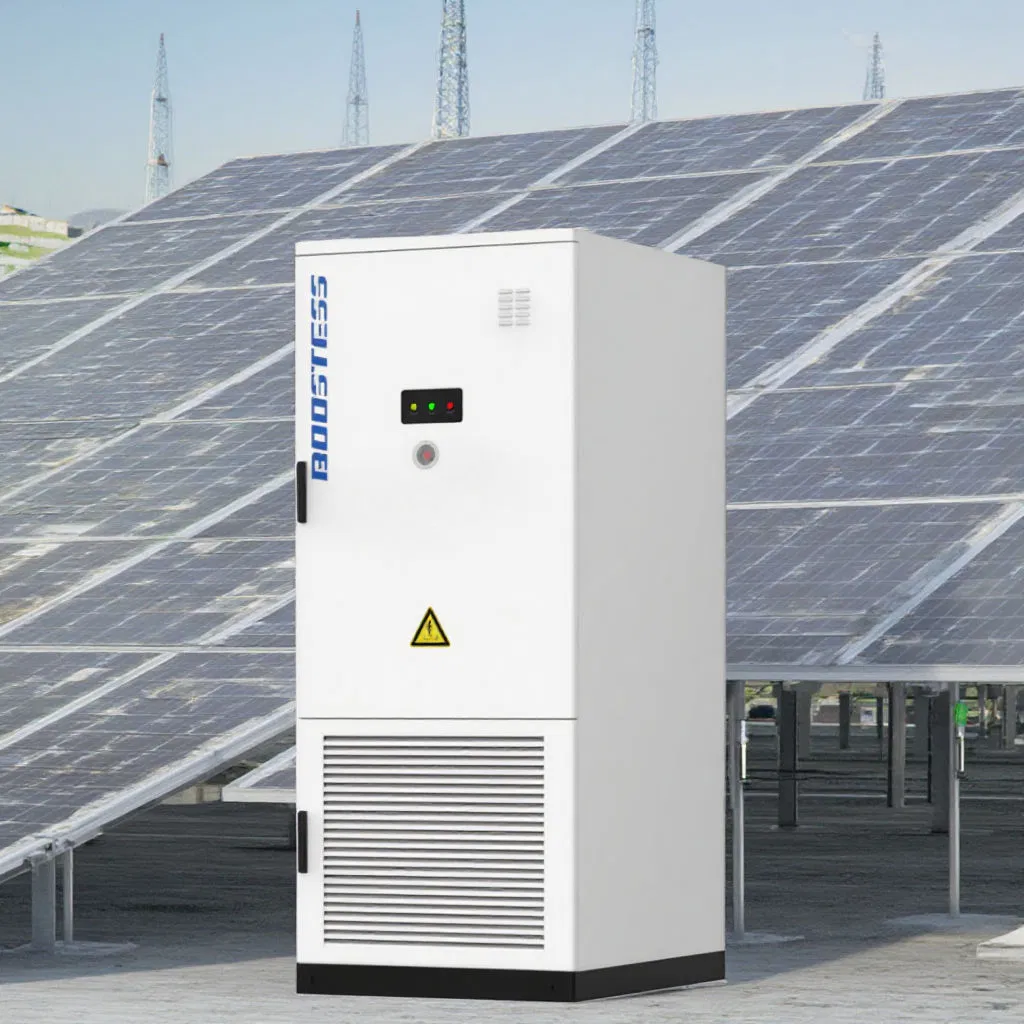

Top Selling 100kwh Air Cooling Ess Industrial & Commercial Energy Storage Factory Wholesale for Solar Power

Still deciding? Get samples of $ !
Order Sample

Product Description

Overview - Basic Info
Model NO. LDS0327
Technical Support Complete Professional Technical Guidance
Solar Panels System Ground Mount Solar System off Grid Home
Delivery Time 7 Days
Efficiency 99.8%
OEM Service Acceptable
Rated Capacity 314ah
Human-Computer Interaction Internet of Things + APP
Communication Interface Can/RS485
Protection Level IP55
Corrosion Resistance C4 (C5 Optional)
Fire Protection Aerosol
Working Temp. 25ºC ± 5ºC
Max Charging Temp. 0ºC - 55ºC
Number of Cycles > 6000 Times
Transport Package Wooden Box
Specification 1545*2045*1435
Origin China
HS Code 8501722000
Production Capacity 50000
Packaging & Delivery
Package Size 154.50cm * 204.50cm * 143.50cm
Package Gross Weight 2350.000kg
Product Description
Product Name Solar-storage integrated machine
Cell type LFP(LiFePO )
Rated capacity Rated energy 314Ah
Rated voltage 128kWh
Performance parameters 409.6VDC
Maximum charging voltage 467.2VDC
Discharge cut-off voltage System parameters 339.2VDC
Human-computer interaction Internet of Things + APP
Communication interface CAN/RS485
Protection level IP55
Corrosion resistance grade C4 (C5 optional)
Fire protection rating Aerosol
Working temperature 25ºC ± 5ºC
Maximum charging operating temperature range 0ºC - 55ºC
Maximum discharging operating temperature range -20ºC - 60ºC
Number of cycles > 6000 times
Overall dimensions (width x height x depth) 1035*2045*1386mm
Weight 1736kg

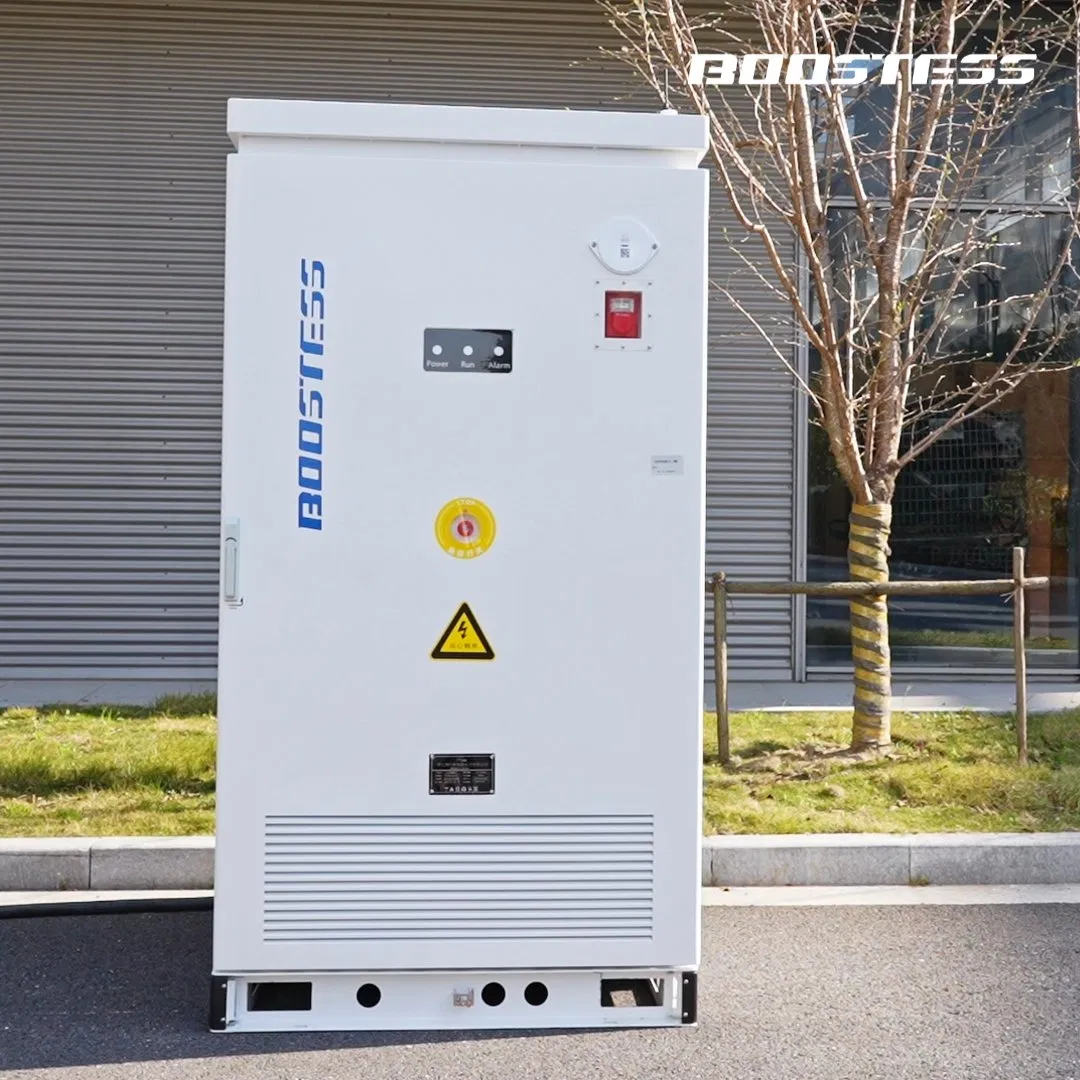

Top Selling 100kwh Air Cooling Ess Industrial & Commercial Energy Storage Factory Wholesale for Solar Power
Detailed Photos

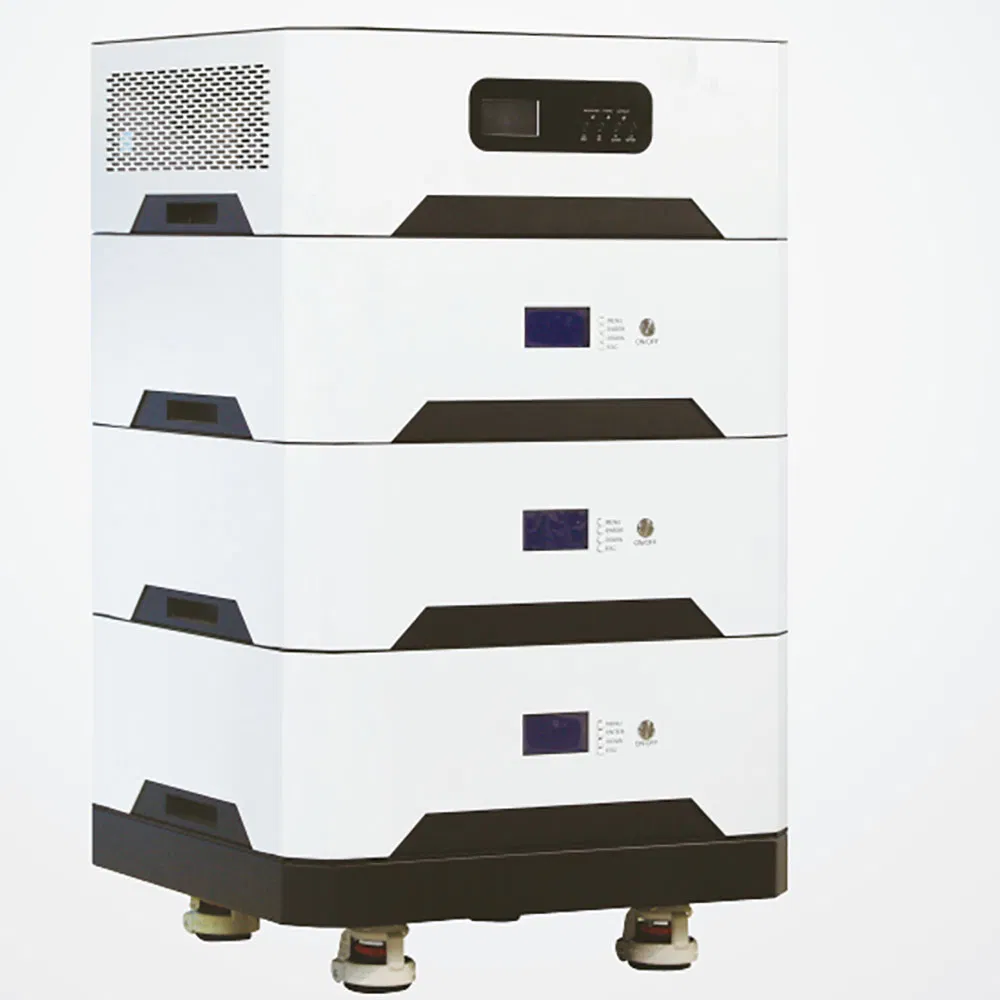

Detailed View 1 Detailed View 2 Detailed View 3 Detailed View 4
Installation Instructions

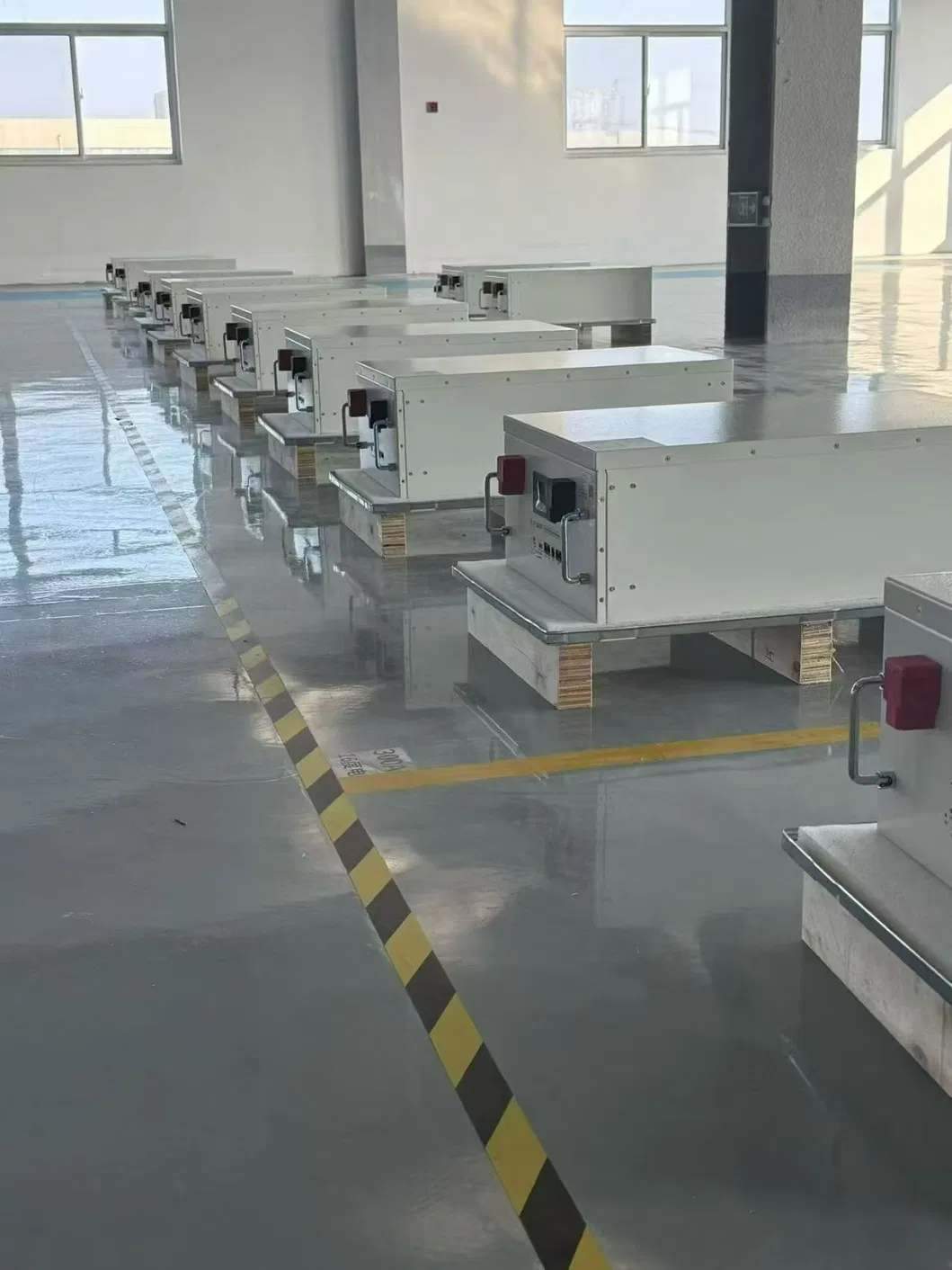

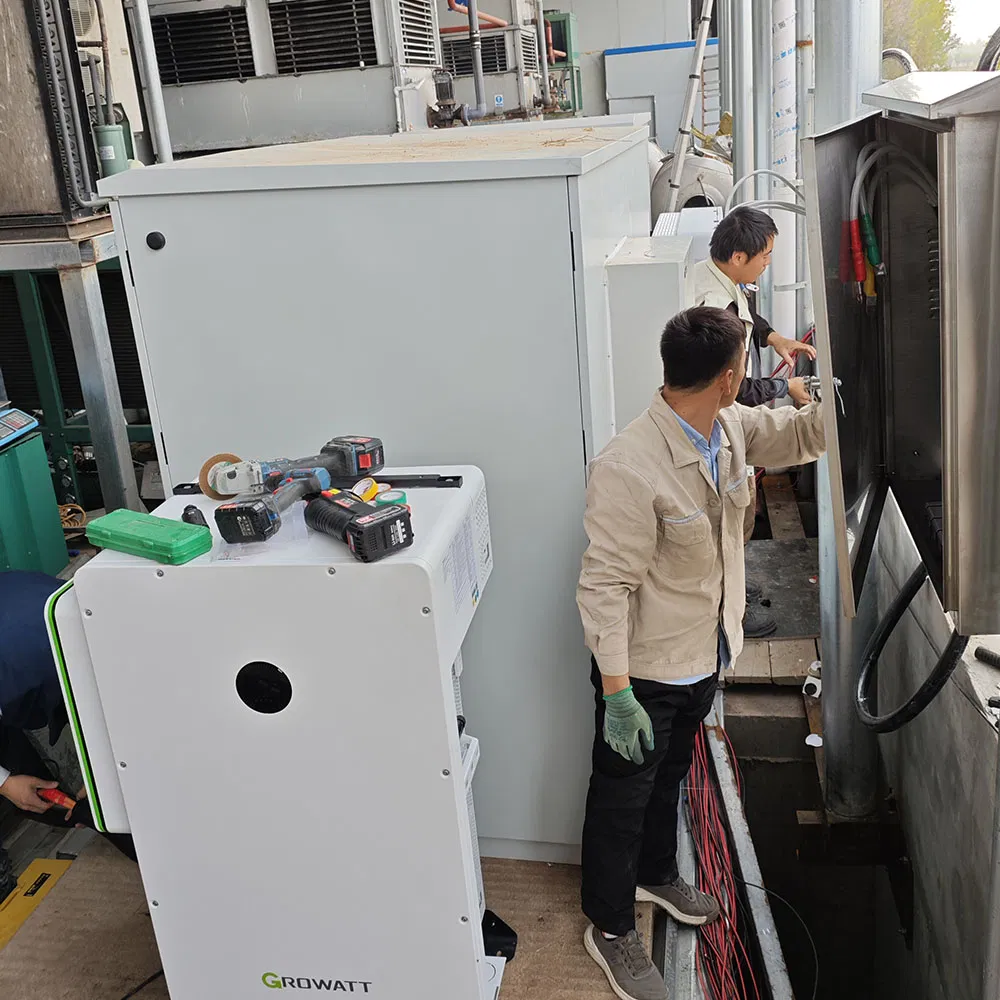

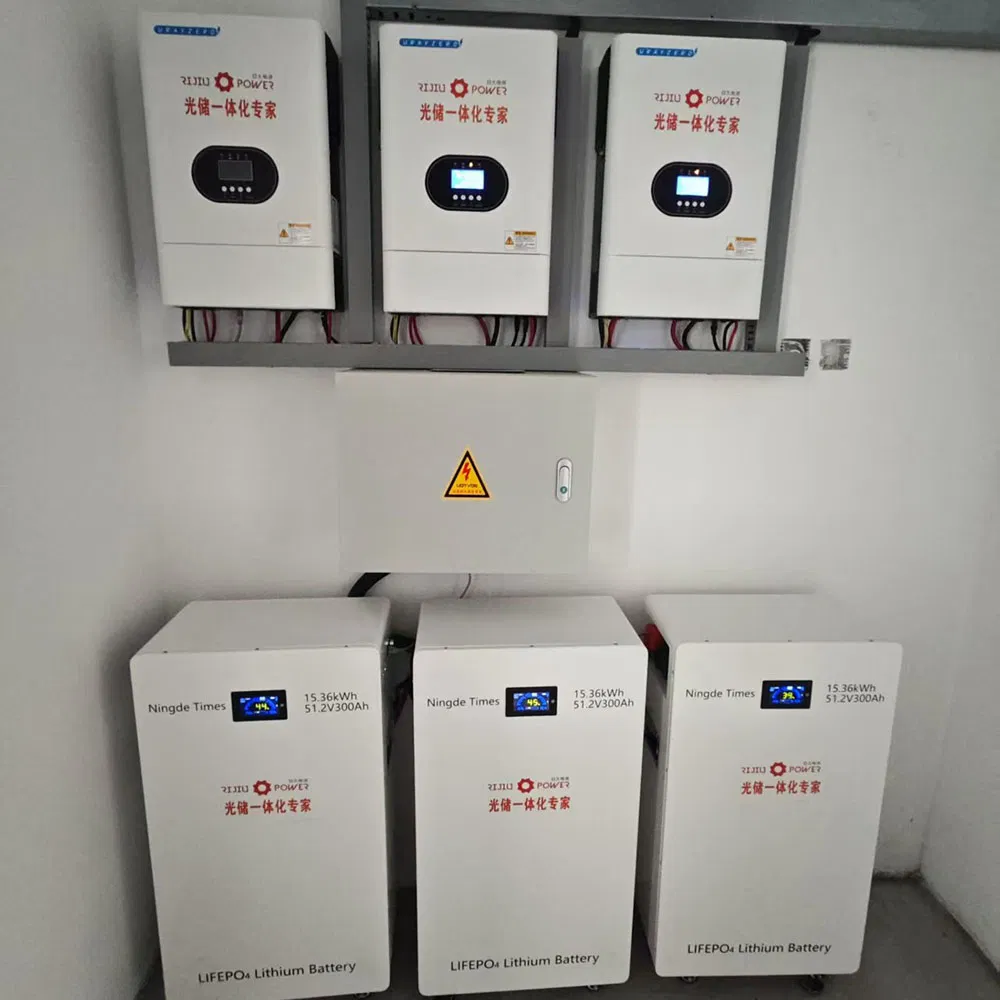

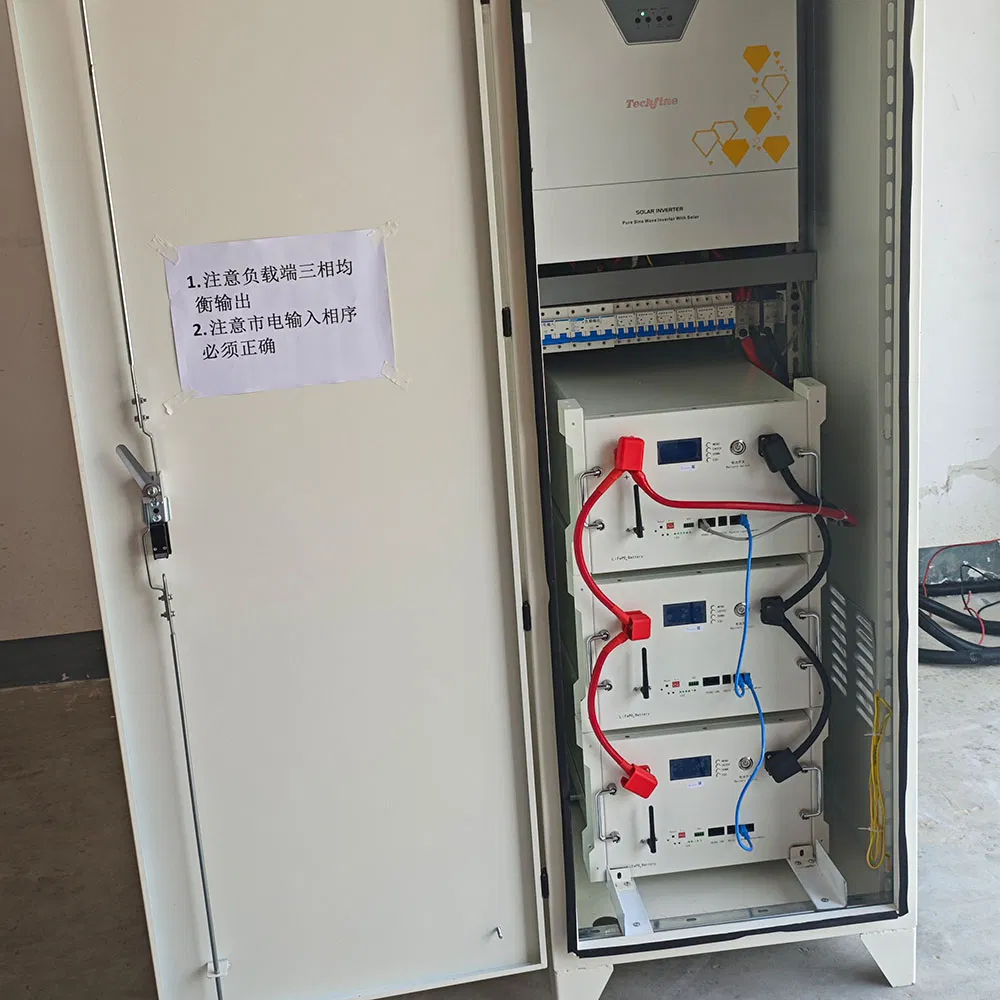

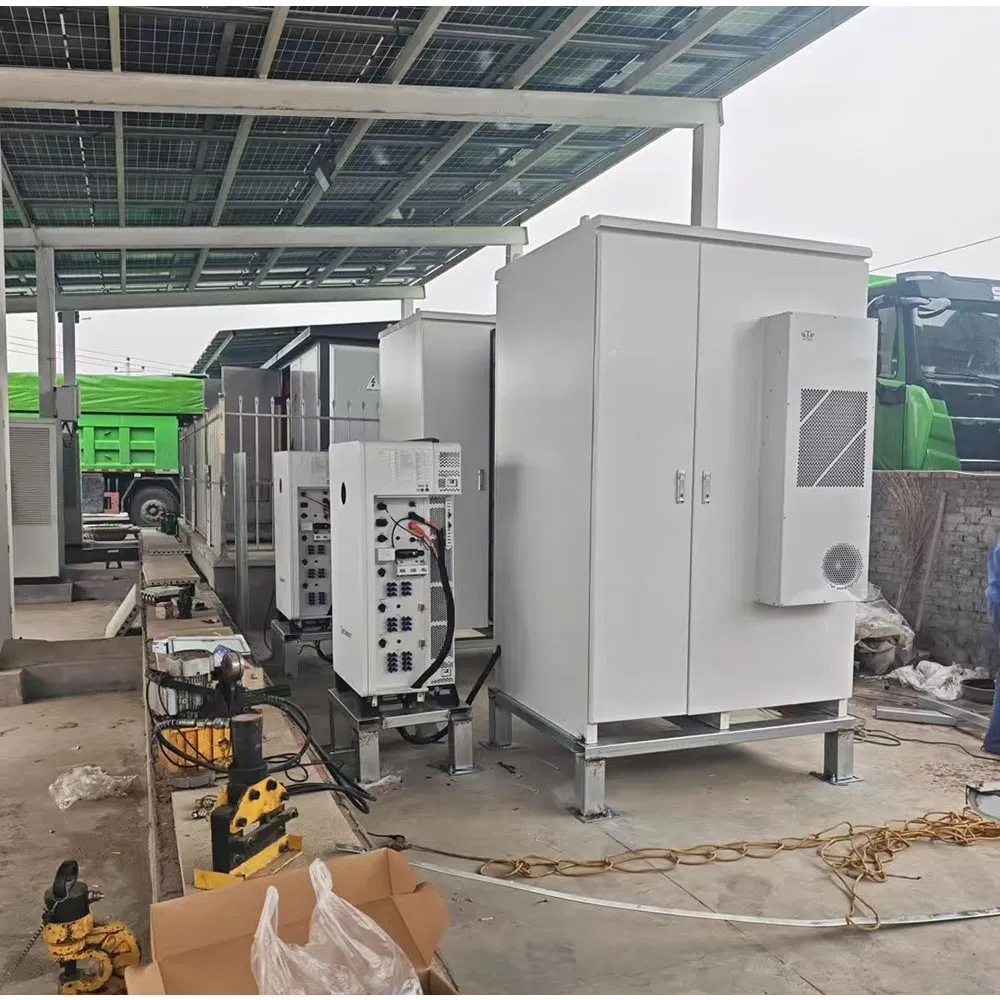

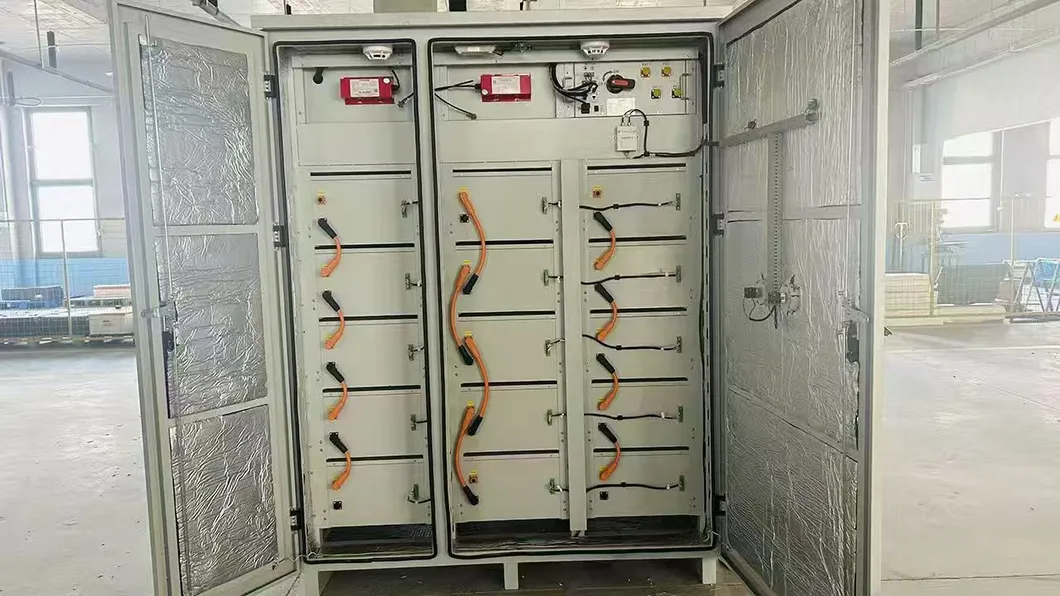

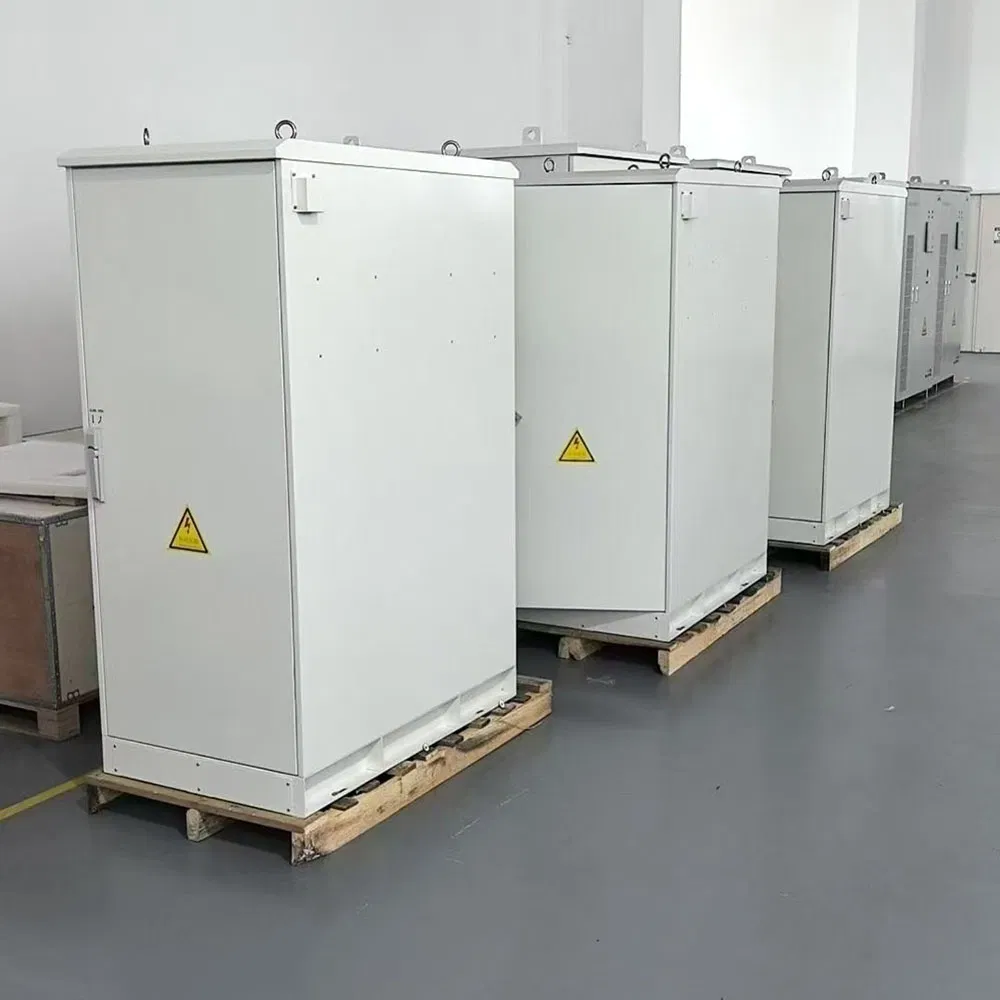

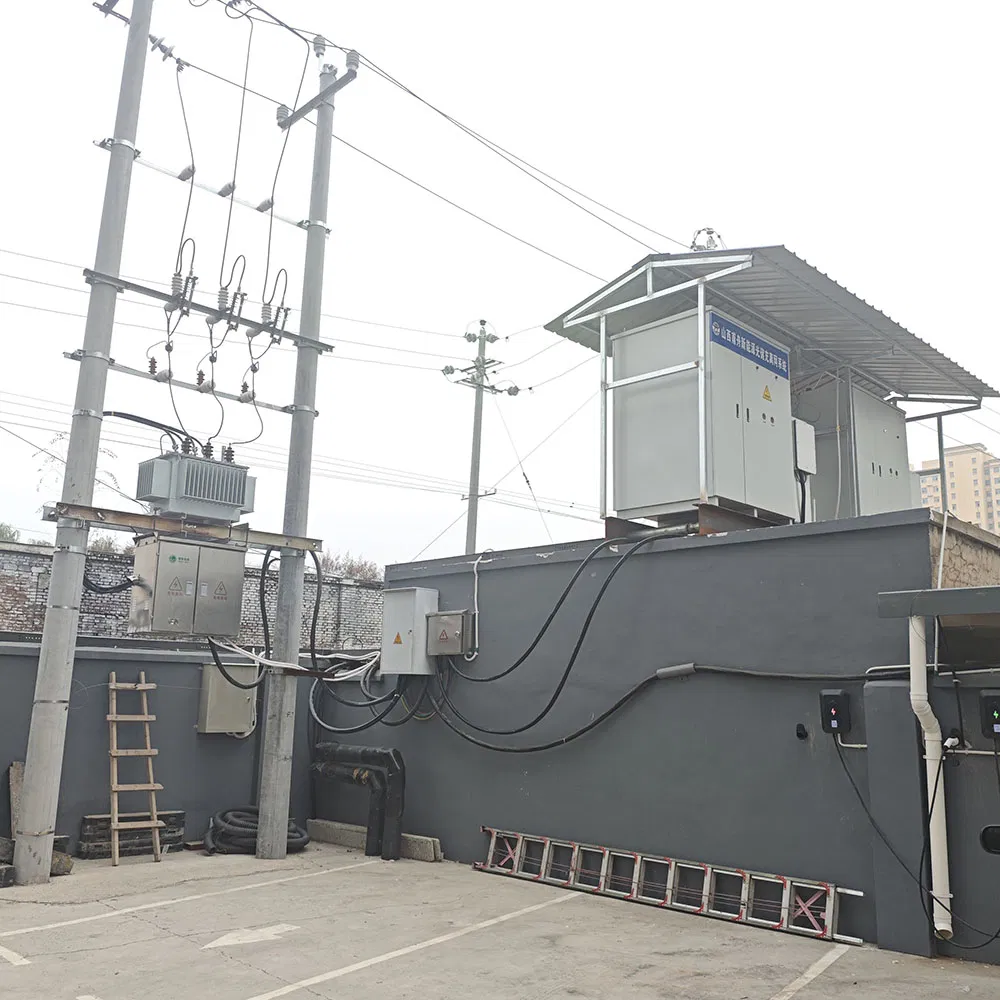

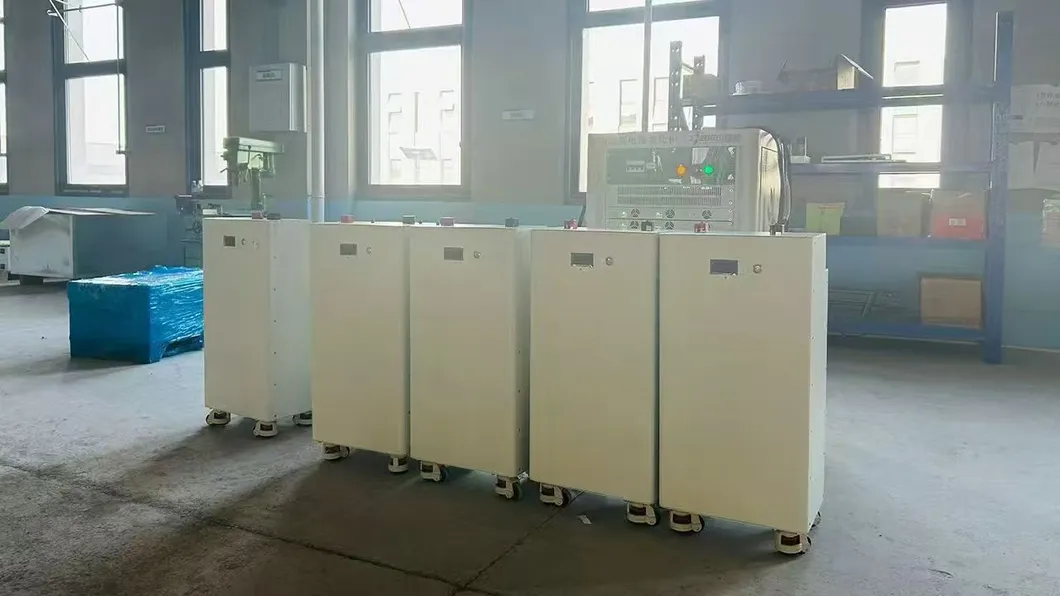

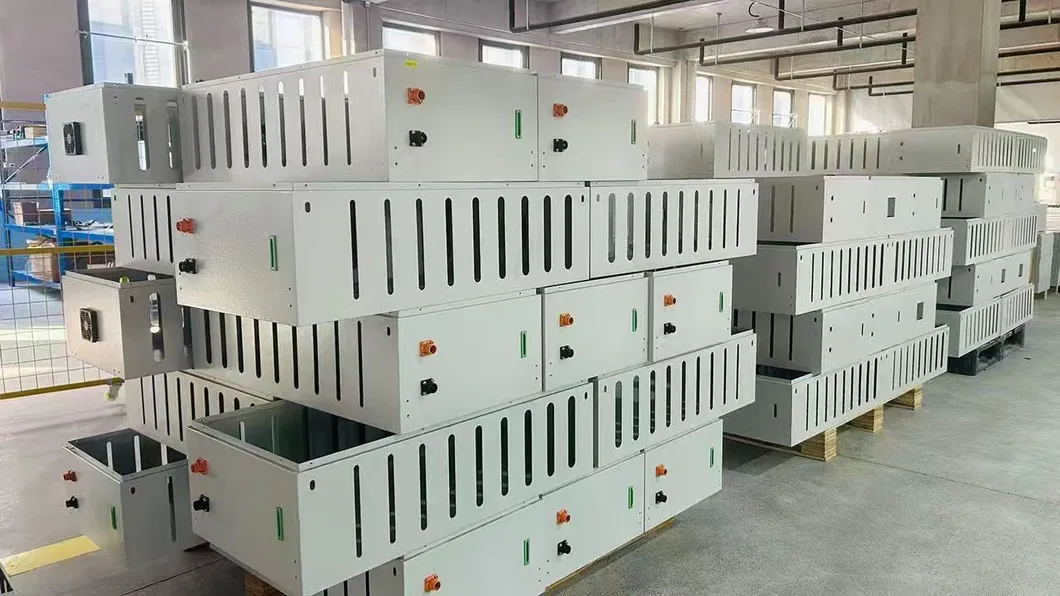

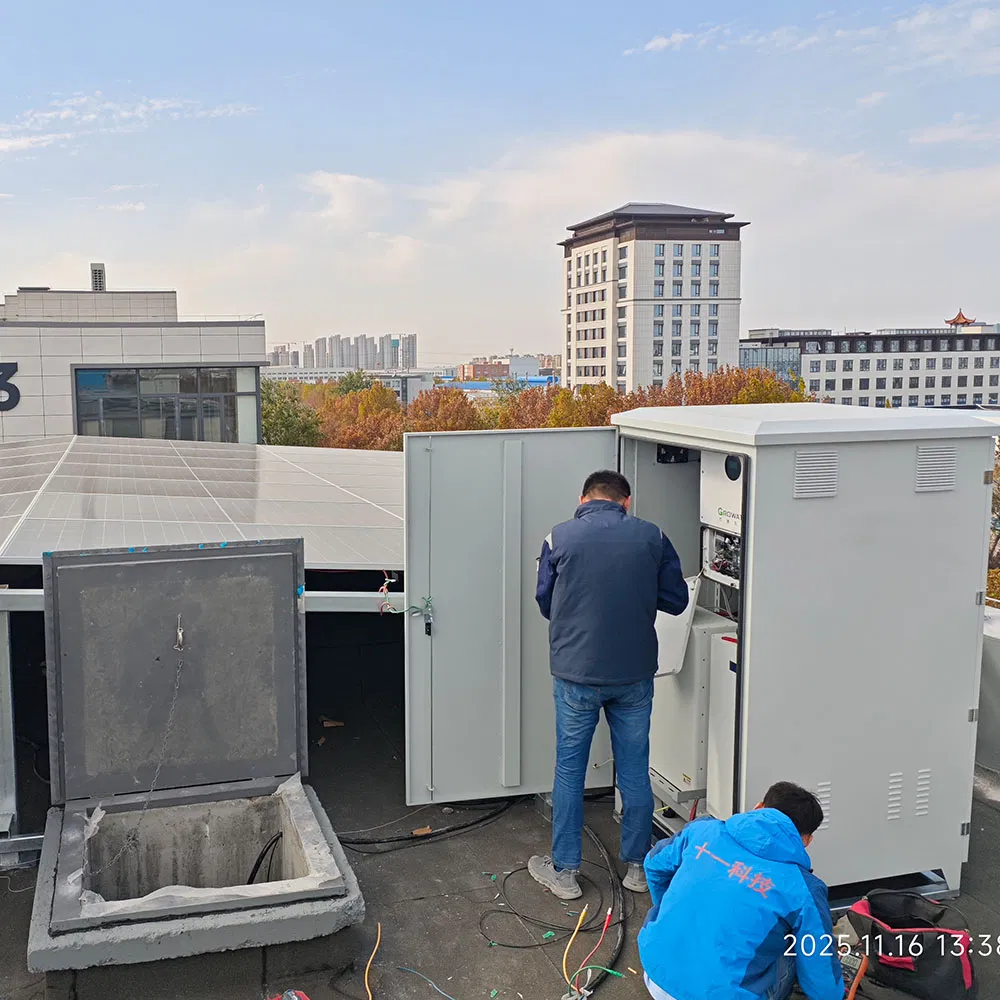

Installation Step 1 Installation Step 2 Installation Step 3 Installation Step 4 Installation Step 5 Installation Step 6 Installation Step 7 Installation Step 8 Installation Step 9 Installation Step 10 Installation Step 11 Installation Step 12
Packaging & Shipping
Packaging and Logistics Layout
Company Profile

We stand as a professional and innovative manufacturer dedicated to providing comprehensive lithium battery solutions. We specialize in OEM and ODM services, transforming our clients' concepts into reliable, high-performance power products. Our core mission is to empower businesses and households with safe, efficient, and customizable energy storage systems, built on a foundation of technical expertise and a steadfast commitment to quality.

Our capabilities span the entire value chain of energy storage. We begin at the fundamental level, supplying a diverse range of high-quality battery cells, including cylindrical, lithium polymer (Li-Po), and LiFePO4. We then expertly integrate these cells into custom battery packs and modules, tailored to specific voltage, capacity, form factor, and application requirements. Furthermore, we design and manufacture complete, intelligent Home Energy Storage Systems (ESS) that seamlessly integrate with solar power to offer households energy independence, backup security, and significant cost savings.

Quality and reliability are embedded in every stage of our process, from rigorous raw material screening and automated precision manufacturing to exhaustive testing protocols. We ensure every product meets international safety and performance standards. Our partnership extends beyond delivery; we offer robust technical support, flexible warranty policies, and dedicated after-sales service to guarantee total customer satisfaction and long-term system performance, making us a trusted and collaborative partner for your energy needs.

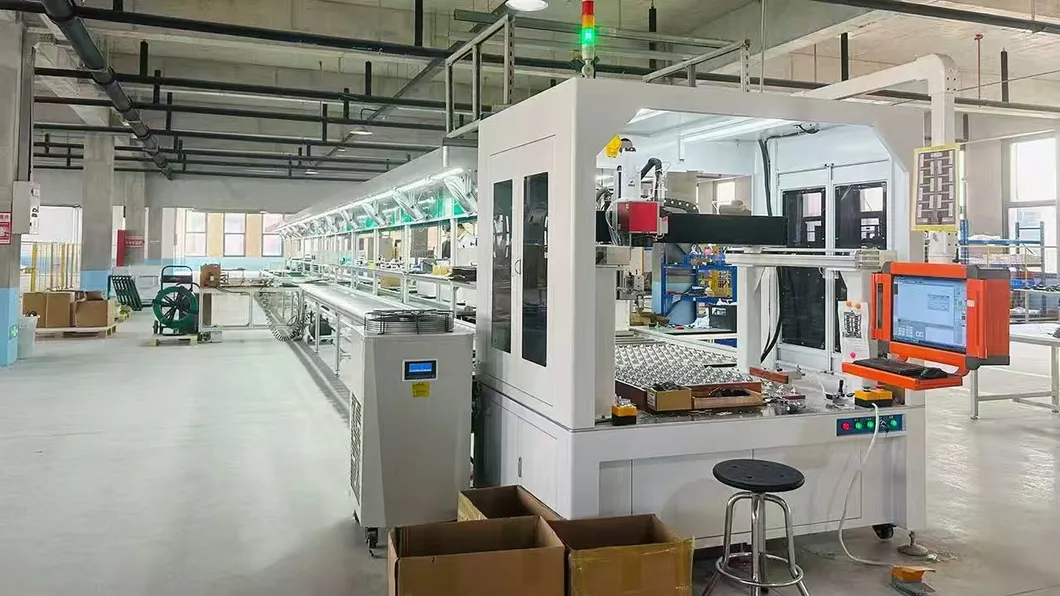

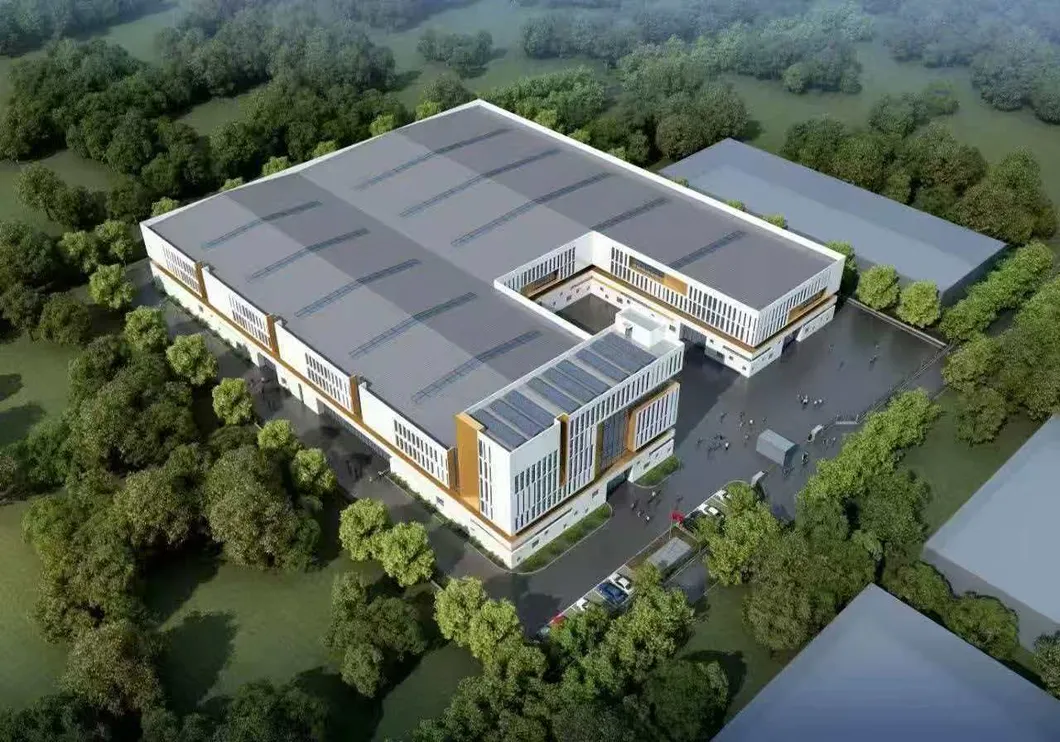

Manufacturing workshop setup
FAQ
Q: How does DC coupling optimize the use of renewable energy in a large-scale system?
A: It allows for more captured solar energy to be stored directly, with minimal losses. This optimization ensures that a greater portion of the generated solar power is used either on-site or dispatched to the grid, enhancing the sustainability of the large scale solar battery storage project.
Q: What role does the Power Conversion System (PCS) play?
A: The PCS is the core component. It functions as a high-power, bidirectional inverter that converts DC from the solar and batteries to AC for use. It replaces the need for separate solar and battery inverters, streamlining the large scale solar battery storage infrastructure.
Q: What are the primary advantages of a DC-coupled system for on/off-grid large-scale projects?
A: Key advantages include higher overall system efficiency, a simplified system layout with fewer components, reduced balance of system (BOS) costs, and seamless integration for both on-grid and off-grid large scale solar battery storage systems.
Q: Why is DC coupling considered more efficient for large scale solar battery storage systems?
A: DC coupling is more efficient because it avoids multiple DC-AC-DC conversion steps. Solar energy can directly charge the batteries in DC form, reducing energy losses. This higher efficiency is crucial for maximizing ROI in large scale solar battery storage applications.
Q: What is DC coupling in the context of large scale solar battery storage?
A: DC coupling is a system architecture where solar panels and batteries are connected on the same Direct Current (DC) bus before being converted to Alternating Current (AC) by a single, centralized inverter. This is a highly efficient solution for large scale solar battery storage projects.
