📋 Basic Specifications
Model NO.

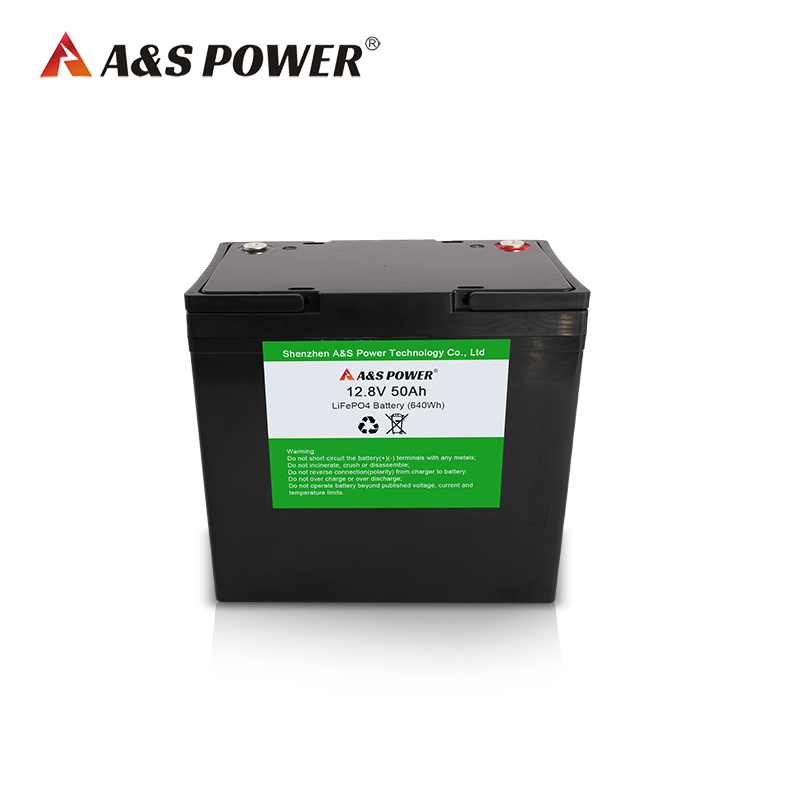

12v 50Ah lithium battery
Application
Solar Energy Storage / Power Tools
Certificate
MSDS / ISO9001
Specification
229*138*212*217mm

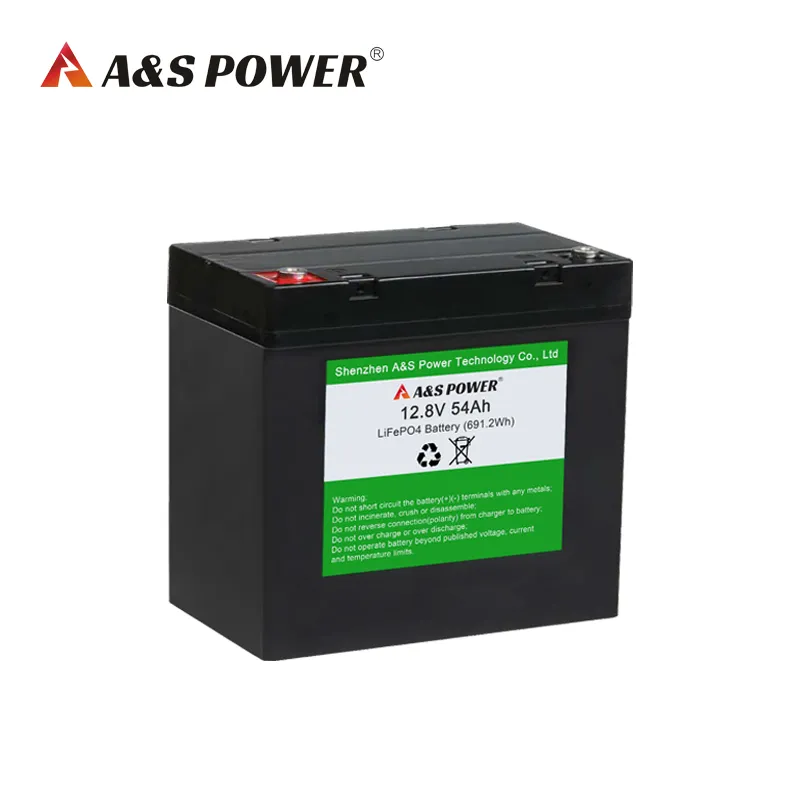

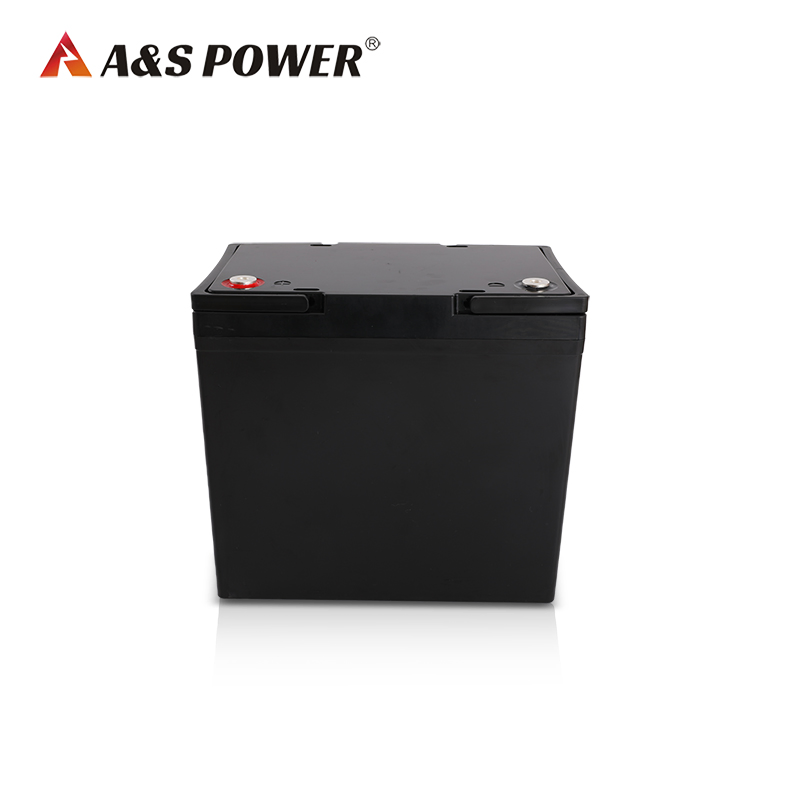

Rechargeable LiFePO4 12V 54Ah Lithium Iron Phosphate Battery Pack
📊 Technical Parameters
| Electrical Characteristics |
Value |
| Voltage / Capacity | Nominal Voltage / Capacity | 12.8V / 54Ah @ 0.2C |
| Energy | Total Energy | 691.2Wh |
| Resistance | Internal resistance | ≤50mΩ |
| Life Cycle | Cycle Life | >2000 cycles @ 100% DOD |
| Charge | Charge Voltage | 14.6±0.2V |
| Charge Mode | CC/CV | 0.2C5A to 14.6V |
| Max Current | Continuous / Pulse | 54A / 120A (<3S) |
| Environmental | Discharge Temp | -20ºC to 60ºC |
| Mechanical | Cell Method | IFR32700 N60, 4S9P |
| Protection | Water Dust Resistance | IP55 |
🖼️ Product Display
⚡ Key Features
High Safety: Uses lithium iron phosphate cell technology for superior safety.
Long Life: Thousands of cycles at 100% DOD under normal conditions.
Auto Protection: Built-in protection for over-charge, over-discharge, and temperature.
Maintenance Free: No active maintenance required with internal cell balancing.
Lightweight: Approx. 40%-50% the weight of comparable lead-acid batteries.
Wide Temp Range: Reliable performance from -20ºC to 60ºC.
🛡️ Quality & Service Promise
One-Year Warranty: We provide a comprehensive one-year warranty for batteries. Any quality problems not caused by improper use will be replaced one by one.
Low Risk Promise: Professional inspection before shipment and one-on-one service support.
Sample Policy: Sample availability for quality checking before mass production orders.
❓ Frequently Asked Questions
1. What is the typical lifespan of this LiFePO4 battery?
The battery offers over 2,000 cycles at 100% Depth of Discharge (DOD) under standard conditions, significantly outlasting traditional lead-acid batteries.
2. How does the weight compare to lead-acid batteries?
This lithium battery is much lighter, weighing approximately 40% to 50% of a comparable lead-acid battery, making it easier to transport and install.
3. Is the battery protected against environmental factors?
Yes, the battery pack has an IP55 water and dust resistance rating and can operate in temperatures ranging from -20ºC to 60ºC.
4. What safety features are built into the battery?
It includes automatic protection against over-charging, over-discharging, over-current, and over-temperature, along with internal cell balancing.
5. Can I use a standard lead-acid charger for this battery?
This battery can be charged using most standard lead-acid chargers when set correctly to compatible voltage levels.
6. What are the primary applications for this model?
It is ideal for solar energy storage, solar warning lights, power tools, and other deep-cycle energy requirements.
