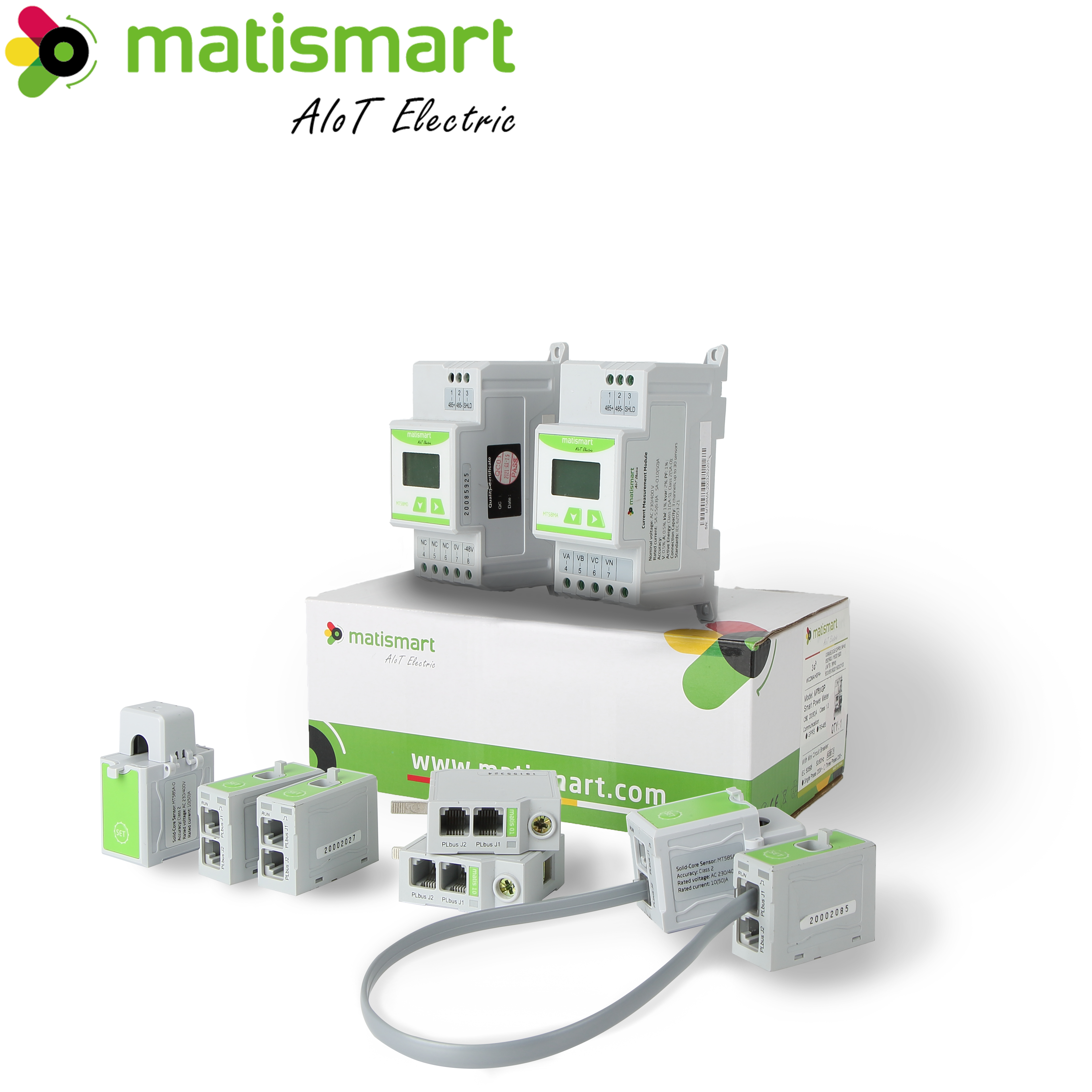

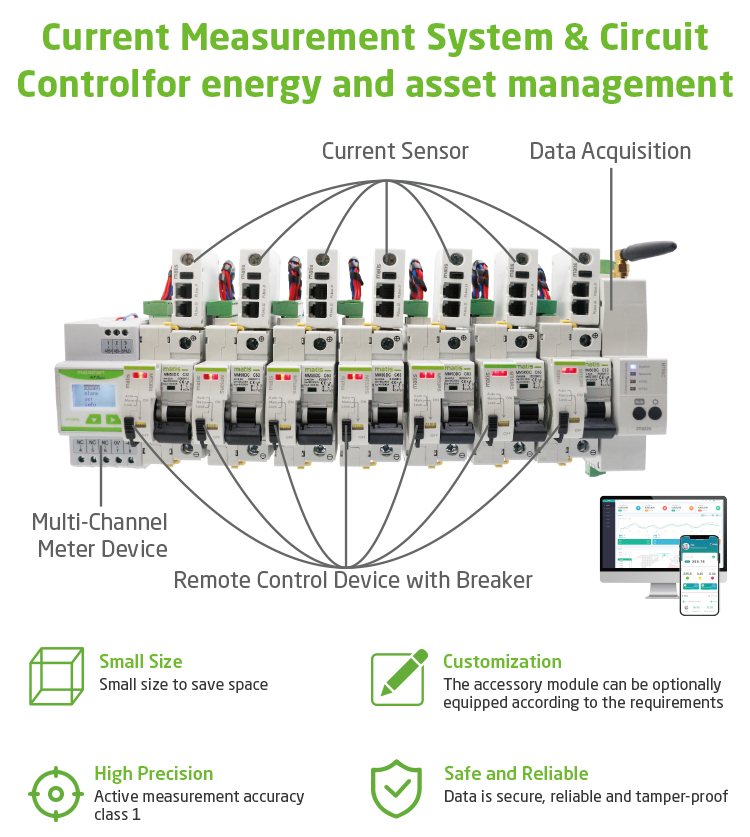

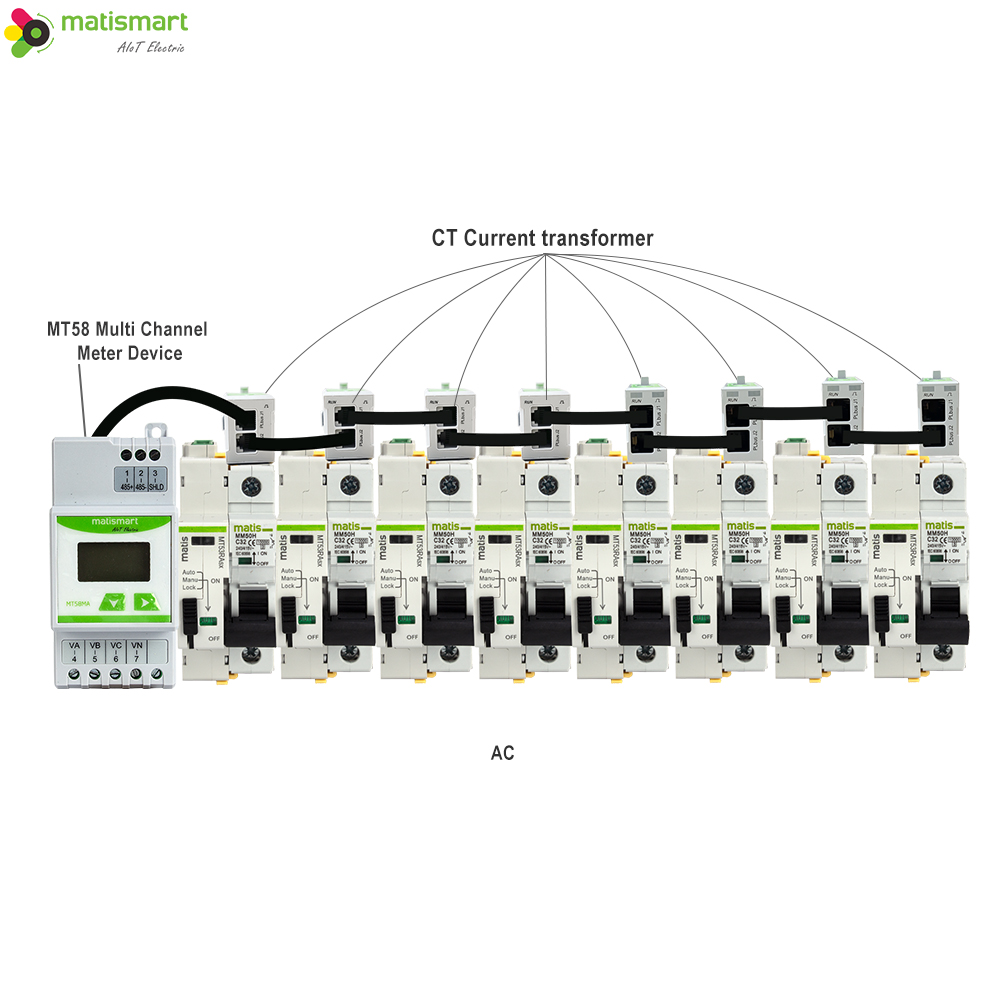

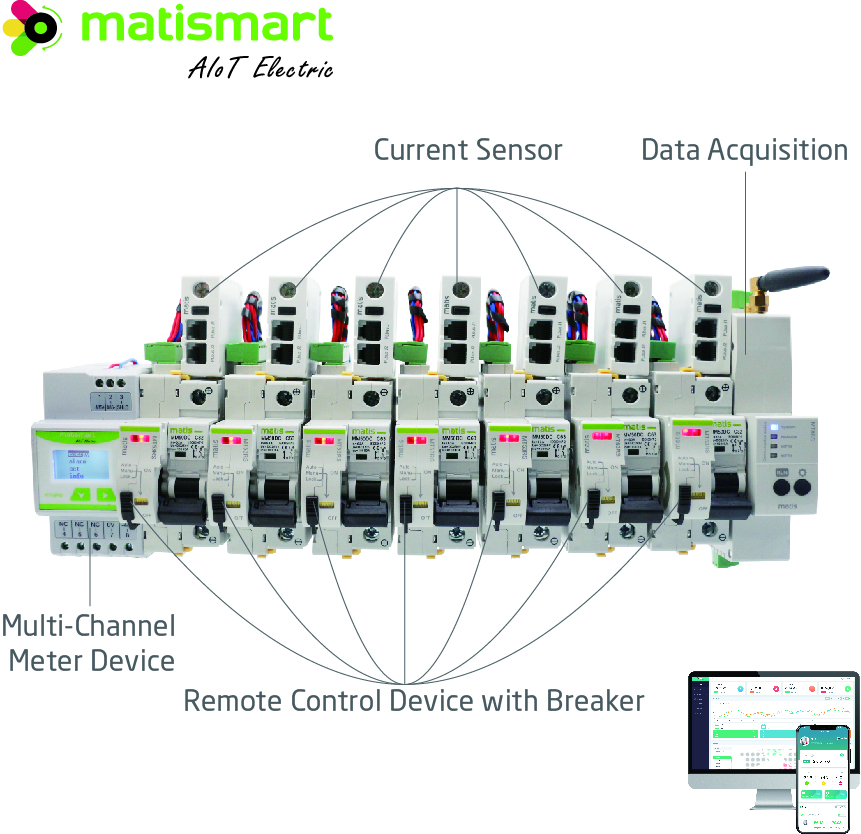

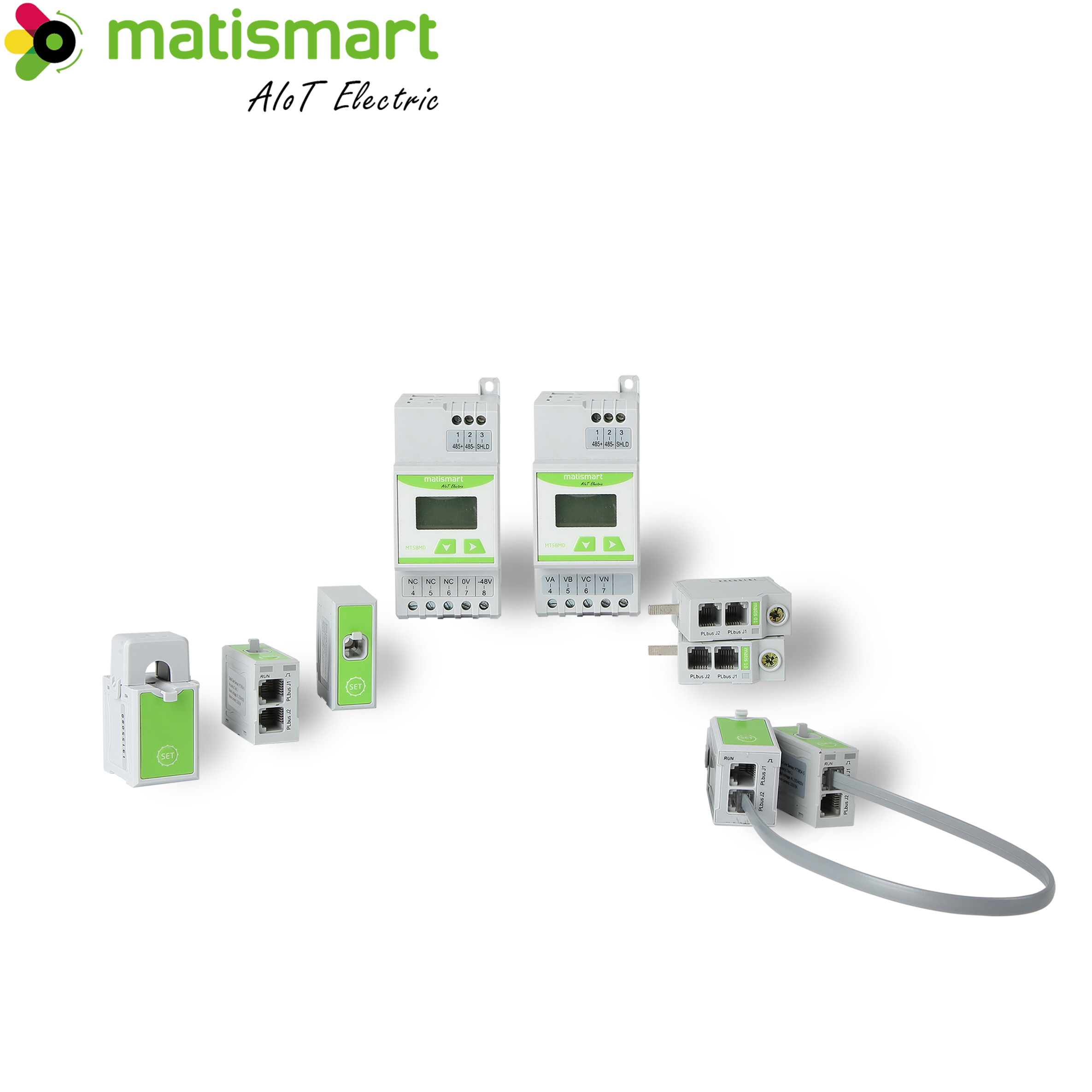

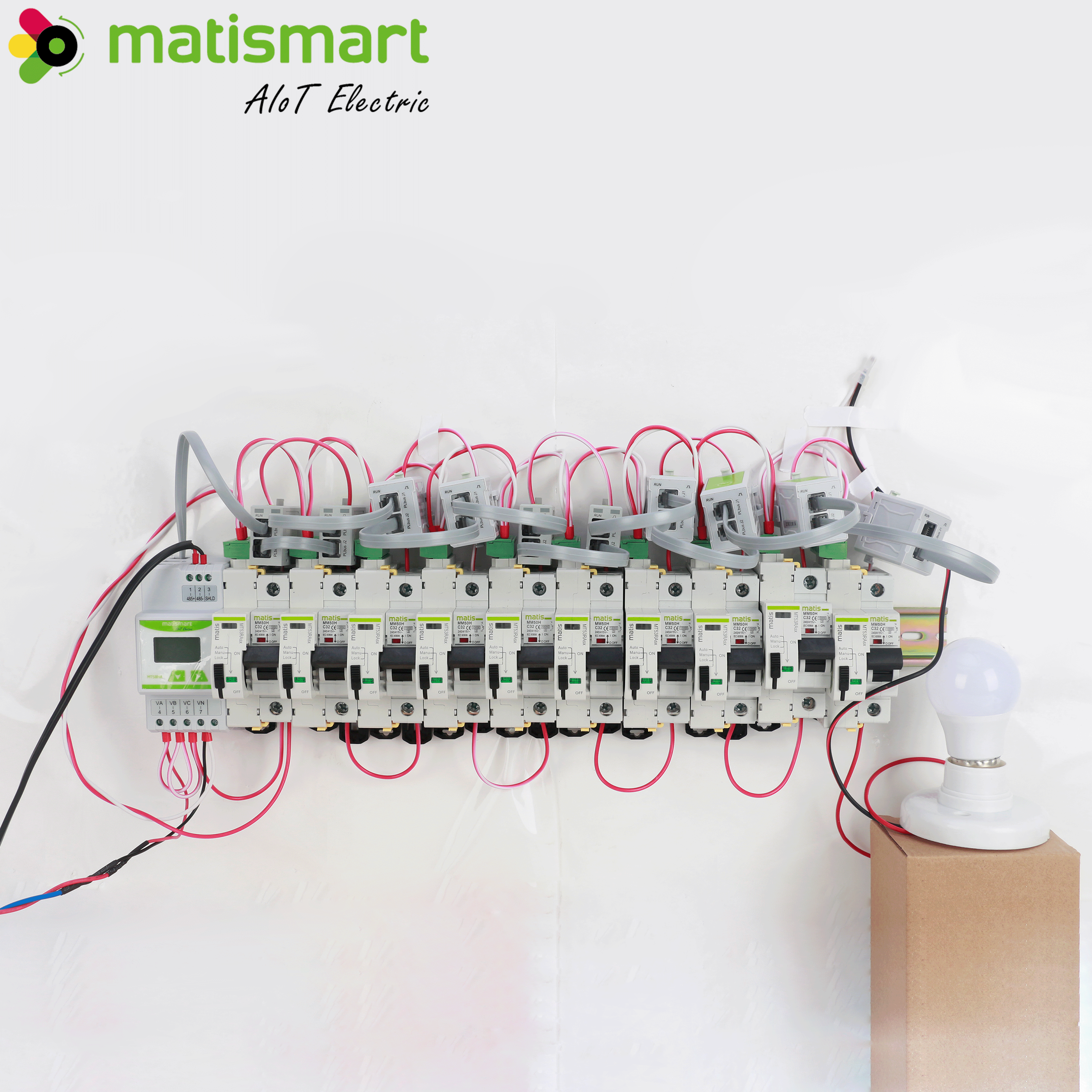

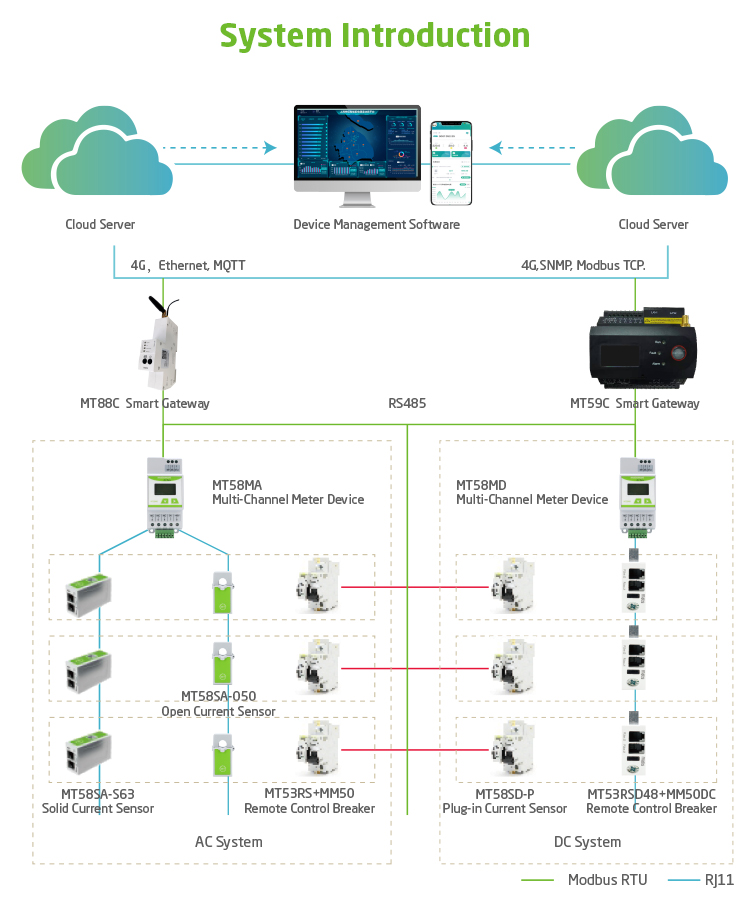

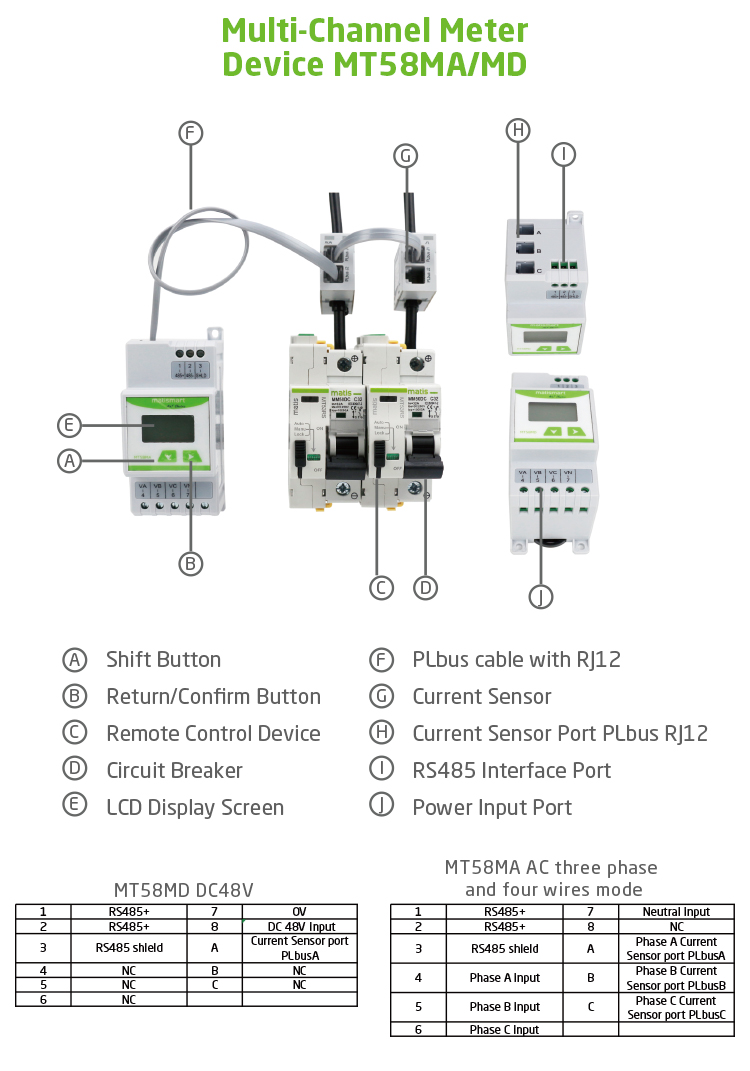

This Circuit Control and monitoring system is a ultra-compact multi-channel control and measurement system for AC and Dcbranch control and monitoring of low voltage electrical installations, which can control and monitor each load and bring acomplete overview of the system performaces.Each system consists of Remote Controller, Breaker, Multi-Channel Meter Device, Communication module and Software platform.The design of system guarantees reliability, a wide measurement range (up to 125A) and compatibility with many brands of breakers and maximum scalability in any application, from smart building to Telecom.
The circuit control and monitoring system shall enable to switch on/off, lock/unlock each load remotely and measure the voltage, current, active, reactive and apparent power, power factor for each load and calculate energy and power for branches. The remote control function and measured data must be operated and visualized remotely in Matis Software platform through a communication module with different protocols. The hardware offer the common interface RS485 to connect other communication module and software platform.
Advantages
-
1. Measurement and Meter of each load

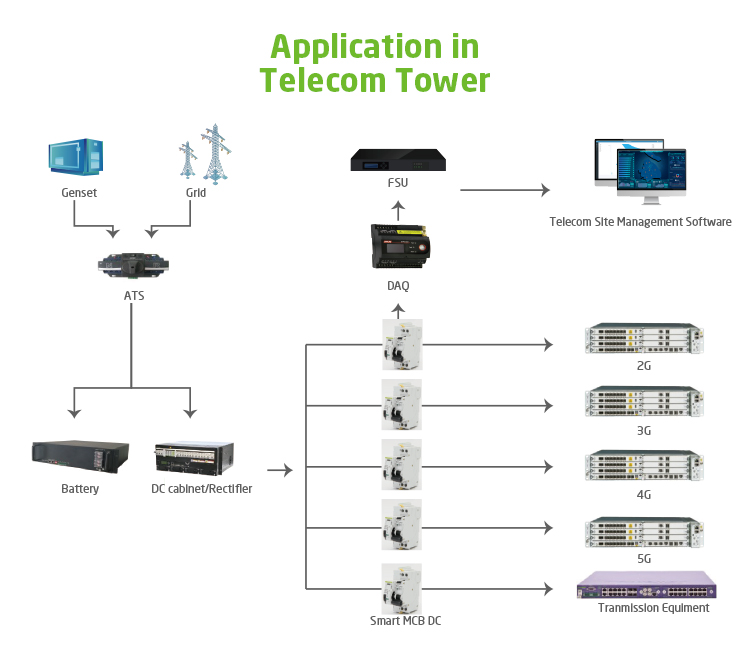

Measure voltage, current, power, energy, and you check the energy of different customer each device 2G, 3G, 4G, 5G, different tower site or areas.
-
2. Remote Control
Control on/off radio equipment (2G/3G/4G/5G) by schedule time, Voltage at the idle time (for example: Turn off equipment from 24h to 6h).
-
3. Differentiated Power Backup
When power is out stage, turn off some radio service (for example: 3G) to remain battery backup time for other service according to voltage, energy consumption, time period: Precise voltage cutting off for each load (no need LLVD1, LLVD2), Energy Consumption cutting off for each load, Time Period cutting off.
-
4. Generator Management
For the site overload genset: when genset is running, turn off some radio service to avoid overload for genset.
-
5. Remote lock/unlock
It is useful for shared tower, the tower service can be used only with permission, if the customer don't or delay to pay bill, it can be remotely locked.

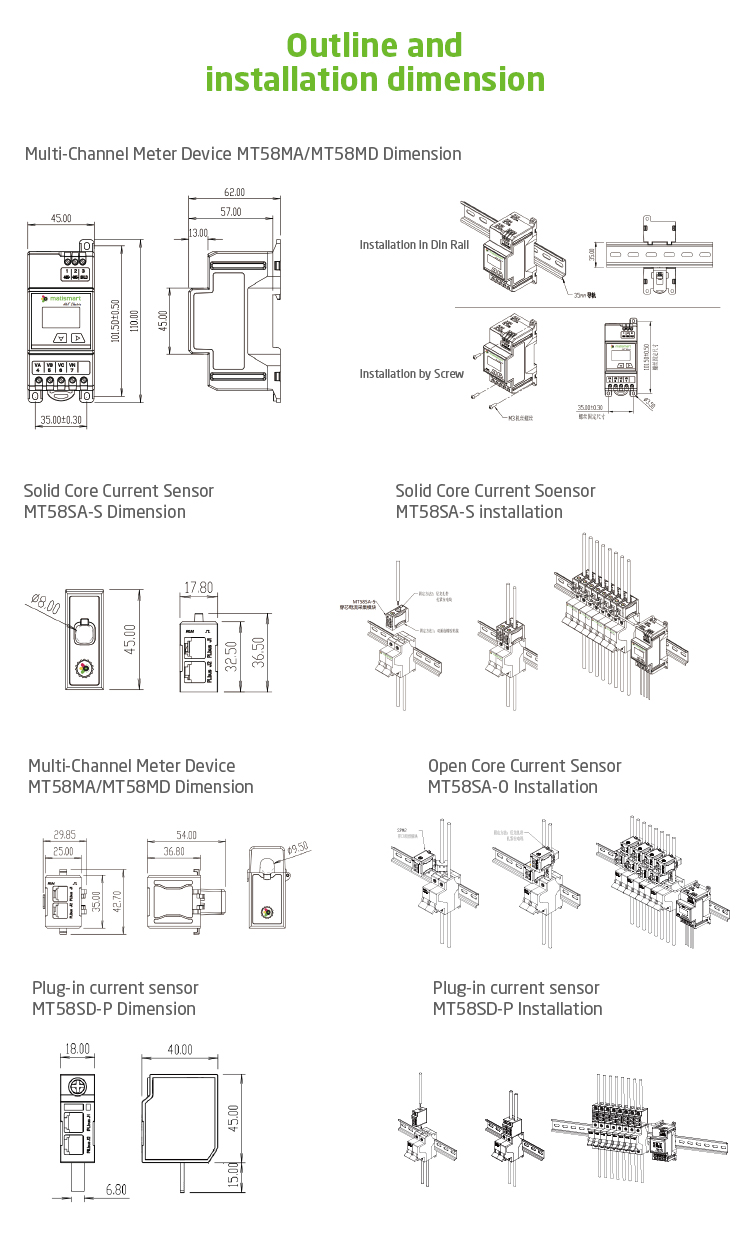

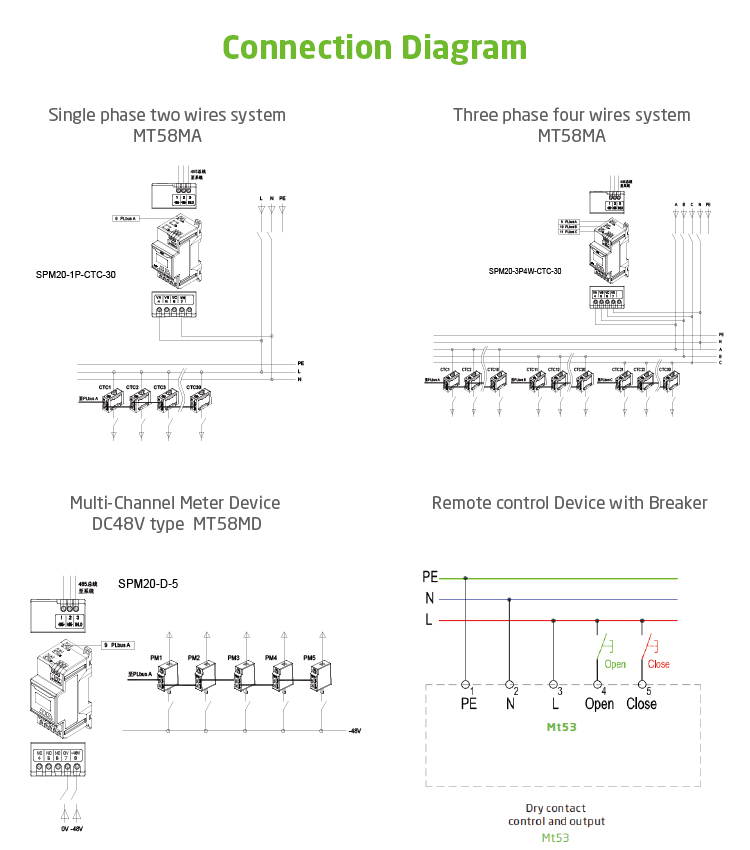

Specifications
| Electrical Parameter |
Standards |
IEC 61010-1 |
IEC 61010-1 |
| Rated voltage |
3X220V/380V Single phase two wires / three phase four wires |
DC 48V |
| Rated input current |

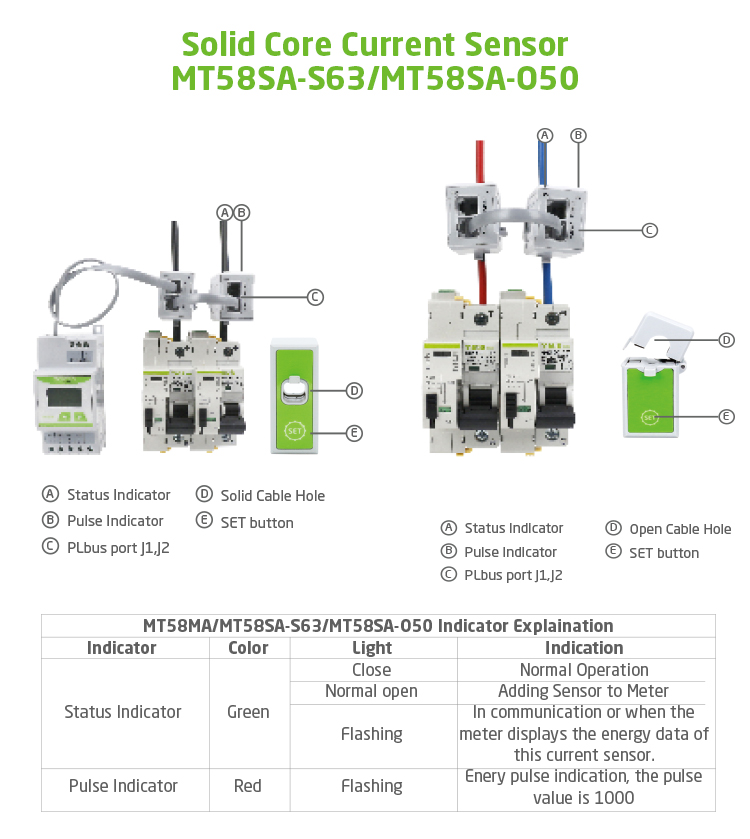

5(63)A for solid core sensor MT58SA-S; 10(50)A for open core sensor MT58SA-O |
DC10 (125)A; DC5(63)A |
| Meter and Measurement accuracy |
Active Energy |
Accuracy: 1% (Range: 0-99999999.9) for MT58SA-S; Accuracy: 2% (Range: 0-99999999.9) for MT58SA-O |
Accuracy: 1% (Range: 0-99999999.9) for MT58SD |
| Reactive Energy |
Accuracy: 2% (Range: 0-99999999.9) |
Accuracy: 2% (Range: 0-99999999.9) |
| Other Features |
Connection Capacity |
Max. 30 loads of single phase or max 10 loads of three phase |
Max. 12 DC loads |
| Power Consumption |
< 5W/10VA |
< 6W |
| Degree of protection |
IP20 |
IP20 |
| Communication & Software |

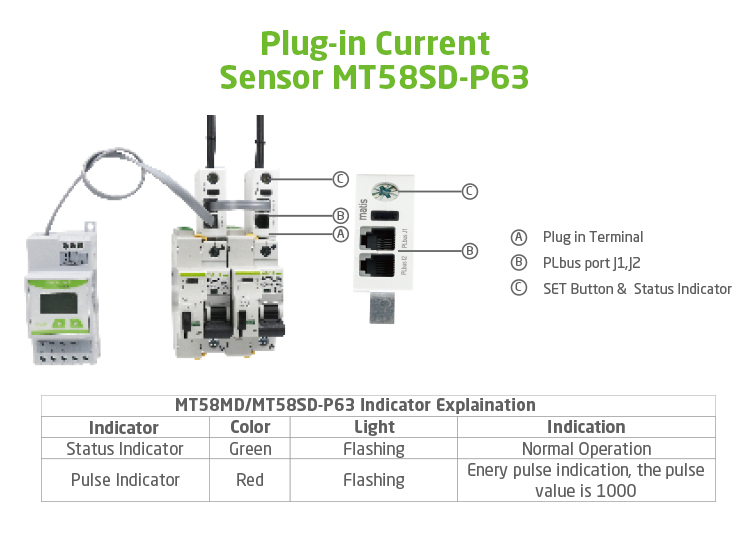

Connection between Meter control unit and Collection sensors |
PLbus with connector RJ12 |
| Interface |
1XRS485 |
| Baud Rate |
4800, 9600, 19200 |
| Protocol |
Modbus RTU |
| Software |
Connect to Matis software through communication module MT88C or connect the third party software through RS485 and Gateway |
More Products
Product Application
About Us
Certifications
Product Packaging
Frequently Asked Questions
I’m so interested in your AIoT electric products, how to contact with you?
You can contact us online or check our website to send e-mail.
Where can download catalogues of your AIoT electric production?
You can download our catalogues on our website, or we can send it to you by email.
Your AIoT electric products are so impressive. How can I become your distributor?
We are so happy and welcome you to be our distributor, and looking forward to your long term cooperation. Please self-introduce your company or business information, and your detailed plan to contact with us online or check our website and send by e-mail.
What communication protocols do these AIoT devices support?
The hardware offers the common interface RS485 and supports Modbus RTU protocol, which allows seamless connection with different communication modules and software platforms.
Can the remote control function operate individual loads?
Yes, the system enables users to switch on/off, lock/unlock each individual load remotely while monitoring voltage, current, and energy consumption.
What is the measurement range and capacity of the multi-channel system?
The system supports a wide measurement range up to 125A, with a connection capacity of up to 30 loads of single phase or up to 10 loads of three phase.
