Buying low-cost electricity during off-peak hours and discharging it during peak or ultra-peak periods to reduce corporate energy costs.
Optimizing demand through energy storage deployment to minimize short-term peak loads, lower demand charges, and enhance user revenue.
During power shortages, enterprises voluntarily reduce consumption (e.g., peak shaving) to support grid stability, earning economic incentives in return.
Providing emergency power to critical uninterrupted loads in industrial parks during outages, ensuring operational continuity and business stability.
Participating in power market transactions—such as frequency regulation and spot trading—through aggregated storage or virtual power plant models to boost profits.

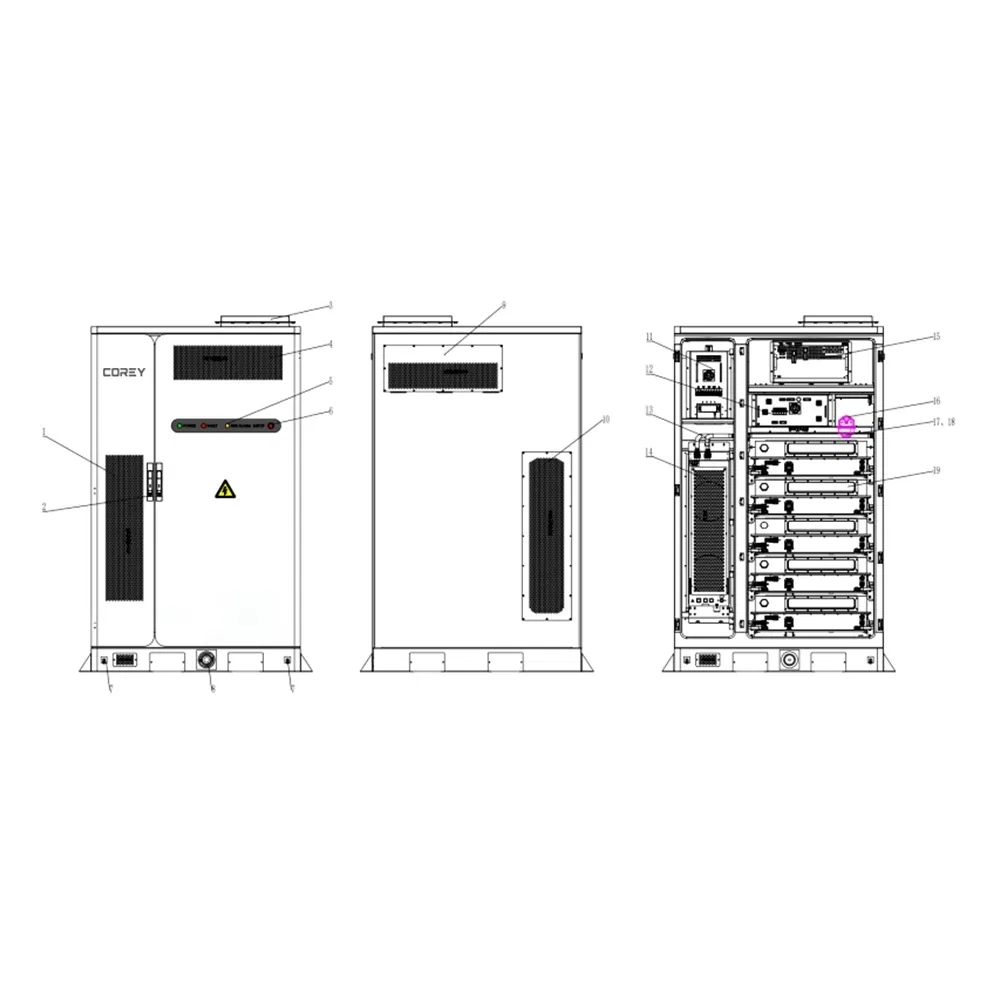

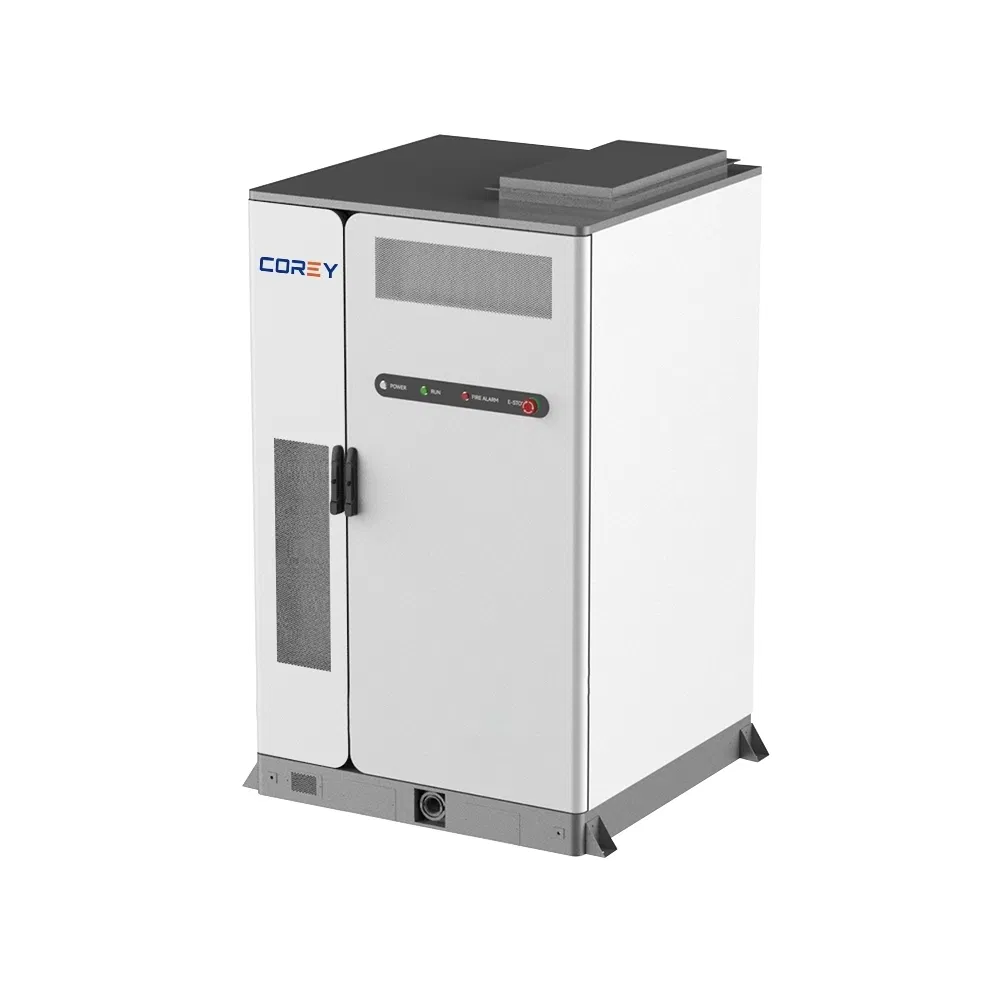

| Product Model | 233CE | |
|---|---|---|
| System Parameters | ||
| System Parameter | Battery Cell | LFP(LiFePO4) 3.2V 280Ah |
| System Capacity | 233kWh | |
| Rated Power | 105kW | |
| Access Method | 3W+N/3W+N+Pe | |
| Communication | CAN/RS485/Ethernet/4G | |
| Cooling Method | Intelligent Liquid Cooling | |
| Fire Fighting | Aerosol(pack-level + cluster-level ) + Water Fire Protection(cabinet-level) | |
| Protection Level | IP54 / C4 Anti-corrosion | |
| Size | L1560mm*D1380mm*H2385mm | |
| AC Side Specification | ||
| AC Side | Rated Voltage | 230V/400V(±15%) |
| Rated Frequency | 50/60 Hz | |
| Maximum Current | 167A | |
| Automatic Switch Time | 20ms (optional) | |
| DC Side Specification | ||
| DC Side | Rated Voltage | 832V |
| Voltage Range | 728~936V | |
| Discharge Depth | 95%DOD | |
| Certifications | CQC, LVRT/HVRT, EN 62477, EN 61000, EN 50549-2, UN38.3, EN 62619, VDE 4105 | |

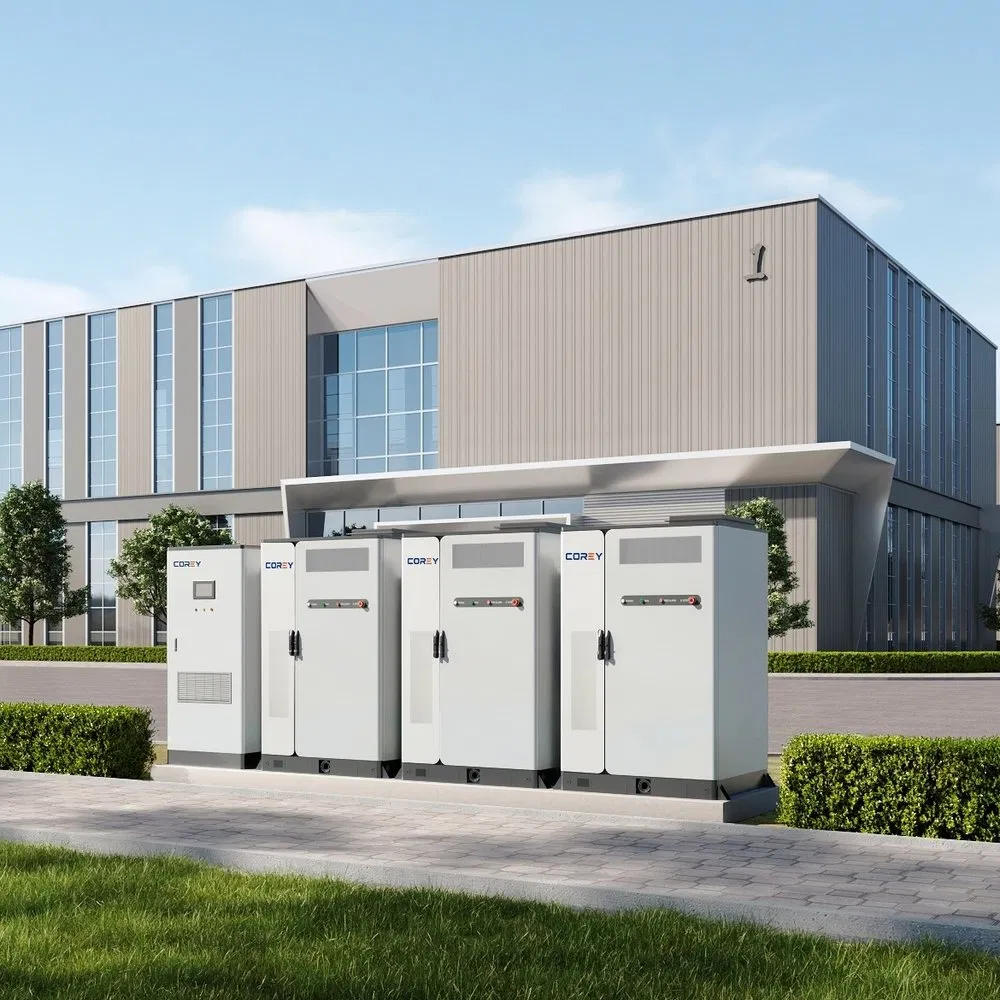

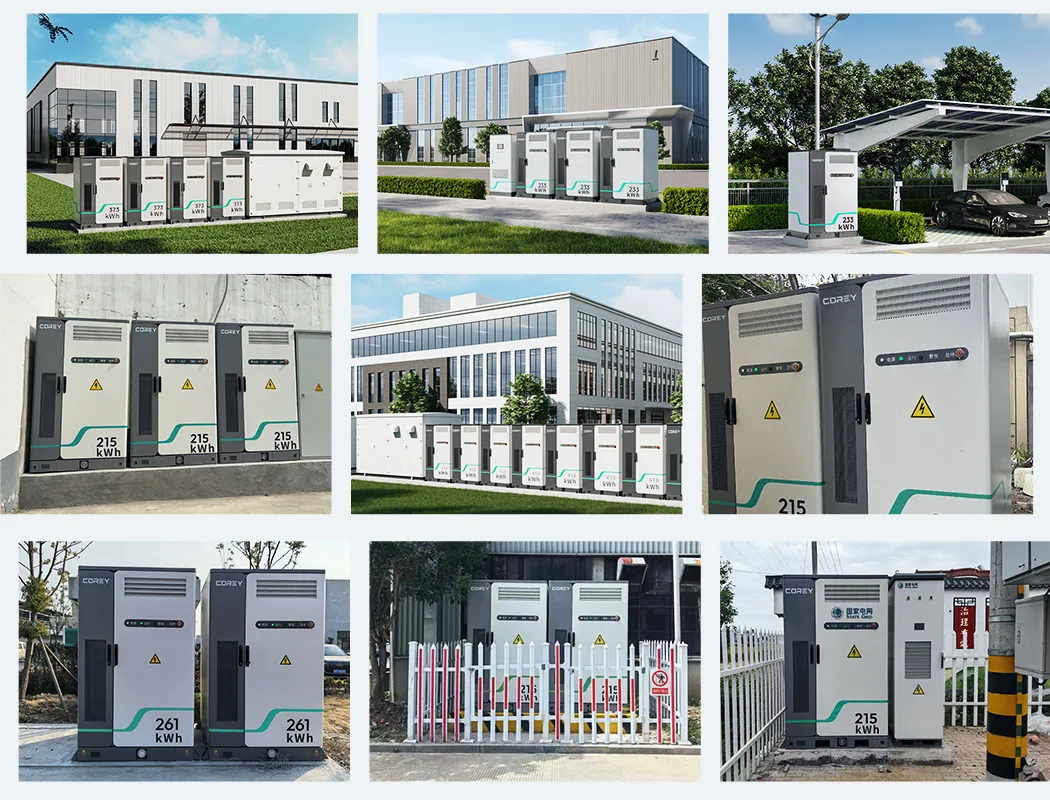

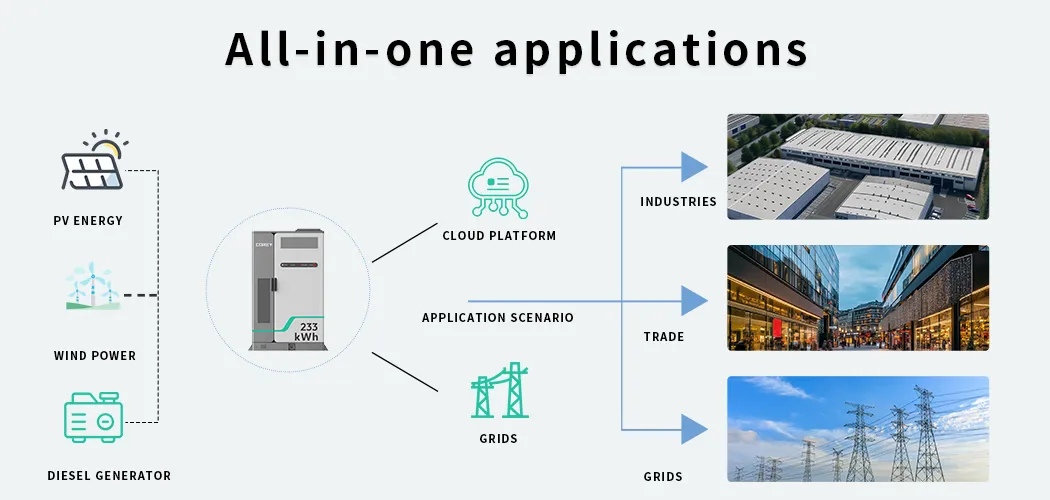

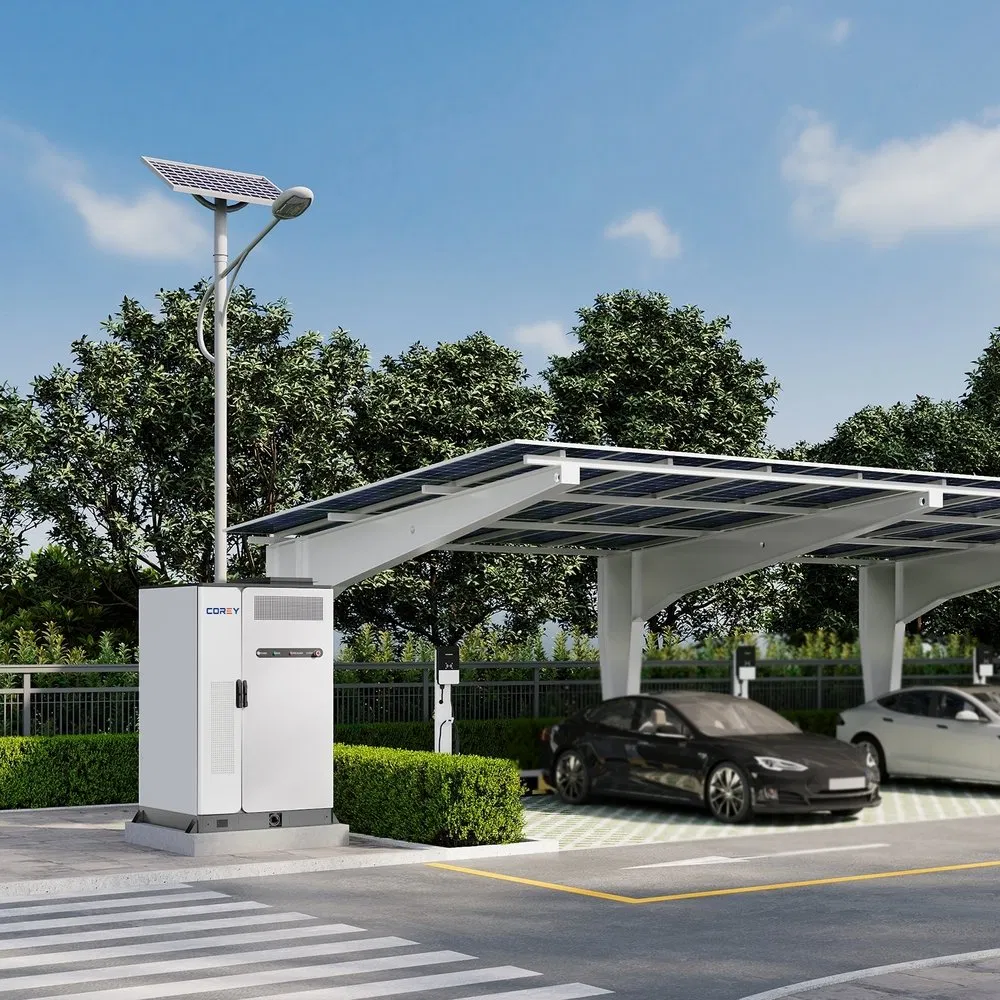

Ideal for factory buildings, commercial buildings, areas with power shortages, and remote areas.
