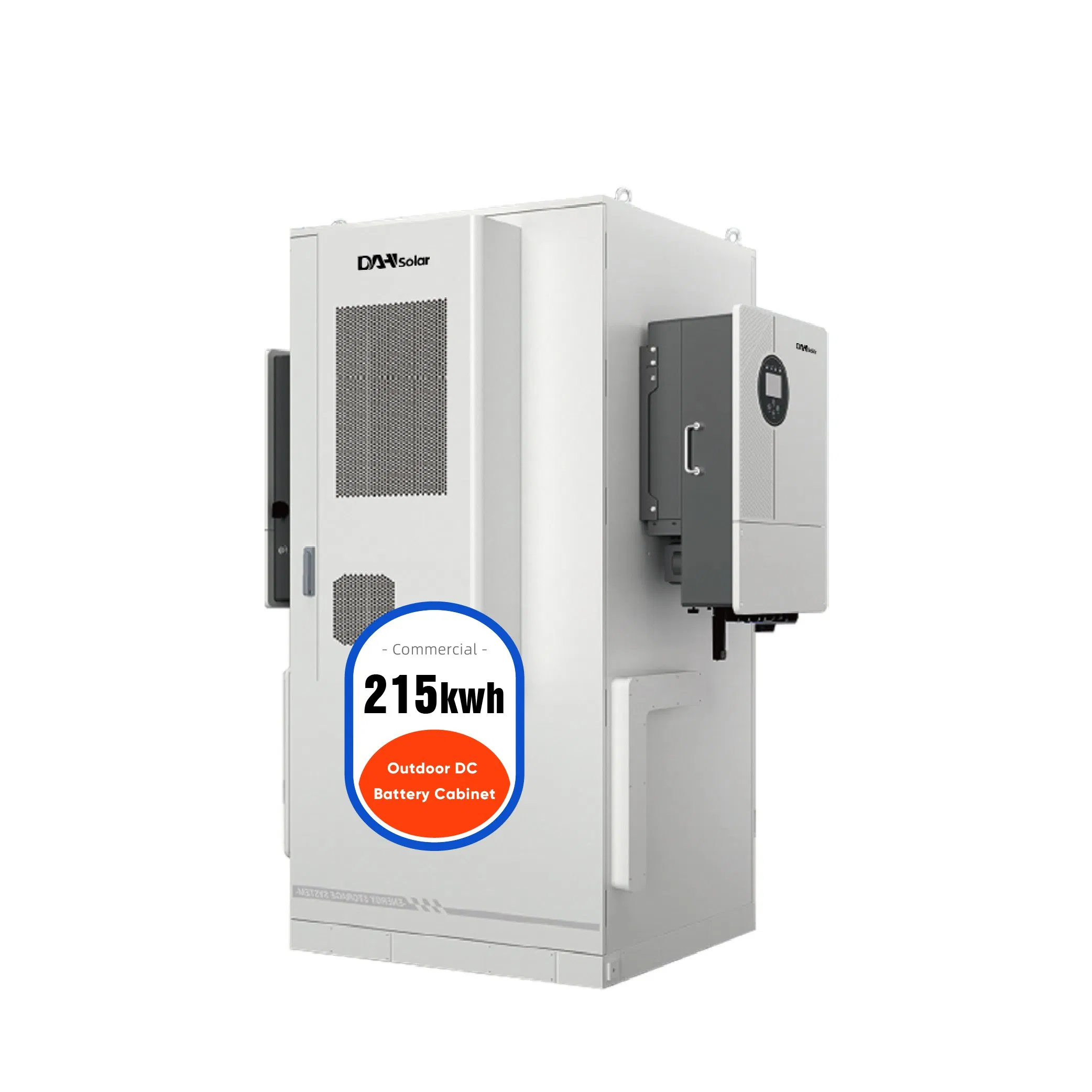

| Model | DHN-HVC15x15-G1 | DHN-HVC16x15-G1 |
|---|---|---|
| Battery System | ||
| Battery Model | DHN-HVRES15-G1 | DHN-HVRES16-G1 |
| Battery Type | LiFePO4 | LiFePO4 |
| Battery Capacity (Ah) | 280 | 314 |
| Recommend Charge/Discharge Current (A) | 140 | 157 |
| Max Charge/Discharge Current (A) | 160 | 180 |
| Rated Voltage (V) | 768 | 768 |
| Operating Voltage (V) | 604.8-817.6 | 604.8-817.6 |
| Nominal Energy (kWh) | 215 | 241 |
| Basic Parameters | ||
| Weight (kg) | 2600 | |
| Dimension (W/H/D, mm) | 1255x2360x1200 | |
| IP Rating of Enclosure | IP55 | |
| Anti-corrosion Grade | C3 | |
| Cooling Method | Air-cooling | |
| Fire Protection | Aerosol fire protection | |
| Operating Temperature (°C) | Charge: 0~+50 / Discharge: -20~+55 | |
| Storage Temperature (°C) | 0~+35 | |
| Recommend Depth of Discharge (%) | ≤90 | |
| Cycle Life (25±2ºC, 0.5C/0.5C, 70% EOL) | ≥6000 & 8000 (Selectable) | |
| Communication Methods | CAN2.0 / RS485 | |
| Warranty Period (years) | 5 | |
| Certification | UN38.3 | |
