Firstly, they adopt LFP (Lithium Iron Phosphate) batteries, ensuring high safety and reliability—critical for long-term industrial operations. The energy capacity ranges from 112.54 kWh to 241 kWh, with high usable energy ratios (e.g., 105.79 kWh usable from 112.54 kWh total), meeting diverse power demand scenarios.
Secondly, the electrical parameters are optimized for industrial grids. Nominal DC voltage spans 358.4V to 832V, with corresponding voltage ranges (313.6V~403.2V up to 728V~949V) to adapt to different grid conditions. Most models feature 100KW rated power and AC 400V rated voltage, compatible with standard industrial power systems.
Thirdly, they are designed as grid-tied systems with MPPT (Maximum Power Point Tracking) functionality (voltage range 200~800V), enabling efficient integration with renewable energy sources like solar panels. Multiple models provide flexible options, allowing users to select based on specific capacity and voltage requirements.
Overall, these products combine safety, flexibility, and grid compatibility, making them suitable for C&I scenarios requiring stable, scalable energy storage solutions.

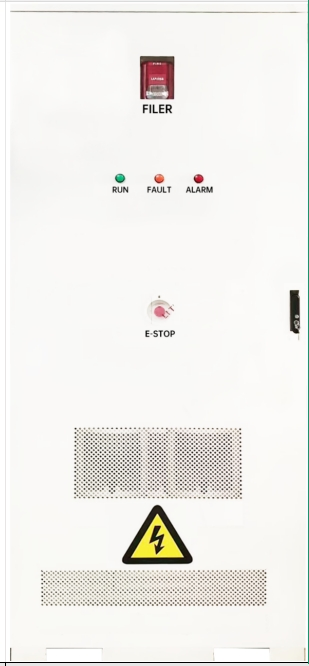

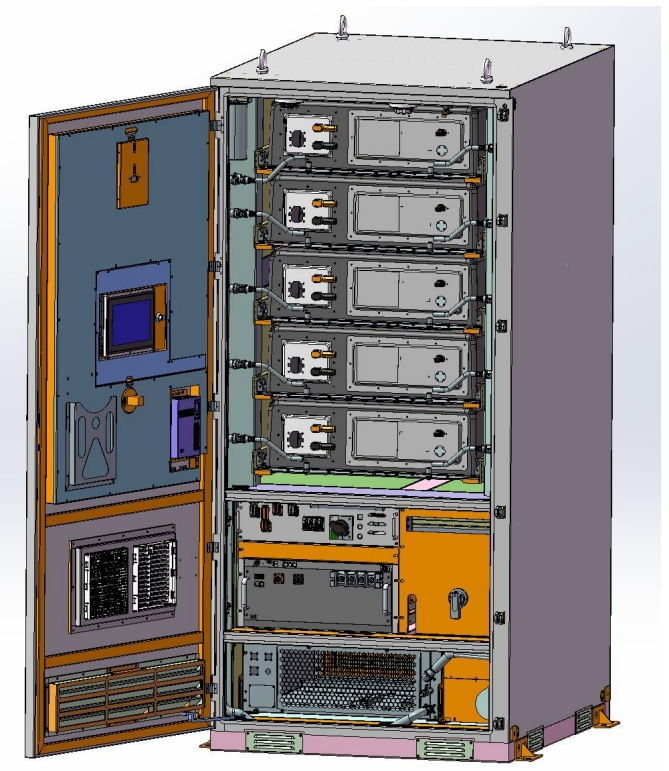

| ProductName | WRES-CI-25-241/125 |
| TotalEnergy(kWh) | 241 |
| UsableEnergy(kWh) | 226.68 |
| NominalVoltage(Vd.c) | 768 |
| VoltageRange(Vd.c) | 672~864 |
| RatedCapacity(Ah) | 314 |
| SingleModuleSpecifications | 153.6V/314Ah |
| Max.PVinputPower(kW) | 115 |
| Max.OutputCurrentToGrid(A) | 167 |
| NominalGridVoltage(V) | 230/400V,3L+N+PE |
| RatedGridFrequency(Hz) | 50/60 |
| Maximumefficiency | 99% |
| CorrosionResistanceRating | C4 |
| Dimension(W*H*D)(mm) | 1055*2300*1300 |
| Weight(KG) | 3080 |
| Altitude | ≤2000m |
| StorageTemperature | -20°C - 55°C (-4°F - 131°F) |
| IPRating | IP54 |
| CycleLife | ≥8000 @ 25°C |
| OperatingEnvironment | Indoor & Outdoor (10%~95% (RH) No Condensing) |

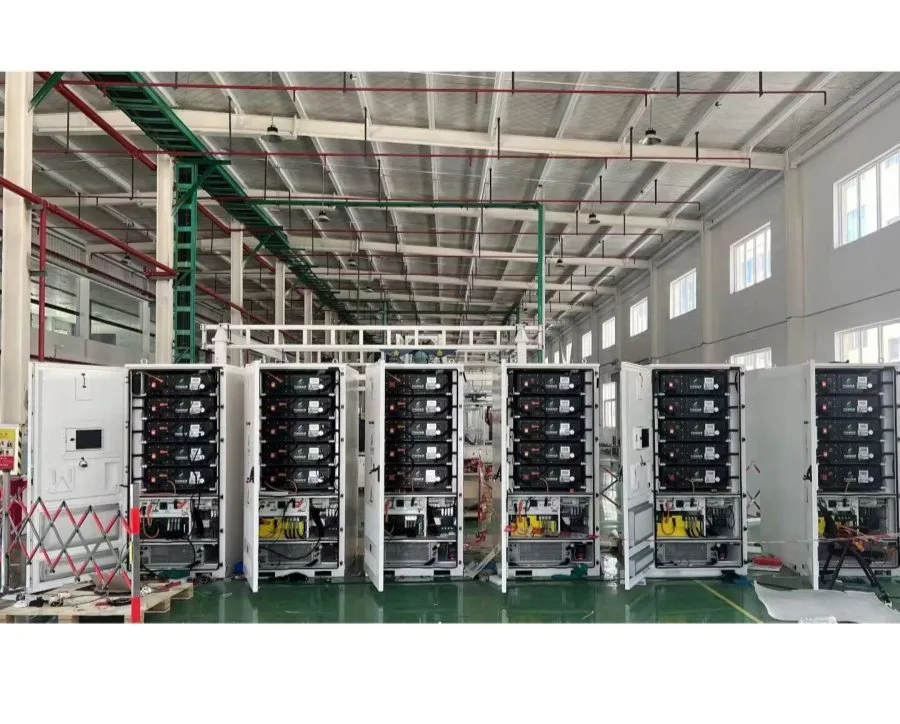

With usable energy capacities (105.79–232 kWh) and rated powers (50–125 kW) tailored to business scales, the systems enable effective peak-valley tariff arbitrage—storing low-cost off-peak electricity and supplying it during high-tariff peak hours, directly cutting long-term energy expenses for energy-intensive sectors like manufacturing and logistics.

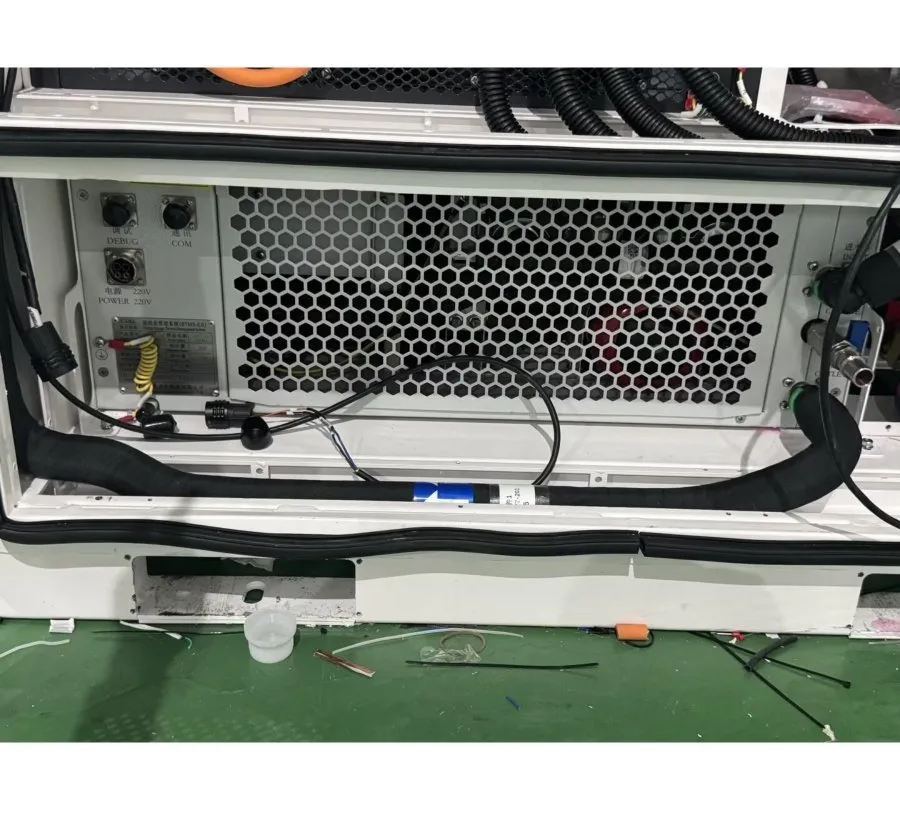

Adopting LFP (Lithium Iron Phosphate) batteries, the systems feature excellent thermal stability and long cycle life, minimizing risks of faults or downtime. Stable AC400V output further guarantees uninterrupted power for critical equipment (e.g., production lines, data servers), avoiding costly operational losses from grid outages.
With wide DC voltage ranges (313.6–949V) and 200–800V MPPT compatibility, the grid-tied systems seamlessly integrate with on-site renewable energy (solar/wind) and adapt to diverse grid conditions. Multiple models (e.g., 112.54kWh, 241kWh capacities) also allow flexible matching to different business energy demands.

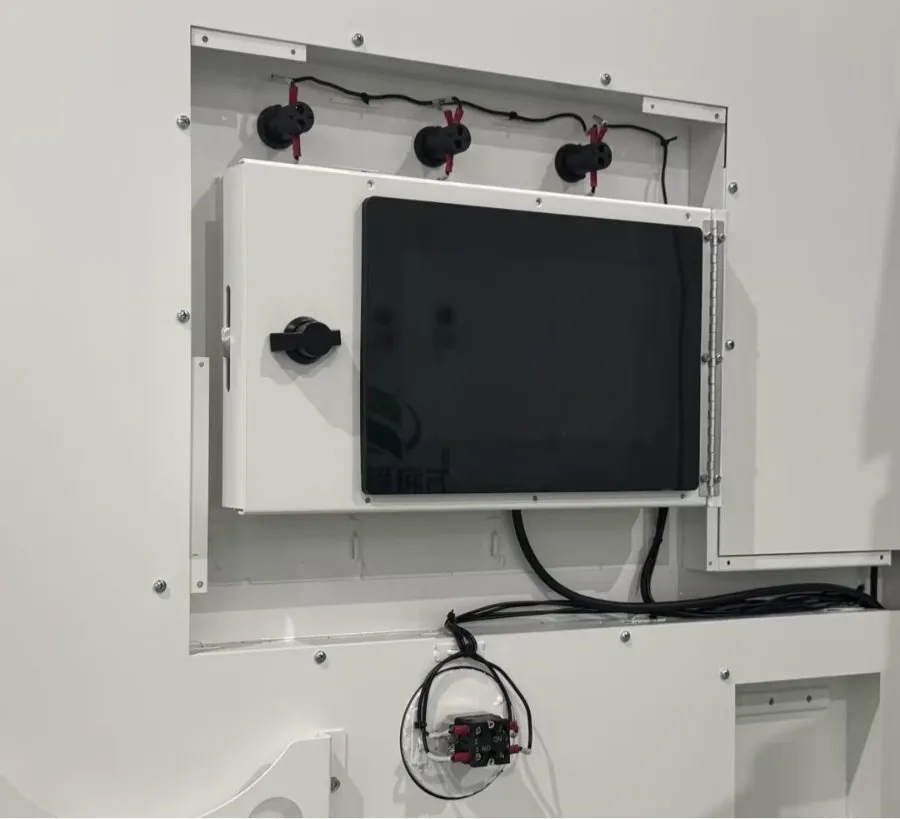

Lastly, they support sustainability goals. By storing excess renewable energy and reducing reliance on fossil-fueled grid power, the systems lower carbon emissions, helping businesses meet environmental targets while enhancing brand reputation.

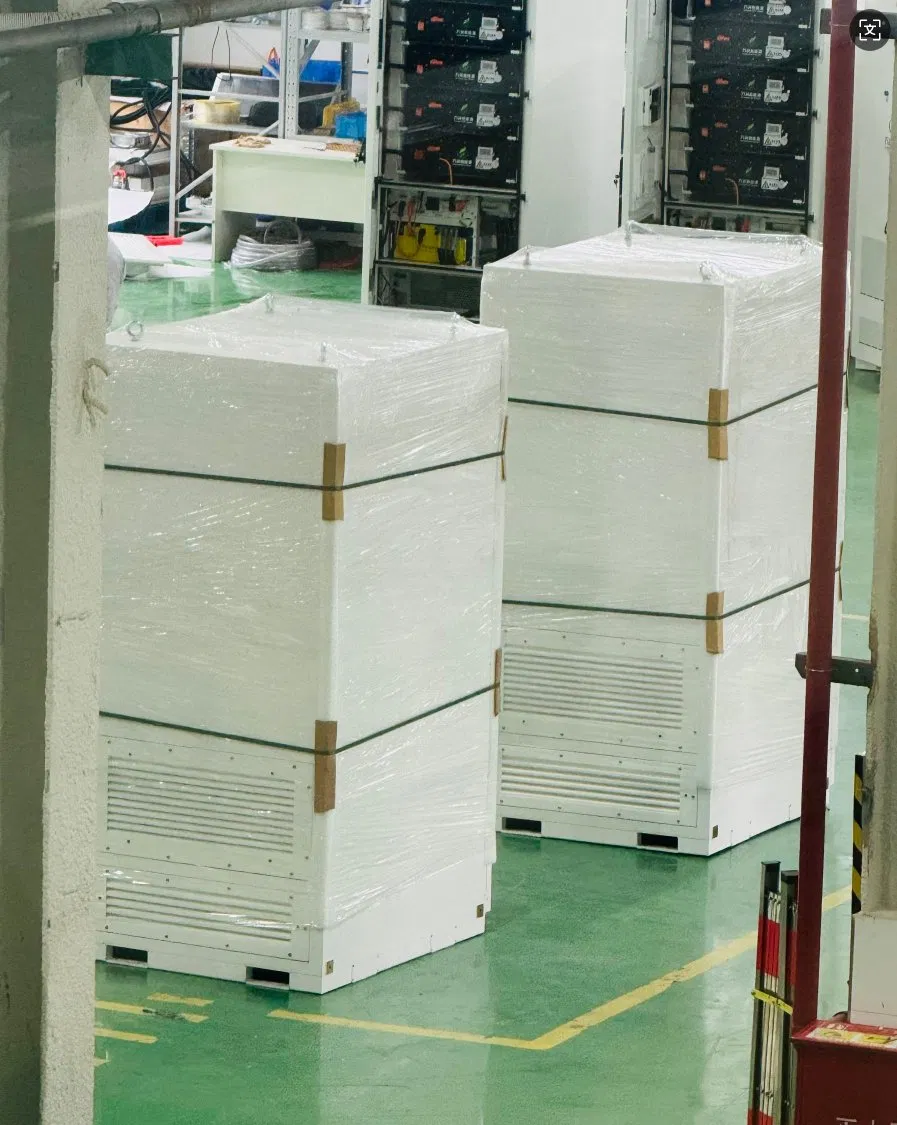

We provide reliable, transparent, and secure transportation services tailored to our core products: residential and C&I energy storage systems, and EV chargers. From dispatch to delivery, we ensure professional handling and safe, on-time arrival.
